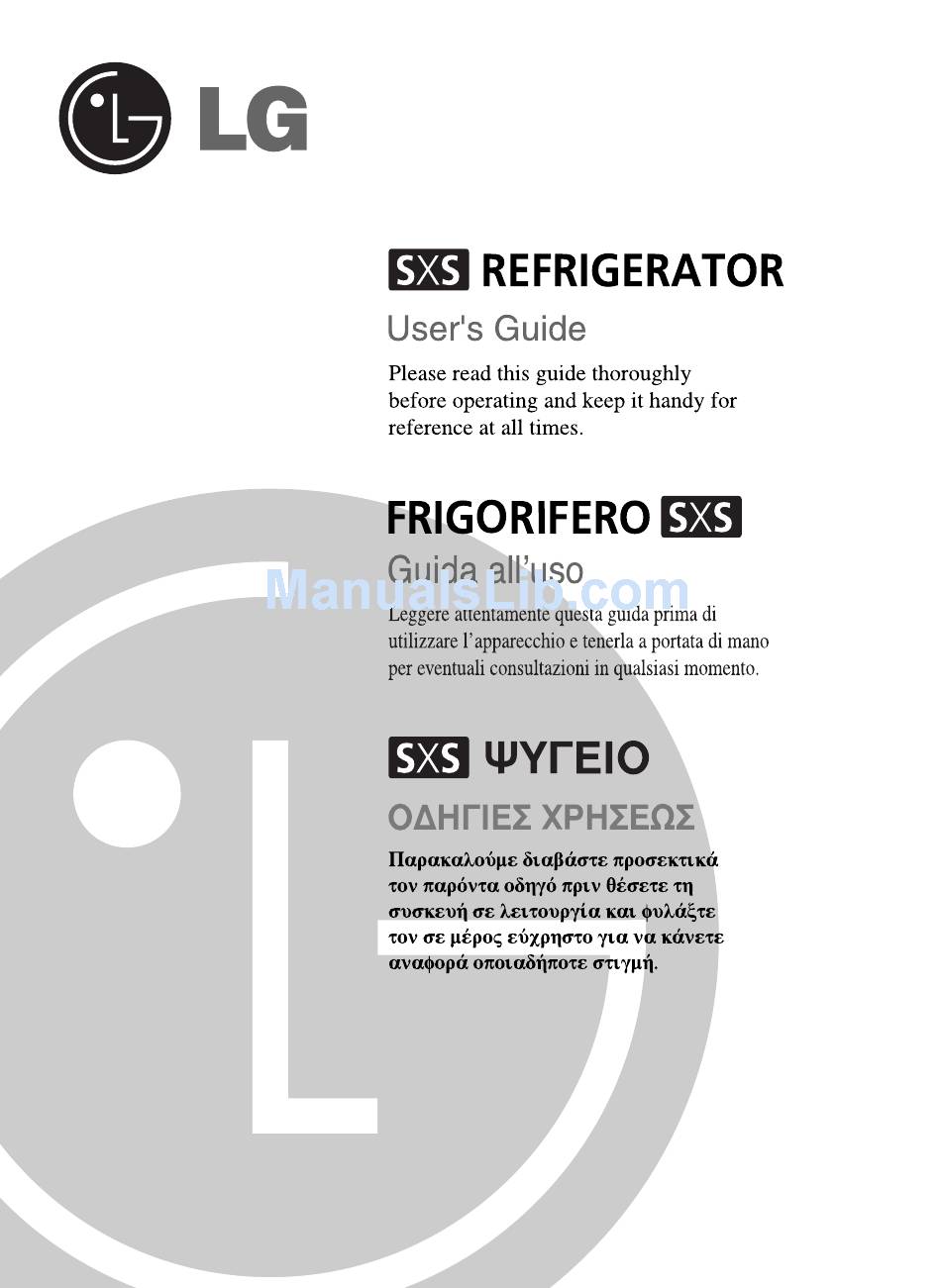

LG Refrigerator User Manual

Hide thumbs Also See for Refrigerator:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual

Advertisement

Table of Contents
loading

Related Manuals for LG Refrigerator

Summary of Contents for LG Refrigerator

  • Page 2 Table of contents...

  • Page 3: Important Safety Instruction

    Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

  • Page 4: Identification Of Parts

    Introduction DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: Take off the doors but leave the shelves in place so that children may not easily climb inside. The appliance is not intended for use by young children or infirm persons without supervision.

  • Page 5: Disposal Of The Old Appliance

    Installation Where to Install 1. Place your appliance where it is easy to Select a good location use. 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

  • Page 6: Door Removal

    Lower hinge • Move the refrigerator compartment door passing through the access door and lay it down, but be careful not to damage the feed water pipe tube. 1) Loosen the hinge cover screws and remove the cover.

  • Page 7: Door Replacement

    Installation Pass the refrigerator laterally through the access door as shown in the right figure. TEMP TEMP Door replacement Mount them in the reverse sequence of removal after they pass through the access door. Feed water pipe installation Automatic ice maker operation needs water pressure of 147~834 kPa (1.5~8.5 kgf/cm ) (That is, an instant paper cup (180 cc) will be fully filled within 3 sec.).

  • Page 8: Height Adjustment

    Level the door by inserting flat ( - type) driver into the groove of the right height adjusting screw and rotate it clockwise ( ). The refrigerator doors will close smoothly by heightening the front side by adjusting the height adjusting screw. If the doors do not close correctly, performance may be affected.

  • Page 9: Adjusting The Temperatures And Functions

    Operation Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions...
  • Page 10 To deactivate the power saving mode, press the FREEZER and EXPRESS FRZ. buttons simultaneously and hold them for 5 seconds until the Ding sounds. You can adjust temperature of and freezer room and refrigerator room. ❇ Whenever pressing button, setting is repeated in the order of (Weak) ➔...
  • Page 11 Operation Select one among crushed ice, water, and cubed ice and slightly press the push switch with a glass or other container. Light the water Light the cubed ice Light the crushed ice indicating lamp by indicating lamp by indicating lamp by pressing the selection pressing the pressing the selection...

  • Page 12: Door Open Warning

    After the machine is powered again, crushed ice will be automatically selected. The unit is newly installed It takes about 12 hours for a newly installed refrigerator to make ice in the freezer compartment. Please select this function for prompt freezer.

  • Page 13: Diagnosis (Failure Detection) Function

    The first ice and water may include particles or odor from the feed water pipe or feed water box. This is necessary in case that the refrigerator has not been used for a long time. Keep children away from the dispenser.

  • Page 14: Refreshment Center (Applicable To Some Models Only)

    You can access the refreshment center without opening refrigerator door and thus saving electricity. Inner lamp is lit in refrigerator compartment when the refreshment center door opens. Thus it is easy to identify the contents. Never use the refreshment center door as a chopping board and take care not to damage it with sharp tools.

  • Page 15: Shelf (Applicable To Some Models Only)

    Operation Shelf (Applicable to some models only) You can store taller items such as a gallon container or bottles by simply pushing in front half of shelf underneath back half of shelf. Pull toward you to return to a full shelf. Wine holder (Applicable to some models only) Bottles can be stored laterally with this wine corner.

  • Page 16: Humidity Control In The Vegetable Compartment

    HIGH Convert into a vegetable or meat compartment (Applicable to some models only) The bottom drawer in the refrigerator can be converted into a vegetable or meat compartment The meat compartment maintains the temperature at a lower point than the refrigerator compartment so that meat or fish can be stored fresh longer.

  • Page 17: Miracle Zone Temperature Transition Corner (Applicable To Some Models Only)

    Operation Miracle Zone Temperature Transition Corner (Applicable to some models only) By pressing the button, store vegetables, fruits or other types of food such as meat to be defrosted, raw fish, etc. Temperature Change at Miracle Zone (Applicable to some models only) You can select optimum temperature range depending on types of foods stored.

  • Page 18: Location Of Foods

    Suggestion on food storage Location of foods (Refer to identification of parts) Store wine. Store small foods such as bread, snacks, etc.. Store various frozen foods such as meat, fish, ice cream, frozen snacks, etc.. Store small packed frozen food. Temperature is likely to increase as door opens.

  • Page 19: Storing Foods

    Do not store food which goes bad easily at low temperatures, such as bananas, and melons. Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil other food, and lead to higher energy consumption.

  • Page 20: How To Dismantle Parts

    (➀) and rotating (➁) the lamp cover. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center. To remove a shelf, push the shelf to the left , lift the left part of the shelf a bit , lift the right part up ➂...
  • Page 21 To remove the lamp cover, press the protrusion under the lamp cover to the front and then pull the lamp cover out. Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be purchased at a service center.

  • Page 22: General Information

    0 Suggestion on food storage General information During average length vacations, you will probably find it best to leave the refrigerator in operation. Place freezable items in freezer for longer life. When you plan not to operate, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

  • Page 23: Troubleshooting

    This is normal. Larger, more efficient one you owned. units run longer in these conditions. It is normal for the refrigerator to work Room or outside weather is hot. longer under these conditions. It takes some hours for the refrigerator Refrigerator has recently been to cool down completely.

  • Page 24: Temperatures Are Too Warm

    Set the freezer or refrigerator control to a colder setting until the freezer or refrigerator temperature is satisfactory. Refrigerator control is set too warm. Set the freezer or refrigerator control to a Refrigerator control has some effect on colder setting until the freezer or freezer temperature.
  • Page 25 ON cycle. the refrigerator continues to run. Floor is uneven or weak. Be sure floor is level and solid and can Refrigerator rocks on the floor when it is adequately support refrigerator. moved slightly. Remove items.
  • Page 26 Clean interior with sponge,warm water Interior needs to be cleaned. and baking soda. Cover food completely. Food with strong odor is in the refrigerator. Some containers and wrapping materials Use a different container or brand of produce odors. wrapping materials.
  • Page 27 Open household water line valve. See problem “Ice maker is not making any ice.” Refrigerator or freezer door is not closed. Be sure both doors are closed. Water has been in the tank for too long. Draw and discard 7 glasses of water to freshen the supply.
