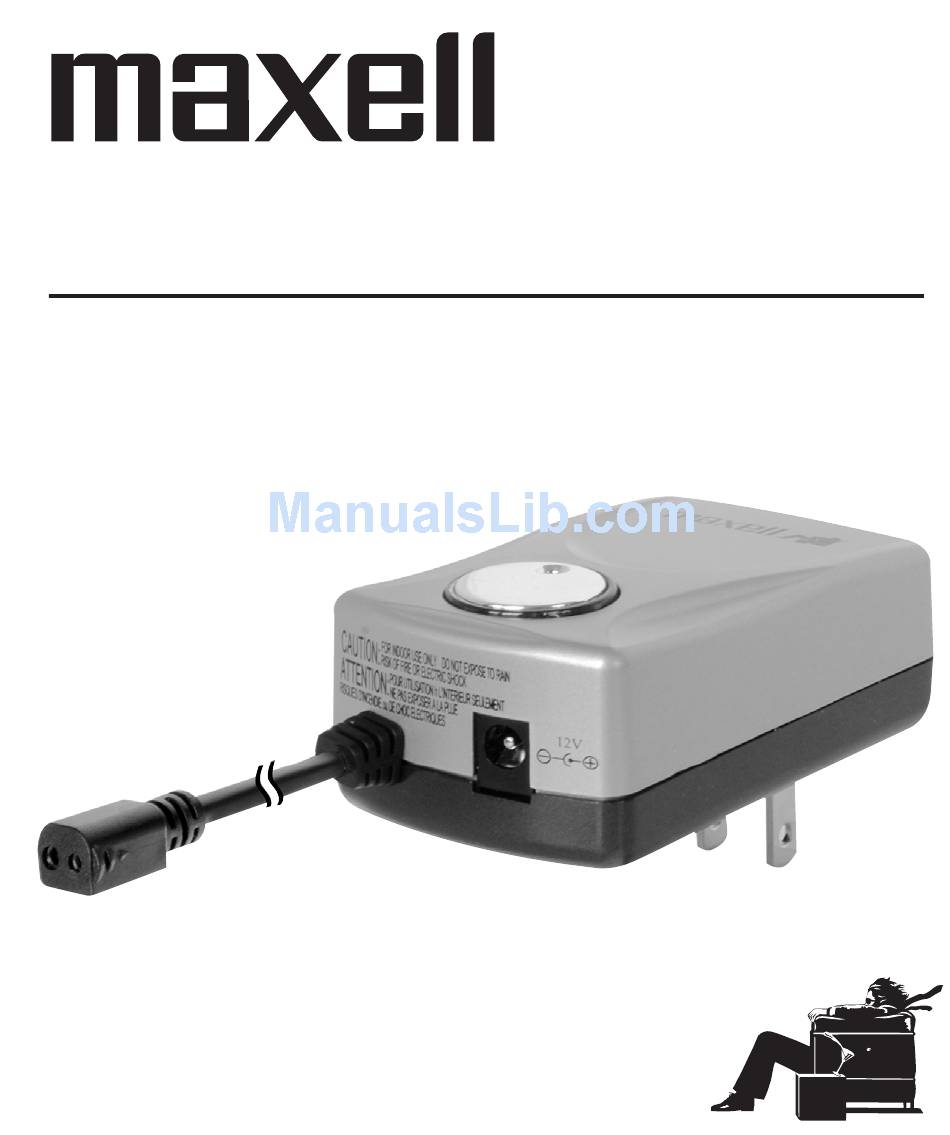

- Page 1 AC 3000 Digital Camera AC/DC Power Adapter User Manual...
- Page 2 INTRODUCTION Congratulations! You have purchased one of the most innovative products on the market today. It is designed to output DC voltage from 3.3 to 8.4v by applying input voltage 100-240Vac or 12Vdc. • Compatible to a wide range of DC camera adapters - refer to the compatibility list.
- Page 3 Figure 1 AC 3000 Parts and Components A. Voltage Indicator D. Car Cigarette Plug input (12Vdc ) B. Power and polarity indicator E. AC input blades (100-240Vac ) C. Output Cord and Tips F. Voltage and polarity selector...
- Page 4 ACCESSORIES United Kingdom/Hong Kong adapter European adapter Output Plugs Tips Tips Dimension : Outer diameter * Inner Diameter * Length 4.75 mm * 1.70 mm * 10.8 mm 4.00 mm * 1.70 mm * 10.8 mm 3.75 mm * 1.10 mm * 10.8 mm 3.00 mm * 1.10 mm * 11.6 mm 2.35 mm * 0.70 mm * 9.40 mm For Sony Camcorder / Digital Camera...
-
Page 5: Operating Instructions
OPERATING INSTRUCTIONS IMPORTANT: The following instructions must be read before using the adapter for the first time. This section explains how to select the output Tips and set the output voltage / polarity and power up the Adapter. Select the output Tips •... - Page 6 • After confirming the polarity and voltage required, rotate the Voltage Selector Knob at the bottom to the appropriate voltage range. Red marking – Center negative voltage Green/Blue marking – Center positive voltage Voltage Selector Knob • Plug the adapter into the wall outlet (100-240 Vac) or connect to the 12Vdc through the Cigarette Adapter.
-
Page 7: Led Status Indicator
LED STATUS INDICATOR Status Blue / Green Power up with Positive Output DC Voltage Power up with Negative Output DC Voltage LED Dim Output over current No Light NO Power or Output short circuit ADAPTER FITTING Installing the Adapter Insert the Adapter in the direction indicated by Arrow A until it snaps into the Main Housing. -
Page 8: Safety Precautions And Maintenance
SAFETY PRECAUTIONS & MAINTENANCE: • DO NOT use this Adapter unit inside a drawer, closed cabinet, or cover with a cloth. The heat generated from operation may damage Adapter or equipment connected. • DO NOT attempt to open the unit. Doing so will void your warranty. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS: Technology: Switching Mode Operation Power Source: AC Input: 100 – 240 VAC ( 50-60Hz) DC Input: 10 –14 VDC Input Current: AC Input: 300 mA Max. DC Input: 1.4 A Max. Output Voltage: 3.3Vdc 4.3Vdc 5.0Vdc 6.5Vdc 7.0Vdc 8.4Vdc Output Current: 1.6A Max. - Page 10 Maxell will, at its option, repair or replace the defective product at no cost to you during the warranty period. The warranty will not apply if the unit has been subject to accident, misuse, abuse, disassembly, alteration or opened contrary to the instructions contained in the accompanying manual.
