Bosch WTC84101BY Installation And Operating Instructions Manual

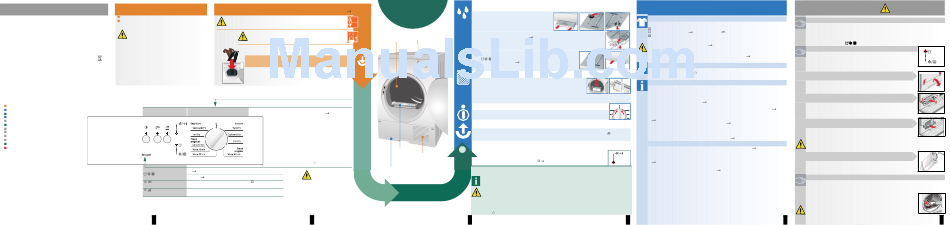

Your new dryer Intended use
Congratulations - You have chosen to buy a modern, high-quality exclusively for domestic use,
Bosch domestic appliance. only for drying fabrics which have been washed using
A distinctive feature of your dryer is its low energy consumption. water.
Every dryer which leaves our factory is carefully checked to ensure Do not leave children unsupervised near the dryer.
that it functions correctly and is in perfect condition. Keep pets away from the dryer.
Should you have any questions, our after-sales service will be pleased
to help.
Disposal in an environmentally-responsible manner
Dispose of packaging in an environmentally-responsible manner.
This appliance is designated according to European directive
2002/96/EC which governs waste electrical and electronic
equipment (WEEE).
The directive provides an EU-wide framework for the return and
recycling of old appliances.
For further information about our products, accessories, spare parts
and services, please visit: www.bosch-home.com
Contents
Page
Preparation . . . . . . . . . . . . . . . . . . . . . . 2
Setting the programmes . . . . . . . . . . . . . 2
Additional functions/status
Drying . . . . . . . . . . . . . . . . . . . . . . . . 3/4 and service indicators
Notes on laundry . . . . . . . . . . . . . . . . . . 5
Care and cleaning . . . . . . . . . . . . . . . . . . 6
Overview of programmes . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . 8
Frost protection / Transport . . . . . . . . . . . 8
Technical data . . . . . . . . . . . . . . . . . . . . 9
Optional accessories . . . . . . . . . . . . . . . . 9
What to do if... / After-sales service . . . . 10
Safety instructions . . . . . . . . . . . . . . . . 11
/
Container/Cleaning
(Low heat)
(Easy-iron)
1
Preparing for
Before using the dryer for the first time
installation, see page 8
run the drying cycle without any laundry see page 7.
Never operate the dryer if it is damaged. Inspecting
Inform your after-sales service.
the dryer
Only if your hands are dry.
Connecting the
Only hold the plug by the plug
mains plug
casing.
Sorting and loading laundry
Remove all objects from pockets.
Pay particular attention to cigarette lighters.
The drum must be empty before filling.
Selecting and adjusting the programme
1
Select the drying programme ...
2
... and adapt to individual requirements
Programme selector
For a detailed programme overview, see page 7.
Press the (Start/Stop) button 3
Lit empty the container for condensation. Only operate the dryer
with the fluff filter inserted.
Flashes clean the fluff filter and/or air cooler.
Reduced temperature for delicate fabrics , e.g. polyacrylic,
polyamide, elastane or acetate; for longer drying times.
Reduces creasing and prolongs the anti-creasing phase
after the programme has finished.
2
Drying Emptying condensation
Empty the container after every use.
1. Remove the condensation container and hold it
level.
2. Open the locking cap.
3. Pour out the condensation.
Check the valve in the condensation container for dirt:
If there are fluff deposits on the valve rinse the valve under running water.
Control panel Also pour some tap water into the empty condensation container then pour it out again
Drum
through the valve.
To do this, press the valve in and allow all the water to drain out.
4. Close the locking cap.
5. Always push the tank fully back in until it locks in place.
If the / (Container/Cleaning) indicator light comes on
after emptying the container see page 10.
Cleaning the fluff filter
Clean the fluff filter after every use.
1. Open the door and pull out the fluff filter.
2. Remove the fluff (brush your hand over the fluff filter).
If the fluff filter is very dirty or blocked, wash it out with warm water
and dry thoroughly.
3. Replace the fluff filter.
4. Remove fluff from door/door area.
Switching off the dryer
Set the programme selector to O (Off).
Do not leave laundry in the dryer.
Removing the laundry
Your dryer has an automatic anti-crease function. The drum is moved at set intervals for 30 minutes after
the programme has ended. Laundry remains loose and fluffy (for 90 minutes, if additional
function is selected - depending on model).
Fluff filter
Air inlet
End of programme
as soon as / (Finished/fluffing) indicator light flashes
Adding or removing laundry
Condensation container
The drying cycle can be interrupted in order to add or remove laundry.
The programme must then be continued or ended.
Drying
The drum and the door may be hot!
1. Open the door. The drying process is interrupted.
2. Load or remove laundry and close the door.
3. If required, select a new programme and additional functions.
4. Press the (Start/Stop) button.
3
Information on laundry ...
Labelling of fabrics
Follow the manufacturer's care information.
Drying at normal temperature.
Low-temperature drying in addition, select (Low heat).
Do not machine dry.
Be sure to follow the safety instructions see page 11!
For example, do not use the dryer for the following fabrics:
– Airtight fabrics (e.g. rubber-coated fabrics).
– Delicate materials (silk, curtains made from synthetic material) they may crease.
– Laundry contaminated with oil.
Before drying for the first time
– Do not put any laundry in the dryer. Set the programme selector to a timed programme
( see page 7) and select (Start/Pause). When the programme has finished, set the
programme selector to O (Off).
Drying tips
– To ensure a consistent result, sort the laundry by fabric type and drying programme.
– Always dry very small fabrics (e.g. baby socks) together with large items of laundry
(e.g. hand towels).
– Fasten zips, hooks and eyelets, button covers and tie together cloth belts, strips, etc.
– Do not overdry easy-care laundry risk of creasing.
Allow laundry to finish drying in the air.
– Do not iron laundry immediately after drying, fold items up and leave for a while the
remaining moisture will then be distributed evenly.
– Knitted fabrics (e.g. T shirts, knitwear) often shrink when tumble dried for the first time
do not use the Very Dry programme.
– Starched laundry is not always suitable for dryers starch leaves behind a coating that
adversely affects the drying operation.
– Use the correct dosage of fabric softener as per the manufacturer's instructions when
(Easy-iron)
washing the laundry to be dried subsequently.
– Using a timed programme with a small laundry load optimisation of the drying result.
Environmental protection/energy-saving tips
– Before drying, spin the laundry thoroughly in the washing machine the higher the spin
speed, the shorter the drying time will be (consumes less energy), also spin easy-care
laundry.
– Use the maximum recommended fill level but do not overload laundry
overview of programmes, see page 7.
– Make sure the room is well ventilated during drying.
– Clean the fluff filter after every drying cycle see page 4.
– Do not block or seal the air inlet.
4 5
Only when the appliance is
Care and cleaning
switched off.
Dryer cabinet, control panel, air cooler, moisture sensors
– Wipe off with a soft, damp cloth.
– Do not use abrasive cleaners or solvents.
– Remove detergent and cleaning agent residue immediately.
Clean the air cooler 5 to 6 times a year
or if / (Container/Cleaning) flashes after cleaning the fluff filter.
Air cooler
In order to clean it, the air cooler must be removed.
– Allow the dryer to cool.
– Residual water may leak out, so place an absorbent towel underneath
the maintenance door.
1. Unlock the maintenance door (1).
2. Fully open the maintenance door (2).
3. Turn both locking levers outwards (1).
4. Pull out the front insert (2).
5. Remove the air cooler.
Take care not to damage the air cooler.
When cleaning, use warm water only. Do not use hard or sharp-edged objects.
6. Clean the air cooler thoroughly and allow the water to drain off.
Clean the seals.
7. First insert the air cooler (handle at the bottom) and then the front insert.
8. Turn back both locking levers.
9. Lock the maintenance door.
Moisture sensors
The dryer is fitted with stainless steel moisture sensors. The sensors measure the level of
moisture in the laundry. After a long period of operation, a fine layer of limescale may form
on the sensors.
1. Open the door.
2. Clean the moisture sensors using a slightly damp sponge with a rough
surface.
Do not use steel wool or abrasive materials.
6
