Bosch WAE32464GB Installation Instructions Manual

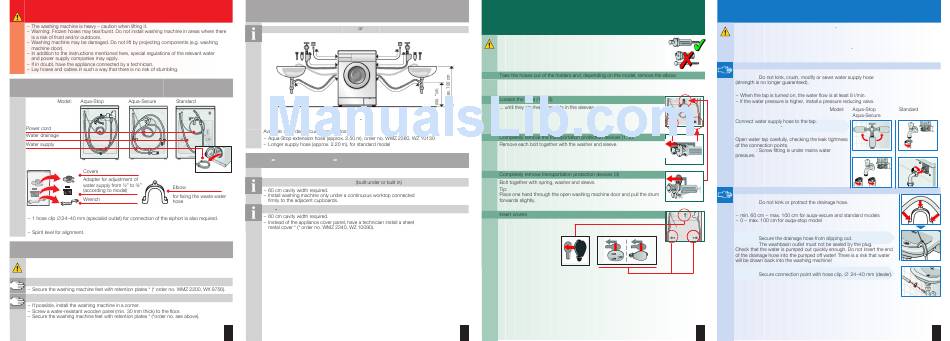

Safety instructions

Humidity in the drum
Scope of delivery
is caused by the final
according to model
inspection.
Depending on the connection
Useful tool

Installation area

- Stability is important to prevent the machine from wandering!
- The installation area must be firm and level.
- Soft floors/floor coverings are not suitable.
If installing the appliance on a base
If installing the appliance on a wooden joist ceiling

Hose and cable lengths

depending on model
Connection on left side Connection on right side
 145 cm  100 cm
 100 cm  145 cm
 90 cm  135 cm
*
Models Standard, Aqua Secure min. 60 cm - max. 100 cm
Model Aqua Stop 0 - max. 100 cm
Built under/Built in appliance
Build under/build in before connection to the power supply.
Installed in between kitchen units
Built under appliance
1
Remove transportation protection
devices
- Before using the appliance for the first time, remove all the transportation
protection devices and retain for subsequent transportation of the
appliance.
- Keep the bolt, washer and sleeve screwed together.
1.
2.
3.
4.
5.
2
Water Connection
depending on model
- Risk of electric shock! Do not immerse Aqua Stop safety device in water
(contains an electric valve).
- To prevent leakage or water damage, follow the instructions in this chapter!
- Attention: Operate the washing machine with cold drinking water only.
Do not connect to a mixer tap of a pressureless hot water heater.
- If in doubt, have the appliance connected by a technician.

Water supply

Water supply hose:
Attention:
3
Optimum water pressure in the mains: 100-1000 kPa (1-10 bar)
1 2
1.
Tighten plastic screw fittings by hand only.
2.
Attention

Water drainage

Water drainage hose:
Attention:
Height difference between installation area and outlet:
Drainage into a washbasin:
Attention:
Attention:
Drainage into a siphon:
Attention:
3
min. 10 mm
max. max.
90_ 90_
min. 10 mm
4
