Tianchi Rita DSDS Draft

White paper

January 2014
Xperia™ T2 Ultra dual
D5322
Note: Screen images are simulated.

Advertisement

Table of Contents
loading

Related Manuals for Sony Xperia T2 Ultra dual D5322

Summary of Contents for Sony Xperia T2 Ultra dual D5322

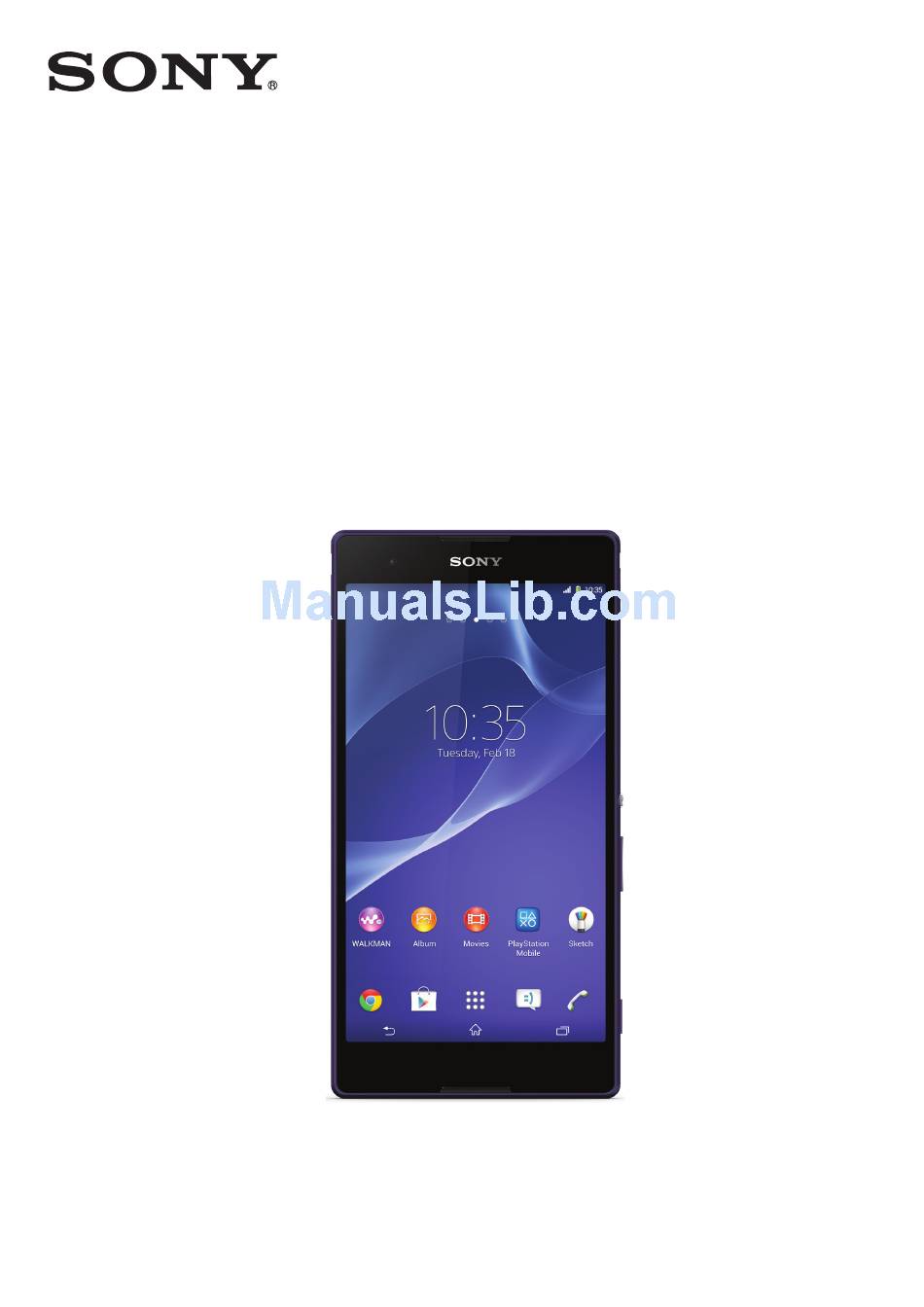

  • Page 1: White Paper

    Tianchi Rita DSDS Draft White paper January 2014 Xperia™ T2 Ultra dual D5322 Note: Screen images are simulated.

  • Page 2: Purpose Of This Document

    White paper | Xperia™ T2 Ultra dual Purpose of this document Sony product White papers are intended to give an overview of a product and provide details in relevant areas of technology. Document history Version January 2014 First released version...

  • Page 3: Table Of Contents

    White paper | Xperia™ T2 Ultra dual Table of contents Product overview ......................2 Xperia™ T2 Ultra dual highlights ................2 Facts – dimensions, weight, performance and networks ........4 Categorised feature list ..................6 Technologies in detail ....................9 Device-to-device communications (local) .............9 ANT+™ wireless technology................9 Bluetooth®...

  • Page 4: Product Overview

    The wide-viewing angle screen is a 6-inch HD TRILUMINOS™ Display for mobile. This means it’s built with the same ground breaking technology as Sony BRAVIA® TVs. You can expect a wider palette and an amazingly vivid reproduction of colours. The screen also includes Mobile BRAVIA® Engine 2, a Sony display technology optimised to enhance sharpness and reduce noise.
  • Page 5 White paper | Xperia™ T2 Ultra dual Super speed and stamina Does speed have to compromise stamina? The Xperia™ T2 Ultra dual proves the answer is no. This Sony smart phone has support for lightning fast LTE networks. For super powerful performance, there’s the quad-core 1.4 GHz Snapdragon processor.

  • Page 6: Facts - Dimensions, Weight, Performance And Networks

    White paper | Xperia™ T2 Ultra dual Facts – dimensions, weight, performance and networks Operating system Google™ Android™ 4.3 (Jelly Bean MR2) Processor 1.4 GHz Qualcomm MSM8228 Quad Core Adreno 305 Size 165.2 x 83.8 x 7.65mm Weight 171.8 grams Available colours Black White...
  • Page 7 White paper | Xperia™ T2 Ultra dual Magnetometer Gyroscope Networks D5322 SIM 1: UMTS HSPA+ 850 (Band V), 900 (Band VIII), 1900 (Band II), 2100 (Band I) MHz GSM GPRS/EDGE 850, 900, 1800, 1900 MHz SIM 2: GSM GPRS/EDGE 850, 900, 1800, 1900 MHz Data transfer speeds GSM GPRS Up to 107 kbps...

  • Page 8: Categorised Feature List

    Portrait retouch Post editing Quick Launch Red-eye reduction Scene recognition Self-timer Send to web Smile Shutter™ Sony Exmor R® for chat camera Sony Exmor RS® for main camera Image sensor Superior Auto Sweep Panorama Time shift Touch capture Touch focus...
  • Page 9 Radio (FM radio with RDS) DLNA Certified® Lunar calendar Reader mode GLONASS* Notes SensMe™ slideshow Media Go™ Setup guide Sony Entertainment Network* Media Transfer Protocol support Stopwatch Video streaming Micro USB support Tasks YouTube™ Native USB tethering Timer PC Companion...
  • Page 10 White paper | Xperia™ T2 Ultra dual * This service is not available in all markets. ** This feature is only available when you play music using the "WALKMAN" application. January 2014...

  • Page 11: Technologies In Detail

    Technologies in detail NOTE: The information outlined below is general and levels of compliance to standards and specifications may vary between products and markets. For more information, contact Sony Mobile Developer World or your Sony contact person where applicable. Device-to-device communications (local) ANT+™...

  • Page 12: Bluetooth® Wireless Technology

    White paper | Xperia™ T2 Ultra dual Bluetooth® wireless technology Bluetooth® profiles supported Advanced Audio Distribution Profile v1.2 Audio/Video Remote Control Profile v1.3 Device Identification Profile v1.3 Generic Attribute Profile Client/Server over LE Handsfree Profile v1.6 (Wide band speech) Headset Profile v1.2 Health Device Profile v1.1 Human Interface Device Profile, Host role v1.1 Messaging Access Profile v1.0...

  • Page 13: Wi-Fi

    White paper | Xperia™ T2 Ultra dual Wi-Fi® Supported standards IEEE 802.11a/b/g/n and Wi-Fi® Wi-Fi Direct, Wi-Fi Protected Setup Connectable devices Wi-Fi® access points Wi-Fi Direct compatible devices Frequency band 2.4 GHz/5 GHz Data transfer rate Up to 150 Mbit/s Security Open Authentication Shared Authentication...

  • Page 14: Dlna Certified® (Digital Living Network Alliance)

    White paper | Xperia™ T2 Ultra dual DLNA Certified® (Digital Living Network Alliance) Supported Device Classes M-DMS – Mobile Digital Media Server Media Types: images, music and video Summary: The digital media server exposes the media files in your device to a Wi-Fi® network. The files can then be accessed from other DLNA Certified®...

  • Page 15: Messaging

    White paper | Xperia™ T2 Ultra dual Messaging MMS (Multimedia Messaging Service) According to OMA Multimedia Messaging Service v1.0 + SMIL Email Bearer type (IP) GPRS, EGPRS, UMTS Character sets BIG5 Traditional Chinese GB18030 ISO-2022-JP Japanese ISO-8859-1 ISO-8859-2 Eastern Europe ISO-8859-5 Cyrillic ISO-8859-7 Greek ISO-8859-9 Turkish...

  • Page 16: Positioning - Location Based Services

    White paper | Xperia™ T2 Ultra dual Positioning – location based services Supported standards: • OMA Secure User Plane Location (SUPL) v1.0 & v2.0 • 3GPP™ Control Plane location (incl. Emergency location) • Qualcomm® GPSOneXtra™ Supported satellite systems: • GPS •...

  • Page 17: Multimedia (Audio, Image And Video)

    White paper | Xperia™ T2 Ultra dual Multimedia (audio, image and video) Audio Playback Decoder format Supported in file format MP3 (.mp3) AAC (AAC-LC, AAC+, eAAC+) 3GPP (.3gp, 3gpp, mnv), MP4 (.mp4, .m4a), ADTS (.aac) AMR-NB, AMR-WB 3GPP (.3gp, .3gpp), MP4 (.mp4, .m4a), AMR (.amr, .awb) MIDI SMF (.mid), XMF (.xmf), Mobile...
  • Page 18 White paper | Xperia™ T2 Ultra dual Video Playback Decoder format Supported in file format MPEG-4 3GPP (.3gp, .3gpp), MP4 (.mp4, .m4v) Matroska (.mkv), AVI (.avi), Xvid (.xvid) H.265* MP4 (.mp4, .m4v) H.264 3GPP (.3gp, .3gpp), MP4 (.mp4, .m4v) Matroska (.mkv) H.263 3GPP (.3gp, .3gpp), MP4 (.mp4, .m4v)

  • Page 19: Synchronisation (Oma Ds, Eas, Google Sync™)

    White paper | Xperia™ T2 Ultra dual Synchronisation (OMA DS, EAS, Google Sync™) OMA Data Synchronisation protocol versions 1.1.2 and 1.2 OMA Data Formats: vCard 2.1, vCalendar 1.0 Microsoft® Exchange ActiveSync® protocol version 2.5 Microsoft® Exchange ActiveSync® protocol version 12 Microsoft®...

  • Page 20: Memory In Android™ Devices

    Paper is noted as such. Types of memory The types of memory described and numbered below are consistent with the terminology used in Sony mobile device menus and in other content relating to 2014 Xperia™ devices: 1. Dynamic Memory (also known as RAM) is used by applications that run when the device is turned on.
  • Page 21 Settings > Apps. In the Xperia™ T2 Ultra dual, about 4.8 GB of Internal Storage is available out of the box. Please note that in Sony Mobile 2014 products, “Internal Storage” is now the combination of what was previously known as “Device Memory” or “Phone Memory” (for applications and their data – also previously known as “/data”) and “Internal Storage”...
  • Page 22 4. SD Card (known as “/ext_card” from a programmer’s point of view, or by other names in other Android products) is the name for the removable SD memory card in all 2014 Sony Mobile products. As described above, this External Card memory is generally more limited in that any application can read from it, but many applications cannot save to this card.
  • Page 23 White paper | Xperia™ T2 Ultra dual Note 3: For a developer, it is important to note that from a programming point of view the location names used to refer to the different memory areas described in Note 1 are still valid, i.e., the area used for applications (“/ data”) is still present, as is the area used for content (“/sdcard”).

  • Page 24: Trademarks And Acknowledgements

    White paper | Xperia™ T2 Ultra dual Trademarks and acknowledgements All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of their respective owners.
