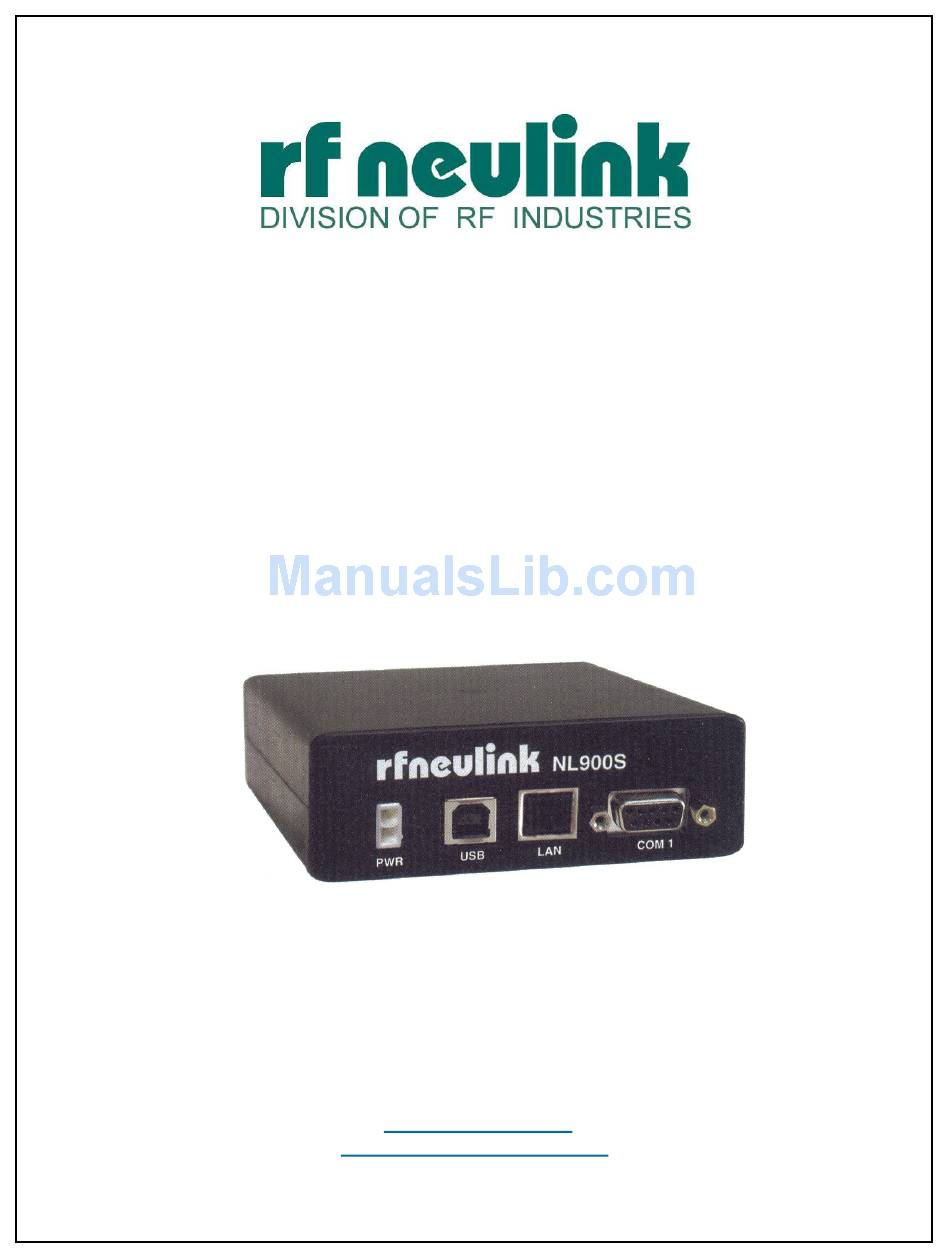

- Page 1 NL900S 900MHz Spread Spectrum Wireless Transceiver User’s Manual Version 1.7 7610 MIRAMAR ROAD SAN DIEGO, CA 92126 (800) 233-1728 www.rfneulink.com rfneulink@rfindustries.com...
- Page 2 RF NEULINK. RF NEULINK reserves the right to make periodic modifications of this product without obligation to notify any person or entity of such revision. Copying, duplicating, selling, or otherwise distributing any part of this product without the prior consent of an authorized representative of RF NEULINK is prohibited.
- Page 3 The preceding statement must be included as a CAUTION statement in manuals for OEM products to alert users on FCC RF Exposure compliance Caution: Any change or modification not expressly approved by RF NEULINK could void the user’s authority to operate the equipment.
-
Page 4: Table Of Contents
1.3 RS232 Cable Pinout Definitions ................7 1.4 RJ45 Cable Pinout Definitions................7 1.5 USB Cable Pinout Definitions................7 1.6 NL900S Configuration Utility Software .............. 11 1.7 Troubleshooting Tips..................12 2.0 Quick Start Trouble Shooting Guide.......... 12 3.0 Ethernet Device Bridge Setup Guide ......... 14 3.1 Setup......................... -
Page 5: Introduction
900 MHz ISM band allows license-free use in the US and Canada. The NL900S supports all standard serial data rates for host communications from 1.2 to 115.2 kb/s. On-board data buffering and an error-correcting air protocol provide smooth data flow and simplify the task of integration with existing applications. -
Page 6: Frequency Hopping Versus Direct Sequence
Transmitting the data signal as usual, but varying the carrier frequency rapidly according to a pseudo-random pattern over a broad range of channels produces a frequency hopping spectrum system. Forms of spread spectrum - direct sequence and frequency hopping Figure 1.1.2 NL900S USER MANUAL... -
Page 7: Rs232 Cable Pinout Definitions
RS232 Cable Pinout Definitions Standard RS232 DB9 Female Connector Null Modem RS232 DB9 Male Connector (Black DB9 Female/Female Cable) (Gray DB9 Female/Male Cable) Description RJ45 Cable Pinout Definitions USB Cable Pinout Definitions NL900S USER MANUAL... - Page 8 NL900S Configuration Utility Software The software CD included with your NL900S units provides a utility for changing the settings on each unit. 1.6.1 Installation 1. Remove the contents of the box - Contents should include: a. NL900S unit b. This Quick Start Guide c.
- Page 9 Launch the configuration wizard to configure the radio by either double-clicking the “NL900S RCS Lite” desktop icon, or by launching it from the programs menu; (Accessed by clicking on the “Start” button) under “All Programs”, “NL900S RCS Lite”, “NL900S RCS Lite”...
- Page 10 User Level Access Username: user Password: user Administrative Level Access Username: admin Password: admin Figure 3 User Level Access – User Level Access allows you to perform many of the basic tasks for configuring a radio. Such as: NL900S USER MANUAL...
-
Page 11: Nl900S Configuration Utility Software
Click on “Start”, then “Run”, type “devmgmt.msc” into the “Open:” box, and click “OK”. • (This should open the Device Manager) • In the Device Manager find the device section with the yellow question mark. It NL900S USER MANUAL... -
Page 12: Quick Start Trouble Shooting Guide
LED# - Color Normal Operation 4 - Green MCU Activity [ Solid = Radio Base OS booting, Blinking = NL900S software loaded and running ] 4 - Red MCU Error [ Solid only, indicates unrecoverable error, power cycle needed ]... - Page 13 These field values can be changed but only advanced users should consider changing the information in these fields. See the example in the figure below. The 6 fields of special attention are numbered in red. NL900S USER MANUAL...
-
Page 14: Ethernet Device Bridge Setup Guide
If you are seeing a massive amount of data going over the link, indicated by Ethernet activity • and Tx/Rx activity lights, you have a program or service on one or both of the connected devices that is producing unwanted traffic; this could render the link unusable. NL900S USER MANUAL... -
Page 15: Testing The Link
Ping times could be slower since all broadcast traffic on the network is being transmitted across the bridge (arp packets, etc). Once you are able to ping in both directions, now you can test connectivity at the application level. NL900S USER MANUAL... -
Page 16: Repeater Mode Configuration
The following describes configuring a NL900S to operate as a repeater. “This feature set is supported in serial mode only”. First, program the NL900S Radio Modem as you normally would as a Master. Change only the Destination Radio ID address to 255. This will cause the master to repeat (retransmit) any message it hears on its assigned Network ID to all slaves on the same network. - Page 17 Network 1 Network 1 Network 1 Network 1 Network 1 Network 1 Network 1 Destination Destination Destination Destination Destination Destination Destination Destination Address 4 Address 4 Address 4 Address 4 Address 3 Address 3 Address 3 Address 3 NL900S USER MANUAL...
