Summary of Contents for California Patio Gas BBQ Grill

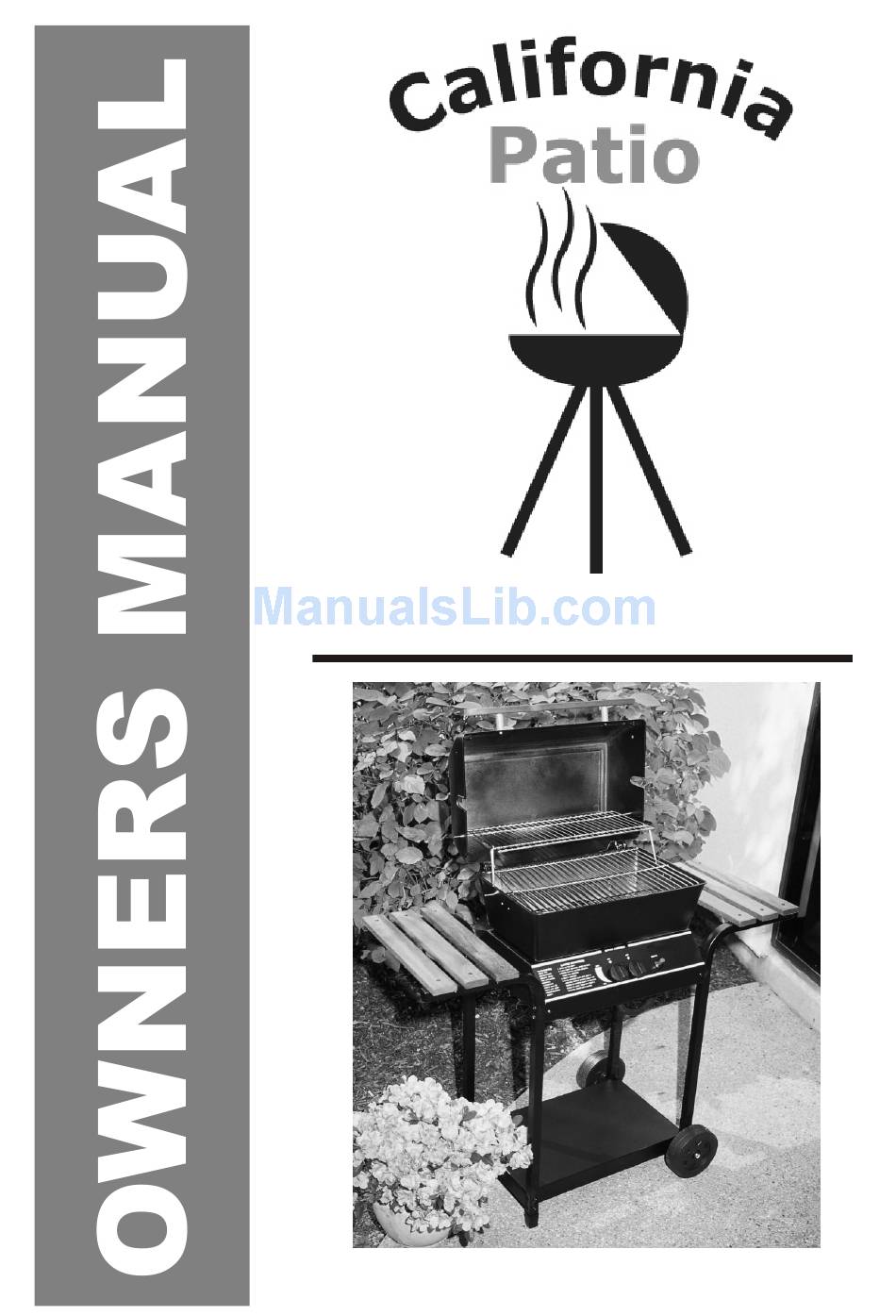

- Page 1 GAS BBQ GRILL GAS BBQ GRILL www.californiapatio.jp...
- Page 2 Assembly and users' instructions for outdoor Gas Grill Using liquid petroleum gas Your new California Patio Gas Grill is made from the highest quality materials, and produced under strict manufacturing controls. Please read the instructions for assembly before commencing, and follow the instructions for use carefully.
- Page 3 30 mbar = 0,84 mm 2.) Guarantee In the unlikely event that the grill has a manufacturing fault, California Patio provides the purchaser with a guarantee covering a period of 12 months from the date of purchase, provided that: 1.A receipt giving proof of purchase is produced.
- Page 4 page 4...
- Page 5 item quantity item no. . Wheel axle 500 001 Wheel 500 002 side shelf slat ( wooden ) 526 001 Gas tube 500 003 Valve 30 mbar UK 526 020 500 004 Grease can holder --------- -------------------- Lid handle 526 005 Washer 526 006 526 007...
- Page 6 Diagram 1 Screw the legs (7) on the right and left, front and back each with two screws respectively (10), with washers (9) and nuts (8) to the ground plate (2). The closed side of the ground plate is placed upwards.
- Page 7 Diagram 2 Position the gas valve (2) with the pre-assembled hose, as shown, from behind into the two big holes (4) of the front panel (7), so that the cam (3) will fit into the lower small hole on the front panel.
- Page 8 Diagram 4 Take the bottom casting (2) and set it on to the holders (1) and the front panel (5). Match the four holes in the bottom of the bottom casting to the four holes in the bottom casting holders and the front panel.
- Page 9 Diagram 7 Take the complete burner (4) with the venturi pipes (2) and the ignitor collector box (3) and stick it from above with the venturi pipes down through the big opening (1) in the bottom casting. Take care that the venturi pipes (9) slide over the nozzles (8) of the valve which is fixed on the front panel (small diagram).
-
Page 10: Troubleshooting
Diagram 9 Place the lava grid (2) on to the lower holders of the bottom casting (3). Spread the lava rocks evenly on the lava grid. To obtain an optimum result in barbecuing the grate should be covered about 70-80%. Place the cooking grid (1) on the upper holders of the bottom casting. Trouble-shooting Problem Check... - Page 11 Dear user, When you have assembled your barbecue, please pull all screws tight after 2 3 days, especially the screws holding the frame (but do not overtighten them). Only thus can the stability of your barbecue be assured. The materials used tend to loosen again after the first tightening and connections could thus become unsteady. 4.) The right place to set it up important tips The grill must only be used outdoors.
- Page 12 7.) Instructions for use 1.Leak control check. Before use, ensure the security of the Gas supply, as stated in Section 5. 2.To light. Raise the lid. Do not stoop over the grilling space. Press in and turn both control knobs to “small flame”...
