EcoWater Waterworks RO 1000 Installation And Operation Manual

Reverse osmosis drinking water system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

WaterWorks _

Reverse Osmosis

DRINKING WATER SYSTEM

Model RO 1000

Installation

Operation

Maintenance

Repair Parts

IF YOU HAVE QUESTIONS

WHEN

INSTALLING,

OPERATING

AND MAINTAINING

YOUR REVERSE

OSMOSIS

SYSTEM...

CALL TOLL FREE

1-800-86

WATER

Manufactured

by EcoWater Systems, Inc.

PO BOX 64420,

ST. PAUL, MN 55164

Part No. 7213971

(10/99)

Table of Contents

Need help?

Do you have a question about the Waterworks RO 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for EcoWater Waterworks RO 1000

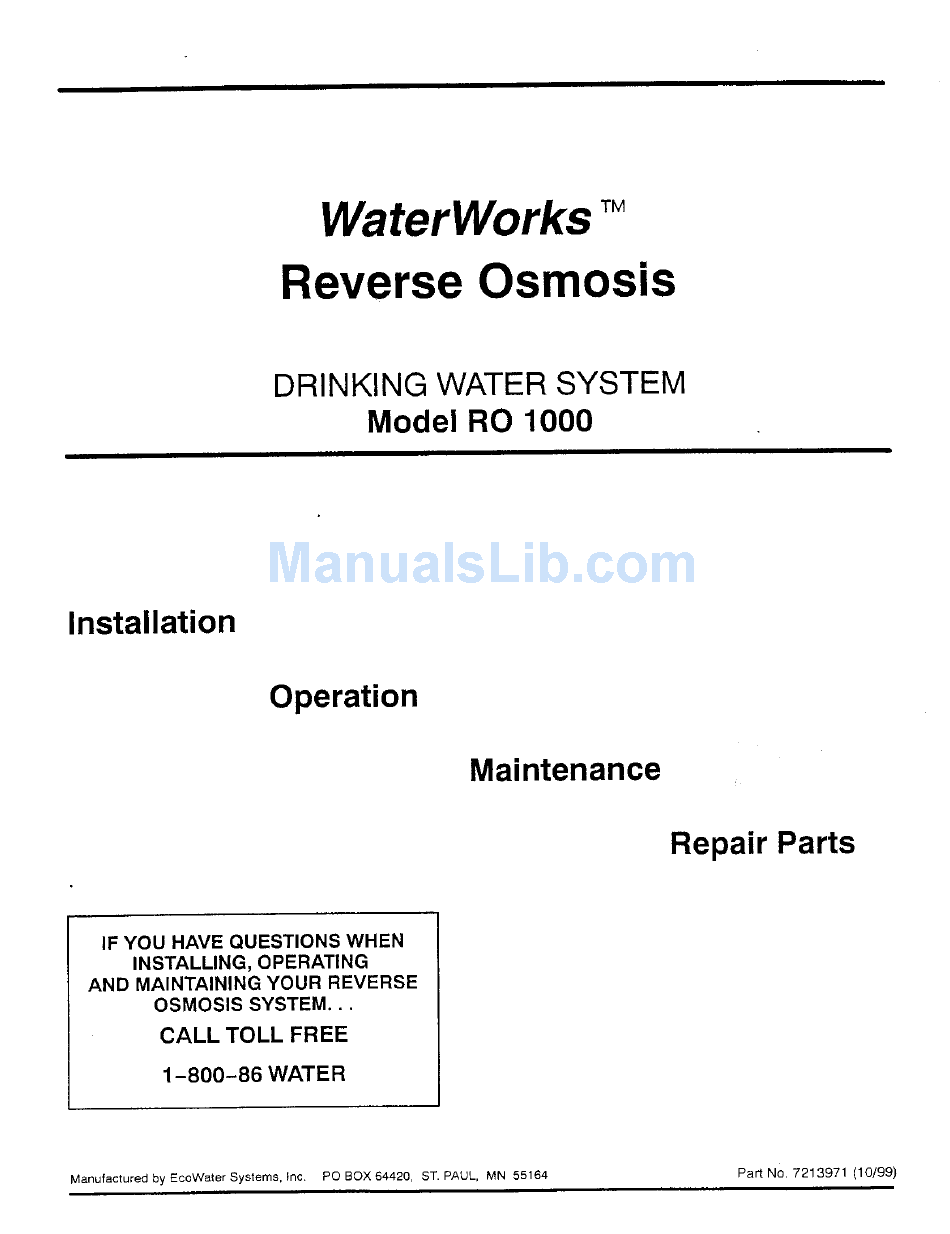

Page 1 Model RO 1000 Installation Operation Maintenance Repair Parts IF YOU HAVE QUESTIONS WHEN INSTALLING, OPERATING AND MAINTAINING YOUR REVERSE OSMOSIS SYSTEM... CALL TOLL FREE 1-800-86 WATER Manufactured by EcoWater Systems, Inc. PO BOX 64420, ST. PAUL, MN 55164 Part No. 7213971 (10/99)
Page 2: Warranty
- WARRANTY FULL WARRANTY ON REVERSE OSMOSIS DRINKING WATER SYSTEM (except filter cartridges and R. O. membrane) For one year from the date of purchase, when the Reverse Osmosis Drinking Water System is installed and maintained in accordance with our instructions, Sears will repair, free of charge, defects in material...
Page 3 - TABLE OF CONTENTS Where To Install the RO System ..Installation Steps - continued Tools and Materials Needed ... Sanitizing, Pressure Test, Purging ..Installation Steps ....the RO System Works ... Cold Water Supply Saddle Valve ..Care of RO System ....
Page 4: Tools And Materials Needed
- WHERE TO INSTALL THE RO SYSTEM - The RO assembly storage tank is designed safety guides on page 2. You do need a nearby water installation under the sink, usually in the kitchen source and drain point (see page 18). bathroom.
Page 5: Water Supply Connection
- STEP 1: INSTALL COLD WATER SUPPLY SADDLE VALVE - Check and comply with local plumbing codes as you plan, then install a cold feed (supply) water fitting. fitting must provide a leak-tight connection to the RO 1/4" tubing (see FIG. 8, page 8). A typical connection, using the included...
Page 6: Step 3: Install Faucet
- STEP 2: INSTALL DRAIN ADAPTER - [] Note: Running the drain tubing directly to a floor FIG, 4 ] drain, sump, standpipe, laundry tub, etc., as shown on page 18, is preferred. However, if that is not pos- sine or practical, the included drain...
Page 7 - STEP 3: INSTALL FAUCET (cont.)- B. ASSEMBLE FAUCET FIG. 6 ] 1. If not already assembled, install the rubber washer, spacer, flat (or lock) washer hex nut onto threaded faucet stud. 2. Apply Teflon tape to the end of the faucet stud.
Page 8: Installation
- STEP 5: INSTALL STORAGE TANK, MAKE REMAINING TUBING CONNECTIONS CONNECT DRAIN TUBING, FAUCET tubing to the saddle valve fitting installed on page 5. Tighten the nut with a wrench. DRAIN ADAPTER: Referring to FIG. 8, run the loose section (connected to faucet barb...
Page 9: Pressure Testing
- STEP 6: SANITIZING, PRESSURE TESTING & PURGING SANITIZING 6. If needed to clean, flush the prefilter sump with flesh water. Then, fill with water to about 1" from the Sanitizingisrecommended upon installation o f the top. 1.0 ounce of chlorine (ordinary 525% RO system, and afterservicinginner parts.
Page 10: How Your Reverse Osmosis System Works
- HOW YOUR REVERSE OSMOSIS SYSTEM WORKS - PREFILTER product water. Taste-f-me, odor-f_e, clean, high quality drinking water is available for use. Water from the cold supply pipe enters the RO as- sembly prefilter first (FIG. 8 and schematic below). FAUCET prefiRer has a replaceable...
Page 11: Care Of Your Reverse Osmosis System
- CARE OF YOUR REVERSE OSMOSIS SYSTEM - To keep your reverse osmosis system operating Note: The prefilter cartridge has light gray netting making high quality water, you must make sure sup- and end caps. The postfilter has blue. Do not inter- change.
Page 12: Tubing Connection
- CARE OF-YOUR REVERSE OSMOSIS SYSTEM - 2. Press inward while turning the RO cap to the left 5. Inspect the o-ring and collet. Replace if worn, to remove from the bracket/membrane housing. or otherwise damaged. Carefully replace into drain port.
Page 13 - CARE OF YOUR REVERSE OSMOSIS SYSTEM - AUTOMATIC SHUTOFF SERVICE TUBING CONNECTION (continued) If tubing is used, other than supplied with the sys- If the shutoff assembly requires service, be sure tem, be sure it is of high quality, exact size and round- reassemble parts...
Page 14: Troubleshooting
- CARE OF YOUR REVERSE OSMOSIS SYSTEM - REVERSE OSMOSIS SYSTEM CARE GUIDE MODEL Re 1000 1. AT LEAST every 6 months, replace the prefilter and postfilter cartridges. Clean or replace the flow control and screen. 2. Replace the RO membrane cartridge when the percent reiection of total dissolved solids (TDS) is less th an shown in the specifications (see B, below).
Page 15 - DIMENSIONS and SPECIFICATIONS 15" STORAGE TANK 9" dia. --_ Metric 280 - 860 kPa Supply water pressure limits ......40 - 125 psi 5 - 40°C Supply water temperature limits ..... 40 - 100 ° F Maximum total dissolved solids (TDS) ....2000 ppm Maximum water hardness @ 6.9 pH ....
Page 16 -REPAIR PARTS - WaterWorks RO 1000 Reverse Osmosis Drinking Water System, Model SADDLE VALVE See note on codes in the statei of Massachusetts, page 5 iJ 32 1/4" Tubin o+ring seals DRAIN ADAPTER Bracket/Membrane Heusing PUSH - IN FI'FrlNGS (_)1/4" _3/8"...
Page 17: Repair Parts
- REPAIR PARTS - WaterWorks tstem, Model RO 1000 Reverse Osmosis Drinking Water S' PART KEYI PART DESCRIPTION OF PART NUMBER NO.I NUMBER DESCRIPTION OF PART 7205350 Faucet 23 I 7205326 Storage Tank 7207920 24 17207938 Adaptor, 7/16"-24 x 3/8" Tubing Adaptor, 1/4"...
Page 18 - REMOTE LOCATION FOR REVERSE OSMOSIS SYSTEM - REMOTE RO INSTALLATION (storage tank not shown) Possible remote locations for the RO nearby the kitchen or bathroom sink include; (1) a basement area underneath the sink, and (2) an adjacent room or closet. Longer lengths of tubing may be needed (see parts list on page 17).
