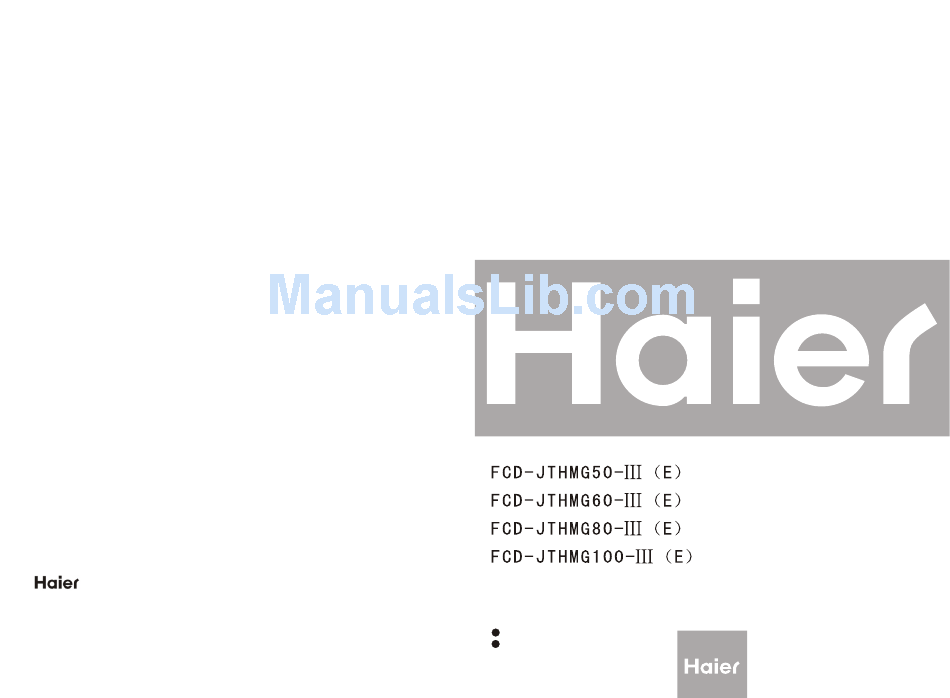

Qingdao Economic and Technological Development District
Haier Water Heater Co., Ltd.
Add:
Haier Garden, Qianwangang Road, Economic Development Zone, Qingdao, P. R. China
Website:http:// www.haier.com
Silver Sea-ox
Haier
Please read this manual before usage
Rev. 01
Retain it for future regerence
Specific Number 0040501638
Household Electric Water Heater
User's Manual
Advertisement
Table of Contents
Related Manuals for Haier FCD-HTHMG50-III(E), FCD-HTHMG60-III(E), FCD-HTHMG80-III(E), FCD-HTHMG100-III(E)
Summary of Contents for Haier FCD-HTHMG50-III(E), FCD-HTHMG60-III(E), FCD-HTHMG80-III(E), FCD-HTHMG100-III(E)
- Page 1 Group Qingdao Economic and Technological Development District Haier Water Heater Co., Ltd. Add: Haier Garden, Qianwangang Road, Economic Development Zone, Qingdao, P. R. China Website:http:// www.haier.com Silver Sea-ox Haier Household Electric Water Heater Please read this manual before usage Rev. 01...
-
Page 2: Cleaning And Maintenance
Internal Cleaning: To ensure high working efficiency, heating elements and tank liner of water heater shall be cleaned once in three years. Take care not to damage protection layer on heating elements and tank liner inner surface. According to different local water qualities and use habits, magnesium anode rod shall be periodically replaced. -
Page 3: Use Of Remote Controller
Please retain it for future reference. The international star service of Haier Group will always accompany you. No matter what kind of problems you meet in usage, please contact with the local after -sales service agent. -
Page 4: Operation Diagram
(outlet water is not suitable to drink) 8. Horizontal installation,space saving. Options of local control or remote control. Your water heater is an improved product of this series. Please use it as instructed in this manual. Views and parts... -
Page 5: Safety Precautions
During use, the displayed value is still water temperature at detection point instead of outlet temperature. Please do not directly turn on hot water. The product adopts Haier Safe Care patented technology. In normal installation, even in severe case that ground wire is live due to wrong connection, the product and efficiently ensure your safety. -
Page 6: Setting Environment
The tubes and pipes fitted on the product are inseparable parts of the technology, and shall not be removed by yourself. Otherwise, Haier shall not be liable for any damages or injuries caused due to resulted potential risks. -
Page 7: Attentions In Installation
Power socket for water heater shall be in a dry place free of water splash to avoid nonnormal work of the water heater. (splash-proof box is preferred) Do not confuse inlet and outlet water pipes. -
Page 8: Installation
Fig. 2. Insert and fixexpansion hooks and expansion bolts in corresponding wall holes. Lift the water heater. Insert wall rack onto the hooks and bolts. Fit flat washers, rear wires and nuts in turn onto the bolts (see Fig. 3). Tighten the nuts and check them firm.
