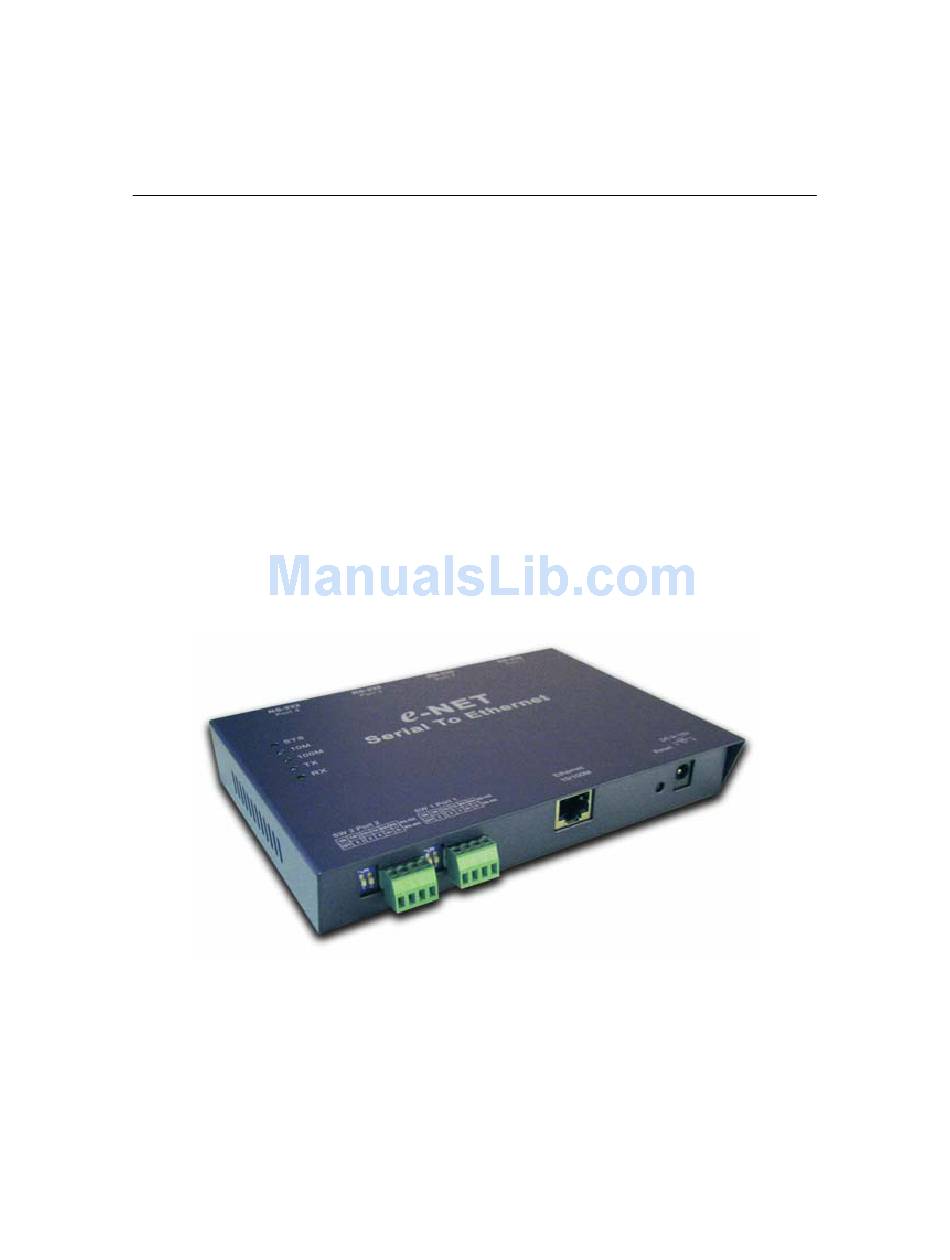

- Page 1 -NET TCP/IP Converters E-P432 Operation Manual ARM-7 Series First Edition, March 2005 KSH International CO., LTD.
-
Page 2: Table Of Contents
RS-232 …………………………………………………… RS-422/RS-485 …………………………………………… 3. Converter Configuration ……………………………… Initial IP Configuration ………………………………… Device Management Utility ……………………………… Menu “View” ……………………………………………… 19 Menu “Config” …………………………………………… Web Console Configuration …………………………… Controller Status ………………………………………… Controller Setup ………………………………………… Controller Updated ……………………………………… KSH International CO., LTD. - Page 3 Appendix B - Pin Outs and Cable Wiring …………… 41 DC Power Outlet ………………………………………… RJ-45 Pin Assignment …………………………………… RS-232 Pin Assignment ………………………………… RS-232 Wiring Diagram ………………………………… RS-422 Pin Assignment ………………………………… RS-422 Wiring Diagram ………………………………… RS-485 Wiring Diagram ………………………………… KSH International CO., LTD.
-
Page 4: Introduction
Introduction KSH International Co., Ltd. is providing new ways of connecting legacy serial devices to a Local Area Network (LAN) or Wide Area Network (WAN). e-NET TCP/IP converters are designed to operate serial ports over 100Mbit/s Ethernet networks. The data is transmitted via TCP/IP protocol. -
Page 5: Overview
ARM-7 Series converters support manual configuration via the handy web browser console and many protocols including TCP, IP, UDP, HTTP, DHCP, ICMP, and ARP. They are the best solution to network your serial devices. KSH International CO., LTD. -
Page 6: Package Checklist
□ 1 unit of Power Adaptor (9V DC, 500mA) □ □ □ Documentation & Software CD □ □ □ Quick Installation Guide □ NOTE: Notify your sales representative if any of the above items is missing or damaged. KSH International CO., LTD. -
Page 7: Block Diagram
TCP/IP and popular serial port signals. In stead of processing TCP/IP packets directly, devices need only deal with those interface signals, which greatly simplifies the complexity of TCP/IP network in linkage. KSH International CO., LTD. -
Page 8: Features
□ Built-in Security Control □ Protected by both setup password and access password to prevent intruders. □ □ Remote updated □ Firmware can be reprogrammed directly via Ethernet network to keep up with latest network standards. KSH International CO., LTD. -
Page 9: Product Specifications
● RS-422 Signals : Rx+ , Rx- , Tx+ , Tx- (Full-duplex) ● RS-485 Signals : Data+ , Data- (Half-duplex) Digital I/O Port TTL Digital I/O * 7 Throughput : 20 K bytes (Full-duplex / Half-duplex) Watch Dog Function KSH International CO., LTD. - Page 10 SYS (red), LAN (green), 10M (red), 100M (green), LAN Tx (red),LAN Rx (green) Environment : Operating Temperature: 0℃～50℃ Storage Temperature : -20℃～70℃ Dimensions : E-P432-X : 168 * 123 * 27 mm ( W * D * H ) WEIGHT : E-P132-X : 340 gm Regulatory Approvals :...
-
Page 11: Converter Description
Converter Description Product Panel Views Top Side Serial I/O Port RS-232 LED Indicators DC-In Terminator Power Outlet Reset Button Serial I/O Port RS-485/RS-422 KSH International CO., LTD. -
Page 12: Front Side
When data traffic occurs on the network, red (Rx/Tx) indicator will blink during data transferring and receiving. Serial I/O Port of RS-422/RS-485 Connect the serial data cable between the converter and the serial device. Follow the parameter setup procedures to configure the converter (see the following chapters ). KSH International CO., LTD. - Page 13 The purpose is for compensating signal attenuation in long distance connection at RS-485/RS-422 I/O. If the switch 1 & 2 are set in “ON” position, the signal compensation will be activated. To disable the function, just push switch 1 & 2 to opposite position. KSH International CO., LTD.
-
Page 14: Rear Side
Rear Side Serial I/O Port RS-232 Serial I/O Port of RS-232 Connect the serial data cable between the converter and the serial device. Follow the parameter setup procedures to configure the converter (see the following chapters ). KSH International CO., LTD. -
Page 15: Led Indicators
Higher speed indicator (When 100 Mbps Ethernet is connected, the LED will be on.) TX (Green)： Data sent indicator (When data are sent out to the network, the LED will be on.) RX (Red)： Data received indicator (When data are received from the network, the LED will be on.) KSH International CO., LTD. -
Page 16: Wiring Architecture
Wiring Architecture RS-232 Wiring Architecture RS-422/RS-485 Wiring Architecture KSH International CO., LTD. - Page 17 You can use the Setup Tool “ETM.exe” to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings. KSH International CO., LTD.
-
Page 18: Converter Configuration
For quick and easy start , We suggest you to reference “Quick Installation Guide” manual. The following topics are covered in this chapter: □ □ Device Management Utility □ □ □ Menu “View” □ □ □ Menu “Config” □ KSH International CO., LTD. -
Page 19: Device Management Utility
ETM do not belong to the same subnet, it still works fine. □ □ Broadcast packets can not pass routers. ETM can only be used to monitor devices □ with computer running ETM in the same segment of local area network. (Figure 3.1) KSH International CO., LTD. -
Page 20: Menu "View
Note: Always run the “View-> Refresh” after any data change. (Figure 3.2) □ □ View -> Exit Alt+F4 □ Exit from the program (see Figure 3.2). Menu “Config” □ □ Config -> IP Address (see Figure3.3) □ (Figure 3.3) KSH International CO., LTD. - Page 21 Assign an IP Address with the same Subnet Mask of your computer, avoiding any IP conflict with other network devices. When you press [Ok] button, the IP address will be refreshed in 2~3 seconds. (see Figure 3.5). (Figure 3.5) KSH International CO., LTD.
-
Page 22: Web Console Configuration
The following topics are covered in this chapter: □ □ Controller Status □ ● The Login Page ● Field Description □ □ Controller Setup □ ● The Setup Page ● Field Description □ □ Controller Updated □ □ □ Factory Default Setting □ KSH International CO., LTD. -
Page 23: Controller Status
□ In the browser URL field, type the IP address of the converter directly and □ press ENTER. (The IP address is what you set using the Device Management Utility.) □ □ The “Controller Status” page will be shown (see Figure 3.6). □ (Figure3.6) KSH International CO., LTD. - Page 24 “15 minutes”. During this 15 minutes period, even if you supply correct password, login will not proceed. This prevents intruders from finding the password by computer generated program. KSH International CO., LTD.
-
Page 25: Controller Setup
Type the correct password in the “Password” field and click the [Login] button in the “Controller Status” page, then the “Controller Setup” page will appear (see Figure 3.7). Note: If you forget the password or can’t login successfully, please contact the manufacturer directly. (Figure 3.7) KSH International CO., LTD. - Page 26 DHCP server automatically. □ □ Network link speed □ Ethernet physical link speed. “Auto” means the speed is automatically selected by the converter. You can also specify “10M” or “100M” to match the speed of the HUB. KSH International CO., LTD.
- Page 27 10-character packet gap and no more character arrived. The block waiting time is extended to avoid the splitting of the complete packet. □ □ Packet mode inter-packet timeout □ Packet gap detection time constant, ranging from 10 to 1000 ms. KSH International CO., LTD.
- Page 28 During socket connection, Authentication password may be empty or up to 15 characters long. If “Access password” is empty, the authentication is disabled. Otherwise, the authentication will be conducted. If the authentication fails or no password is supplied within 10 seconds, the socket will be closed. KSH International CO., LTD.
- Page 29 □ □ Serial Port 1 & 2 □ The first & second serial ports of E-P432 are RS-232/RS-485/RS-422. (see Figure 3.8) (Figure 3.8) □ □ Socket port □ □ □ Port number □ A socket port assigned for the serial port. It’s a 16-bit number , ranging from 1 to 65535.
- Page 30 RS422 (Full duplex): Full duplex RS-422 interface □ □ Baud rate, parity, data bits, stop bits □ Baud Rate: 300 ~ 230400 bps Parity: None, Even, Odd, Mark, Space Data Bits: 6, 7, 8 Stop Bit: 1 or 2 KSH International CO., LTD.
- Page 31 RS422 (Full duplex): Full duplex RS-422 interface □ □ Baud rate, parity, data bits, stop bits □ Baud Rate: 300 ~ 230400 bps Parity: None, Even, Odd, Mark, Space Data Bits: 5, 6, 7, 8 Stop Bit: 1 or 2 KSH International CO., LTD.
- Page 32 (e.g. 80 is for HTTP protocol), we suggest you use the numbers larger than 1000. Generally the port number 4660 is used for the serial communication. However you should specify different port number for each serial port. KSH International CO., LTD.
- Page 33 TCP Server: TCP protocol, passive open, to be connected from the TCP clients. TCP Client: TCP protocol, active open, connect to the TCP server. UDP: UDP protocol, connectionless □ □ Configuration □ IO1～7: For transferring single in digital I/O port as Input or Output status. KSH International CO., LTD.
-
Page 34: Controller Updated
Note: If the domain of the converter is different from that of the computer running the browser, the login page won’t appear unless the converter’s “Gateway Address” has been correctly set. KSH International CO., LTD. -
Page 35: Factory Default Setting
2. Use a pin or any point tip to push the screw driver or any conductor to short DTR and CTS (pin 4 and pin 8 in DB9) of RS232 connector. 3. Turn on the power of the converter and wait 5 seconds and remove screwed driver or conductor. KSH International CO., LTD. -
Page 36: Converter Self-Testing
Device” is replaced by the PC’s COM 1. The same PC also plays the roll of the Remote Host. The following topics are covered in this chapter: □ □ Hyper Terminal for TCP/IP WinSock □ □ □ Hyper Terminal for COM Port □ □ □ Data Transmission □ KSH International CO., LTD. -
Page 37: Hyper Terminal For Tcp/Ip Winsock
Initiate a Hyper Terminal from the Start Menu in Windows (see Figure 4.1), give a terminal name, choose an icon, and press “OK” button (see Figure 4.2). (Figure 4.1) (Figure 4.2) Select “TCP/IP(Winsock)” option at the “Connect using:” field (see Figure 4.3) KSH International CO., LTD. - Page 38 “TCP Server”.) (Figure 4.4) After “OK” button is pressed, Figure 4.5 appears. If the Hyper Terminal connects with the converter successfully, the time clock at the “left lower” corner “Connected hh:mm:ss” will start counting. KSH International CO., LTD.
- Page 39 (Figure 4.5) KSH International CO., LTD.
-
Page 40: Hyper Terminal For Com Port
Terminal and check if the typed characters are also displayed on the TCP/IP Winsock Terminal. Alternatively, check if the characters typed on the TCP/IP Winsock Terminal are also displayed on the COM Port Terminal. If yes, then all settings are correct and the converter can operate properly. KSH International CO., LTD. -
Page 41: Appendix A - Faq
Refer to the “Hardware Installation” steps in Chapter 3. Q. Why can’t I use IE to setup the converter? A. Please check if the network domain of your PC is the same as that of the converter. KSH International CO., LTD. -
Page 42: Appendix B - Pin Outs And Cable Wiring
PIN 1 : DCD PIN 2 : RXD PIN 3 : TXD PIN 4 : DTR PIN 5 : GND PIN 6 : DSR PIN 7 : RTS PIN 8 : CTS PIN 9 : DC 5V KSH International CO., LTD. -
Page 43: Rs-232 Wiring Diagram
PIN 4 : T+ □ □ RS-422 Wiring Diagram □ Serial Device e-NET TCP/IP Converter 3 T- 4 T+ 1 R- 2 R+ □ □ RS-485 Wiring Diagram □ Serial Device e-NET Converter 1 D- 2 D+ KSH International CO., LTD.
