- Page 1 Atlona Mid-Span 24V Power Supply AT-PS-POCC User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Rear Panel ................... 4 5. Captive Screw Connection ................... 5 6. Connection and Installation ................... 6-7 7. Specifications ................... 8 8. Safety Information ................... 9 9. Warranty ................... 10-11 10. Atlona Product Registration ................... 11 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
• Lossy, and lossless multi-channel audio formats pass through (including Dolby TrueHD and DTS-HD Master Audio) • Full 3D pass through • HDCP compliant *NOTE: Do not use this product with POE or POH devices. This is meant to power Atlona PoCc solutions only. Toll free: 1-877-536-3976 atlona.com... -
Page 4: Panel Description

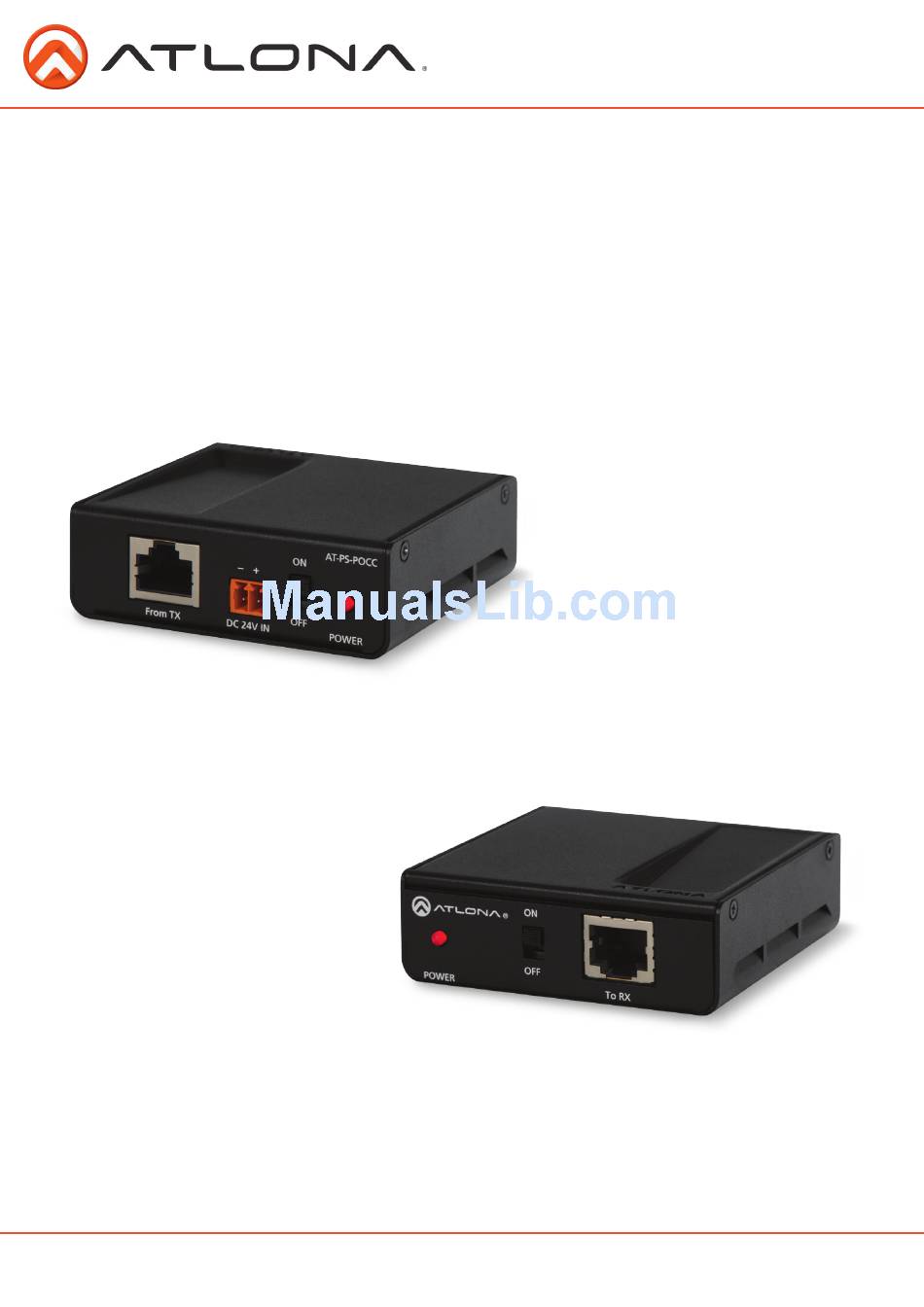

Panel Description Front Panel AT-PS-POCC From TX DC 24V IN POWER 1. CAT5e/6/7 port: Connect transmitter here Power is sent down this line to the transmitter 2. DC 24V port: Connect included DC 24V power supply here AT-PS-POCC 3. TX power switch: Toggles power transmission to the transmitter on and off... -
Page 5: Captive Screw Connection
Captive Screw A captive screw connector for power is an added feature on the AT-PS-POCC. The Captive screw connectors allow you to cut cables down to a suitable length, reducing cable clutter, and provides a more reliable connection. Connecting When connecting the cables to the female captive screw connector it is important that the wires be terminated correctly. -
Page 6: Connection And Installation
CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 MAIN POWER BACKUP POWER AT-PS-POCC From TX DC 24V IN POWER POWER To RX AT-PS-POCC CAT5/6 LINK HDMI OUT RS232 OUT IR IN IR OUT AT-PRO3HDREC DISPLAY Toll free: 1-877-536-3976 atlona.com... - Page 7 BluRay Player Laptop HDBaseT LINK DISPLAY ON/OFF HDMI IN INPUT VGA IN AUDIO IN AT-PS-POCC SELECT AT-HDVS-TX-WP AT-HDVS-TX-WP From TX DC 24V IN POWER AT-PS-POCC POWER To RX AT-PS-POCC From TX DC 24V IN POWER POWER To RX CAT5e/6/7 IN...
-
Page 8: Specifications
24.4 x 73.37 x 70.47 mm Weight 0.09 lbs 0.19 kg Temperature Operating Storage 32°F to 104°F -4°F to 140°F 0°C to 50°C -20°C to 90°C HDCP Compliant? Certifications CE, FCC, RoHS, cULus for power supplies Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 11: Atlona Product Registration
Atlona’s authorized distributors, dealers and resellers can be found at www.atlona.com . Atlona, Inc Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.
