User's Manual
Flash Drive
BF-23xx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-23 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Bafo BF-23 Series

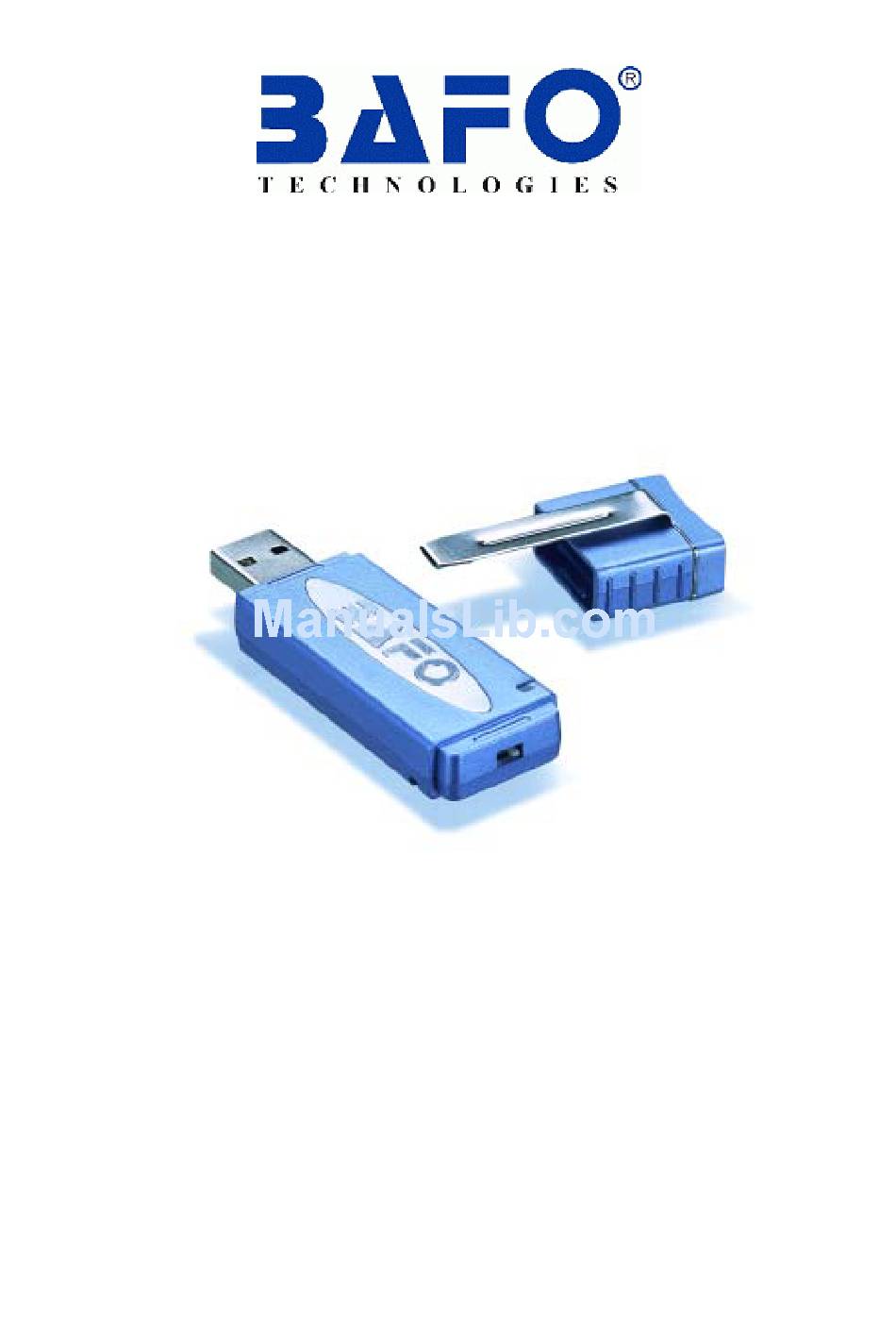

  • Page 1 User’s Manual Flash Drive BF-23xx...

  • Page 2: Table Of Contents

    CONTENT 1. Introduction----------------------------------------------------------------------------------2 2. Package Content--------------------------------------------------------------------------2 3. Product Features--------------------------------------------------------------------------2 4. System Requirements------------------------------------------------------------------3 5. Part Name and Function------------------------------------------------------------3 6. Driver Installation-------------------------------------------------------------------------4 ® Windows 98 Driver Installation------------------------------------------------4 ® Windows 98 Driver Un-Installation------------------------------------------10 ® Windows ME Driver Installation---------------------------------------------11 ® Windows ME Driver Un-Installation----------------------------------------14 ®...

  • Page 3: Introduction

    1. Introduction The Flash Drive works as a friendly, secure, and lightweight removable mass storage device disk. It plugs through the USB port so your host computer will immediately detect and configure the removable drives without re-starting computer again. Unlike most USB Flash Drive, it also comes with a security feature that allows you to require a password upon plugging the disk before use.

  • Page 4: System Requirements

    4. System Requirements AMD or Intel Pentium 133MHz or better based computer Available USB port CD-ROM drive Windows® 98SE, Windows® ME, Windows® 2000, Windows® XP Power PC G3, G4, or I-Mac Available USB port CD-ROM drive Mac OS 8.x, OS 9.x and OS X (Without Security feature) 5.

  • Page 5: Driver Installation

    6 Driver Installation 6.1 Windows 98 Installation ® First step Windows® will install “Mass Storage Device”. (6.1.2 through 6.1.6) Second step Windows® will install “Security Device”. (6.1.7 through 6.1.14) 6.1.1 Connect the USB port of Flash Drive to PC with USB cable. 6.1.2 The “Add New Hardware Wizard”...
  • Page 6 6.1.5 Windows® will search the driver for this device. Make sure the driver that Windows® found is “D:\DRIVER\BF-23XX\WINDOWS\PL2315U.INF” then click “Next”. 6.1.6 Click “Finish” to complete the installation procedure of “USB Mass Storage Device” 6.1.7 System will start to install “SECURITY” device. If you don’t need the “Security”...
  • Page 7 6.1.8 Choose “Search for the best driver for your device (Recommended)” then click “Next”. 6.1.9 Select “Specify a location” and type D:\DRIVER\BF-23XX\WINDOWS (D: represents CD-ROM) in the dialog box, then click “Next”. 6.1.10 Windows® will search the driver for this device. Make sure the driver that Windows®...
  • Page 8 6.1.11 When installing the “Security” driver, Windows® will pop up a “JUPITER_Check Password 1.0.0.0 ” dialog box, Click on “OK” to continue. 6.1.12 Click on “More” to “JUPITER_Utility” dialog box. 6.1.13 Click on “Close” to close “JUPITER_Utility” dialog box and continue. Flash Drive User’s Manual...
  • Page 9 6.1.13 Click on “Finish” to complete the “BAFO USB SECURITY DEVICE”. ® 6.1.15 After Windows installed all the driver, you have to check “My Computer”-“Control Panel”-“System”-”Device Manager” to make sure the driver has already installed. In the “Disk Drives” it will show two items of “BAFO Usb Flash Disk”.
  • Page 10 6.1.16 Double click on “My Computer” then you will find there are two new Removable Disk [E:] and [F:]. Flash Drive User’s Manual...
  • Page 11 6.2 Windows 98 un-installation ® 6.2.1 Click on “My Computer” and point to the path of “D:\DRIVER\BF-23XX\WINDOWS” (D: represents CD-ROM), click on “Rm2315” icon to un-install driver. 6.2.2 Click “OK” to remove “JUPITER” (Security AP). 6.2.3 Click on “Yes” to restart computer and complete uninstall procedure. Flash Drive User’s Manual...

  • Page 12: Windows ® 98 Driver Installation

    6.3 Windows ME installation ® Windows® will install “Security Device” 6.3.1 Connect the USB port of Flash Drive to PC with USB cable. 6.3.2 The “Add New Hardware Wizard” dialog box will appears as below. 6.3.3 If you don’t need “Security” feature then click “Cancel” to exit else chose “Automatic search for a better driver [Recommended]”...
  • Page 13 6.3.6 Click on “Close” to exit “JUPITER_Utility”. 6.3.7 Click on “Finish” to complete the “BAFO USB SECURITY DEVICE” installation. 6.3.8 You should check “My Computer”-“Control Panel”-“System”-”Device Manager” to make sure the driver has already installed. Then, in the “Disk Drives” it will show two “BAFO USB Flash Disk”. In the “Hard disk controllers”...
  • Page 14 6.3.9 Double click on “My Computer” then you will find two new items, that is, Removable Disk [E:] and Removable Disk [F:]. Flash Drive User’s Manual...

  • Page 15: Windows ® Me Driver Installation

    6.4 Windows ME un-installation ® If you did not install “Security” Device then you don’t have to un-install it. 6.4.1 Click on “My Computer” and point to the path of “D:\DRIVER\BF-23XX\WINDOWS” (D: represents CD-ROM), click on “Rm2315” icon to un-install driver. 6.4.2 Click “OK”...

  • Page 16: Windows ® 2000 Driver Installation

    6.5 Windows 2000 installation ® Windows® will install “Security Device”. 6.5.1 Connect the USB port of Flash Drive to PC with USB cable. 6.5.2 The “Add New Hardware Wizard” dialog box will appears as below. 6.5.3 If you don’t need “Security” feature then click “Cancel” to exit else chose “Automatic search for a better driver [Recommended]”...
  • Page 17 6.5.6 Type D:\DRIVER\BF-23XX\WINDOWS (D: represents CD-ROM) in the dialog box, then click “Next” to continue. 6.5.7 Windows® will search the driver for this device. Make sure the driver that Windows® find is “d:\driver\bf-23xx\windows\jupiter.inf” then click “next” to continue. 6.5.8 While Windows® install the driver, in the same time it will pop up a “JUPITER_Check Password 1.0.0.0”...
  • Page 18 6.5.9 Click “More” to continue. 6.5.10 Click on “Close” to exit “JUPITER_Utility”. 6.5.11 Click on “Finish” to complete “BAFO USB SECURITY DEVICE”. Flash Drive User’s Manual...
  • Page 19 6.5.12 Please check “My Computer”-“Control Panel”-“System”- “Hardware”-“Device Manager” to make sure the driver has already installed. Then, in the “Disk Drives” it will show two “BAFO Usb Flash Disk USB Device”. In the “Universal Serial Bus Controller” it will show one “Generic Hub”, one “BAFO USB SECURITY DEVICE”...

  • Page 20: Windows ® 2000 Driver Un-Installation

    6.6 Windows 2000 un-installation ® If you did not install “Security” Device then you don’t have to un-install it. 6.6.1 Click on “My Computer” and point to the path of “D:\DRIVER\BF-23XX\WINDOWS” (D: represents CD-ROM), click on “Rm2315.EXE” icon to un-install driver. 6.6.2 Click on “OK”...
  • Page 21 6.7 Windows XP installation ® Windows® will install “Security Device”. 6.7.1 Connect the USB port of Flash Drive to PC with USB cable. 6.7.2 The “Add New Hardware Wizard” dialog box will appears as below. 6.7.3 If you don’t need “Security” feature then clicks “Cancel” to exit else chose “Install the software automatically [Recommended]”...
  • Page 22 6.7.6 Click on “More” to continue. 6.7.7 Click on “Close” to exit “JUPITER_Utility”. 6.7.8 Click on “Finish” to complete the installation of “BAFO USB SECURITY DEVICE”. Flash Drive User’s Manual...
  • Page 23 6.7.9 Please let Mouse point to “My Computer” click on right key -“Properties”-“Hardware”-”Device Manager” to make sure the driver has already installed. 6.7.10 Then, in the “Disk Drives” it will show two “BAFO USB Flash Device”. 6.7.11 In the “Universal Serial Bus Controller” which will have one “Generic USB Hub”, one “BAFO USB SECURITY DEVICE”...

  • Page 24: Windows ® Xp Driver Installation

    6.7.12 Double click on “My Computer” you will find two new devices “Removable Disk (E:)” and “Removable Disk (F:)”. 6.8 Windows XP un-installation ® If you did not install “Security” Device then you don’t have to un-install it. 6.8.1 Double click on “My Computer” and point to the path of “D:\DRIVER\BF-23XX\WINDOWS”...

  • Page 25: Mac Installation

    6.8.3 Click on “Yes” to re-boot the system. 6.9 MAC installation 6.9.1 Turn on your Apple computer and make sure that the USB port is enabled and work properly. 6.9.2 Plug in the Flash Drive to your MAC, the system will auto detect the new device and show up two disk icon on the desktop.

  • Page 26: Utility Program Brief Description

    6.10 MAC un-installation 6.10.1 Throw the new disk icon to the Trash, and restart your computer again. 7. Utility Program Brief Description Double-click on the JUPITER.exe file program on your CD. Click on “OK” when you did not set your password and “More” to “JUPITER_Utility”.

  • Page 27: Faq

    After password has been changed, there will have dialog box “Password Changed successfully”. Click on “OK” then another dialog box asks if you want to “Save” password. If you want to save password then specify path and give a filename without extension file name. Word, Excel and Notepad could read this file.

  • Page 28: Disclaimer

    A: It is because you try to install “Security” Device but fail. Please remove “Security” Device and install again. Is there any way I can do when forgetting “Password”? A: There are two ways you could do. 1). Execute “JFormat.exe” at Driver CD, to format data and Password. 2).

  • Page 29: Technical Support

    determined by plugging the device in and out, the user can try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the device and receiver. Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
