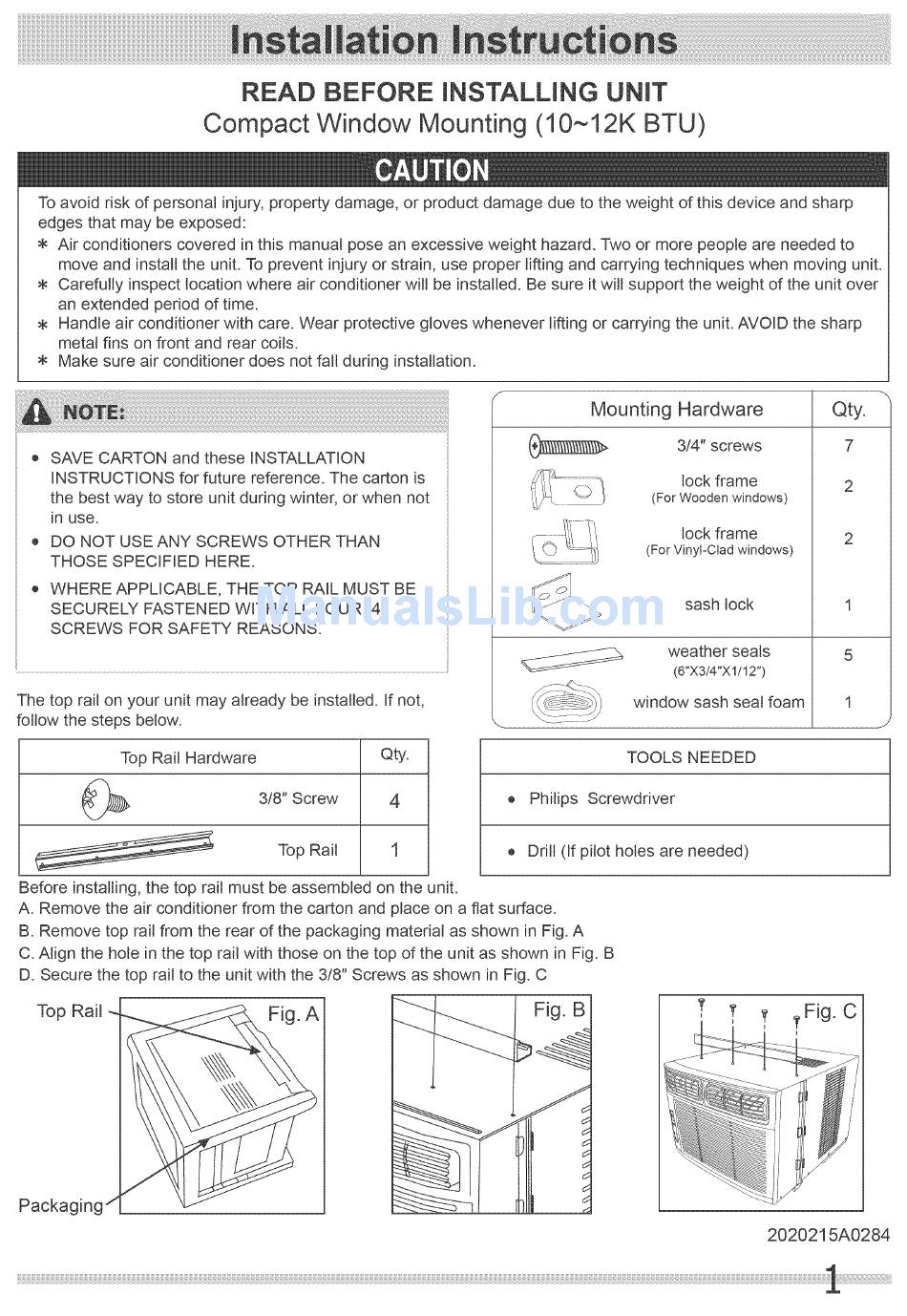

Use and Care Manual
READ BEFORE INSTALLING
UNIT
Compact Window Mounting (10~I2K
BTU)
To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp
edges that may be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to
move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.
Carefully inspect _ocation where air conditioner will be installed. Be sure it will support the weight of the unit over
an extended period of time.
Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp
metal fins on front and rear coils.
Make sure air conditioner does not fall during installation.
o SAVE CARTON and these INSTALLATION
INSTRUCTIONS
for future reference. The carton is
the best way to store unit during winter, or when not
in use.
® DO NOT USE ANY SCREWS OTHER THAN
THOSE SPECIFIED HERE.
WHERE APPLICABLE, THE TOP RAIL MUST BE
SECURELY FASTENED WITH ALL FOUR (4)
SCREWS FOR SAFETY REASONS.
The top rai_ on your unit may already be installed. If not,
follow the steps below.
Qty.
7
Mounting
Hardware
3/4" screws
lock frame
(For Wooden windows)
lock frame
(For Vinyl-Clad windows)
sashlock
weather seals
(6"X314"XlI12")
window sash seal foam
2
2
5
Top Rail Hardware
Qty.
3/8" Screw
4
Top Rail
1
TOOLS NEEDED
® PNips
Screwdriver
o Drill (If pilot holes are needed)
Before instaIHng, the top rai_ must be assembled on the unit.
A. Remove the air conditioner from the carton and place on a flat surface.
B. Remove top rail from the rear of the packaging material as shown in Fig. A
C. Align the hole in the top raiJ with those on the top of the unit as shown in Fig. B
D. Secure the top rail to the unit with the 3/8" Screws as shown in Fig. C
Top Rail
Fig. A
_--_-_
Fig. B
Packaginc
2020215A0284
