Summary of Contents for Marshalltown Company Gilson MIX59000D

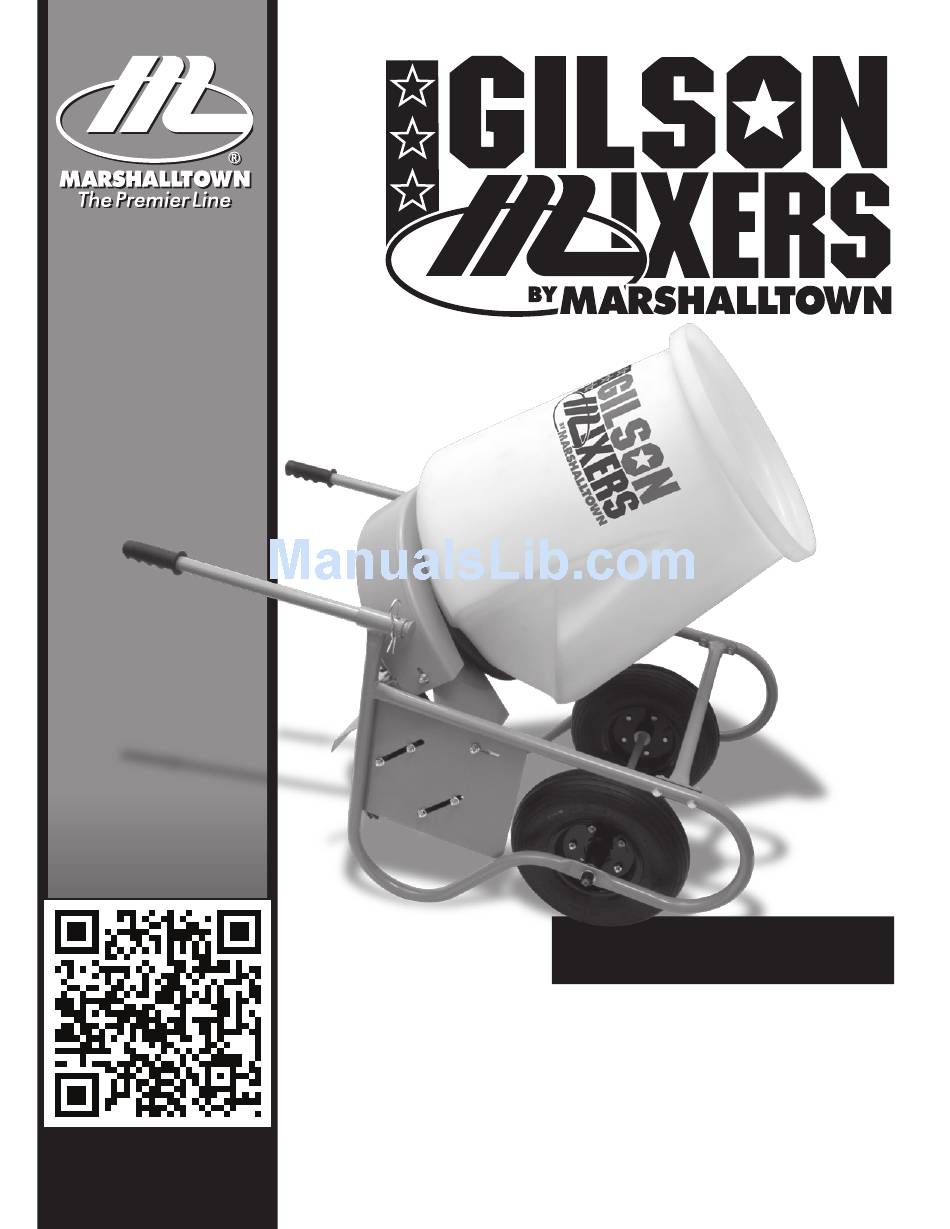

- Page 1 OPERATIONS MANUAL MODEL: MIX59000D 3 1/2 CU. FT. 104 S. 8th Ave. Marshalltown, IA SCAN TO WATCH Phone 800-888-0127 / 641-753-0127 ASSEMBLY VIDEO Fax 800-477-6341 / 641-753-6341 www.marshalltown.com WS521 04/2012R1...
- Page 2 INTRODUCTION The Gilson Wheelbarrow mixer is great for the do-it-yourself home project. It allows you to work almost anywhere. The mixer will clear a 30” door and easily fits into an elevator. A quiet 115-volt motor allows you to work indoors without emissions.
-
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS The following precautions are suggested to help prevent accidents. Before operating this equipment read all precautions. Equipment should be operated by trained individuals. If the safety instructions and warnings are not read and carefully followed, personal injury could occur. •... - Page 4 Part # Description Part # Description MIX59000D-01 GEAR PLASTIC GUARD-ABS MIX59000D-25 HEX SOCKET SCREW-#M8x8 MIX59000D-02 HEX FLANG NUT-#M8 MIX59000D-26 GEAR SHAFT FASTEN SLEEVE-#45 C MIX59000D-03 HEX FLANG BOLT-#M8 MIX59000D-27 HEX BOLT-#M10x25 MIX59000D-04 BELT PLASTIC GUARD-ABS MIX59000D-28 LOCK WASHER-#D10 MIX59000D-05 PLAIN HEAD PIN-#6x20...
-
Page 5: Assembly Guide
ASSEMBLY GUIDE FRAME ASSEMBLY 1. Lay out the frame parts. 2. Assemble the tires on the axle. (# 40 & # 41) 3. Assemble tires and axle to the frame. 5 of 16... - Page 6 FRAME ASSEMBLY CONTINUED 4. Attach the axle to the frame. 5. Assemble the supporting pipe. (Using # 39, # 42, # 43 and # 45) 6. Assemble the drum support frame. (Using # 27, # 28, and # 29)
-
Page 7: Motor Assembly
FRAME ASSEMBLY CONTINUED 7. Fasten all the bolts and nuts. MOTOR ASSEMBLY 1. Assemble the motor onto the frame. (Using # 2 and # 3) NOTE: Assemble the drive pulley (# 30) on the motor shaft - (If Not Preassembled) 2. - Page 8 MOTOR ASSEMBLY CONTINUED 3. Assemble the V-Belt on the pulleys NOTE: Adjust belt tension and keep pulleys parallel. Tension can be adjusted by sliding motor and/or pinion gear sleeve. Tighten bolts when you have enough tension. 4. Attach the belt guard on the frame. (Using # 2 and # 3) 5.
-
Page 9: Drum Assembly
DRUM ASSEMBLY 1. Lay out the drum components. 2. Assemble the central paddle (#16) and its Pad (#17) in the drum. 3. Assemble the gear wheel (#19) to bottom of the drum. NOTE: Make sure raised side of gear is facing away from drum. 4. - Page 10 DRUM ASSEMBLY CONTINUED 5. Put the washer (#21) on the gear shaft. 6. Assemble the drum onto the frame. 7. Check that gears are aligned and interlocked. INCORRECT Adjust by loosening pulley gear. CORRECT...
- Page 11 DRUM ASSEMBLY CONTINUED 8. Assemble the shaft positioning sleeve (#26) on the gear shaft. 9. Assemble the handle (#34) on the frame. 10. Insert the handle fixing spring clip on the handle. 11. Attach the plastic handle cover. 11 of 16...
- Page 12 HOW TO MIX CONCRETE Wheelbarrow Mixer - Model MIX59000D You’ll need approximately 1 ¼ gallons of water. 1 – 80 lb. Bag of pre-mix concrete 1. Start Mixer 2. Put in 1 gallon of water 3. Add ½ of 80 lb. Bag of pre-mix concrete – mixture will be very sloppy 4.
- Page 13 This product is warranted to the original purchaser only, to be free of defects in material and workmanship under normal use, for one year from purchase date. MARSHALLTOWN Company shall without charge for parts and labor, repair or replace such parts which are found to be defective. All transportation charges for replacement parts must be borne by the purchaser.
- Page 14 HOW TO OBTAIN PARTS AND SERVICE INFORMATION For parts and service information, contact either your local dealer or the MARSHALLTOWN Company: 104 S 8 Ave Marshalltown, IA 50158 Phone: (641) 753-0127 Fax: (641) 753-9227 HOW TO ORDER PARTS When ordering parts, be sure to indicate the following information: •...
- Page 15 15 of 16...
- Page 16 04/2012R1...
