Summary of Contents for Therma-Coil Therma-coil

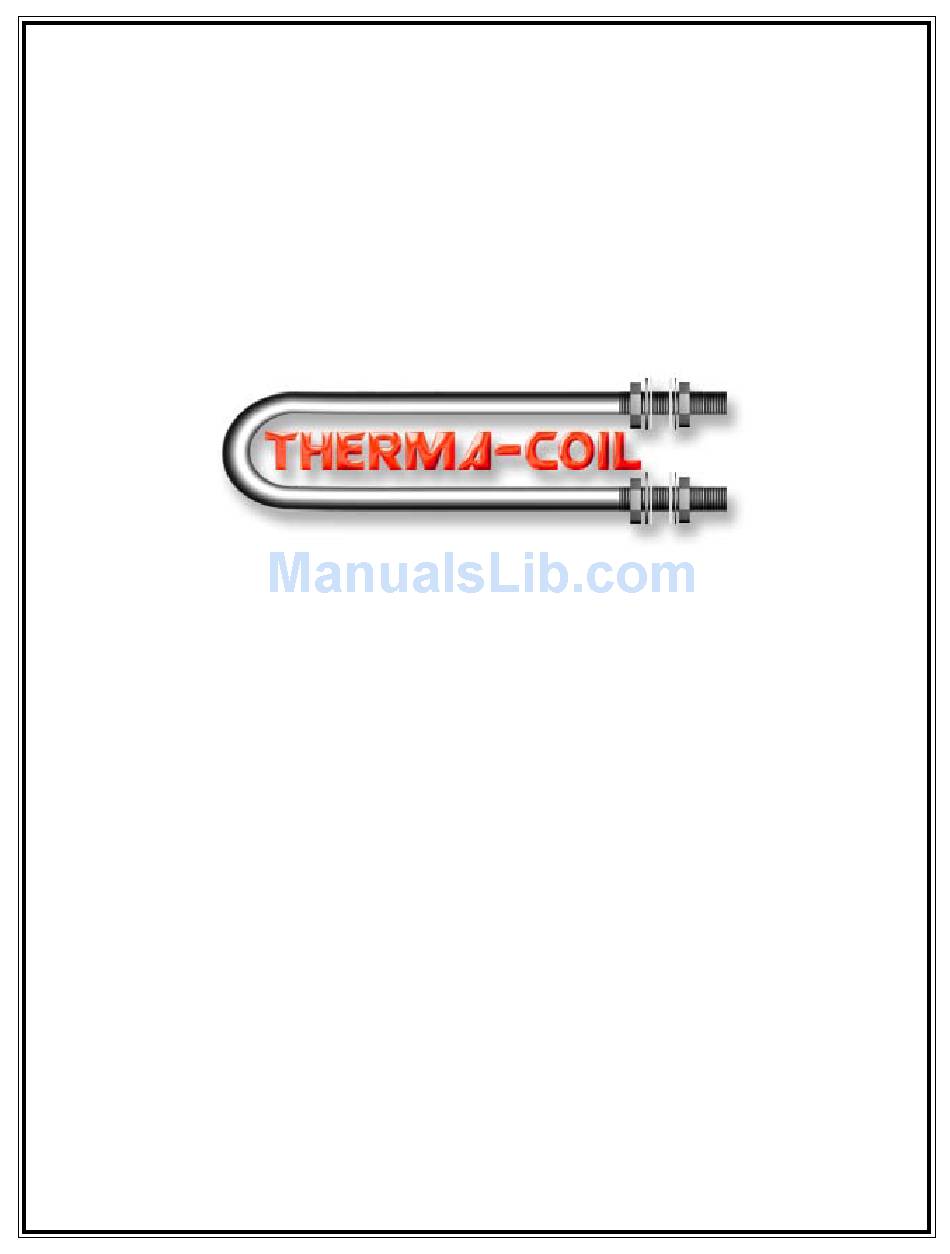

- Page 1 the stainless steel water-heater for your woodstove USER’S MANUAL...
- Page 2 Therma-coil is a stainless steel heat exchanger placed inside the stove firebox where the consistent heat is. Constructed of heavy-wall stainless steel pipe, Therma-coil has no joints and mounts securely in most stoves with gaskets sealing the stove-wall penetration against smoke leakage.
- Page 3 Climates that use woodstoves 5” thread all the time throughout long winters will see W-Coil more hot water produceded in a Therma-coil than milder areas with intermittent stove use and should be sized accordingly. Measure the 10 1/4”...
- Page 4 2) Check again inside and out, remembering the 6” nipples will go through the holes made in the stove as well as any heat shields that your stove may have. The Therma-coil should exit out the rear of the stove when possible, so plumbing to and from the stove is hidden.
- Page 5 “falls” down the plumbing line to the Therma-coil, completing the cycle. The flow is slow and is reduced by long runs. This is only possible if the water heater or storage tank is higher than the woodstove and close to it.
- Page 6 The differential controller compares a probe sensor inside the bottom of the water heater / storage tank, and a probe sensor inside the therma-coil exit line. When- ever the stove water is hotter than the storage tank, the controller turns on the circulating pump.
- Page 7 Contact Therma-Coil PO Box 688 Browns Valley, CA 95918 530-743-0908 info@therma-coil.com...
