CROWN FOOD EC - 6TW Installation And Operation Manual

Self-generating steam jacketed counter tilting kettles

Hide thumbs

Table Of Contents

Quick Links

INSTALLATION AND OPERATION

MANUAL

SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES

MODELS: EC - 6TW

EC - 10TW

EC - 12TW

CROWN FOOD SERVICE EQUIPMENT LTD.

70 OAKDALE ROAD, DOWNSVIEW, (TORONTO), ONTARIO, CANADA, M3N 1V9

TELEPHONE: (416) 746-2358, FAX: (416) 746-8324

PRINTED IN CANADA

PART NUMBER 10121R3

2003-02-24

Table of Contents

Need help?

Do you have a question about the EC - 6TW and is the answer not in the manual?

Questions and answers

Summary of Contents for CROWN FOOD EC - 6TW

Page 1 INSTALLATION AND OPERATION MANUAL SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES MODELS: EC - 6TW EC - 10TW EC - 12TW CROWN FOOD SERVICE EQUIPMENT LTD. 70 OAKDALE ROAD, DOWNSVIEW, (TORONTO), ONTARIO, CANADA, M3N 1V9 TELEPHONE: (416) 746-2358, FAX: (416) 746-8324...
Page 2: Important Notes For Installation And Operation
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW IMPORTANT NOTES FOR INSTALLATION AND OPERATION It is recommended that this manual be read thoroughly and that all instructions be followed carefully. This manual should be retained for future reference. DO NOT ATTEMPT TO OPERATE THIS UNIT IN THE EVENT OF A POWER FAILURE.
Page 3: Table Of Contents
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW TABLE OF CONTENTS DESCRIPTION PAGE IMPORTANT NOTES FOR INSTALLATION AND OPERATION ..... . 2 SERVICE CONNECTIONS .
Page 4: Service Connections
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW PART NUMBER 10121R3 2003-02-24...
Page 5: Installation Instructions
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 1.0 INSTALLATION INSTRUCTIONS Immediately after unpacking, check for possible shipping damage. If the kettle is found to be damaged, save the packaging materials and contact the carrier within 15 days of delivery. 1.
Page 6 INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 1.0 INSTALLATION INSTRUCTIONS (Continued) WARNING DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCONNECT SWITCH TO INDICATE YOU ARE ON THE CIRCUIT. A waterproof electrical connection for power supply to console housing must be provided. Ground appliance to terminal provided inside console housing.
Page 7: Introduction

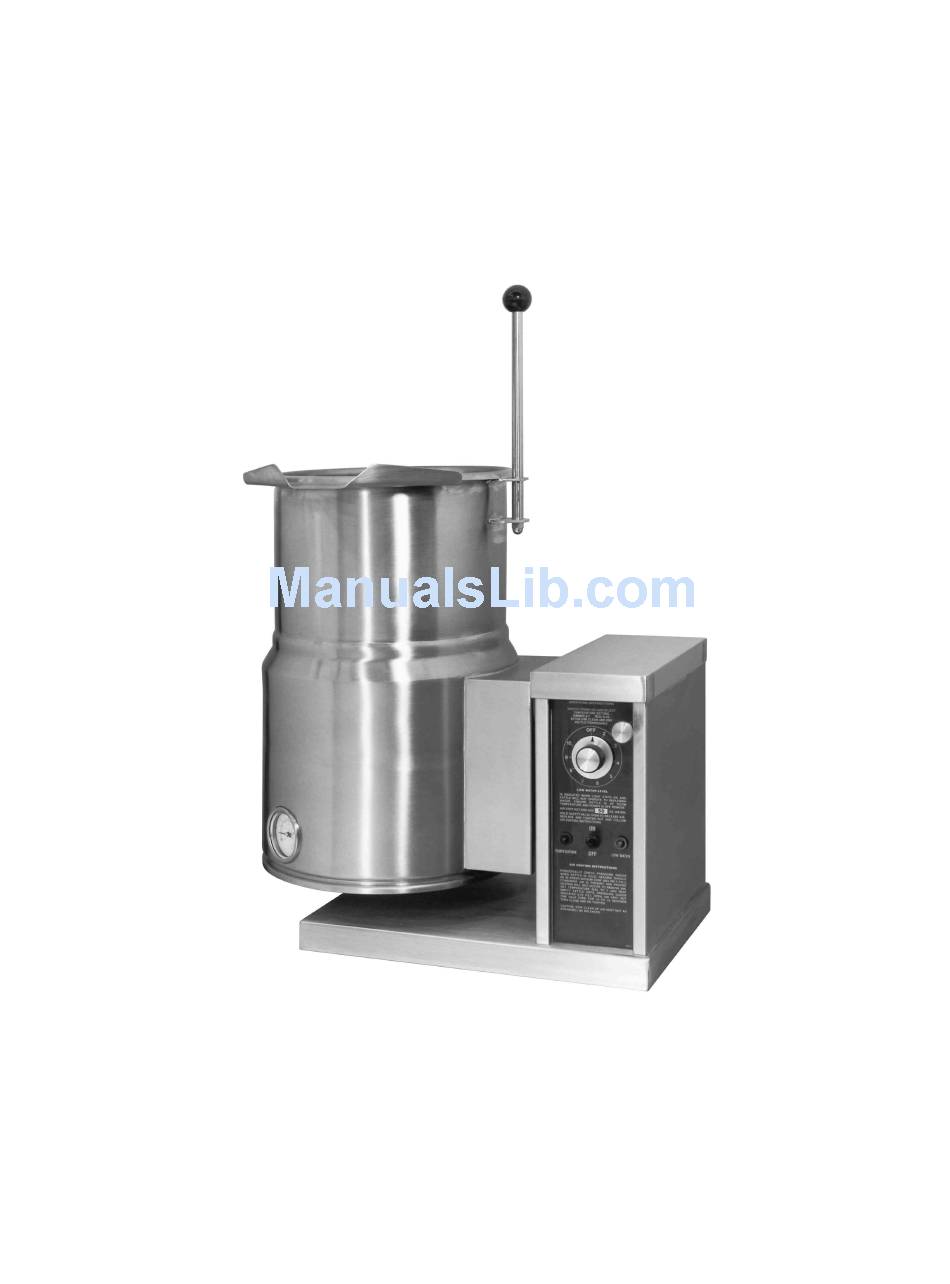

INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 2.0 INTRODUCTION DESCRIPTION Models EC-6TW (6 gallon capacity) and EC-10TW (10 gallon capacity) and EC-12TW (12 gallon capacity) electrically powered, self-contained, countertop, tilting kettles. Each model has a jacket of double-wall construction forming a sealed reservoir around the lower two-thirds of the kettle.
Page 8: Operation Instructions
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 3.0 OPERATION INSTRUCTIONS Ensure that the external electrical shut-off to the kettle is on. Check pressure gauge for correct cold kettle reading. Reading should be in the green vacuum zone.
Page 9 INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 3.0 OPERATION INSTRUCTIONS (Continued) When cooking is finished set thermostat knob and power switch to the OFF position. Pour finished product from kettle using tilt handle. Be careful to avoid splashing. Add water to kettle for cleaning purposes.
Page 10: Cleaning Instructions
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 4.0 CLEANING INSTRUCTIONS The kettle interior and exterior should be thoroughly washed after each use in preparation of a different food. Add water and mild detergent to the kettle immediately after use. Scrub kettle interior with nylon brush.
Page 11: Troubleshooting
INSTALLATION AND OPERATION MANUAL, SELF-GENERATING STEAM JACKETED COUNTER TILTING KETTLES, EC-6TW, EC-10TW, EC-12TW 5.0 TROUBLESHOOTING 5.1 GENERAL MAINTENANCE No general maintenance is required other than adhering to the Cleaning Procedure Instructions. 5.2 LOW WATER LEVEL Proper water level must be maintained within the jacket for the kettle to operate. Depletion of water may occur from excessive opening of, or leakage through the safety relief valve.
