Summary of Contents for Airmar G2183

  • Page 1: Gps Receiver

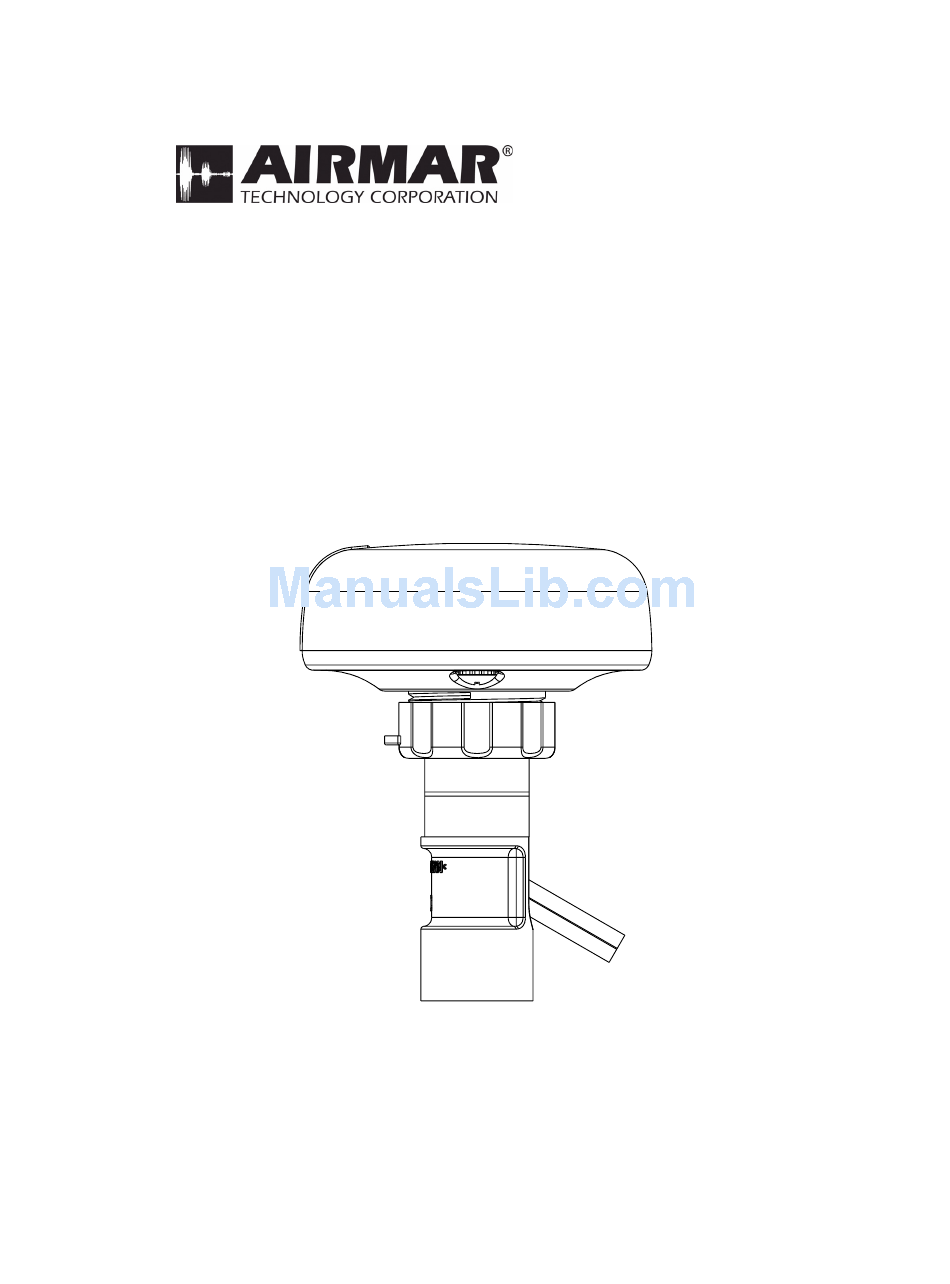

    Owner’s Guide & Installation Instructions GPS Receiver G2183 Model Record the serial number found on the GPS Receiver. Serial No.___________ Date of Purchase__________ 17-484-01 rev. 02 04/01/09...
  • Page 2 Copyright © 2008, 2009 Airmar Technology Corp. All rights reserved.
  • Page 3: Table Of Contents

    Table of Contents Introduction................4 Safety Instructions..............5 Hardware, Tools & Materials............6 Choosing the Mounting Location..........7 Installing................... 8 Pole or Rail Mount..............8 Flush Mounting on a Horizontal Surface........10 Cable Routing & Connecting Guidelines........11 Connecting to an NMEA 0183 Display........11 Connecting to an NMEA 2000®...
  • Page 4: Introduction

    Introduction Thank you for purchasing the Airmar’s GPS Receiver and combined antenna. This sensor fixes position using Wide Area Augmentation System (WAAS). The compact housing is waterproof with a single removable cable. Data is output in digital NMEA 0183 and NMEA 2000®...
  • Page 5: Safety Instructions

    WARNING Navigation Aid Only—The GPS receiver is only an aid to navigation and should never be solely relied upon. It is not a replacement for traditional navigation aids and techniques. Only official government charts contain all the information needed for safe navigation. WARNING: GPS Accuracy The GPS position and velocity accuracies are controlled by the U.S.
  • Page 6: Hardware, Tools & Materials

    Cables & Converting/Connecting Hardware The GPS receiver can be connected in several ways. You must have the correct cable(s) and any needed junction box before beginning the installation. Cables NOTE: Additional cable lengths are available. 862-02 • NMEA 0183 Cable Part No.
  • Page 7: Choosing The Mounting Location

    Choosing the Mounting Location For a reliable GPS signal, selecting the best location for the receiver is very important. It can be mounted on a pole, rail, or flat surface. Choose a location that balances the requirements below. • The GPS receiver must have a clear view of the sky to the horizon in all directions.
  • Page 8: Installing

    (part A) alignment mount base (part C) serial number lock washer (2) socket machine screw (2) sensor connector nut assembly captive cable side-exit adaptor (part D) slot for cable exit Figure 2. Pole/Rail mount Copyright © 2008 Airmar Technology Corp.
  • Page 9 2. Decide if you want the cable to exit through the center or along the side of the pole/rail bracket. Slide the nut assembly onto the cable at the 9-pin sensor connector end. Do not connect the sensor at this time. a.
  • Page 10: Flush Mounting On A Horizontal Surface

    (2) Figure 3. Flush mount Copyright © 2008 Airmar Technology Corp. 2. Using the gasket (part B) as a template, position it at the selected mounting location upside down with the arrow facing forward. Mark the position for the two mounting holes and the center hole for the cable.
  • Page 11: Cable Routing & Connecting Guidelines

    1m (3'). CAUTION: Do not remove the waterproof connector(s) to ease cable routing. If the cable must be cut and spliced, use Airmar’s splash-proof Junction Box No. 33-035 and follow the instructions provided. Removing the waterproof connector or cutting the cable, except when using a water-tight junction box, will void the sensor warranty.
  • Page 12 6. Fasten all cable in place. 7. Your installation is complete. To begin receiving data, refer to the owner’s manual that came with your display. sensor connector NMEA 0183 display BARE Figure 4. NMEA 0183 cable Copyright © 2008 Airmar Technology Corp.
  • Page 13: Connecting To An Nmea 2000® Network

    (raised dot) Figure 6. Inserting the male-to-male pin in the sensor connector Copyright © 2008 Airmar Technology Corp. Route the sensor cable to the NMEA 2000 network. Plug the NMEA 2000 connector into the network node (see Figure 5). Coil any excess cable and secure with cable ties to prevent damage.
  • Page 14: Maintenance & Updates

    Maintenance & Updates Firmware Revisions Airmar may release updated versions of the firmware. The latest revision will be available for download through an email to you, from Airmar’s website, www.airmar.com, or a CD can be mailed by Airmar’s technical support personnel.
  • Page 15 Notes...
