Summary of Contents for OmniCell Comunications FWT 335
-

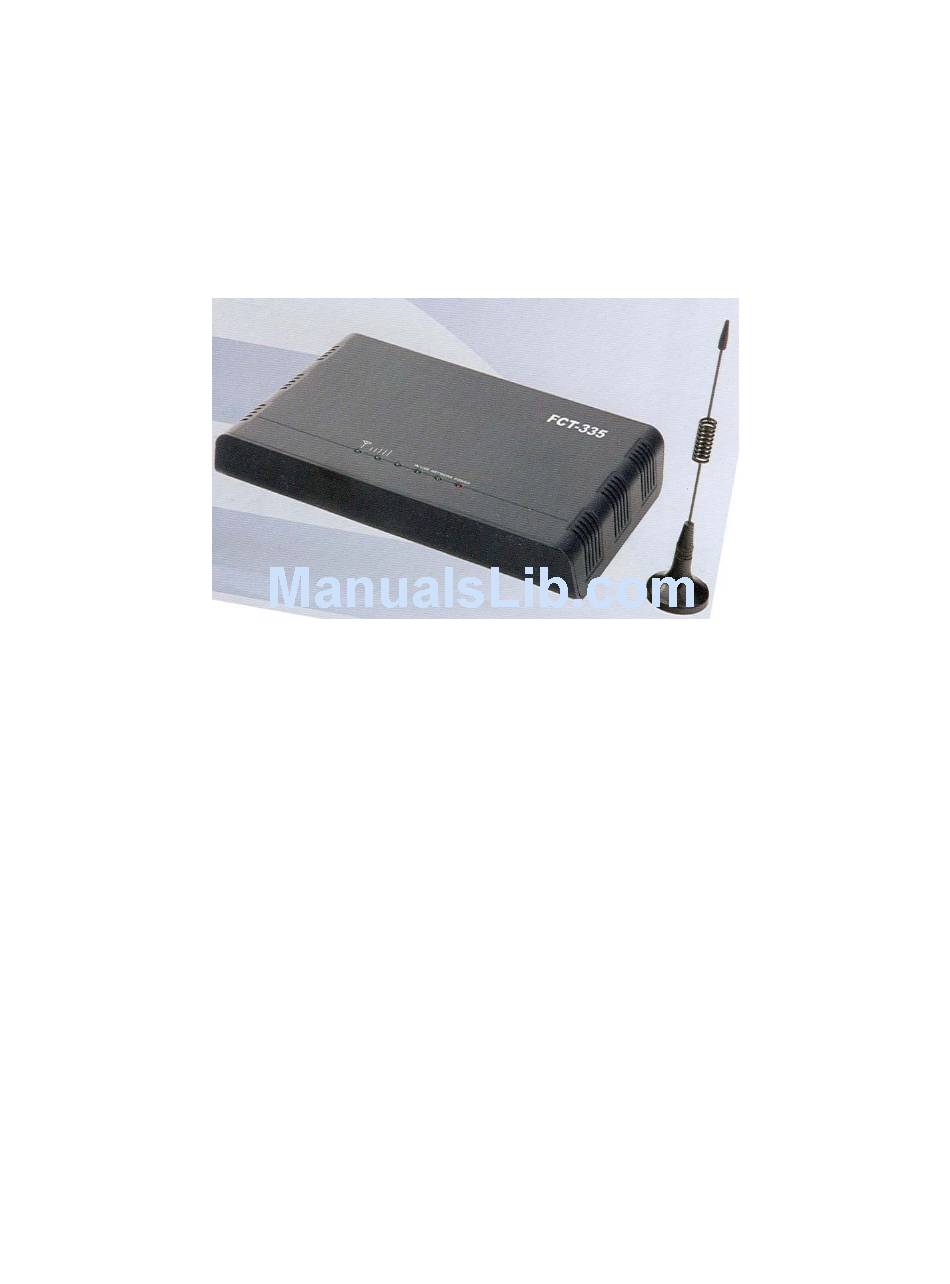

Page 1: User Manual
FWT 335 GSM Wireless Receiver USER MANUAL... -
Page 2: Table Of Contents
CONTENTS 1. Introduction 2. Packing List 3. Installation 4. External Antenna/Signal Enhancement 5. Equipment Specifications 6. Operation 7. Trouble Shooting 8. Functions and Settings 9. Maintenance 10. Warranty & Technical Support... -
Page 3: Introduction
Introduction Welcome to the GSM Wireless Receiver Platform. This unique wireless terminal will allow you to replace your land line, add an additional line to your home or office, or to install phone service in areas where regular phone service is not available. All that is required is a power outlet and GSM cellular service. This wireless, cellular terminal will power two standard telephone sets and will allow you to make and receive cellular calls directly from those telephone sets. -
Page 4: Installation
Installation CAUTION…Be certain that the power is not turned on while assembling the unit. Antenna… Screw the 12” ‘leptospira’ antenna into the antenna base (includes cable). Install the mobile antenna and cable by connecting the cable end to the SMA connector on the back of the FWT. NOTE…any quality 50 ohm antenna system may be used as an external antenna. - Page 5 Telephone Installation Any standard, wired or cordless telephone set will work with this FWT 335 wireless cellular terminal. Simply connect the base of the telephone to one of the two ‘RJ11’ jacks on the back of the terminal using a standard, 4-wire telephone cord.
-
Page 6: External Antenna/Signal Enhancement
External Antenna Shown with Optional Lightening Arrester Signal Enhancement Cellular signal is difficult to predict. Terrain and foliage between your installation and the cell tower will cause the cell signal to fluctuate, diminish, or disappear in certain locations. You will want to find the best signal (sweet spot) for your terminal and make your installation at that location. -
Page 7: Operation
1) Lift the telephone receiver or the press button for ‘hands free” operation (speakerphone) 2) Once you hear the dialing tone, dial the desired telephone number 3) You may enter ‘#’ once you finish entering the number. This will indicate the end of the phone number and the terminal will transmit immediately. -
Page 8: Functions And Settings
Functions and Settings Each function supported by this terminal is confirmed or changed by using the connected, standard telephone. The GSM wireless terminal ‘signal strength’ lights are used to prompt whether the setting is correct. If correct, all three LED lights will flash slowly (500 ms on/500 ms off) and will be accompanied with the dialing tone. - Page 9 Check Operating Band Format: 0*#05# Display: 005X X = 8501900 means the equipment is set to the US Standard of 850/1900 MHz 9001800 means the equipment is set to the European Standard of 900/1800 MHz Check Caller ID Format: 0*#04* Display: 004X X = 0…set by network 1…Disabled...
-
Page 10: Maintenance
Maintenance 1) Keep the terminal dry. If liquid is spilled on the unit, dry it with a soft cloth immediately. The case is not moisture-proof and the circuit boards may be ruined. 2) Do not expose the terminal to sunlight or extreme temperatures 3) Temperature extremes will shorten the life of components such as the battery and circuit boards 4) Keep all surfaces clean and free from dirt and grease 5) Do not drop or install in locations that may cause harm to the terminal...
