Prodipe 49N Owner's Manual

Midi usb keyboard
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual

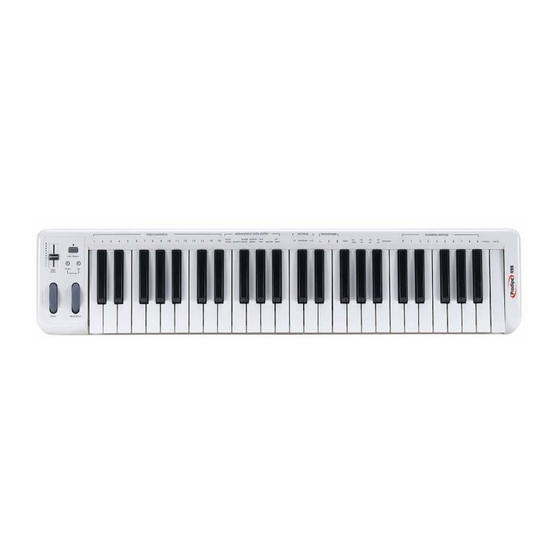

Prodipe Midi USB Keyboard 49N
Copyright © 2007 IPE Music

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 49N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prodipe 49N

  • Page 1 Owner's Manual Prodipe Midi USB Keyboard 49N Copyright © 2007 IPE Music...
  • Page 2 Copyright © 2007 IPE Music...
  • Page 3 Prodipe Midi USB Keyboard 49N. Please read the manual carefully to find out what you can do with your Prodipe Midi USB Keyboard 49N. After reading this manual, you should have a clear understanding of how to transmit different MIDI messages to other instruments and equipments.

  • Page 4: Table Of Contents

    Mac and PC class compliant • Something you should know before using the MIDI Functions • Using the MIDI Functions • Default Setting of the MIDIPLUS 49N 2 - Overall Diagram Preview • Part A. Operation panel • Part B. Rear Panel 3 –...

  • Page 5: Main Feature

    Mac and PC class compliant: The firmware of the Prodipe Midi USB Keyboard 49N is designed to be class compliant for both Mac and PC so there is no driver need while you use this keyboard to connect to Max OS X and PC widows XP or above.

  • Page 6: Using The Midi Functions

    To transmit MIDI data from your keyboard to other professional MIDI instruments, please purchase a MIDI cable and use it to connect the MIDI OUT jack of your the Prodipe Midi USB Keyboard 49N to the MIDI IN jack of the other instrument. Make sure that the MIDI "transmit"...

  • Page 7: Part A. Operation Panel

    Press Octave Up button twice. 5. MIDI / SELECT button: Use this button to select different MIDI command on certain key from keyboard. The Prodipe Midi USB Keyboard 49N provides several groups of MIDI command as following.

  • Page 8: Part B. Rear Panel

    D. Reset key: Press MIDI/SELECT button and Reset key will send out a message to return all external MIDI instruments to their default setting as well. Control Change data entry by Numeric keypad: the Prodipe Midi USB Keyboard 49N allows you to use numeric key to specify your Control Change DATA parameter instead of data entry slide.
  • Page 9 2. MIDI Keyboard out jack: This standard MIDI jack is used to send keyboard generated MIDI messages to another MIDI instrument (such as sound module). 3. USB Port - This USB connector jack is used to connect the Prodipe Midi USB Keyboard 49N to the Computer’s USB port using a standard USB cable (included).

  • Page 10: Specification

    3 - Specification Keyboard 49 dynamic keys. Simultaneous Note output 10 notes (Reverse priority) MIDI Channel, Reset, Octave -2,-1, center, +1,+2, Program Change, CC-00/CC-32(For GS Bank Selection),CC-No.(Generic CC Assignment).CC-Data. Data Entry After Touch Control switches Assignment, Data Entry Velocity Assignment, Data Entry Reverb Send Level Assignment, Data Entry Chorus Send Level Assignment, Pan Pot Assignment (CC-10), Volume Assignment (CC-07).

  • Page 11: Midi Implementation Chart

    4 -MIDI Implementation Chart Function Transmitt Recogniz Remarks Basic Default Channel Changed 1-16 Default Mode 3 Mode Messages Altered ************* Note 12-108 With Octave Number True Voice ************* Change Velocity Note ON Note OFF After Key's Touch Ch's Pitch Bender Control Change Prog Change :True # 1-128...
  • Page 12 Copyright © 2007 IPE Music...
