Summary of Contents for Shenzhen Minitimes Mini1080

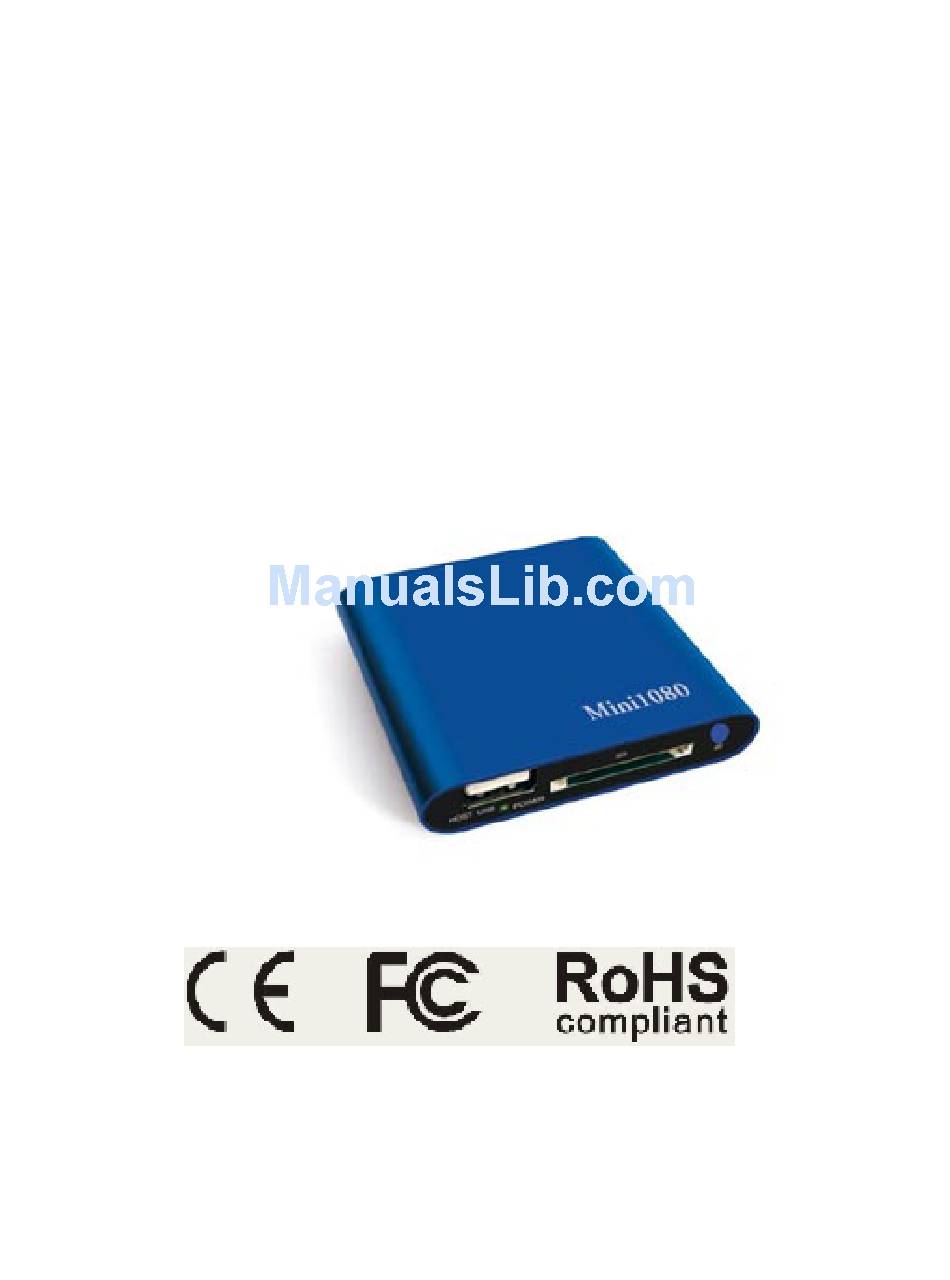

- Page 1 Mini1080 Media Player User’s Manual V2.1 （Please read this manual carefully and keep it for daily use）...
-
Page 2: Table Of Contents
Index 1. Precautions…………………………………………………………………2 2. Functions and features…………………………………………………..3 3. List of accessories………………………………………………………..3 4. Interfaces of the player……….………………………………………….4 5. Description of remotes …….…..………………………………………..5 6. Definition of remotes keys….…………………..……………………….6 7. Connecting with display devices …...…………………………………7 8. Operating reference…………………………………………………...….10 8.1 Setup menu…………………………………………………………….10 8.2 Playing media files……….…………………………………………..11 8.2.1 Movie playback…………………………………………..……..11 8.2.2 Music playback….……………………………………….……..13 8.2.3 Photo playback…….……………………………………….…..15... -
Page 3: Precautions
Precautions 1. Keep the player and power adapter/cables away from heat, pressure, humidity. 2. When there is smoke or noise from the player, please cut down Power for safety and consult seller for repair. 3.Apply wrong power adapter(other than 5V) to player may cause Permanent damage to player, and warrantee will be invalid ;... -
Page 4: List Of Accessories
Video definition: 1920x1080x60P,,up to 80Mbps Audio formats: MPEG1/2/4,MP3,WMA,OGG,AAC,FLAC,APE,AC3,DTS,ATRA. Photo: JPEG, TIF, PNG, BMP. Playback function: Power-on auto run, Resume/Repeat/Zoom/time Choosing/FF/BF, Rotate, background music File management: Delete or copy files Dual power: It can be powered by either 5V2A adapter, or USB; Video out: HDMI/ CVBS/ YPbPr, manually set or power-on auto setting. -
Page 5: Interfaces Of The Player
Interfaces of the player... -
Page 6: Description Of Remotes
Description of remotes... -
Page 7: Definition Of Remotes Keys
Definition of remotes keys Function of remote key table Power Standby Change video POWER MODE output mode Special Function Mute FUNCT Setting menu ZOOM MENU Picture zoom in/out Return Confirm EXIT Up, Down, Right, ▲ ▼ VOL+/- Volume up/down Left Skip to next/previous Fast forward/backward Stop... -
Page 8: Connecting With Display Devices
Connecting with display devices 1. AV interface to TV Use the AV cable to connect player with TV through AV interface. (Refer to picture below)。... - Page 9 2. YPbPr interface to TV Use the YPbPr cable to connect player with TV through the YPbPr interface for video, also use the AV cable to connect player with TV for audio(red, white) .(Refer to picture below)
- Page 10 3. HDMI interface to TV Use HDMI cable to connect the player with a HDTV. (Refer to picture below) Video output mode setting: the player can auto recognize TV connecting mode and set to right mode when power on is doing, you can also set output mode by pressing MODE...
-
Page 11: Operating Reference
Operating reference After power on, player will enter main menu. (Refer to picture1) Picture1 Setup menu You can set up the player when first time using. Select the SETTING option by pressing the LEFT/RIGHT key in main menu, then press the OK to confirm. (Refer to picture2, picture3) Picture2 Picture3 Playing media files:... -
Page 12: Movie Playback
*Movie playback 1、 Select movie option by pressing the LEFT/RIGHT key in main menu, then press the ENTER key to enter into the video interface. (Refer to picture4) Picture4 2. Select device in which movie files store, press ENTER key to confirm, please refer to picture5. -
Page 13: Music Playback
“ ” press this key to pause , press again to continue playing file. “ ” Press this key to stop playing. Subtitle menu Press FUNCT key to enter subtitle submenu. Display spatial Press ZOOM key to adjust display scale (4：3/16：9,full screen…）etc. File info Press INFO key to show the information of video file. - Page 14 Picture 7 2. In device list menu, select the device from which you prefer to play the music, press OK to confirm, please refer to the picture 8. 、 Picture 8 3. Press UP/ DOWN key to choose music file, then press OK to confirm.
-
Page 15: Photo Playback
“ ”: In full screen playing status, press this key to fast forward play current file. Press OK to return to normal playing speed. “ ”: In full screen playing status, press this key to fast backward play current file. Press OK to return to normal playing speed. Volume: In full screen playing status, press VOL+/VOL- to adjust volume “... - Page 16 Picture 11 2. In PHOTO menu, select the device from which you prefer to play Photo files, press OK to confirm. (Refer to picture12) Picture 12 3. Press UP/ DOWN to choose the photo files, and press ENTER to confirm. ：...
-
Page 17: File Copy/Delete Functions
Picture 13 File Copy/Delete functions 1.Select one file in the EXPLORER submenu（Refer to Picture 14/15） ， Press FUNCT key, COPY/DELETE/STICK options will appear. Picture 14 Picture 15 2. To copy the file, please select COPY and press OK to confirm. Then press EXIT to go to directory you want to copy to. -
Page 18: Trouble Shooting
Doing same way to enter COPY/DELETE/STICK options, and select STICK to complete copy. Trouble shooting Symptom Possible reasons Possible solving methods Power socket contacts Check and make sure DC power No power not well contacts well with player socket. Power is on, but Plug off/on the power adapter Player works Unclear reason... -
Page 19: Specifications
Specifications Power Supply DC 5.0V/2A ≤500mA Power Consumption Video System CVBS(PAL/NTSC), YPbPr(1080P), HDMI(1080P) Dimensions 63*60*13mm Weight(net/packaged) 50g/220g RM, RMVB, AVI, DIVX, MKV, MOV, HDMOV, MP4,M4V, PMP, AVC, FLV, Video format VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV (H.264,H.263,WMV9/VC-1,MPEG1/2/4) MPEG1/2/4,MP3, WMA, OGG, AAC, FLAC, APE, Audio format AC-3, DTS, ATRA Photo format... -
Page 20: Firmware Upgrading
Firmware upgrading 1. Use SD card or USB storage that contains new firmware to upgrade. 2 .In EXPLORE menu select the file name of firmware ,a dialog box will appear. 3. Select "YES" to confirm to upgrade firmware. 4. After showing "updating firmware" for 1-2 minute, the display will lost signal, Pls keep power on for 2 minutes more.
