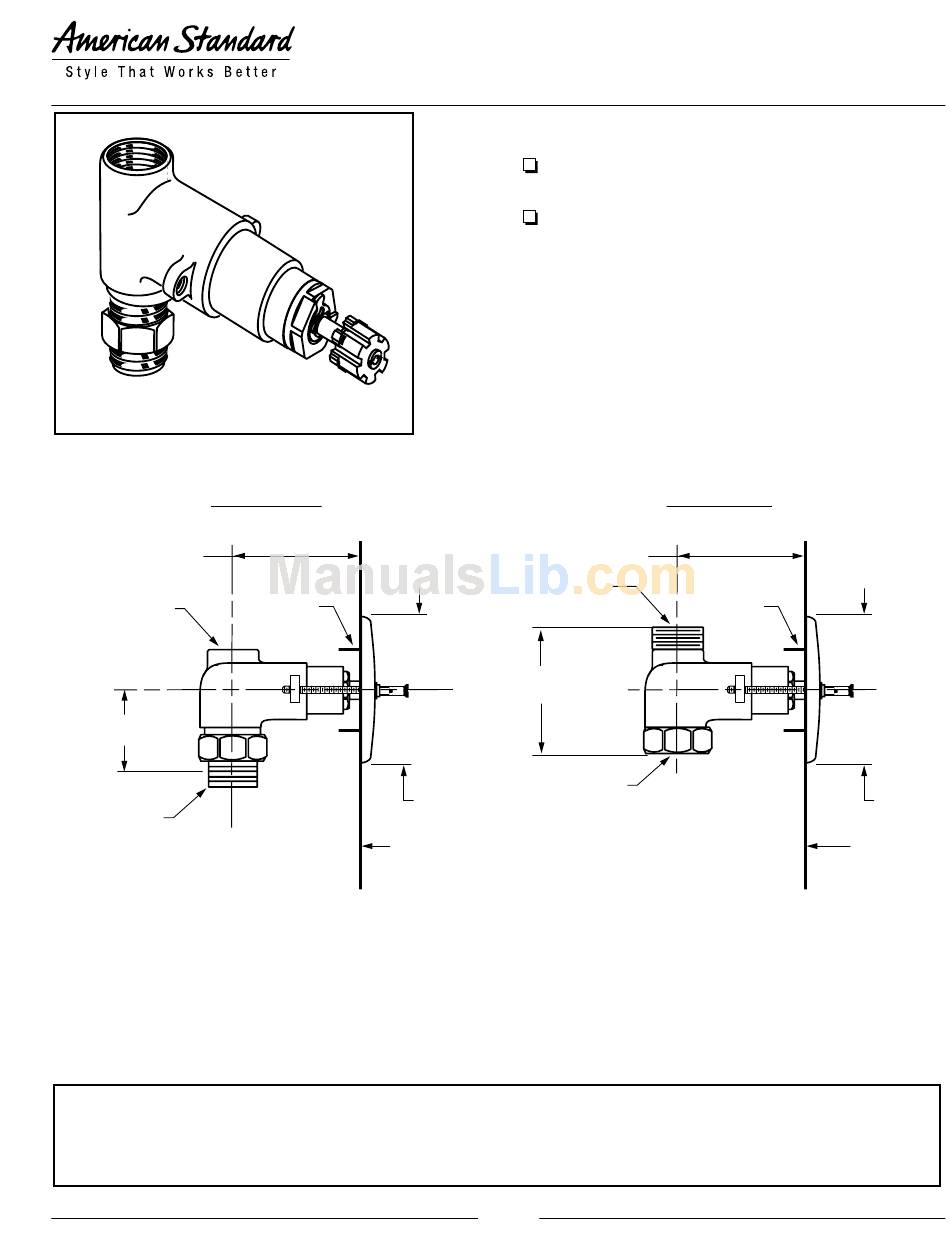

American Standard Amarilis Jasmine R701 Specification Sheet

R701 Shown
Model R701
60mm±13mm
(2-3/8±1/2)
1/2" NPT
FEMALE OUTLET
51mm
(2)
UNION INLET
1/2" - 14 NPT
OR
5/8" O.D.
COPPER SWEAT

GENERAL DESCRIPTION:

Cast brass valve body.
valve cartridge. Model R701 with combination 1/2" NPT
threaded and direct sweat inlets.
Model R711 with 3/4" female inlet. 3/4" male outlet.
SUGGESTED SPECIFICATION:
In-wall single valve shall feature a cast brass valve body. Model R701 shall feature combination 1/2" NPT threaded and direct
sweat inlets. 1/2" NPT female outlet. Model R711 shall feature 3/4" female inlet. 3/4" male outlet. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # R7_1.
© 2008 AS America Inc.
29mm
(1-1/8)
DIA. HOLE
67mm
(2-5/8)
FINISHED
WALL
Amarilis washerless ceramic disc
1/2" NPT female outlet.
ON/OFF & VOLUME CONTROL VALVES
MODEL NUMBER:
R701 On/Off & Volume Control Valve
1/2" inlet/outlet. Less handle.
R711 On/Off & Volume Control Valve
3/4" inlet/outlet. Less handle.
Model R711
60mm±13mm
(2-3/8±1/2)
3/4'' NPT
MALE THREADED
OUTLET
64mm
(2-1/2)
3/4" NPT
FEMALE THREADED
INLET

PRODUCT FEATURES:

Brass Construction:
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge:
drip-free performance.
F65
ROUGH VALVES
29mm
(1-1/8)DIA.
FINISHED
Durable - Excellent in high use
Assures a lifetime of
67mm
(2-5/8)
WALL
