Summary of Contents for Image Dynamics USA i2300

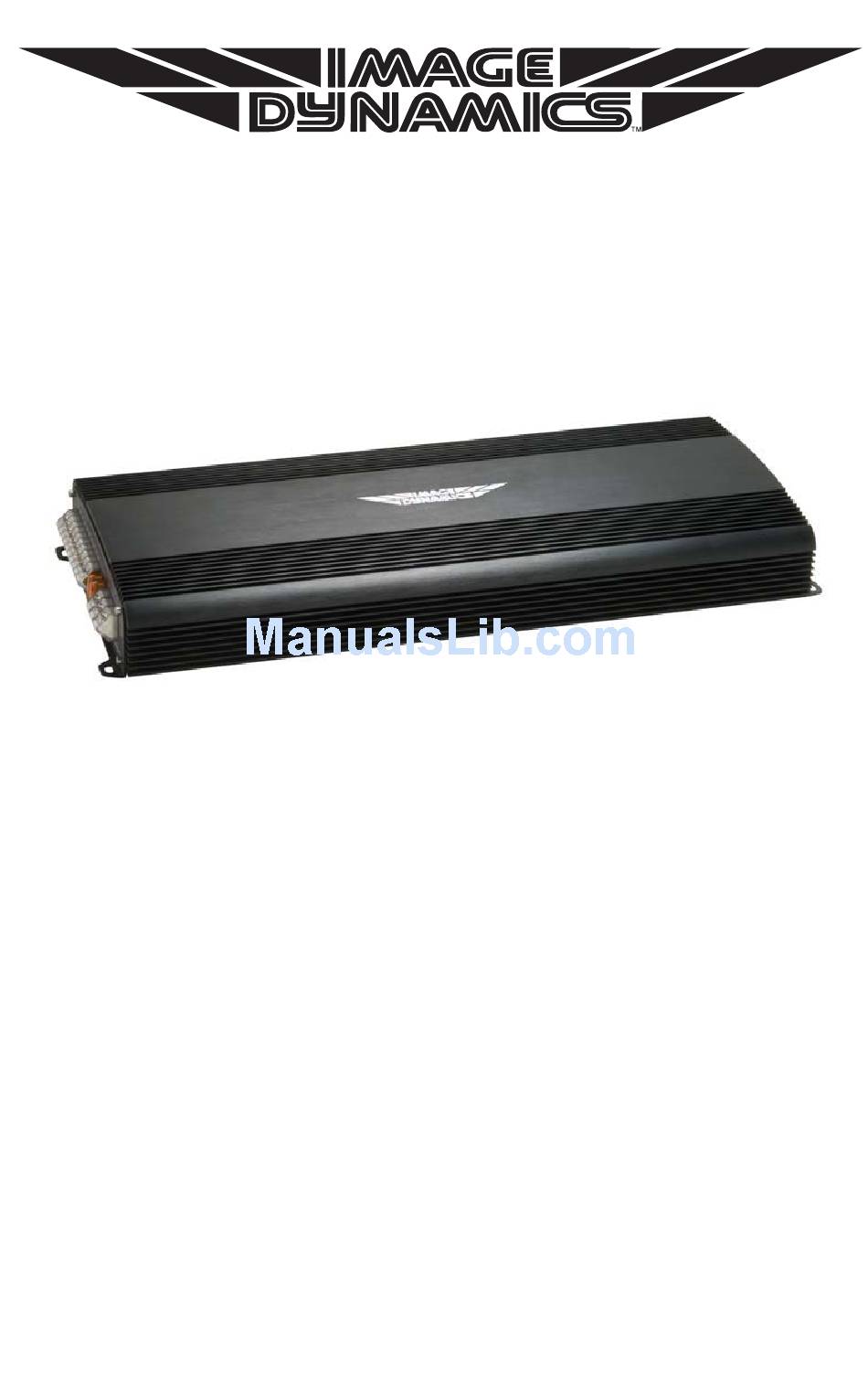

- Page 1 Owner’s Manual...
- Page 2 INTRODUCTION Thank you for purchasing an Image Dynamics amplifier for your automotive sound system. Your amplifier has been designed and manufactured to the highest standards ensuring years of enjoyment in your vehicle. For maximum performance and extended warranty coverage, we highly recommend that you have your new amplifier installed by an authorized Image Dynamics dealer.
- Page 3 WARNING High powered audio systems in a vehicle are capable of generating “Live Concert” levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sounds such as;...
- Page 4 PLANNING and INSTALLING YOUR SYSTEM (continued) STEPS FOR AMPLFIER INSTALATION- The following represents the steps for a typical amplifier installation, using an aftermarket source unit or OEM source Interface. Not all installations are the same and different procedures may be required. If you have any ques- tions, please contact your authorized Image Dynamics dealer for assistance.
-
Page 5: Power Connections
POWER CONNECTIONS CAUTION Prior to installing the amplifier, disconnect the negative (ground) wire from the vehicle’s battery. This will prevent accidental damage to the system, the vehicle and your person during installation. The i-series amplifiers power and ground connections are designed to accept 4/8 AWG power wire. -
Page 6: Controls And Settings
CONTROLS AND SETTINGS 4 Channel 2 Channel 5-Channel - 5 -... - Page 7 CONTROLS AND SETTINGS 4 Channel 2 Channel 5-Channel - 5 -...
-
Page 8: Set-Up Adjustments
CONTROLS AND SETTINGS SET UP ADJUSTMENTS GAIN Input Gain Adjustment Input Sensitivity Control This control allows you to match the input level of the amplifier to the output of your head unit. Matching the input can be accomplished in three simple steps: Set the Input GAIN on the amplifier to Min (completely counter clock wise) Turn on the head unit and adjust volume to just below maximum volume, and set the BASS and TREBLE to zero. - Page 9 CONTROLS AND SETTINGS 40Hz 250Hz Low Pass Filter Control LPF (Low Pass Filter) Adjustment Using this control will attenuate all frequencies above the selected frequency, this limits the highest frequency your speaker(s) will play. The MODE switch should be set at “LPF”. Remote Port This is for the Remote Gain Control.
-
Page 10: Specifications
SPECIFICATIONS MODEL i2300 i2600 SPEC. POWER @ 14.4V 1% THD + N RMS AT 4 Ohm , STEREO 75W X 2CH 150W X 2CH RMS AT 2 Ohm , STEREO 150W X 2CH 300W X 2CH RMS AT 4 Ohm , MONO... - Page 11 IMAGE DYNAMICS USA LIMITED WARRANTY IMAGE DYNAMICS USA warrants this product is free from defects in material and workmanship for a period of 1 (ONE) year from date of original purchase when installed by an authorized retailer or in a retailer approved installation, this must be indicated in writing on the original sales receipt.
