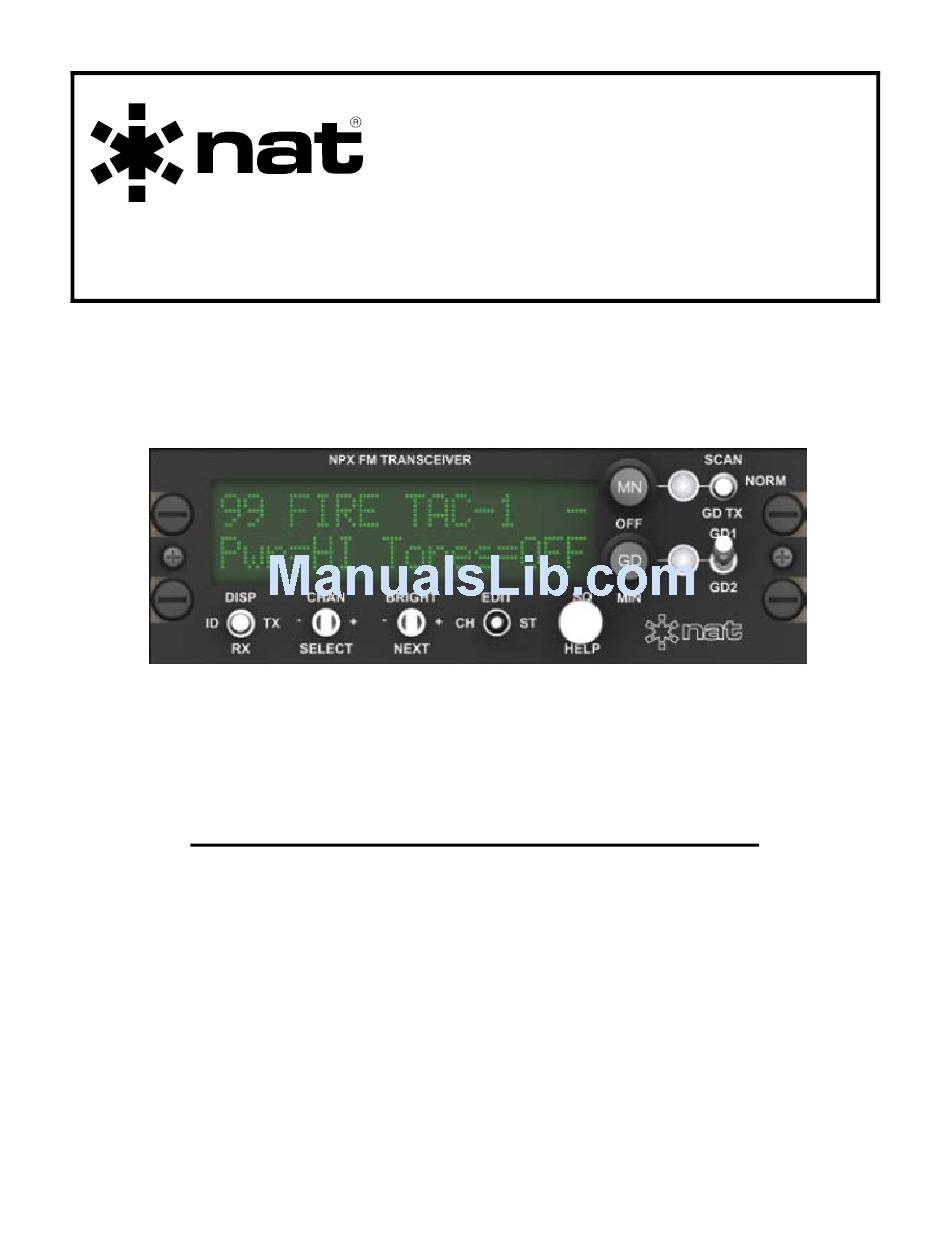

SM41
NPX138
PANEL MOUNT RADIO
INSTALLATION AND OPERATION MANUAL
REV 4.00 November 10, 2003
Northern Airborne Technology Ltd.
1925 Kirschner Road
Kelowna BC, Canada
V1Y 4N7
Telephone (250) 763-2232
Facsimile (250) 762-3374
Copyright 2003 by Northern Airborne Technology
CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPX138 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Northern Airborne Technology NPX138

  • Page 1 INSTALLATION AND OPERATION MANUAL REV 4.00 November 10, 2003 Northern Airborne Technology Ltd. 1925 Kirschner Road Kelowna BC, Canada V1Y 4N7 Telephone (250) 763-2232 Facsimile (250) 762-3374 Copyright 2003 by Northern Airborne Technology CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 2: Important Information

    SM41 Rev. 4.00 NPX138 Panel Mount Radio Manual IMPORTANT INFORMATION FOR AVIONICS INSTALLATION FACILITIES The NPX138 is supplied without TSO certification, as no such standard presently exists for airborne VHF/FM radio transceivers. This equipment provides what considered “supplemental” communications, and can be installed in an aircraft on a “Non interference”...
  • Page 3 Changed Entered Apr 19/04 Aug 19/04 Nov 22/04 Jun 10/05 Jan 14/08 Performed at factory Mar 30/10 Insert any Amendment Instruction sheets after this page. Nov 10, 2003 Page iii ENG-FORM: 820-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD...
  • Page 4 Scan Modes 3-16 3.11 Wideband/Narrowband Operation 3-18 3.11.1 Editing Wideband/Narrowband Flag 3-18 3.12 Configuration Mode 3-18 3.12.1 Using Configuration Mode 3-18 3.12.2 Configuration Option Table 3-19 Nov 10, 2003 Page v ENG-FORM: 820-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD...
  • Page 5 Update the Amendment Record sheet at the front of the manual. Insert this page into the manual after the Amendment Record sheet (page ii). Manual Amendment ends after the following amended pages Amendment No. 6 Mar 30, 2010 Page 1 ENG-FORM: 809-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 6 Update the Amendment Record sheet at the front of the manual. Insert this page into the manual after the Amendment Record sheet (page iii). Manual Amendment ends after the following amended pages Amendment # 5 Jan 14, 2008 Page 1 ENG-FORM: 809-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 7 Update the Amendment Record sheet at the front of the manual. Insert this page into the manual after the Amendment Record sheet (page ii). Manual Amendment ends after the following amended pages Amendment # 4 Jun 10, 2005 Page 1 ENG-FORM: 809-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 8 Update the Amendment Record sheet at the front of the manual. Insert this page into the manual after the Amendment Record sheet (page ii). Manual Amendment ends after the following amended pages Amendment # 3 Nov 22, 2004 Page 1 ENG-FORM: 809-0107.DOT PROPRIETARY AND CONFIDENTIAL TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 9 Update the Amendment Record sheet at the front of the manual. Insert this page into the manual after the Amendment Record sheet (page ii). Manual Amendment ends after the following amended pages Amendment #2 Aug 19, 2004 Page 1 ENG-FORM: 809-0107.DOT PROPRIETARY AND CONFIDENTIAL TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 10 MANUAL AMENDMENT Manual: SM41 NPX138 Amendment #: 1 Document # SM41\Install_Ops\809-0001 Amendment Date: Apr 19, 2004 The purpose of this amendment is to include the new revision of the NPX138\634-0 in the manual. Amendment Instructions: Remove Page Replace With Page 2-5 rev 4.00...

  • Page 11: Table Of Contents

    2.3.8 Post Installation EMI Test Operation Introduction Initial Operation 3.2.1 Power-up Help 3.2.2 Initial Operating Display Display Function Controls 3.4.1 Main RX (Receive) Volume Control Nov 10, 2003 Page iv ENG-FORM: 820-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD...
  • Page 12 Scan Modes 3-16 3.11 Wideband/Narrowband Operation 3-18 3.11.1 Editing Wideband/Narrowband Flag 3-18 3.12 Configuration Mode 3-18 3.12.1 Using Configuration Mode 3-18 3.12.2 Configuration Option Table 3-19 Nov 10, 2003 Page v ENG-FORM: 820-0109.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD...

  • Page 13: Introduction

    Purpose of Equipment The NPX138 panel mount FM transceiver is a stand-alone radio designed for the single mission user. It provides all the features needed to satisfy FM communications within the VHF-FM high band.

  • Page 14: Specifications

    60 dB min. @ ± 12.5 kHz Intermodulation rejection 70 dB Hum and Noise ratio Unsquelched > 50 dB Squelched < -80 dBw Distortion < 4% @ rated output Page 1-2 Nov 10, 2003 ENG-FORM: 800-0106.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 15: Transmitter

    5.75 inches (146.1 mm) Weight 3.0 lbs. (1.4 kg) Mounting Std. Dzus mounting (4 fasteners) Connector type 25 pin D-subminiature male (pins) Antenna connector BNC female Nov 10, 2003 Page 1-3 ENG-FORM: 800-0106.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 16: Environmental Specifications

    1.5.1 Narrowband Capability If the unit under consideration has the letter N after the NPX138 designation, it has the capability for narrowband selection in addition to wideband. If this part of the name is blank, the unit has wideband capabilities only.

  • Page 17: Voice Inversion Encryption

    The digit in the third position of the unit suffix indicates whether voice inversion encryption is installed. NPX138 N - 000 No Encryption Encryption End of section 1.0 Nov 10, 2003 Page 1-5 Amendment # 4 Jun 10, 2005 ENG-FORM: 800-0106.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 18: Introduction

    This should be considered when audio wiring to and from the radio installation is performed. Nov 10, 2003 Page 2-1 Amendment # 5 Jan 14, 2008 ENG-FORM: 805-0104.DOT PROPRIETARY AND CONFIDENTIAL TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 19: Notes

    2.3.3 Notes The case of the NPX138 must be electrically grounded for maximum resistance to low frequency interference. A pin on the connector (Chassis ground) is provided and must be connected by a short wire to a clean ground, not jumpered to the power ground wire connection.

  • Page 20: Antennas

    Avoid antenna locations that will become fouled with oil, water, fuel or dirt, as this will degrade performance. Roof mounts (in close proximity to rotor blades) are permissible. Nov 10, 2003 Page 2-3 Amendment # 5 Jan 14, 2008 ENG-FORM: 805-0104.DOT PROPRIETARY AND CONFIDENTIAL TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 21: Mechanical Mounting

    7, sections 2 to 7 and AC 43.13-2A, chapter 2. Pr 35 Dzus rail or equivalent may be used. Mounting the NPX138 requires a Dzus rail assembly with an opening width of 127 mm (5 inches) and a front clearance width of 146.1 mm (5.75 inches). Height requirement is 47.6 mm (1.875 inches).
  • Page 22 2.3.8 Post Installation EMI Test The purpose of this test is to identify any interference that the NPX138 may cause with existing aircraft systems. The NPX138 should be tested in accordance with the Installation Approval Test Procedure (see section 2.5), and the test results documented on the record sheets.
  • Page 23 Confidential and Proprietary to NAT...
  • Page 26 Document #: NPX138\634-0 Rev: 1.10 Post Installation EMI Test The purpose of this test is to identify any interference that the NPX138 may cause with existing aircraft systems. Test Conditions The NPX138 should be installed and function tested. The antenna VSWR should be checked.
  • Page 27 For example: it is permissible for a VFR certified GPS to lose navigation capability while the NPX138 is transmitting, providing that it recovers properly and promptly, but it is not permissible for an IFR Approach certified GPS to be affected in the same way.
  • Page 28 Determine if the image frequency for the VHF Comm falls within the range of the NPX138 unit. If so, select a set of frequencies that will cause the NPX138 to be set as close as possible to the image frequency. Any one of the many possible sets will suffice.
  • Page 29 Determine if the image frequency for the VOR/ILS Nav falls within the range of the NPX138 unit. If so, select two sets of frequencies that will cause the NPX138 to be set as close as possible to the image frequency. Choose one set in the localizer frequency range, and one in the VOR frequency range.
  • Page 30 NPX138 Installation Approval Test Procedure Modulate the NPX138 transmitter on the following frequencies for at least 20 seconds. Look for any movement of flags or needles on the navigation display. FREQUENCIES RESULTS G/S #1 NPX138 PASS FAIL 334.7 (108.1) 167.3500...
  • Page 31 NPX138 Installation Approval Test Procedure Perform a coupled ILS approach to the aircraft's certified limits. Modulate the NPX138 transmitter on the above frequencies for at least 20 seconds. Observe any effect on the autopilot. Repeat for each different system such as ILS #2, GPS, FMS etc.
  • Page 32 NPX138 Installation Approval Test Procedure STEP SYSTEM PASS FAIL NOTES NOTES: End of Installation Approval Test Procedure Rev. 1.10 Apr 19, 2004 Page 7 of 7 E NG-FORM: 634-0100.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 35 For ease of use and operability, NAT uses the same control layout and operating system in the NPX138 series of radios as it does in its popular Tac/Com family of radio control heads. In addition to this manual, there is a help function built into the radio comprehensive enough to address most operational questions.
  • Page 36 3.8 for further details on displaying and changing Status information. The BRIGHT switch controls the brightness of the display text. See section 3.5.2 for further details. Page 3-2 Nov 10, 2003 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 37: Rx/Tx Status Indicator

    See section 3.9 for further details on how CTCSS tones work. Nov 10, 2003 Page 3-3 Amendment # 4 Jun 10, 2005 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 38: Scan/Guard Tx Switch

    MHz in 5.0/6.25 kHz increments. The transmit frequencies of the guard channels are programmable. The Guard RX LED indicator lights amber when there is activity on the selected guard channel. Page 3-4 Nov 10, 2003 Amendment # 4 Jun 10, 2005 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 39: General Controls - Normal Operating Mode

    There are seven brightness levels from which to select. The radio will retain the display brightness information when turned off, but on power up will limit brightness to a maximum of level five. Nov 10, 2003 Page 3-5 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 40: Squelch Pushbutton

    Rated System Deviation) mode. An ‘ ’ character indicates that the channel is operating in narrow-band (± 2.5 kHz Rated System Deviation) mode (refer to section 3.11). Page 3-6 Nov 10, 2003 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 41: Rx Display Line

    (sub-audible) tone used for repeater or squelch control. The radio has several different methods by which to display the tone. See section 3.9 for further details on tones. Nov 10, 2003 Page 3-7 Amendment # 4 Jun 10, 2005 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 42: Channel Editing

    When channel editing of data is in progress, the radio suspends normal operation and the dual function controls work as described in the following sections. Page 3-8 Nov 10, 2003 Amendment # 4 Jun 10, 2005 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 43: Select Switch

    When editing frequency (TX or RX) the editor removes numbers from this circle that do not apply to the particular cursor position. For example, most NPX138 radios can only have a 3, 4, 5, 6 or 7 in the 10’s of MHz position, so the editor does not permit any other numbers during editing from the front panel.

  • Page 44: Edit Switch

    To edit status line data, pull and lock the EDIT switch to the right (ST). Select Setting Display Next Function Status Edit Help Page 3-10 Nov 10, 2003 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 45: Next And Select Switch Use

    Exit at any time; it is not necessary to go through the entire status listing. 3.8.2 Status Edit Features The STATUS EDIT features currently implemented in NPX138 are as follows: • TX MODE There are two modes possible: DUPLEX (repeater) operation, and SIMPLEX (direct) operation.

  • Page 46: Tones

    These tones are also sometimes referred to as Private Line (PL) tones. Page 3-12 Nov 10, 2003 Amendment # 4 Jun 10, 2005 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 47: Tone Display And Selection

    EIA codes. • Motorola Codes (MCODES): These are alphanumeric codes that often appear in the land mobile business, especially if Motorola equipment is used. Nov 10, 2003 Page 3-13 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 48 127.3 131.8 136.5 141.3 146.2 151.4 156.7 162.2 167.9 173.8 179.9 186.2 192.8 203.5 210.7 218.1 225.7 233.6 241.8 250.3 Display Options - Table 1 Page 3-14 Nov 10, 2003 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 49: Turning Tones On And Off

    In order to be detected properly, a signal needs to be slightly stronger when the radio is scanning than when the radio is in ‘Normal’ operating mode. Nov 10, 2003 Page 3-15 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 50: Scan Operation

    Use the status edit mode to select both the priority channel and the SCAN MODE. Use the channel edit mode to tag channels for list scanning. The three scan modes are as follows: Page 3-16 Nov 10, 2003 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
  • Page 51 ‘list’ while still periodically testing for activity on the priority channel. In this case, list channels have a lower priority than the home channel, and are scanned only when there is no activity on the other two. Nov 10, 2003 Page 3-17 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 52: Wideband/Narrowband Operation

    IAC. Be sure to use the NEXT switch after entering the last character. The ‘Config Mode...’ screen should appear. Page 3-18 Nov 10, 2003 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.

  • Page 53: Configuration Option Table

    (-x7x models only) channels are editable from the front panel. Configuration Options - Table 2 End of Section 3.0 Nov 10, 2003 Page 3-19 Amendment # 4 Jun 10, 2005 ENG-FORM: 806-0105.DOT CONFIDENTIAL AND PROPRIETARY TO NORTHERN AIRBORNE TECHNOLOGY LTD.
