Summary of Contents for SecurityMan ClockCam

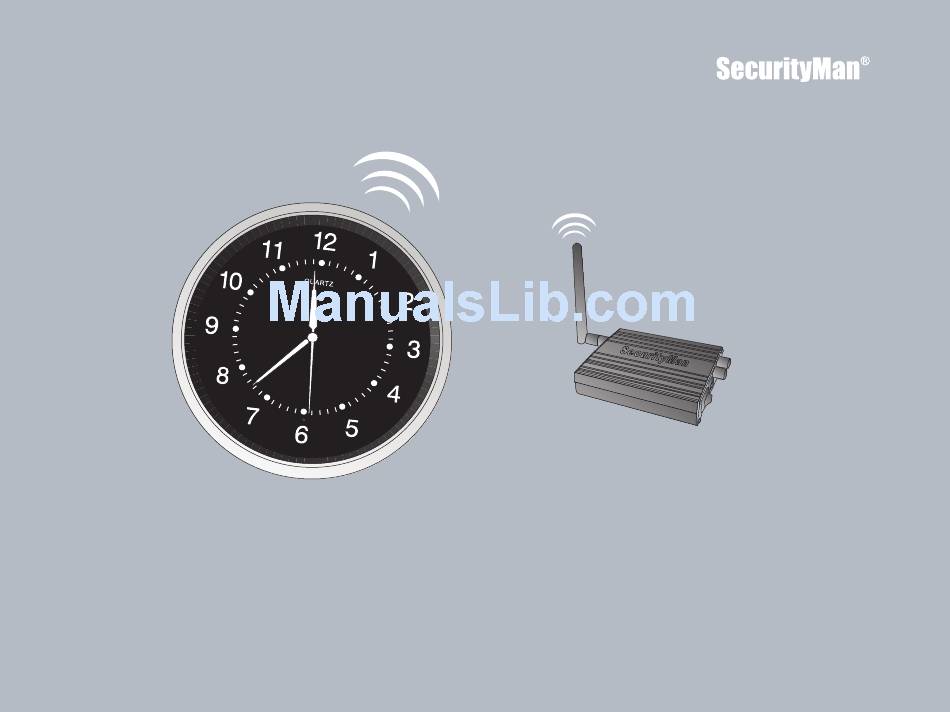

- Page 1 ClockCam User’s Manual Wi-Fi Interfernece Free Wireless (900MHz) Wireless Wall Clock Hidden Camera Kit...
-
Page 2: Fcc Information
SecurityMan. The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by SecurityMan. - Page 3 - Refer to dealers or experienced radio electrician for help. Warranty SecurityMan warrants that this product will be free from defects in materials and workmanship for a period of one year; otherwise, specified on the product packaging. This limited warranty shall commence from the date of purchase.
- Page 4 Operation rests with the following two conditions: (1) The equipment should not cause any harmful interference. (2) The equipment must receive and process any interference, including any possible interference caused by operation mistakes. After testing the product, we confirm that the camera complies with the provision for class C digital equipment in the 15th part in FCC regulations;...
-
Page 5: Product Assurance
Notice: This 900MHz wireless camera works at ISM band. It may cause interferences with other wireless equipment that operates at the same band. Please turn off one of the equipment to eliminate the interference. Product Assurance This 900MHz wireless camera will emit electromagnetic wave, just like other wireless products. -
Page 6: Limitation Of Liability
Limitation of Liability The liability of SecurityMan arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any... -
Page 7: Operating Restrictions
1 foot away from any heart pacemaker. Radio waves might potentially influence heart pacemaker and lead to respiratory disturbance. DO NOT use this product for any ille gal activities. SecurityMan shall not be responsible for any consequences of illegal conducts made by users. Conditions Please read the following messages to make sure whether your working environment is suitable. - Page 8 • The temperature should be kept between –10˚C and 50˚C (14˚F to 122 ˚F).The relative humidity should remain from 20% to 80%. • Avoid putting the product in places where occur might change rapidly in temperature or humidity. • Keep it dry, dustless and avoid exposure in it directly in sunlight. •...
- Page 9 parts may get damaged, or personal injury caused. • Switch off the power supply in thunder and lightning weather or when not in use for long periods of time. • Do not attempt to service the product yourself as opening or removing covers may expose you to dangerous voltage or other hazards.
-
Page 10: Table Of Contents
Table of Contents Introduction Applications Features Package Contents Hardware Basic Receiver Wall-Clock Camera Installation Product Specifications... -
Page 11: Introduction
Introduction Thank you for choosing ClockCam. ClockCam is designed for users who want to monitor their visitors, strangers, babysitters, and business activities. It includes a wireless wall-clock hidden camera and a wireless receiver. Can be installed in seconds, hassle free of running long video cable. Simply mount the clock at the... -
Page 12: Features
Features: • Do-It-Yourself, easy to setup and use. • Hidden wireless color camera built-in functional wall-clock. • No interference from crowded 2.4GHz & 5.8GHz frequencies including Wi-Fi (wireless network) devices. • Video transmission goes up to 330ft clear line of sight or 100ft indoor. •... -
Page 13: Package Contents
Package Contents Wall-C lock camera Wireless receiver AV cable Warning sticker X2 (C lockC am-T) (C lockC am-R ) (for receiver) Power adapter X2 R eceiver antenna User manual Screw *All the accessories in order to prevail in kind! (G.W. 3.2 lbs) -
Page 14: Hardware Basic
Hardware Basic Receiver: Power socket Audio output Video output... -
Page 15: Wall-Clock Camera
Hardware Basic Wall-Clock Camera: Hour hand Minute hand Second hand C amera C lock Mount hole C lock adjuster turner C lock battery compartment Power socket... -
Page 16: Installation
Installation 1. Find a desire location to mount the ClockCam. Recommended to install 6-7ft high above floor level in areas intended for surveillance. For better viewing angle coverage, the hidden camera has a fixed 25 degree downward angle by default. Estimated viewing coverage: Vertical 35° &... - Page 17 2. Connect the power adapter jack to the ClockCam power socket and plug the other end into an electrical power outlet. NOTE: If the image becomes black and white, please power cycle the camera by unplugging the power to the wall-clock camera and then plug them back in.
- Page 18 3. Insert an AA battery (not included) into the battery compartment located on the back of the wall-clock. Adjust to current time by turning the clock adjuster turne clockwise or counter-clockwise. Adjus t to current tim e Ins ert AA battery not included) 4.
- Page 19 Connect the other end of the A/V cable to the video input of a monitor/TV; be sure to match the color codes, video (yellow to yellow) and audio (red to red or white), as illustrated below. NOTE: ClockCam does not support audio. However; the receiver support other SecurityMan 900MHz wireless cameras with built-in microphone.
- Page 20 6. Plug in one end of the power adapter into the receiver and connect the other end into an electrical outlet, as shown below. The red LED indicator light on the receiver will come on. 7. Turn on the monitor/TV and change to AV or AUX mode, ie. VIDEO1, VIDEO2, LINE1, LINE2.
-
Page 21: Product Specifications
Product Specifications: Wall-C lock C amera (C lockC am-T) 1/4-inch C MOS, C olor Image Sensor 510×492(NTSC ) Effective Pixels FM, 900MHz (one channel, 906MHz) Transmission Frequency Quartz wall-clock C lock Type 14.3” (Ø) x 1.75” (D) / 12mm Dimension / Shaft length 14~122 degree Fahrenheit Operating Temperature C lock: 1.5VDC (AA B attery, not included) -
Page 22: Faq
Abnormal Phenomena Raisons possibles / Solutions * Check whether camera / receiveer connected to power supplier, and power on. Make sure that the A/V cable is connevted correctly. * Check to make sure the TV (output) is the auxiliary mode. WallClock camera does not have microphone for sound.
