Summary of Contents for Nel-Tech Labs Take-2

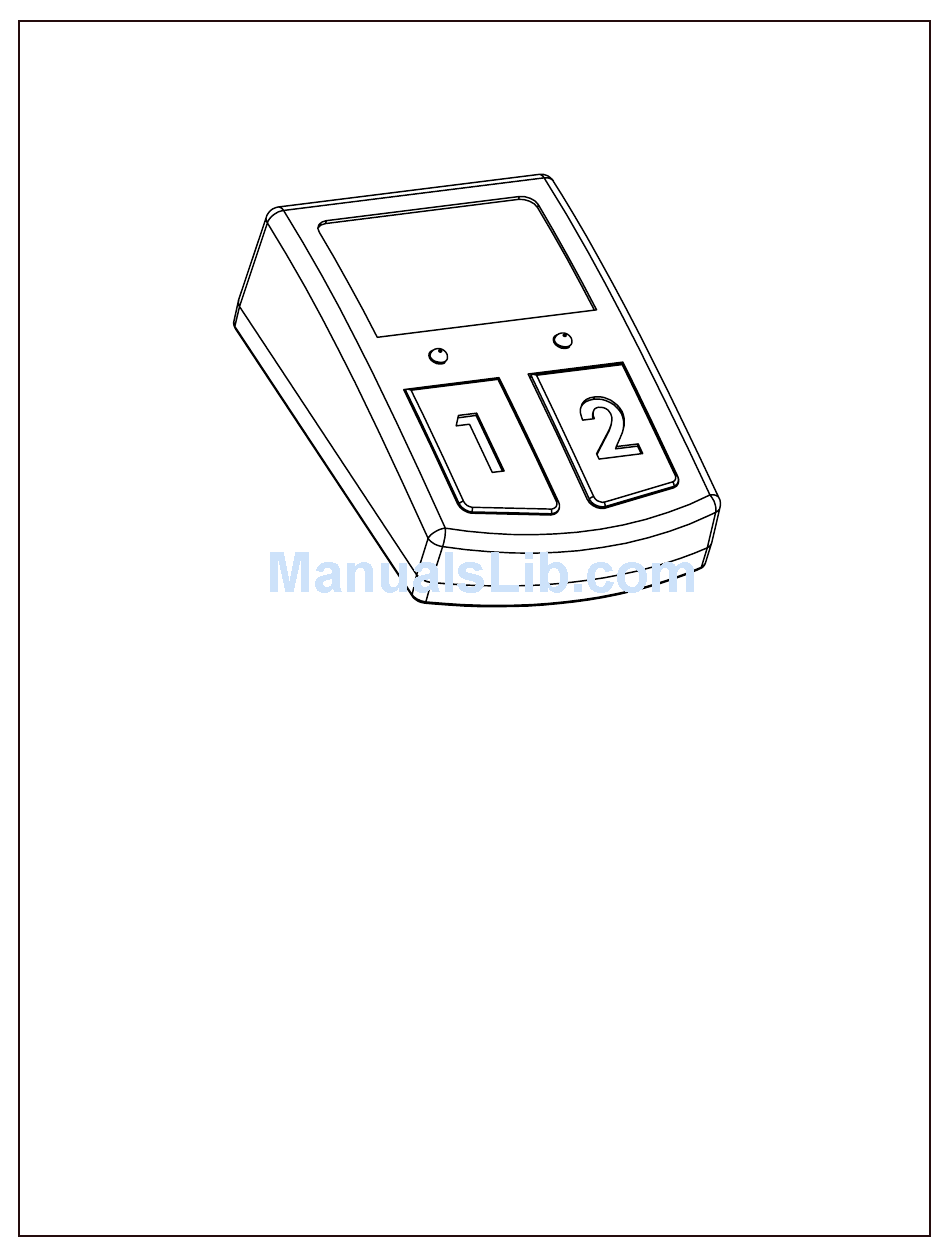

- Page 1 Take-2 Nel-Tech Labs, Inc. Installation & User Manual...
-
Page 3: Unpacking And Inspection
Warranty & FCC ........................Introduction: The Take-2 is a state-of-the-art message-on-hold adapter capable of allowing the user to place up to two callers on-hold. An external audio source can be connected to the adapter to keep callers enter- tained and informed of your products or services. This system is specifically designed for the SOHO (Small Office Home Office) environment where up to two lines on a single phone are supported. - Page 4 Take-2 Layout Summary Front of Unit LED INDICATORS - The STATUS LED indicators will be SOLID BLUE when line is on-hold. LINE 1 & LINE 2 BUTTONS - When pressed the corresponding line is placed on-hold. Rear of Unit TELCO PHONE AUDIO IN TELCO - Connects to incoming telco line.
- Page 5 Installation (For 1-line and 2-line installations where both lines are on same wire): 1. Unplug the line connection from the rear of the telephone and connect this to the TELCO plug on the adapter. 2. Connect included RJ-11 cord from phone line connection to the PHONE plug of the adapter. 3.
- Page 6 Installation (For 2-line installations where both lines are on separate wires): 1. Unplug the line 1 & line 2 connections from the rear of the telephone and connect in the following order. a. Connect to splitter/adapter - Line 1 to L1 and Line 2 to L2 on splitter. b.
-
Page 7: Limited Warranty
In the event that the product serial number is missing or has been tampered with in any way, the foregoing warranty is void and without effect and Nel-Tech Labs shall have no liability whatsoever on account of defects to such product. - Page 8 Nel-Tech Labs, Inc. 4 Ash Street Extension Derry, NH 03038 1.603.425.1096 www.nel-techlabs.com Rev. 05/12 Copyright © 1984 - 2012 by Nel-Tech Labs, Inc.
