Summary of Contents for XLNT Advanced Technologies DataMotion NS6
-

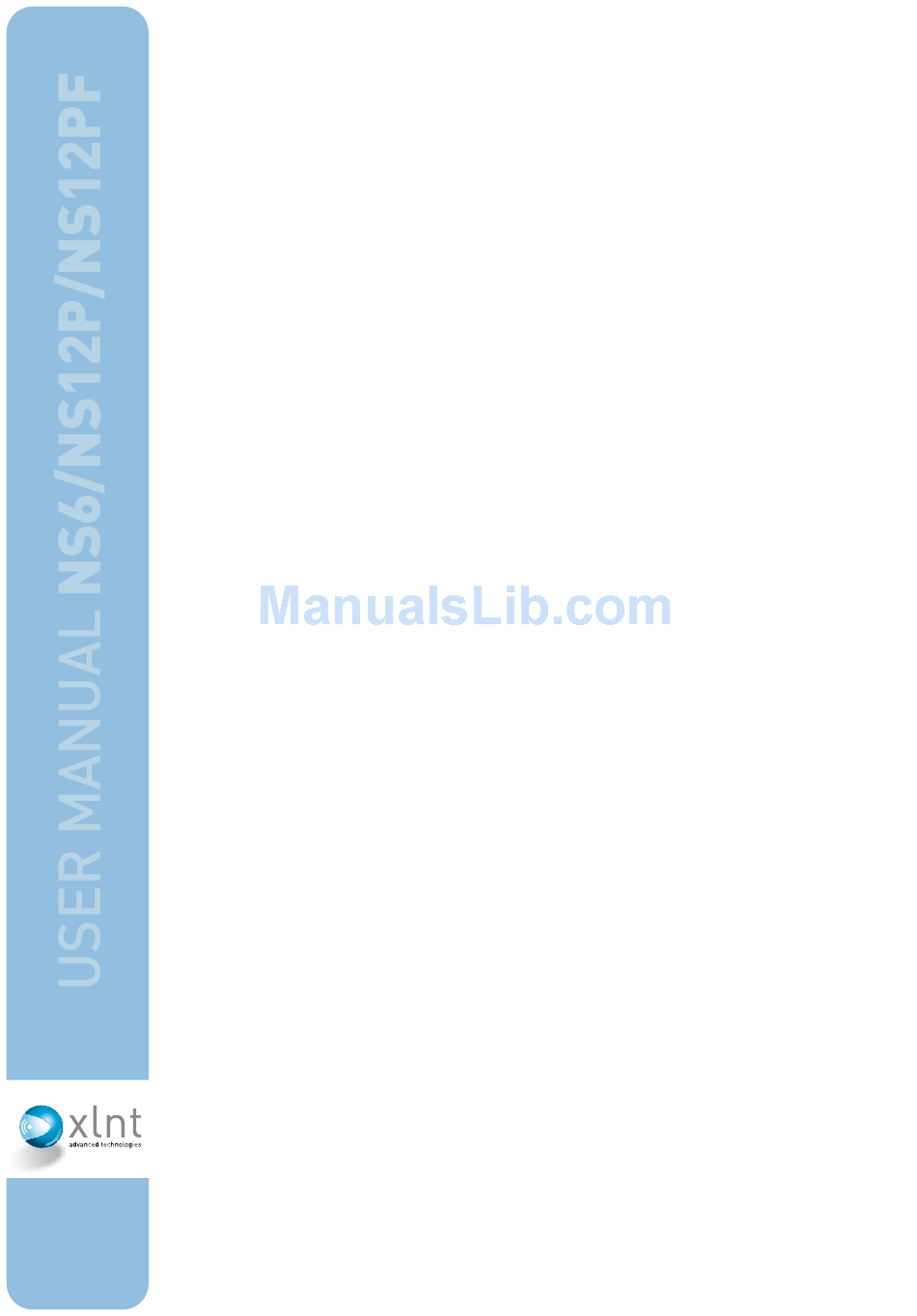

Page 1: User Manual
USER MANUAL XLNT DataMotion NS12P NS12PF ETHERNET SWITCHES... -
Page 2: Declaration Of Conformity
Address: Proostwetering 50 35432 AH Utrecht The Netherlands Declares that the product: Name: NS6 Ethernet switch Conforms to the following EEC Directives 89/336/EEC Electromechanical Contamination Directive 2006/95/EEC Low Voltage Directive IEC 60950-1:2005, mod: Safety of Information Technology Equipment, including Electrical Business Equipment EN55022 (1998) +A1(2000) +A2(2003): Information technology equip- ment. -
Page 3: Declaration Of Conformity
Declaration of Conformity Manufacturer's name: XLNT Advanced Technologies Address: Zonnebaan 42 3542 EG Utrecht The Netherlands Declares that the products: Name: NS12P Ethernet switch Name: NS12PF Ethernet switch Conform to the following EEC Directives 89/336/EEC Electromechanical Contamination Directive 2006/95/EEC Low Voltage Directive... -
Page 4: Important Safety Instructions
Important Safety Instructions It is extremely important to read ALL safety information and in- structions provided in this manual and any accompanying docu- mentation before installing and operating the products described herein. Heed all cautions and warnings during installation and use of this product. -
Page 5: Disclaimer
Do not connect or disconnect the PowerCon connector under load. ® Protect the power lead from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. When damaged, replace the power lead. Unplug this apparatus during lightning storms or when unused for long periods of time. -
Page 6: Table Of Contents
Recycling and hazardous substances..........Chapter 1: Description............... Application................... Features....................Products....................Power over Ethernet................Copper Ethernet cabling..............Fiberoptic Ethernet Cabling..............Chapter 2: Using the NS6..............Included Items..................Front Panel layout................Installation requirements..............Connecting Ethernet................Power Requirements................LED-signals..................Chapter 3: Using the NS12P.............. - Page 7 Chapter 4: Using the NS12PF............Included Items..................Front Panel layout................Rear Panel layout................Installation requirements..............Connecting Ethernet................Power Requirements................LED-signals..................Chapter 5: Troubleshooting.............. Power....................Data..................... Hardware Failure Diagnostic (NS12P/NS12PF Only)....... Appendix 1: Maintenance..............Appendix 2: Specifications..............Table of Contents...
-
Page 8: About This Manual
If this product, when purchased and used in the EU, has reached the end of its useful life it may be returned to the original dealer at no cost, or to XLNT Advanced Technologies with a proof of ownership. Service and warranty... -
Page 9: Chapter 1: Description
Chapter 1: Description Application Ethernet is commonly used as the main communication standard in computer networks. Standard network switches are typically designed for installation purposes, and not specifically for the rigours of entertainment touring. Unlike DMX, Ethernet can only be designed as a star network, with every device only having a single in/output port, so if multiple devices are used on a single location, an Ethernet switch must be used to connect these to eachother. -
Page 10: Products
Products The DataMotion Ethernet switch productline comprises 3 models. NS6 Ethernet switch 6-way 10/100 Mb Ethernet Switch. Power and data input via separate Power over LAN port, according to 802.3AF. Trussmountable housing, Ethernet ports are fitted with Neutrik EtherCon connectors. - Page 11 NS12P Ethernet switch 12-way 10/100 Mb Power Over LAN switch, 100-240V input Housing is 19” rack mounted, 1HE, Ethernet ports are fitted with Neu- trik EtherCon connectors. ® NS12PF Ethernet switch 12-way 10/100 Mb Power Over LAN switch,100- 240V input, with 2 1Gb fiberoptic ports Housing is 19”...
-
Page 12: Power Over Ethernet
Power over Ethernet The IEEE 802.3AF Ethernet Protocol allows the XLNT NS-product range to transport both power and Ethernet data on a single CAT5, CAT5E or CAT6 compliant Ethernetcable. An IEEE 802.3AF compliant Power over Ethernet device uses a ne- gotiation procedure to establish if and how much power should be allocated. -
Page 13: Copper Ethernet Cabling
Connecting another Class 3 device (15 Watt) would lead to an allo- cated power of 105 Watts, exceeding the maximum of 100 Watts. This port will therefore not be enabled. Disconnecting one of the other Class 3 devices will result in enough unallocated power to enable this newly connected device. -
Page 14: Chapter 2: Using The Ns6
Chapter 2: Using the NS6 Included Items In the box containing this manual, the following items should be present: 1 XLNT NS6 Ethernet switch, with integral bracket and safety. 1 Manual (this manual) Front Panel layout Power LED 1 Power LED 2... -
Page 15: Installation Requirements
Installation requirements The NS6 Ethernet switch is designed for use with a hookclamp (not included) Use a clamp that is appropriate both for the object it is attached to and the weight of the NS6 Ethernet switch. Mount this clamp onto the bracket which is attached to the NS6 Ethernet switch with M10 Nylock nuts and M10 bolts. -
Page 16: Connecting Ethernet
Acceptable lenghts are 95 metres with UTP cables, 50 metres with SFTP, FTP or STP cables. Power Requirements The NS6 Ethernet switch is designed to receive input power via the Ethernet connector marked as PoE Input. The NS6 Ethernet switch needs to be connected to either an 802.3AF compliant Power Over Lan Ethernet Switch or to be connected to a Midspan Power Inserter. - Page 17 (This page intentionally blank)
-
Page 18: Chapter 3: Using The Ns12P
Chapter : Using the NS12P Included Items In the box containing this manual, the following items should be present: 1 XLNT NS12P Ethernet switch 1 Manual (this manual) 1 Power lead Front Panel layout Power LED 1 Power LED 2 10/100 Mbit Power over Ethernet port Ethernet port LED 1... -
Page 19: Rear Panel Layout
Rear Panel layout Fuse holder Main power input Installation requirements The NS12PF Ethernet switch is designed for 19” rack-mount use. Mount the NS12PF Ethernet switch with racking screws in a 19” cabinet. Use support strips as necessary to support the rear of the device. -
Page 20: Connecting Ethernet
Connecting Ethernet Ports 1 thru 12 Use only certified Cat5, Cat5e or Cat6 cabling. The connectors on the NS12PF Ethernet switch accept both Neutrik EtherCon and standard ® RJ45 connectors Maximum operational cable lenghts are typically 95 metres with UTP cables, 50 metres with SFTP, FTP or STP cables. - Page 21 PoE (per port) Will be lit when a PoE compliant device is detected and connected. When a short circuit or overload is detected this LED will be blinking intermittendly with one pulse. When an overload is detected (maxi- mum allocatable power reached) this LED will blink intermittendly with 2 pulses.
-
Page 22: Chapter 4: Using The Ns12Pf
Chapter : Using the NS12PF Included Items In the box containing this manual, the following items should be present: 1 XLNT NS12PF Ethernet switch 1 Manual (this manual) 1 Power lead Front Panel layout Power LED 1 Power LED 2 10/100 Mb Power over Ethernet port Ethernet port LED 1... -
Page 23: Rear Panel Layout
Rear Panel layout Fuse holder Main power input Installation requirements The NS12PF Ethernet switch is designed for 19” rack-mount use. Mount the NS12PF Ethernet switch with racking screws in a 19” cabinet. Use support strips as necessary to support the rear of the device. -
Page 24: Connecting Ethernet
Connecting Ethernet Ports 1 thru 12 Use only certified Cat5, Cat5e or Cat6 cabling. The connectors on the NS12PF Ethernet switch accept both Neutrik EtherCon and standard ® RJ45 connectors Maximum operational cable lenghts are typically 95 metres with UTP cables, 50 metres with SFTP, FTP or STP cables. -
Page 25: Led-Signals
LED signals Power LED 1 The upper LED shows the status of the isolated 5V power supply to the PoE control circuits. Power LED 2 The lower LED shows the status of the 5V power supply to all other circuits. PoE (per port) Will be lit when a PoE compliant device is detected and connected. -
Page 26: Chapter 5 Troubleshooting
Check that this cable is properly wired (all pins connected, in the proper order) and undamaged Use a different cable Connect the NS6 Ethernet switch to a different port or a dif ferent switch If no LED’s are lit contact your local XLNT service point... -
Page 27: Hardware Failure Diagnostic (Ns12P/Ns12Pf Only)
If an NS6, NS12P or NS12PF Ethernet switch is operational, but the Ethernet transmission appears to be unstable: Check maximum operational cable lengths Check that the connectors of the cables have no faults Check that the Link/Active LED is not blinking on all ports If so, there may be an overload of networking communication. -
Page 28: Appendix 1: Maintenance
Appendix 1: Maintenance Housing Clean the exterior housing with a slightly moist, lintfree, cloth. Do not use abrasive cleaning agents. If a product is used in a dusty environment (or in combination with smoke-machine oil) regular cleaning of the internal fan by qualified personnel may be required. -
Page 29: Appendix 2: Specifications
Appendix 2: Specifications NS6 Mechanical Size (physical), WxHxD 140 x 170 x 60 mm Weight (physical) 0,9 Kg Ingress protection rating IP50 NS6 Electrical Input voltage, frequency According to IEEE 802.3AF Power rating 6 Watt max (Class 2) NS12P & NS12PF Mechanical... - Page 31 International Sales office: XLNT Advanced Technologies Tel +31 30 247 99 99 Fax +31 30 247 99 98 info@xlnt-at.com www.xlnt-at.com Manual rev. 2.0, Jan 2008...
