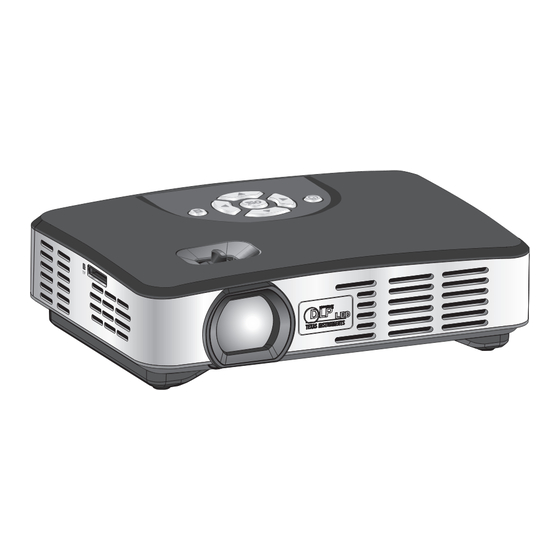

Incredi Sonic PMJ-400 VUE Series User Manual

Pico projector
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMJ-400 VUE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Incredi Sonic PMJ-400 VUE Series

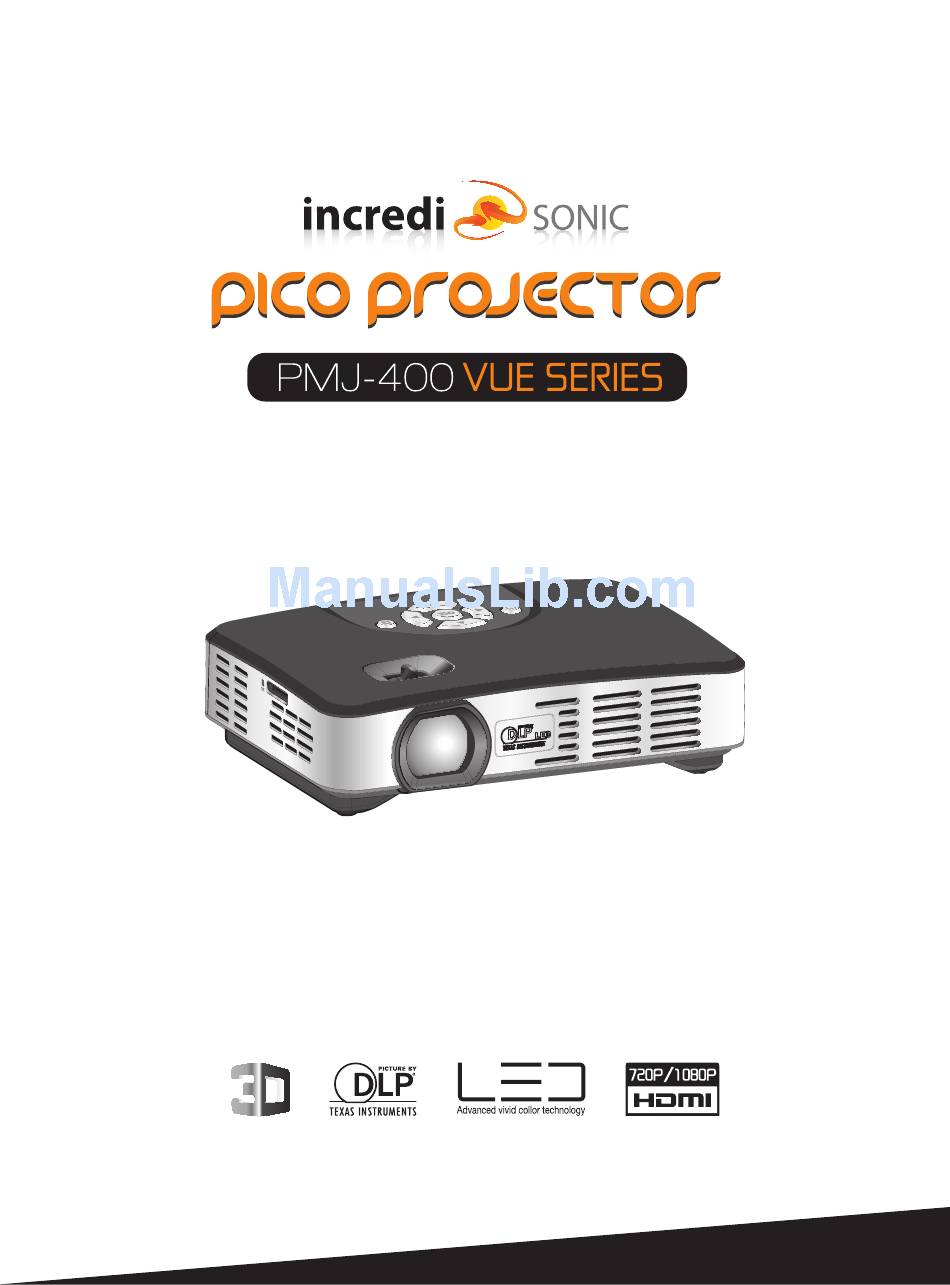

  • Page 1 User Manual...

  • Page 3: Table Of Contents

    Contents 1 Product Introduction ..............2 Specifications ................. 3 Package content ..............4 VUE projector, remote control and projector layout ..... 4.1 Projector ................4.2 Remote control ..............5 Use and connection ............. 5.1 VGA cable Connection ............5.2 HDMI cable Connection ............5.3 AV cable Connection ............

  • Page 4: Product Introduction

    1 Product Introduction FEATURES: WXGA 1280x800 DLP projector, Supports 1080p/1080i/720p -Resolutions, 2000:1 Contrast, Vibrant Color Technology with 20,000 hour LEDs Portable 1.5 lbs. Weight, Mini Projector fits nicely in laptop case, Lamp Life is 20,000 Hours & 3D Ready. Built-in Speaker, 4:3 and 16:9 compatible. HDMI, VGA, Composite A/V connections along with USB readers For Business Presentations &...

  • Page 5: Specifications

    2 Speci cation Project Technology WXGA(1280X800) Native Resolution Aspect Ratio 16:9 (4:3) Brightness 400 Lumens NTSC >100% NTSC Uniformity ≥80% Contrast Ratio 2000:1 19-115inches(It can be adjusted according to the light and project distance) Projection Size 0.5M,19inches;1M,38inches;3M,115inches. Project Distance 0.5-3M F/#=2.1，f=12mm Lens Light Sources...

  • Page 6: Package Content

    3 Package contents AC Adaptor VGA Cable AV cable Remote Control User Manual 4 VUE Projector, Remote control layout, and features 4.1 Pico TF card slot Power Key Down Key Remote control receptor Left Key AV IN port Enter Key Earphone Right Key USB port...

  • Page 7: Use And Connection

    5 Using and connection 5.1 Using a VGA cable Laptop VGA cable The VUE can support the highest resolution; 1920x1080, the highest refresh frequency is 75Hz. suggested resolution is 1280x800,60Hz. When connecting to a PC, please press source switch key and choose PC-RGB, and then press Enter key into PC-RGB mode.

  • Page 8: A/V File In The Usb

    5.4 USB/TF memory card data projection USB Flash Drive TF Card USB connected Mouse, keyboard and other USB memory devices, please press “set”-> “note developer option”-> set operating mode to be "host mode". 5.5 Connect earphone/speaker (Not Included) Speaker 6 Projector Button Layout/Function Power Setup Key Set up menu.

  • Page 9: Vue Projector Remote Control Layout

    7 Remote control function Power Key Menu Key Source switch button Source Power on/off Connect PC-PC mode. Setup menu. ◆ ◆ ◆ button. Connect AV cable-AV mode. ◆ Use USB flash drive/TF memory Power ◆ card-Multimedia mode. Use HDMI cable-HDMI mode. ◆...

  • Page 10: Play A 3D Movie

    8 Playing a 3D movie Display Type 1. When playing a 3D source from USB/VGA/HDMI, first enter the right source to play, then press the Display button on the remote, then according to the 3D source format (Updown / Leftright) to select the right format and then press confirm to play.

  • Page 11: Battery Installation Of Remote Control

    11 Battery installation of remote control The battery is pre installed but to prevent any discharging before operating we have place a plastic isolation piece, please just pull it out to operate the remote. 1>Remove battery box and 2>Replace battery 3>Restore to original plastic isolation piece Plastic isolation piece...
