Summary of Contents for Myers Power Products CTFRP9003
-

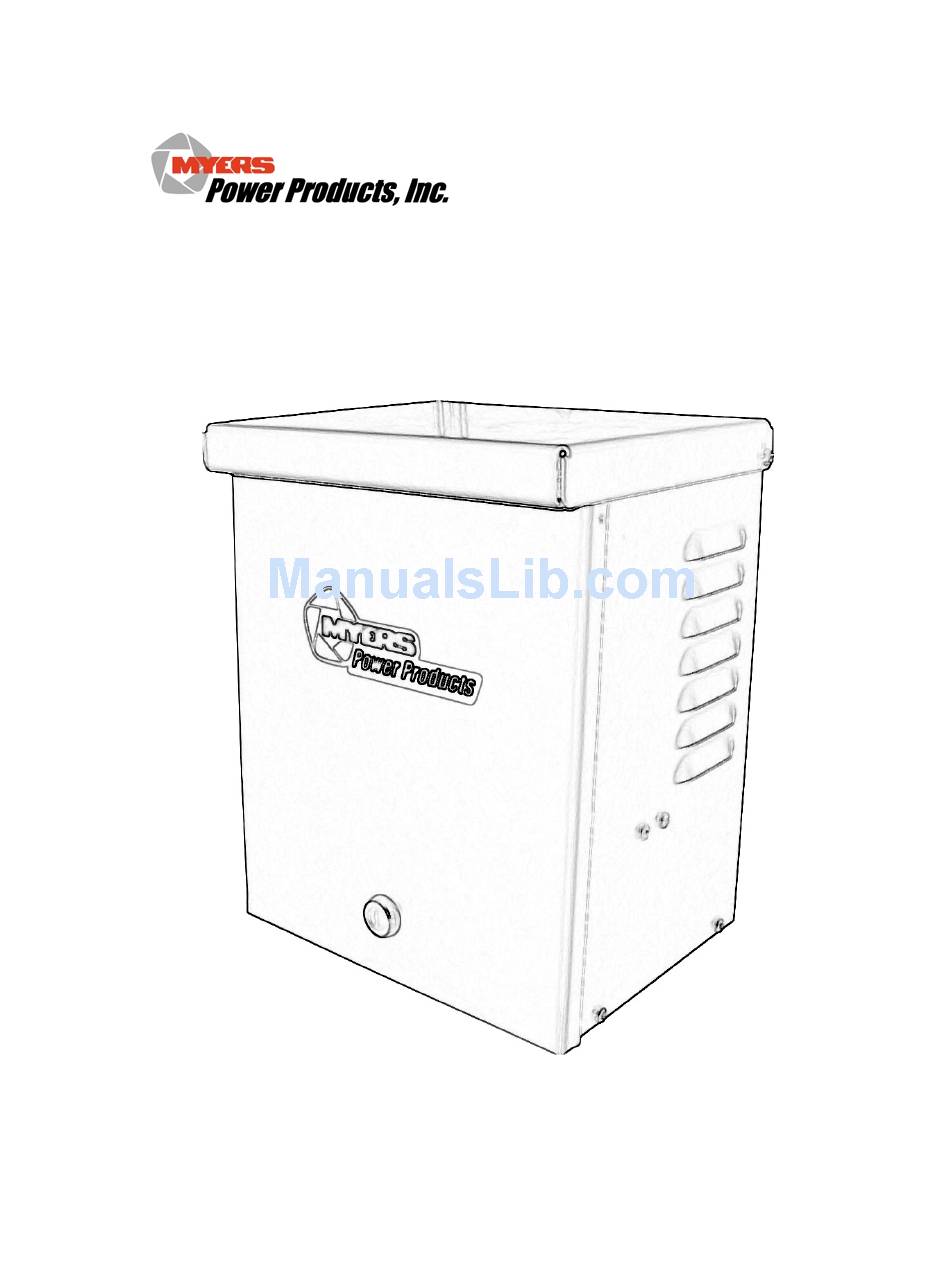

Page 1: Power Supplies
CTFRP Series Power Supplies Ferroresonant Non-Standby Power Supplies User Manual Myers Power Products 6/2013 CTFRP Series Manual... -
Page 3: Chapter 1 General Information
Myers equipment and batteries. It is intended for Myers customers who setup, install, relocate, or maintain Myers equipment. Changes and modifications to this unit not expressly approved by Myers Power Products could void the warranty. Failure to observe these warnings may result in serious injury, death or damage to the equipment. -
Page 4: Models Supported
HARACTERISTIC PECIFICATION Input 120VAC +/- 15%, 60Hz +/-3Hz Output Voltage 60/75/87VAC quasi-square wave Output Current – CTFRP9003 3 Amps, steady-state maximum Output Current – CTFRP9006 6 Amps, steady-state maximum Output Current – CTFRP9015 15 Amps, steady-state maximum Output Current – CTFRP9018... -
Page 5: Chapter 2 Installation And Maintenance
Chapter 2 Installation and Maintenance Only trained service personnel should install and maintain the CTFRP. Prior to powering up the CTFRP, utility line voltage must be routed to the enclosure. Local, state, federal and/or National Electric Code (NEC) regulations regarding location, permits and electrical wiring must be adhered to. - Page 6 4. Install a pin type connector (not furnished) to the hardline coax bushing located on the bottom of the power supply. 5. Attach the yellow wire with the Euroblock clamp to the stinger of the pin connector. Tighten the set-screw. Myers Power Products Page 4 6/2013...
- Page 7 6. At the other end of that yellow wire, select the desired output voltage by moving the yellow wire end to one of the three voltages on the terminal strip 60VAC, 75VAC or 87VAC. Tighten all set-screws on the output voltage terminal block. 7.
-
Page 8: Chapter 3 Service, Contact And Warranty Information
Chapter 3 Service, Contact and Warranty Information Service Myers Power Products makes every effort to ensure parts and equipment arrives in working condition. Occasionally, it may be necessary to return parts or equipment that is not in working condition. If the unit requires service do not return it to the dealer. Follow these steps: 1. -
Page 9: Limited Warranty
Limited Warranty Myers Power Products, Inc. (Myers) warrants this product to be free from defects in materials and workmanship for a period of five years from the date of purchase. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products.
