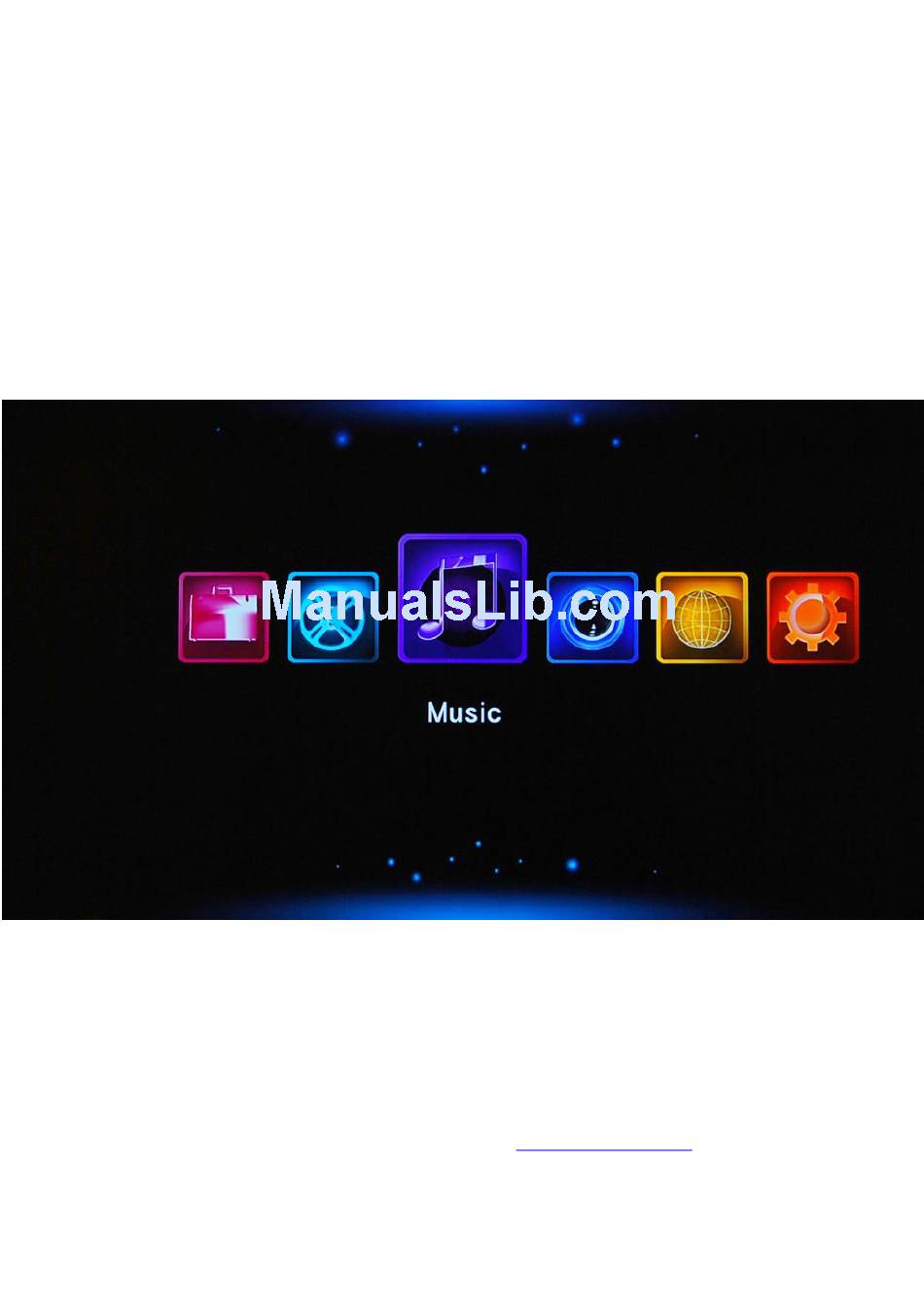

USER'S MANUAL
FULL HD 1080P Network Media player - Model No: HD02-8R
Table of Contents
- Shenzhen Dayfly Tech,LTD
-
www.dayflycn.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD02-8R and is the answer not in the manual?

Questions and answers

Summary of Contents for Shenzhen Dayfly Tech HD02-8R

  • Page 1 USER’S MANUAL FULL HD 1080P Network Media player - Model No: HD02-8R Table of Contents - Shenzhen Dayfly Tech,LTD www.dayflycn.com...

  • Page 2: Table Of Contents

    1. Introduction............ 4 1.1 Preface ................4 1.2 Packing List ..............6 1.3 Cautions ................. 6 1.4 Connection ..............6 1.5 Power On / Off ............. 11 1.6 Menu Language ............11 1.7 HDD Format ..............12 2. Remote Control ........13 3.

  • Page 3: Introduction

    4.7 A/V Streaming via UPnP-server ........30 4.8 Renaming / Deleting Files ........... 31 4.9 Managing the Playlist ..........32 5. File Copy Menu ........... 33 6. BT and samba ( NAS) ......44 7. IMS ............45 8. Upgrading the Firmware ......45 9.

  • Page 4: Preface

    1.1 Preface Thank you very much for purchasing this HD media player. We hope you will enjoy using it as a great home entertainment partner. This player has the following functionality. A/V Output  HDMI V1.3 for high-definition video and digital audio ...
  • Page 5 Network Feature  A/V streaming/transmission via Ethernet (10M/100M) & Wi-Fi (802.11b/g/n, optional)  File sharing via Samba server  A/V streaming via UPnP Media Server  BitTorrent download File Copy  Supports copying & moving files among Card, USB, HDD, and Network.

  • Page 6: Packing List

    1.2 Packing List Note: The actual contents in the package might be different from the packing list in this manual. Part Quantity Player HDMI cable 1 (optional available) AV cable 1(optional available) USB cable Remote Control Remote Control Battery User Manual (printed) 802.11b/g/n Wireless LAN 1 (optional available) USB adapter...
  • Page 7 1.3.1 Usage Cautions User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5℃ ~ +35℃. 1.3.2 Power The player‟s power voltage: AC 100V - 240V When using this player, please connect the supplied AC adapter or AC adapter cable to the player‟s power jack.
  • Page 8 1.3.4 Repair If the player has a problem, you should take it to an appointed repair center and let the specialists do the repair, never repair the player by yourself, you might damage the player or endanger yourself or your data. 1.3.5 Disposing of the Player When you dispose of the player, be sure to dispose it appropriately.

  • Page 9: Connection

    company takes no responsibility for loss of data stored on the hard disk. 1.3.7 Others  When using this player, please do not let the player come into contact with water or other liquid, if water is accidentally spilled on the player, please use a dry cloth to absorb the spillage.
  • Page 10 1.4.1 Connecting the Power Supply (1) Follow the picture and connect the AC adaptor to the player‟s DC IN jack; (2) Follow the picture and plug in the AC adaptor to the power outlet. 1.4.2 Connecting to a PC (1) Make sure the player is powered on; (2) Plug in the mini connector of the USB cable to this player‟s USB DEVICE port;...
  • Page 11 In this way, you can manage content on the built-in HDD of the player on your local PC. 1.4.3 Connecting a USB Device (1) Make sure the player is powered on; (2) Plug in the USB stick or USB HDD etc. to the USB HOST port of this player.
  • Page 12 In this way, you can browse contents on the USB device. 1.4.4 Connecting a Memory Card Memory card can be used by inserting to a card reader (1) Follow the picture to insert the memory card to the card slot properly;...
  • Page 13 In this way, you can enjoy the content in the player on TV or other display devices. 1.4.5.2 Y/Pb/Pr Component OUT (1) Follow the picture and plug in the 3 color connector to the player‟s Y/Pb/Pr jack; (2) Follow the picture and plug in the 3 color connector to the TV‟s Y/Pb/Pr jack.
  • Page 14 1.4.5.3 HDMI OUT (1) Follow the picture and plug one connector on your HDMI cable to the player‟s HDMI jack; (2) Follow the picture and plug the other connector on your HDMI cable to the TV‟s HDMI jack. Note: The HDMI cable is an optional accessory sold separately.
  • Page 15 In this way, you can have the highest quality video and audio via a single cable. 1.4.6 Connecting to an Digital Amplifier (1) Follow the picture and plug in the Toslink connector on your optical fiber to the player‟s S/PDIF Optical jack; (2) Follow the picture and plug in the other connector on your optical fiber to the digital audio device (digital amplifier or decoder).

  • Page 16: Power On / Off

    To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not supplied). (1) Connect one of the crystal plugs on the cable to the player‟s RJ45 LAN socket; (2) Connect the other crystal plug on the cable to a RJ45 LAN port on your router, switch, or hub devices.

  • Page 17: Menu Language

    Power On After connecting the AC IN jack , the player will soon enter the home screen, and the Display will turn blue. Power Off Press the power button on the front panel, the player will soon enter standby mode, and the power indicator will turn red. Then unplug the power cord to cut off the power supply.

  • Page 18: Hdd Format

    1.7 HDD Format For users who wish to install a new SATA HDD into the player, please refer to the following procedures to format the hard disk on the player before usage. Note: This page can be also accessed via Setup->System->HDD Format menu.

  • Page 19: Remote Control

    Step 2: Select Format, press ENTER, and then hard disk format will start. The formatting procedure will be finished within a few minutes. And then you can use the hard disk properly on the player. Note: HDD format will remove all data stored on the hard disk drive.

  • Page 21: Setup Menu

    3. Setup Menu The Setup menu allows you to personalize and configure the preferences for your player. To select a Setup option: Select the Setup icon on the home screen, or press the SETUP button on the remote control.

  • Page 22: Changing Audio Settings

    Use the LEFT/RIGHT navigational buttons to select an option, and then press ENTER. There are five Setup options, including Audio, Video, Network, System, and MISC. Use the UP/DOWN navigational buttons to select a menu. Press ENTER to confirm. Press RETURN to cancel and display the previous menu screen.

  • Page 23: Changing Video Settings

    audio output volume will be decreased to make you more comfortable. Digital Output Choose between SPDIF RAW / SPDIF LPCM / HDMI RAW / HDMI LPCM / HDMI LPCM Multi-ch. In raw mode, Dolby Digital or MPEG sound can be bypassed to the HDMI TV or Digital amplifier.

  • Page 24: Changing Network Settings

     Pan Scan 4:3: Display a wide picture on the entire screen and cuts off the redundant portions. Select when a standard 4:3 TV is connected.  Letter Box 4:3: Display a wide picture with two black borders on the top and bottom of 4:3 screen. Select when a standard 4:3 TV is connected.
  • Page 25 Use this menu to configure Ethernet and WLAN (Wireless Local Area Network) settings. Wired LAN Setup  DHCP IP (AUTO) Select to obtain IP address automatically.  FIX IP (MANUAL) Select to manually input the IP Address, Subnet Mask, Default Gateway, and DNS Server IP Address. Wireless Setup Selecting a connection profile This player can store up to three wireless network connections.
  • Page 26 Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect. Get Connection Mode Choose between Infrastructure (AP) and Peer to Peer (Ad Hoc). Press ENTER to go to next step, and press RETURN to cancel. Infrastructure (AP) Infrastructure mode is used to connect computers with wireless network adapters, also known as wireless clients, to an existing...
  • Page 27 Press ENTER to go to next step, press RETURN to cancel, and press ZOOM to refresh the SSID list. Note: In the Security list, WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access) means the network is encrypted, i.e. an encryption key is needed to access the network. NONE means it is an open system network.
  • Page 28 Encryption keys can be inputted via the virtual keyboard. Press the navigational buttons to select, ENTER to input, CAPS to switch between uppercase and lowercase, <- to delete a character, -> to insert a space, shift to make more symbols available, and OK to confirm.
  • Page 29 Peer to Peer (Ad Hoc) Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is used to connect wireless clients directly together, without the need for a wireless router or access point. Ad-Hoc Setup Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect.

  • Page 30: Changing System Settings

    3.4 Changing System Settings Use this menu to configure system settings.
  • Page 31 Menu Language Select to choose the OSD (On-Screen Display) language. (English, Espanol, French, German, Italiano, Dutch, Russky, Polski,....) Text Encoding Select to set the text encoding option (subtitle display). Time Select to set the system time. R/RW Auto-Play dChoose OFF: there are two options (play disc or browse disc) for choice when in browser.

  • Page 32: Miscellaneous

    Factory Default Select to restore factory defaults. 3.5 MISC Use this menu to adjust miscellaneous settings. Version Info Select to view firmware version information. Network info Select to view network information. USB upgrade System Update...

  • Page 33: Browser Menu

     Select Extension Package Upgrade to update extension files for BT download, NAS, and Web server.  Select system upgrade to update the firmware via a USB stick. 1) Copy „install.img‟ to the root directory of a USB stick, and connect it to the USB HOST port of the player.

  • Page 34: Browsing All

    The following buttons can be used while navigating the browser menu. 4.1 Browsing All In this mode, all folders and supported contents (music, photos, and movies) will be displayed. Note: Please refer to chapter „9.1 Specifications„for more about the supported content formats. Music tracks might not be able to played continously under All filter, please switch to the Music filter instead.

  • Page 35: Browsing Photos

    The following buttons can be used to control music playback. Button Function PLAY Begin playback. Pause playback. PAUSE / STEP FR / FF Fast rewind or fast forward. Press repeatedly to select the speed. REPEAT Set repeat options: One, All, and Shuffle.
  • Page 36 In this mode, all folders and supported image files in current directory will be displayed. The following buttons can be used to control music playback. Button Function PLAY Begin playback. PREV / NEXT View the previous or next photo. LEFT / RIGHT Rotate a photo in any angle.

  • Page 37: Browsing Movies

    4.4 Browsing Movies In this mode, all folders and supported video files in current directory will be displayed. The following buttons can be used to control video playback.
  • Page 38 Button Function PLAY Begin playback. Pause playback; Press again to step to PAUSE / STEP next frame. Play video in slow motion. Press SLOW repeatedly to select the speed. Fast rewind or fast forward. Press FR / FF repeatedly to select the speed. PREV / NEXT View the previous or next movie.

  • Page 39: Dvd Playback

    4.5 DVD playback The DVD ROM drive supports DVD, Mini BD, AVCHD, VCD and Audio CD. The following buttons can be used to control DVD playback. Button Function PLAY / PAUSE Pause and resume the playback. FR / FF Fast rewind or fast forward. Press repeatedly to select the speed.
  • Page 40 There are two ways to locate media files shared on your local network in the Network menu. One is to browse through Workgroup; the other way is to browse through „My_Shortcuts‟. 4.6.1 Browsing through Workgroup You can choose the workgroup which your PC belongs to from the workgroup list, find your PC name, and press the ENTER button to confirm.
  • Page 41 USB, DVD ROM or Local HDD. Due to different network conditions, sometimes the workgroup might not be accessed or shown in the list. And then you need to use „My_Shortcuts‟ to browse shared files. 4.6.2 Browsing through ‘My_Shortcuts’ You can also set „Specific File Server IP‟ and access it from „My_Shortcuts‟...
  • Page 42 cancel, and Simple / Detail to switch between simple and advanced options.

  • Page 43: A/V Streaming Via Upnp-Server

    Select the shortcut you added and press the ENTER button to confirm. Then you can select and play the shared media files on the destination computer. 4.7 A/V Streaming via UPnP-server A built-in UPnP (Universal Plug and Play) client has been integrated on the system, which enables the player to auto-detect UPnP Media Servers on the network to browse and stream media files from them.
  • Page 44 Click Library -> Media Sharing, then you can allow or deny devices to access the media library. Click Allow to authorize your player.

  • Page 45: Renaming / Deleting Files

    4.7.3 Streaming Media on your Player  Connect your player to the home network (LAN or WLAN).  Visit Browser - > UPnP menu on the player, select the UPnP-server, and press ENTER.  you can browse the media library shared by Windows Media Player 11.

  • Page 46: File Copy Menu

    Photos, and Movies), and enjoy them at any time. 4.9.1 Adding files to the playlist Select the favorite file you wish to add, press the BOOKMARK button, and the file will be marked. Press the OK button to confirm, and then an on-screen message „Add selects to list‟ will be shown. Multiple selections are allowed.
  • Page 47 Step 3: Select the destination folder to store the above files. Step 4: Select Copy or Move to proceed. 6. BT Downloads and SAMBA 1.Go to the SETUP->Network ->BT Processand SAMBA Process and turn it ON and quit by Confirm. 2.
  • Page 48 the IP address to the Browser. Or, go to “START”—Process—and input HTTP://192.168.1.102, press “Enter”, there is BT/SAMBA interface.

  • Page 49: Ims

    A、Bittorrent Download B、Visit Neighbor: Samba function, just like NAS (Network Attached Storage) User name and password User name: admin Password: 123 7. IMS Internet Multimedia Service This feature is additional function. All contents and services under...

  • Page 50: Upgrading The Firmware

    this feature are provided by third-party service providers, our company does not offer any contents and services of this feature and is not responsible for any contents and services provided under this feature. Our company is not responsible for any operational stability of the contents and services, for example, if you cannot access certain web site for video streaming or news broadcast, or the content of a web site has been changed etc, are all responsible...
  • Page 51 After successfully releasing, please copy install.img to the root directroy of your USB stick. Press and hold the RESET button on the rear panel, and connect the player with power supply; Wait for more than 3 seconds, and then loose your finger on the RESET button.
  • Page 52 ↓...

  • Page 53: Appendixes

    9. Appendixes 9.1 Specifications Note: The specifications and design of this product are subject to change without notice. I/O INTERFACES SUPORTED: 3.5’’ SATA HDD USB 2.0 HOST port x 2 (compatible to USB 1.1) USB 2.0 DEVICE port (connecting to PC) Composite (CVBS) A/V jack Component Y/Pb/Pr jack HDMI V1.3 interface...
  • Page 54 VIDEO CODECS SURPORTED: MPEG-1 HD MPEG-2 HD MPEG-4 SP/ASP/AVC (H.264) WMV9 (VC-1) RealNetworks (RM/RMVB) 8/9/10, up to 720p AUDIO CODECS SURPORTED: MP2/3, OGG Vorbis, WMA (DRM, and Advanced Profile not supported), PCM, LPCM, MS-ADPCM, LC-AAC, HE-AAC, COOK, RA-Lossless SUBTITLE FORMATS SURPORTED: SRT, SMI, SSA, ASS, IDX/SUB, SUB NETWORK FEATURE 10/100Mbps Auto-Negotiation Ethernet...

  • Page 55: Frequently Asked Questions

    9.2 Frequently Asked Questions Question 1. When I try to disconnect the USB device, I keep on getting “The device „Generic volume‟ cannot be stopped right now. Try stopping the device again later.” message, what should I do? Answer: Close any program that might be accessing data on the player, including Windows®Explorer.
  • Page 56 computers. Will defragmenting the player hard disk do any harm to Answer: Defragmenting the player hard disk may be useful after having transferred many files to and from the player. It is never harmful to use the defragment on the player. Make sure no other programs are running while using the Windows®defragment utility.
  • Page 57 display a blue screen or screensaver. Question 6. Why when I switch to Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p, does the TV screen display an unwatchable picture? Answer: Please check if your TV supports Y/Pb/Pr 480p, 576p, 720p, 1080i, and 1080p output, if your TV does not support, please use the A/V signal display instead, press the TV SYSYEM button on the remote control, then switch the TV‟s video input to NTSC or PAL.
  • Page 58 Question 9. I cannot see files shared on my computer via Browser->Network menu. Answer: Please check following items: 1) Connect the player to network and obtain an IP address first; 2) Please enable NetBIOS of TCP/IP on computer; 3) Please check your PC‟s firewall settings; 4) Please enable your PC‟s „Guest‟...

  • Page 59: Warranty

    connect with the firewall disabled, you may need to add the player to the „Trusted‟ list or configure the firewall for local intranet access. Worst-case, disable your firewall long enough to use the player, then enable it again when done. Question 11.
  • Page 60 or is used for institutional or other commercial purposes. -Loss of customer‟s software, firmware, information, or memory data. -Improper handling or installation.
