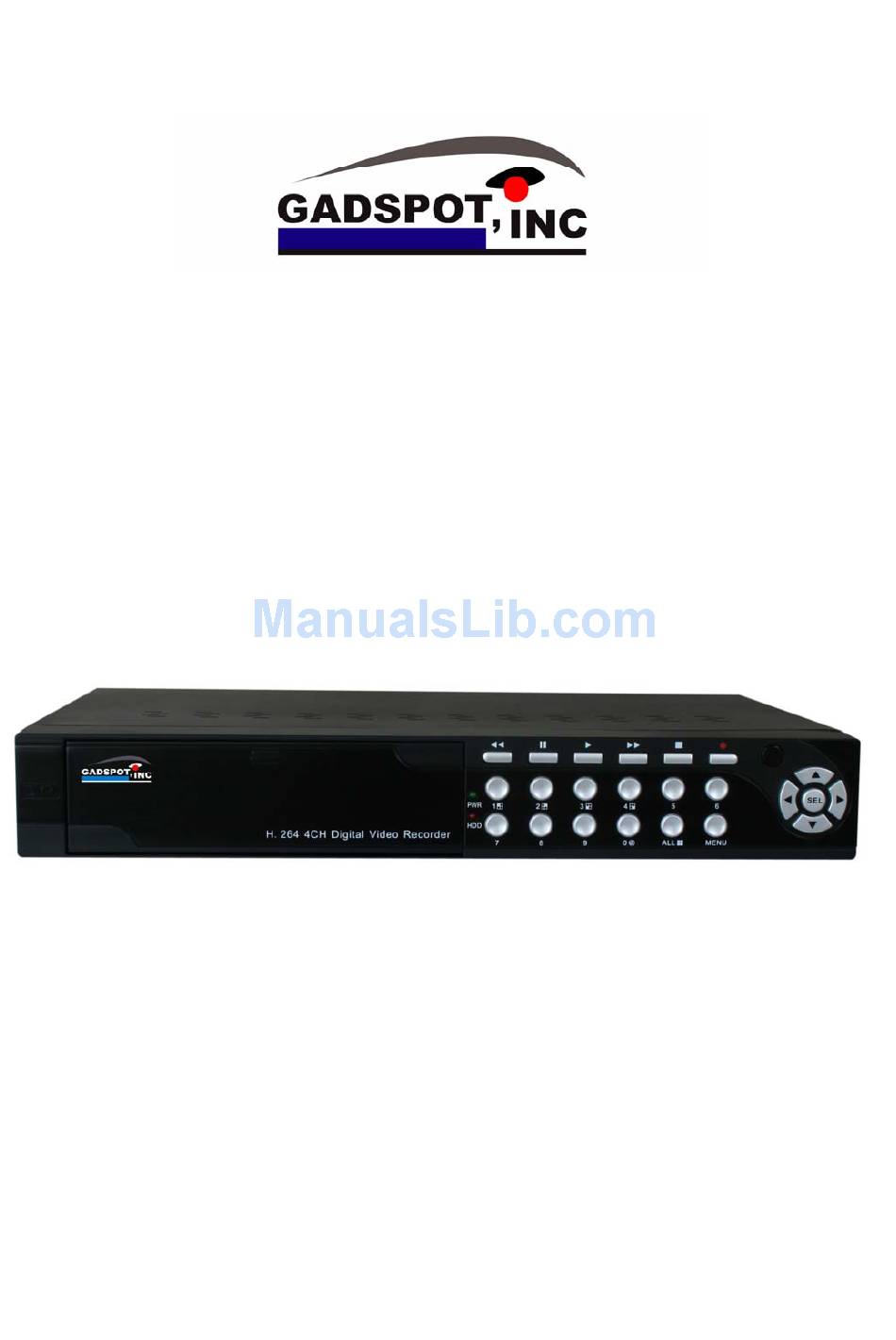

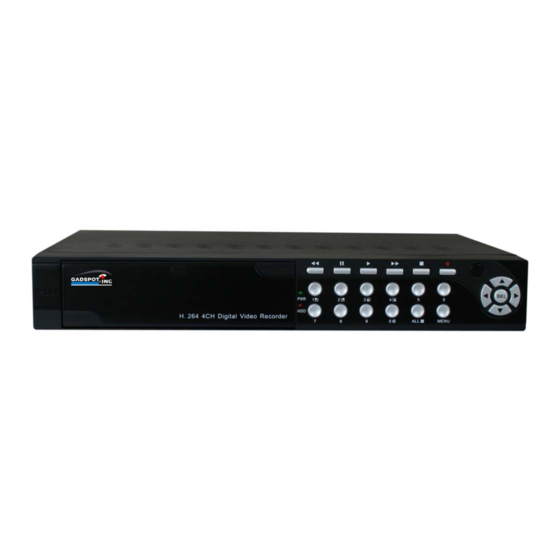

Page 1: User Manual
GS2002/GS2002V GS2101/GS2101V User Manual WWW.GADSPOT.COM... -
Page 2: Table Of Contents
CONTENTS Chapter 1: DVR Features..............................2 Chapter 2: Layout ................................3 2.1 Front Panel ..................................3 2.1.1 4-Channel Front Panel ............................3 2.1.2 8- Channel Front Panel ............................3 2.2 Rear Panel..................................4 2.2.1 Channel Rear Panel............................4 2.3 Remote Control ................................5 Chapter 3: DVR Installation ..............................6 3.1 Hard Drive Installation ..............................6 3.2 Camera and Monitor Connection...........................7 3.3 Power Supply connection ...............................7... - Page 3 5.2.7.5 Info.................................30 5.2.7.6 System Maintenance ............................30 5.3 Menu Lock..................................31 5.4 Video Search.................................31 5.5 PTZ Control .................................31 5.6 Record ..................................31 5.7 Stop recording ................................31 Chapter 6: Net-Viewer Program .............................32 6.1 Plug-ins download and installation ..........................32 6.2 Log-in to Net-Viewer ..............................32 6.3 Main Interface of Net-viewer ............................33 6.3.1 Menu column..............................33 6.3.1.1 Live ................................33 6.3.1.2 Replay ................................33...
- Page 4 User Manual Safety Instruction Use proper power source. Do not use this product with a power source that applies more than specified voltage (100-240V AC). Never insert anything metallic into the DVR case. Putting something into the DVR case can be a source of dangerous electric shock. Do not operate in wet &...
-
Page 5: Chapter 1: Dvr Features
User Manual Chapter 1: DVR Features Real time monitoring Supports real time surveillance via Monitor Saves Recordings DVR saves real-time recording image to HDD Backup Recordings Supports DVR backup via USB flash drive and hard drive. 4CH Supports DVR single CH and multiple CH playback of recorded files Playback Recordings 8CH Supports DVR single CH playback of recorded files Network operation... -
Page 6: Chapter 2: Layout
User Manual Chapter 2: Layout 2.1 Front Panel 2.1.1 4-Channel Front 21 25 Panel :Rewind Number 8 Number 5 :Pause Number 9 Number 6 0: Mute Audio : Up Arrow :Play :Fast Forward ALL :Display All Cameras : Left Arrow :Stop Menu:Exit Menu :Down Arrow... -
Page 7: Rear Panel
User Manual 2.2 Rear Panel 2.2.1 Channel Rear Panel Item Physical port Connection method Connect CH1-4 ( BNC interface) Video input Video output Connect monitor output ( BNC interface) Audio input Connect signal input (RCA interface) Audio output Connect signal output (RCA interface) Ethernet Port Connect intranet, internet (RJ45 interface) VGA Port(Optional) -
Page 8: Remote Control
User Manual 2.3 Remote Control Channel Select 1-8 ; Numeric key 9、0 Numeric Key Preview all Channel Menu Enter/Exit Main Menu ▲ Up Key ▼ Down Key ◄ / Left / Right Key Select Key/ Edit Key Rewind key Play Key, Enter to recording search menu Forward Key ●... -
Page 9: Chapter 3: Dvr Installation
User Manual Chapter 3: DVR Installation 3.1 Hard Drive Installation Caution： Please do not Install or take out hard drive when DVR is running! First, loosen the screws in the left and right sides. Secondly remove the cover Third, connect data cord and power cable of main board to the according ports of DVR. -
Page 10: Camera And Monitor Connection
User Manual Next, Install HDD on the bracket fix then with screw, firmly secure the screw so that it can not get loose from such as vibration. Next, check if the connectors are properly connected and there is no problem with wiring and close up cover and fix it with screws. -
Page 11: Chapter 4: Dvr Boot Up
User Manual Chapter 4: DVR Boot up 4.1 System Initialization After connecting the power adapter，the system will boot-up and start initializing. Picture 4-1 4.2 Main Interface After finishing system initialization, the system will enter into main interface. Picture 4-2 is the main interface displayed by system, which is showing no video input status. -
Page 12: Main Menu Preview
User Manual 5.1 Main Menu Preview Color set Camera Dwell time display Recording Search Network Setup Playback Rec. Search File backup File List Detail File HDD Management Alarm Setting E-mail setting Device PTZ Setting Management Mobile Area setting Motion Time Setting User password Video Setting System... -
Page 13: Camera Setup
User Manual 5.2.1 Camera setup Go to [Main Menu Camera] to set up the name display and position display of each channel (Shown as Picture 5-3), You can also adjust image brightness, saturation, contrast and hue settings of each channel after entering into [Color] Menu and set up whether each channel can be previewed or not under Live display and/or Recording mode. -
Page 14: Network Set
User Manual The [Record Setup] menu allows you set up recording status (on/off) of each channel, it also allows you setup recording image resolution and quality, and turn audio on/off. This menu also allows you select recording mode (recording after power on and scheduled recording) and recording file length. Once a channel is set to “on”, the channel can record, if it is set to “off”, the video from the channel will not be recorded. - Page 15 User Manual When selecting DHCP, DHCP server will allocate DVR IP address automatically. When selecting PPPoE, you need to input user and password provided by ISP supplier and set up web port (details please refer to the below picture 5-8). Picture 5-8 When selecting static allocation, you need to setup IP address, net-mask, gateway and web port (shown as picture 5-9).
-
Page 16: Recording Search
User Manual 5.2.4 Recording Search Click [Main menu search] to enter into [Video Search] menu (shown as the below picture 5-12). Searched playback: If you input specific date and click [Search], you will find all the recordings for that day. When you select [Date] item, you will playback the recordings in 4 channel mode (4 CH only);... -
Page 17: Multi Player
User Manual Explanation: Backup file will be in H264 format, you can convert it to AVI format using the Multimedia Player program that comes with the DVR or through the net-viewer program, so you can use any player which supports AVI format. Picture 5-14 Picture 5-15 5.2.5 Multi player... - Page 18 User Manual Date: recording date for the current backup file shown as right corner; 24H recording time: lie under [Date] menu. Black number button stands for current recording playback is normal recording for the time line. 0~60 Minute recording time quantum: Green part on play processing bar stand for recording length for one hour recording.
-
Page 19: Device Management
User Manual audio Select the channel has audio files Apply OK. Picture 5-22 Picture 5-21 After successfully setting the above, when you playback the current channel, you can open the channel’s audio function at the same time as the video 5.2.6 Device Management Options in device management include hard drive, Alarm, PTZ control, Mobile Phone Monitoring, and Motion... -
Page 20: Alarm Set
User Manual 5.2.6.2 Alarm Set Click [Main Menu Device Alarm] to enter into [Alarm setup] menu to setup Alarm warnings (shown as Picture 5-32). HDD LOSS: Options are “On” and “Off”. If you select On there will be a buzzer sound and “H” sign on screen when HDD is not detected or not formatted;... -
Page 21: Ptz Setup
User Manual If your setting is still not right, please contact the web site where you have applied for your email box to get SMTP server and SSL of mail box. Picture 5-29 SMTP Port: indicates sender port of SMTP server. Generally the SMTP port value is 25, but there are exceptions, for example, SMTP port of G-mail server should be 465. -
Page 22: Mobile
User Manual 5.2.6.4 Mobile Click [Main menu Device Mobile] to enter into [Mobile] menu. User Name: indicate user name of DVR. User password: indicate user password of DVR Server port: Mobile monitoring port. Setting range is between 1024 and 65535. Please note that Explanation: Please connect DVR to Internet before setting DVR port number and the server port no is not equal to network menus. - Page 23 User Manual 3. Choose storage location and click [Install] button (red box in Pic 3) to start the installation (please refer to display in Pic 4 below) Pic 6 Pic 5 Pic 4 4. After installation finishes, click the icon named QQeye (red box in Pic 5) to run the program. This will display the program screen in Pic 6.
- Page 24 User Manual 1. First you need to copy the file with suffix “QQeye.CAB” that is included on the CD disk to the mobile phone. Copying file is save to storage card by default, and the file can also be transmitted from the CD through a computer by Bluetooth technology to save to Inbox (Pic 1).
- Page 25 User Manual Open Pic 10 Pic 11 Pic 12 Default Access Point： Input the access point. System default for the access point is GPRS connection. Server Address： Input the public IP address of the router the DVR is attached to (refer to section 5.2.3 Network Setup on page 14 of the product manual).
- Page 26 User Manual Step 2: Download & install surveillance software “Aplayer” 2.1 Register iTunes Store 2.1.1 Run the installed iTunes, you might need to create an account to visit iTunes store firstly. Move to the menu “Store”, and click the option “Create Account”. 2.1.2 Continue 2.1.3...
- Page 27 User Manual 2.1.4 Fill in your personal info & continue. Please note that the options of Payment Method are different from different regions, please select another payment method. Don’t worry, “Aplayer” is a free software & you don’t need to pay for it. 2.1.5 Finished the register, and go to your email box to verify your account.
- Page 28 User Manual It will connect to the iTunes store and turn to iTunes interface. Sign in your account. The register of your iTunes store account has been done. 2.2 Authorize Computer You need to authorize your computer with the registered ID. Move to the menu “Store”, and click the option “Authorize Computer”.
- Page 29 User Manual Input your registered ID & password, then click Authorize button. 2.3 Download & install “Aplayer” into your iPhone 2.3.1 Click iTunes Store(1), then input “aplayer” into the search bar(2) on the right upper corner and press Enter. You will find the Aplayer icon displayed as below. 2.3.2 Click the icon and it will turn to the download page.
- Page 30 User Manual You will find the downloaded file on the directory of Application 2.3.3 Connect your iPhone to the computer, you will find your Device displayed on the left sidebar. Select the DEVICES ID(1), and then click “Applications” option(2). Select the “Sync Applications” & “Aplayer”...
-
Page 31: Motion Detect
User Manual Ⅳ. Iris+ & Iris- Ⅴ. Channel selection keys Ⅵ. Play & Pause Ⅶ. Snapshot Ⅷ. Full screen Ⅸ. Next group of channels Ⅹ. Setup 3.1 Access information setup Turn into setup menu, and fill in the information according to your DVR Mobile settings. Server IP: input the IP address or domain name to visit your DVR Port: same with the server port you have set in your DVR mobile settings User ID: same with the user name you have set in your DVR mobile... -
Page 32: System Function
User Manual MD AREA: This option allows you select the area you want to be sensitive to motion. The channel is separated into a 13*10 area. When any object moves into the motion detection area, and the area where the object is located is displayed in red recording will be triggered. In the semi-transparent area the motion detection is off. -
Page 33: Video Setup
User Manual 5.2.7.3 Video Setup Click [Main Menu System VIDEO] to setup Video, here you can set Camera system（PAL, NTSC）In the USA we use NTSC(Optional). You can also set the resolution for the VGA video out port. Your options are 800x600, or 1024x768, or 1280x1024. Picture 5-39 5.2.7.4 Language Enter into [System Language] menu to select the language... -
Page 34: Menu Lock
User Manual 5.3 Menu Lock As a system safety feature you can click [Menu Lock] menu to lock menu when leaving the DVR. If you want to login to the DVR, you would input device code and password (refer to the Menu Locking interface- Picture 5-43). -
Page 35: Chapter 6: Net-Viewer Program
User Manual Chapter 6 Net-Viewer Program 6.1 Plug-ins download and installation Open IE browser and input IP address and web port of DVR, such as http://172.18.6.202:80/ and confirm to download and install webcam. If your computer is connected to internet, computer will auto download and install the webcam. -
Page 36: Main Interface Of Net-Viewer
User Manual 6.3 Main Interface of Net-viewer Picture 6-3 Log in Net-viewer and show the interface as follows 6.3.1 Menu column (Section 1 on Picture 6-3) 6.3.2 PTZ Control (Numbers 2, 3, 4 on Picture 6-3) 6.3.3 Live Play Control (Numbers 6 through 10 on Picture 6-3) 6.3.1 Menu column (Section 1 on Picture 6-3) Menu column include [Live] menu, [Replay] menu and [Setup] menu and [Logout] menu. -
Page 37: Setup
User Manual F.F. button: fast forward playback recording Slow button: slow playback recording. Next Frame: play frame by frame. 264 TO AVI button: convert file from H.264 format to AVI format The native format of the backup files is H.264, you can convert H.264 format into more familiar AVI format by clicking the key of 264 to AVI. -
Page 38: ③ Ptz Control
User Manual System allows you setup motion detection settings for each channel of DVR remotely (shown as Picture 6-8) Picture 6-8 ③ PTZ Control Click [PTZ control] to setup PTZ cameras. Remote setup methods are the same as local DVR setup. Please refer to Section 5.2.5.3 (shown as Picture 6-9). -
Page 39: ⑥ Host Info
User Manual ⑥ Host Info Click [Host Info.] to enter into the sub menu (shown as Picture 6-12). Here you can check Usage rate of HDD, available recording time, software version and MAC address. Picture 6-12 6.3.2 PTZ Control (Numbers 2, 3, 4 on Picture 6-3) ②.PTZ control: indicates focus, zoom and iris control of PTZ ③.Setting: this option allows you to setup PTZ parameters. -
Page 40: Chapter 7: Specification
User Manual Chapter 7: Specification Model Video System NTSC / PAL(Optional) Compression Format Video：H.264 / Audio：8kHz*16bit ADPCM 4-CH BNC Input/ 2-CH BNC Output / 1-VGA output 8-CH BNC input/2-CH BNC output / 1- Video Output (Optional) VGA output (Optional) Audio I/O 1-CH RCA audio input/ 1-CH RCA audio output Display Resolution D1：704×576(PAL) 704×480 (NTSC) -
Page 41: Chapter 8: Windows Vista User
User Manual Chapter 8: Windows Vista User 1、Open IE browse firstly, then enter into Tool bar- and select appear the below picture: 2、Second, select icon tick the settings of “ActiveX controls and plug-ins”to Enable, details as follows: Lastly after tick all the “Enable”, please click to exit. - Page 42 User Manual Open IE browser and input IP address and web port of DVR…computer will auto downloadand install the widget. We suggest Visita user set user access authority in order to make your PC safer. Setting processing as follows: Click [Start Set Control panel User account] to set user access authority shown as below picture. Remind: If the widgets are not downloaded successfully, please check if your browser’s safety level or firewall setting is too advanced.
-
Page 43: Chapter 9: Appendix
User Manual Chapter 9: Appendix 9.1 Operation Function Table Type Title Description Page Time setting Setting system date, time and format and day-light saving time setting Language Select Setting system language Setting CH title and position; adjusting image color parameter value; setting CH display to CH Setting ON / Off and time display/recording time overlaying to On/Off. -
Page 44: Troubleshooting
User Manual 9.2 Recording Alarm setting Please refer the below matrix: “⊥” stand for “only alarm but no recording”; “AMR” stand for “alarm recording”; “NLR” stand for “normal recording”; and “NOR” stand for “ no recording”. Once alarm is triggered, alarm icon will occur, and when many alarms are triggered, alarm remarks will occur on the screen. -
Page 45: Channel System Connections
User Manual 9.4 4 Channel System Connections (Diagram is for reference only to show where to attach various devices to the DVR, the cameras, USB flash drives, monitors and computers are not included with the standard DVR package) 4-CH 8-CH... -
Page 46: Accessory (Optional)
User Manual 9.6 Accessory (Optional) Power Adaptor User Manual Power Cord Software CD USB Mouse Remote Controller... - Page 47 User Manual The material in this document is the intellectual property of our department . No part of this manual be reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission. Our products are under continual improvement and we reserve the right to make changes without noti ce.
