Page 1: User Manual

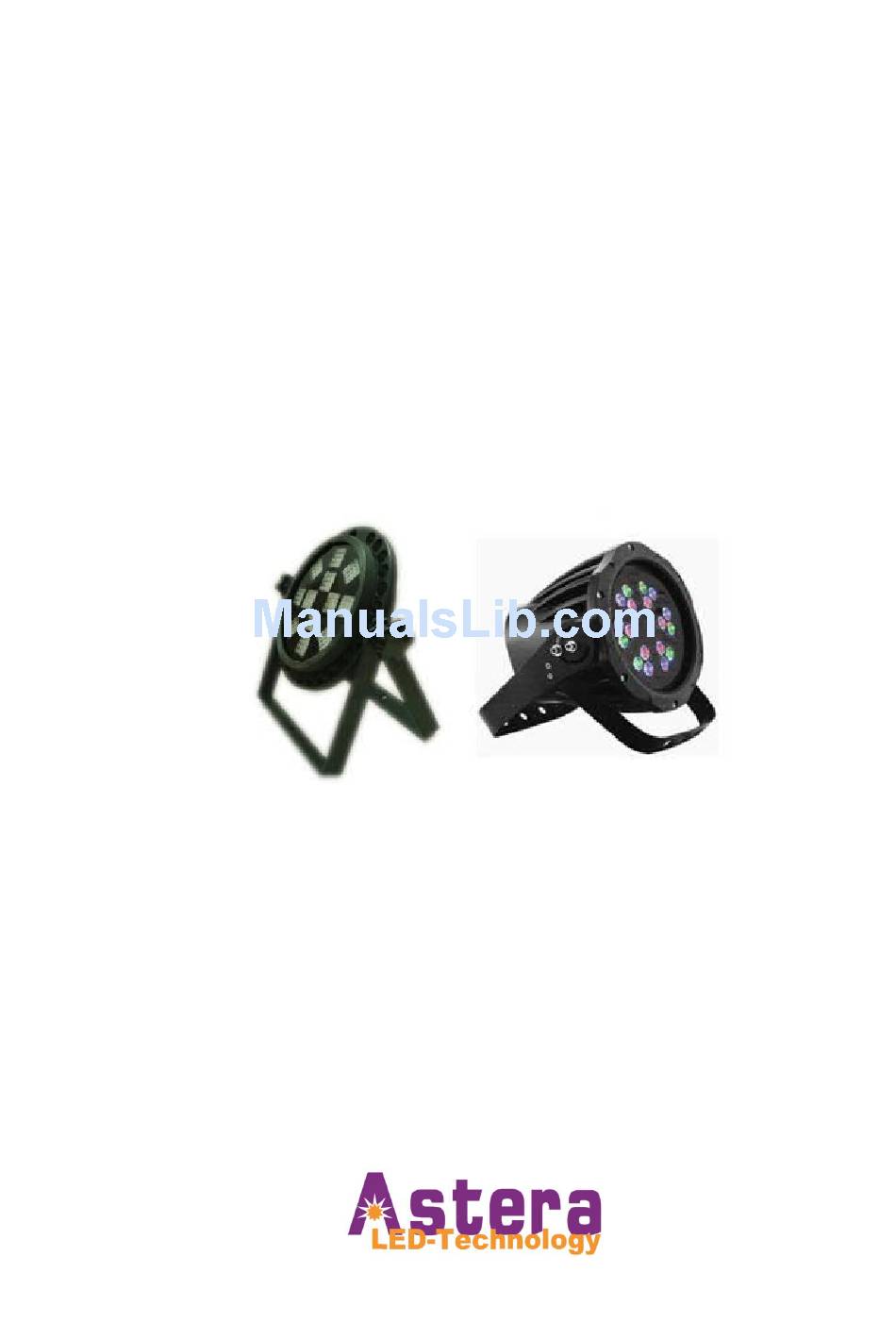

Wireless Spot Lamp (AL7-L & AL7-XL) User Manual Manual Version: 3.2.11 Release Date: July. 23 .2010 Astera LED Technology GmbH Address : Nahestrasse 68-70, 55593 Rüdesheim an der Nahe, Germany Tel.: +49(0)6536-355361 Email: sales@astera-led.com... - Page 2 If the device is being sold, this instruction manual has to be translated into the national language of the destina- tion country. If discrepancies occur in the translated text, the original instruction manual has to be used to solve them tor the manufacturer has to be contacted. Astera Led Technology GmbH ©2010, All rights reserved Rüdesheim, Germany...
-
Page 3: Table Of Contents
1 Table of Contents 1 Table of Contents..................3 2 Safety......................5 3 Specifications....................7 3.1 Technical Data....................8 4 Quick Start....................9 4.1 Overview....................9 4.2 Advantages....................10 4.3 Button and Operation.................10 5 Battery Runtime..................11 6 Troubleshooting..................13 7 Disposal....................15... -
Page 4: Safety
2 Safety Before you operate the unit, read this manual carefully. Make sure to keep the manual, in case you need to consult this manual again or you give the unit to another person. Always make sure to include this manual if you hand out the unit to another person. -
Page 5: Specifications
Up to 300 meter operation distance of the remote control Including easy to adjust stand AL7-L can be mounted into a standard PAR64 can just like any other lightsource for PAR cans RGB LEDs combined with white LEDs for a better color mixing... -
Page 6: Technical Data
3.1 Technical Data Light Sources Light Sources AL7-L: 5mm bullet LEDs with 15 degree beam angle AL7-XL: SMD LED chips with 25 degree beam angle Amount or LEDs AL3-S: 192 (48xR, 48xG, 48xB, 48xW) AL3-M: 18 (12xRGB, 6xW) RGB LED Power... -
Page 7: Quick Start
ARC2 remote control or the IR Remote Control. For a larger setup, AL7s can be grouped and paired with other AL7 units and other wireless Astera lamps. This can be done with the ARC2 remote control or the ART3 Wireless DMX transmitter. 4.1 Overview... -
Page 8: Advantages
ARC2 Remote Control. The AL7s can be used as stan- dalone unit or grouped and paired with other Astera lamps and be controlled with an ARC2 RF Remote Control. -
Page 9: Battery Runtime
5 Battery Runtime The work temperature is 0~60 Celsius degree. Should the AL7 not turn on when pressing the power button and the red light keeps blinking the battery is empty and needs to be recharged. For recharging, simply connect the power adapter to the AL7 and make sure the indicator LED lamp blinks in green color to confirm that charging has started. -
Page 10: Troubleshooting
6 Troubleshooting Faulty condition Cause Troubleshooting LED no light when you switch on Due to the vast number of settings, one Set the brightness to other value. can not always predict behavior of the units, if setup was already done earlier. Units behave incorrectly Due to the vast number of settings, one Do FACTORY RESET on units and/or re-... -
Page 11: Disposal
7 Disposal Follow local ordinances and/or regulations for disposal! PACKAGING: The unit is shipped in protective packaging. This packaging can be recycled! UNIT: Don't throw the unit into the garbage at the end of its lifetime. Make sure to dispose is according to your local ordinances and/or regulations, to avoid polluting the environment! BATTERIES:...
