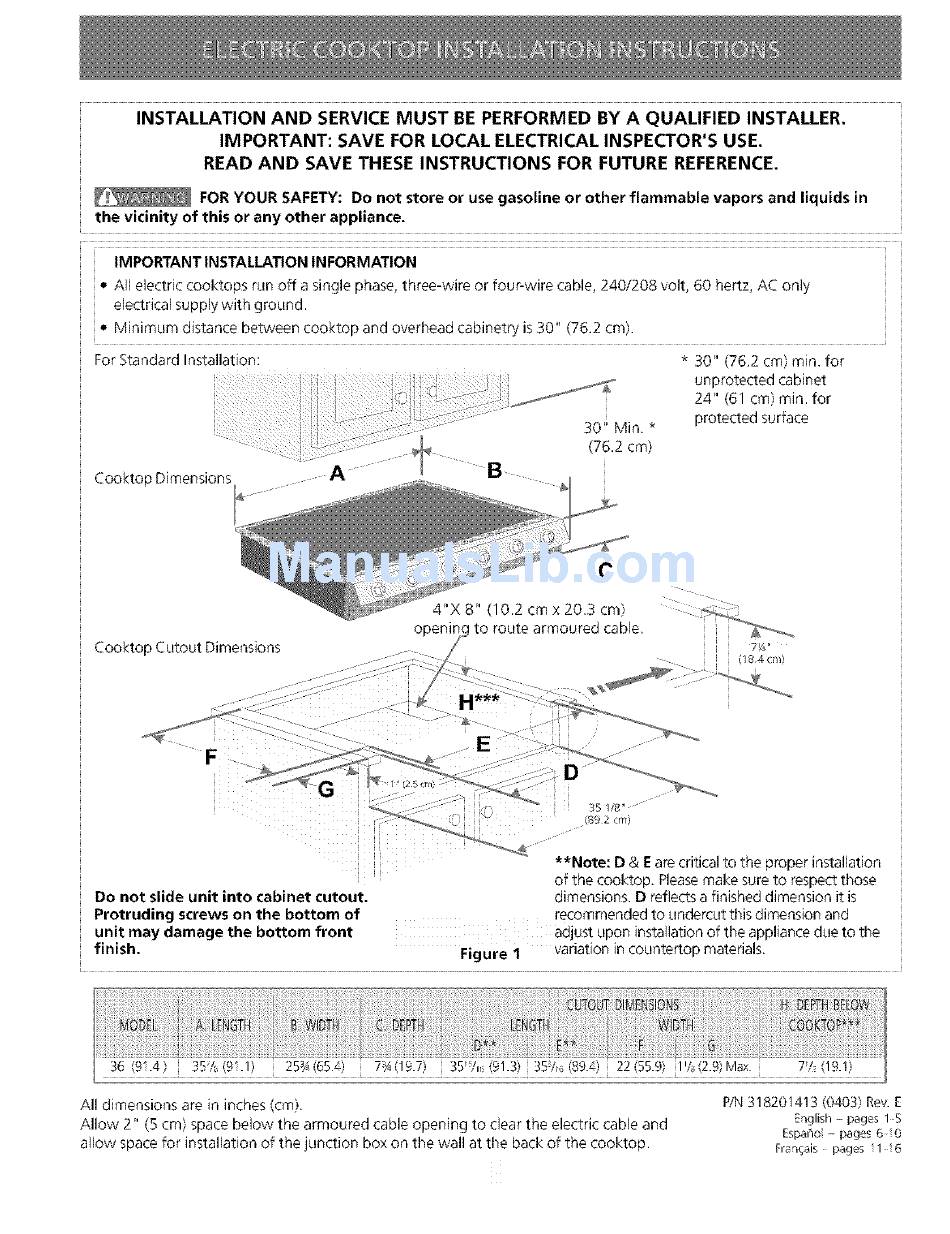

Electrolux E36EC75DSS1 Installation Instructions Manual

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
IMPORTANT INSTALLATION INFORMATION
•AIi electdc cooktops run off a single phase, three-wire or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
• Minimum distance between cooktop and overhead cabinetry is 30" (76.2 cm).
For Standard Installation: * 30" (76.2 cm) mh_.for
i unprotected cabinet
24" (61 cm) mh_.for
protected surface
30" Min. *
(76.2 cm)
Cooktop Dh_ensions
Cooktop Cutout Dimensions
C
4"X 8" (10.2 cmx 20.3 cm)
openir g to route armoured cable.
(184(n/)
Do not slide unit into cabinet cutout.
Protruding screws on the bottom of
unit may damage the bottom front
finish.
(89 2 ¢m)
**Note: D & E are critical to the proper installation
of the cooktop. Pleasemake sure to respect those
dimensions. D reflects a finished dimension it is
recommended to undercut this dimension and
adjust upon installation of the appliance due to the
Figure 1 variation in countertop materials.
All dimensions are in inches (cm).
Allow 2" (5 cmi space below the armoured cable opening to dear the electric cable and
allow space for installation of the junction box on the wall at the back of the cooktop.
PiN 318201413 (0403) Rev. E
English - pages 15
£spaho - pages 610
Fr._,n_ais pages 1116
