Industrial Grade Modem
Description

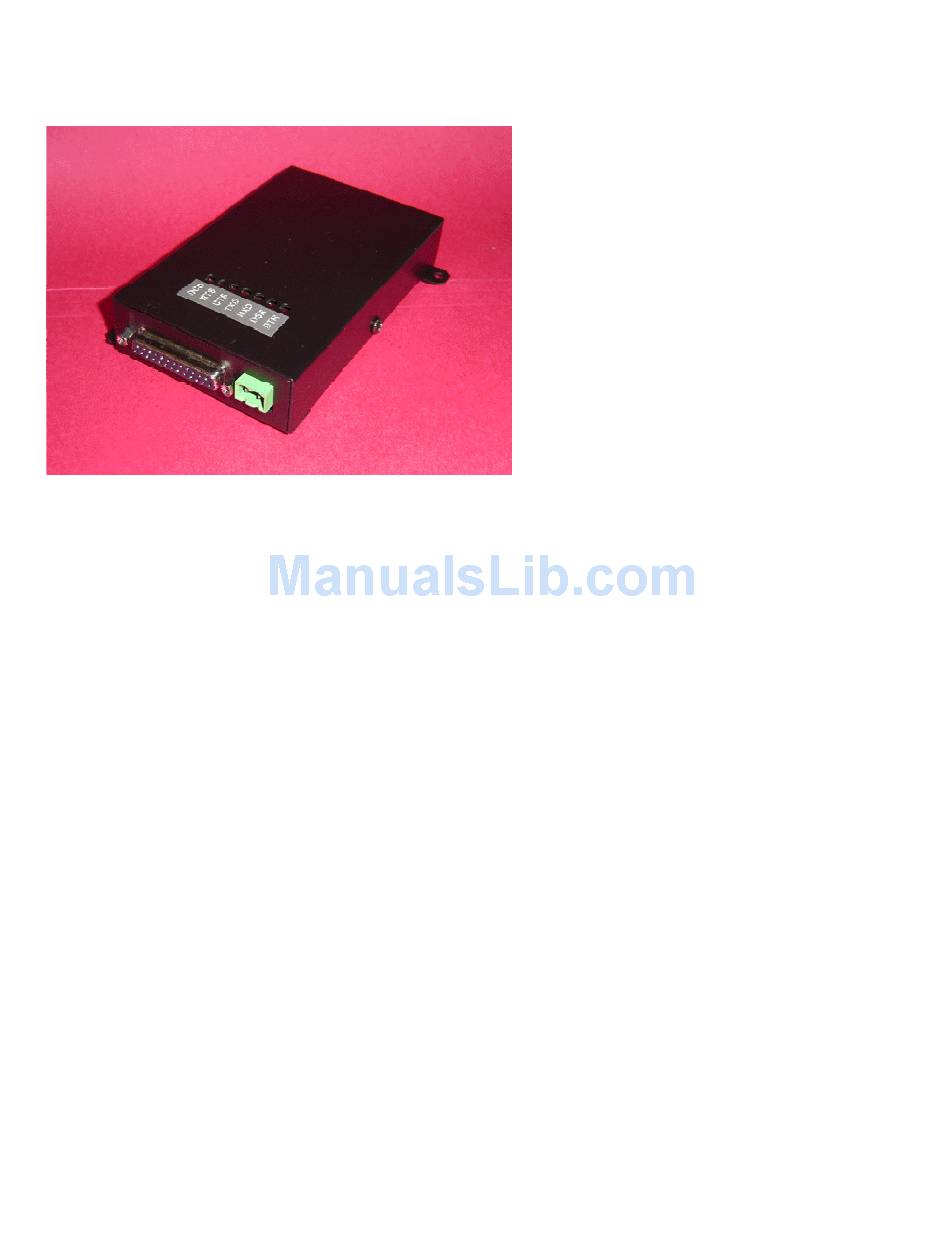

The Hidex II V.34bis Industrial Grade Modem is the most versatile model for Dial up or leased analog
telephone line interconnect. The Hidex HX II 33T offers speeds up to 33.6K over the analog
switched telephone network. They are temperature tested, rugged modems designed for Industrial
applications. Directly connected to RTU's, traffic controllers, variable message signs or any number
of other applications, they communicate at 300 bps to 33.6 kbps over analog telephone lines. All HX
models have High voltage surge protection on the telephone lines. The power converter delivers
5VDC from 100 to 240 VAC, 50-60 Hz with World Wide safety approvals and a locking connector to
prevent vibration disconnects. A wide voltage range of DC power models are optional.
Features
Category
Client-to-Server Data Rates
AGC Dynamic Range
Data Rates
Command Buffer
DAA Isolation
Data Compatibility
Data Compression
Data Format
Dimensions
Case Material
Error Correction
Description
Supports V.34bis data rates
43 dB
33,600; 31,200; 28,800; 26,400; 24,000; 21,600; 19,200; 16,800;
14,400; 12,000; 9600; 7200; 4800; 2400; 1200; 0-300 bps
60 characters
1500 Vac
V.34 enhanced, V.34, V.32bis, V.32, V.22bis, V.22; Bell 212A
and 103/113, V.21 & V.23
ITU-T V.44 (6:1 throughput); V.42bis (4:1 throughput); MNP 5 (2:1
throughputFax Compression MH, MR, MMR
Serial, binary, asynchronous (available with parallel interface)
5 x 3 x 1 inches plus mounting tabs
Black zinc oxide plated steel
Data Mode: V.42 (LAP-M or MNP 3–4)
Page 1
Hidex II 33T User Manual
7/20/2005
Advertisement
Table of Contents
Summary of Contents for Industrial Grade Modems Hidex II 33T
- Page 1 Industrial Grade Modem Hidex II 33T User Manual Description The Hidex II V.34bis Industrial Grade Modem is the most versatile model for Dial up or leased analog telephone line interconnect. The Hidex HX II 33T offers speeds up to 33.6K over the analog switched telephone network.
-
Page 2: Compliance To Global Telephone Standards
Industrial Grade Modem Hidex II 33T User Manual Fax Compatibility ITU-T “Super” Group 3; Class 1.0 (2.0, 2.1 – V.92 build only) Group 3, Class 1 and 2, T.4, T.30 Annex A & C, V.21, V.27ter, V.29, V.34, V.17, and TIA/EIA TR29.2 V.34 Super G3 fax at speeds up to 33.6Kbps... -
Page 3: Power Supply
Industrial Grade Modem Hidex II 33T User Manual Power Supply 5 volt DC power to the modem is supplied through a 2-pin locking connector. Included with each modem is a switching power supply that will accept 90 to 240 VAC or DC. If you are going to power the modem from 5VDC remove the connector and attach to another pair of wires to connect to 5 VDC. - Page 4 Industrial Grade Modem Hidex II 33T User Manual 2. Connect the RJ11 connector to a phone line. 3. Connect external power to the power jack via wall adapter or +5VDC. Hyper Terminal setup: The modem can be tested as a standard serial data modem by connecting it to a personal computer or other data terminal equipment (DTE).
- Page 5 Industrial Grade Modem Hidex II 33T User Manual 11. To return to the command mode without interrupting the connection between the two modems, type “+++”. Approximately two seconds later, “OK” will appear. The modem is now in command mode and will accept “AT”...
- Page 6 Industrial Grade Modem Hidex II 33T User Manual Email: sales@industrial-grade-modem.com Web: www.industrial-grade-modem.com Page 6 7/20/2005...
