MSNB- 2009 User Manual

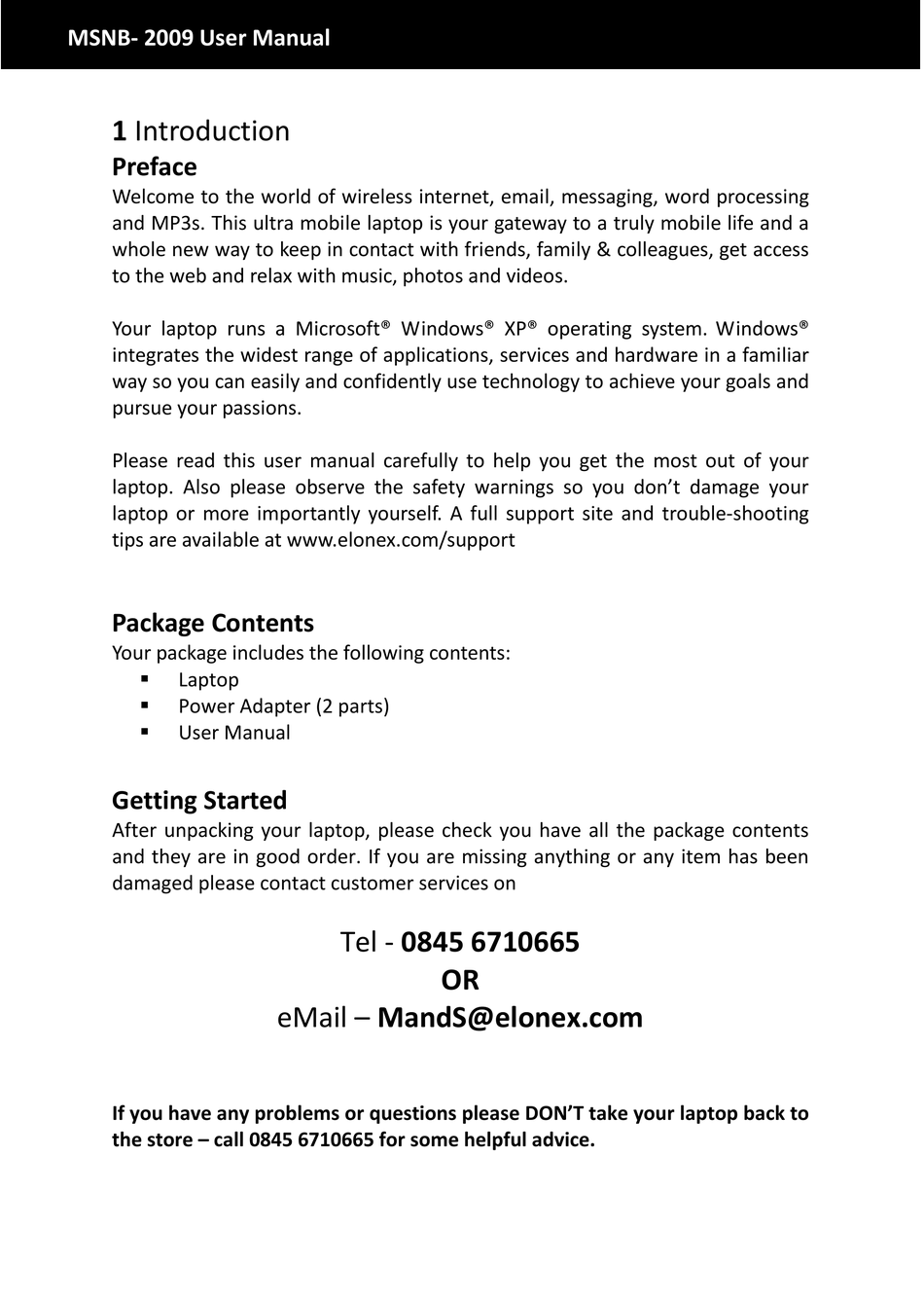

1 Introduction
Preface
Welcome to the world of wireless internet, email, messaging, word processing
and MP3s. This ultra mobile laptop is your gateway to a truly mobile life and a
whole new way to keep in contact with friends, family & colleagues, get access
to the web and relax with music, photos and videos.
Your laptop runs a Microsoft® Windows® XP® operating system. Windows®
integrates the widest range of applications, services and hardware in a familiar
way so you can easily and confidently use technology to achieve your goals and
pursue your passions.
Please read this user manual carefully to help you get the most out of your
laptop. Also please observe the safety warnings so you don't damage your
laptop or more importantly yourself. A full support site and trouble-shooting
tips are available at www.elonex.com/support
Package Contents
Your package includes the following contents:
Laptop
Power Adapter (2 parts)
User Manual
Getting Started
After unpacking your laptop, please check you have all the package contents
and they are in good order. If you are missing anything or any item has been
damaged please contact customer services on
If you have any problems or questions please DON'T take your laptop back to
the store – call 0845 6710665 for some helpful advice.
Tel - 0845 6710665
OR
eMail – MandS@elonex.com
Advertisement
Table of Contents
Related Manuals for Elonex MSNB 2009
Summary of Contents for Elonex MSNB 2009
-
Page 1: Package Contents
Please read this user manual carefully to help you get the most out of your laptop. Also please observe the safety warnings so you don’t damage your laptop or more importantly yourself. A full support site and trouble-shooting tips are available at www.elonex.com/support Package Contents Your package includes the following contents: Laptop ... -
Page 3: Important Safety Instructions
Shut the computer down properly and do not forget to save your work often. Remember to periodically back-up your data as Elonex accepts no responsibility for data loss. Failure to adhere to these Safety Instructions may invalidate your warranty. - Page 4 Do not overload wall outlets, personnel. Please refer all warranty extension cords integral claims to Elonex Warranty Service. convenience receptacles as this can result in a risk of fire or electric Replacement Parts shock. Only...
- Page 5 MSNB- 2009 User Manual 2 Laptop Appearance...
- Page 6 Front View Right Side View Left Side View...
-
Page 7: Inputs And Outputs
MSNB- 2009 User Manual Inputs and Outputs The laptop has a number of inputs and outputs to give you a truly versatile way to incorporate it into your daily life. When purchasing any peripheral devices, please check the peripheral’s minimum Hardware and Software requirements to ensure compatibility with your laptop and always follow manufacturer instructions. - Page 8 Volume Rocker To help you enjoy your music and video the laptop has a Volume Rocker to easily adjust the volume. To turn the Volume UP rotate the rocker towards the + marking and hold until the audio reaches the desired volume. To turn the Volume DOWN rotate the rocker towards the marking and hold until the audio becomes sufficiently quiet.
- Page 9 MSNB- 2009 User Manual Power Button & HotKeys Wi-Fi On / Off Press this button to turn the Wi-Fi on or off. When your computer boots into windows it will automatically have the Wi-Fi turned on. Open eMail This button will automatically open your pre-installed email client – Microsoft Outlook Express.
-
Page 10: Led Indicators
LED Indicators Power Indicator Off: The computer is turned off or is in hibernation mode. Green: The system is powered on. Blinking: The computer is in standby mode. Battery Status Green: The battery is fully charged Orange: The battery is charging Blinking: The battery power is low. - Page 11 MSNB- 2009 User Manual Caps / Num Lock: Green: Illuminates when the Caps Lock key is pressed. Red: Illuminates when the combination of Fn and Num Lock keys are pressed. Orange: Indicates both the Caps Lock and Num Lock are active.
- Page 12 Power, Charging and Battery Care This laptop has a rechargeable battery which will give you usage on the move when recharged. You can also use the power adapter plugged into mains electricity for continuous use (the laptop will recharge its battery while in operation).
-
Page 13: To Remove The Battery Pack
MSNB- 2009 User Manual To remove the battery pack Unlock the right battery latch to the right until it clicks, and push the right battery latch to the left and hold; then slide the battery pack out of the slot. Caring for your Battery Pack Frequent recharging of the battery pack can reduce battery life. - Page 14 Connecting your Power Adapter Only use the AC adapter that is supplied with your laptop or supplied by an official Elonex reseller. Using any other adapter may cause damage to your laptop. Connect the power cord to the adapter, and then plug the other end into an AC power outlet.
-
Page 15: Turning The Power On And Off
MSNB- 2009 User Manual Turning the power on and off Turning ON To turn your laptop on, simply press the power button on the top of the computer. Sleep/Hibernate When the computer is on, you can use the power button as a Sleep/Hibernate hotkey button when it is pressed for less than 4 seconds (pressing and holding the power button for longer than this will shut the... - Page 16 Shut down in the Start menu. If a Windows or program file is damaged by shutting down the system incorrectly, reinstall the program. Elonex accepts no responsibility for loss of data.
-
Page 17: Using The Keyboard
MSNB- 2009 User Manual Using the keyboard The keyboard is used for entering text and commands in the computer. Do not spill fluids onto the keyboard as it may damage the computer and cause an electric shock. About the keyboard The keyboard is composed of character, number, and other special function keys. -
Page 18: Special Function Keys
Special function keys Shift key: Hold the Shift key down and press another key to enter the upper case letter for the key. Caps Lock key: Press the Caps Lock key to lock the keyboard in the upper case position. Esc key: Use the Esc key to quit programs or cancel an operation in a program. -
Page 19: Function Keys
MSNB- 2009 User Manual Function keys: Function keys provide you with shortcuts to operations, such as adjusting the brightness of the computer display. Fn+Esc: Force the computer to enter power-saving mode. (Ex: system standby and hibernation) Fn+F1: Enable/disable Wi-Fi Fn+F3: Enable/disable the audio output- ie Mute the sound. -
Page 20: Shortcut Keys
Shortcut keys Shortcut keys are a handy way for you to quickly and easily use your software. It is highly recommended that you keep a reference of these short cut keys and try to memorise them. Doing so will dramatically increase your productivity. "Ctrl+S"... -
Page 21: Using The Touchpad
MSNB- 2009 User Manual Using the touch pad The touch pad can be used with a mouse at the same time. 1. Left button: used to select or click items. 2. Right button: functions similar to the right button on a mouse. 3. - Page 22 Moving the pointer on the screen Gently place your finger on the touch pad and slide it in the direction in which you want the pointer to move. Making the selection (Click) To click a button on-screen, quickly press and release the left button. You can click the left button or gently tap the touch pad once to select an item on a menu or an icon on the screen, or position the cursor in a document.
- Page 23 MSNB- 2009 User Manual Drag and drop To drag an object, select and move the object by clicking and holding the left button and sliding the finger across the touch pad without releasing the button. To drop the object you have just dragged, release the left button. You can use drag and drop to move files from one location to another.
- Page 25 Connecting to Wi-Fi Internet When you turn your computer on Windows will automatically scan the surrounding area for all available wireless access points (Wi-Fi hotspots). If Wi-Fi is detected the bubble below will appear. Please note that you will only be able to connect to public Wi-Fi if it is not password protected or you can connect to private Wi-Fi if you have permission and also the password.
- Page 26 MSNB- 2009 User Manual 3. If the Wi-Fi is password protected you will be prompted to enter a key (password). Type the encryption key in both the Network key and Confirm network key boxes, and then click Connect. 4. You will then be connected to the internet. You can surf the internet using Internet Explorer (Go to Start>Internet Explorer).
-
Page 27: Setting Up Your Email
Setting up your email Your laptop comes with Outlook Express to send and receive email. In order to send emails you must have an email account and be connected to the internet. You can have more than one account—for business, online shopping and so on—and each person who uses your computer may have their own, completely separate account. - Page 28 MSNB- 2009 User Manual 4. Second, information about your account: • Your account name and password • Find out if your ISP requires you to use Secure Password Authentication (SPA) to access your e-mail account—yes or no is all that's required. If SPA is required tick the box.
-
Page 29: Protecting Your Computer
Keeping your laptop up to date Microsoft Windows is constantly being updated with programs and patches that keep your software up to date with the most modern technology and protects you from any recent security threats. Your laptop will automatically scan for any updates each time you connect to the internet however you can manually check this by going to Start>All Programs>Windows Update and following the on screen instructions. -
Page 30: Customer Service And Warranty
Do not attempt to service the computer yourself. Doing so may violate your warranty and expose you and the computer to electric shock. Refer all servicing to authorised service personnel. Customer Service and Warranty For customer service, technical queries or warranty related issues please call our helpdesk on 0845 6710665 MandS@elonex.com... -
Page 32: Troubleshooting
MSNB- 2009 User Manual Troubleshooting I can’t connect to Wi-Fi. Firstly check your Wi-Fi is enabled by looking at the Wi-Fi indicator LED. You may have turned your Wi-Fi off by pressing FN + F1 or the Wi-Fi hotkey. To connect follow the instructions in ‘Connecting to Wi-Fi’... - Page 33 Q – How do I safely shut down my PC? A – Select the Windows “START” button By clicking on Shut Down>Shut Down, Windows will safely turn your PC off whilst storing any changes you may have made. Q – How do I create a new shortcut on my windows desktop? A –...
- Page 34 MSNB- 2009 User Manual printer”. In the Add Printer Wizard, select “Add a local printer”. Follow the wizard’s instructions and choose the settings that are relevant to your printer. Q- How can I send pictures or videos via email? A-You can send pictures and videos stored on your computer via email as an attachment.
- Page 35 NOTES...
- Page 36 MSNB- 2009 User Manual NOTES...
- Page 37 NOTES...
- Page 38 Elonex follows a principle of constant improvement and is not held responsible for any changes that are made to the unit nor accepts any liabilities for these changes.
