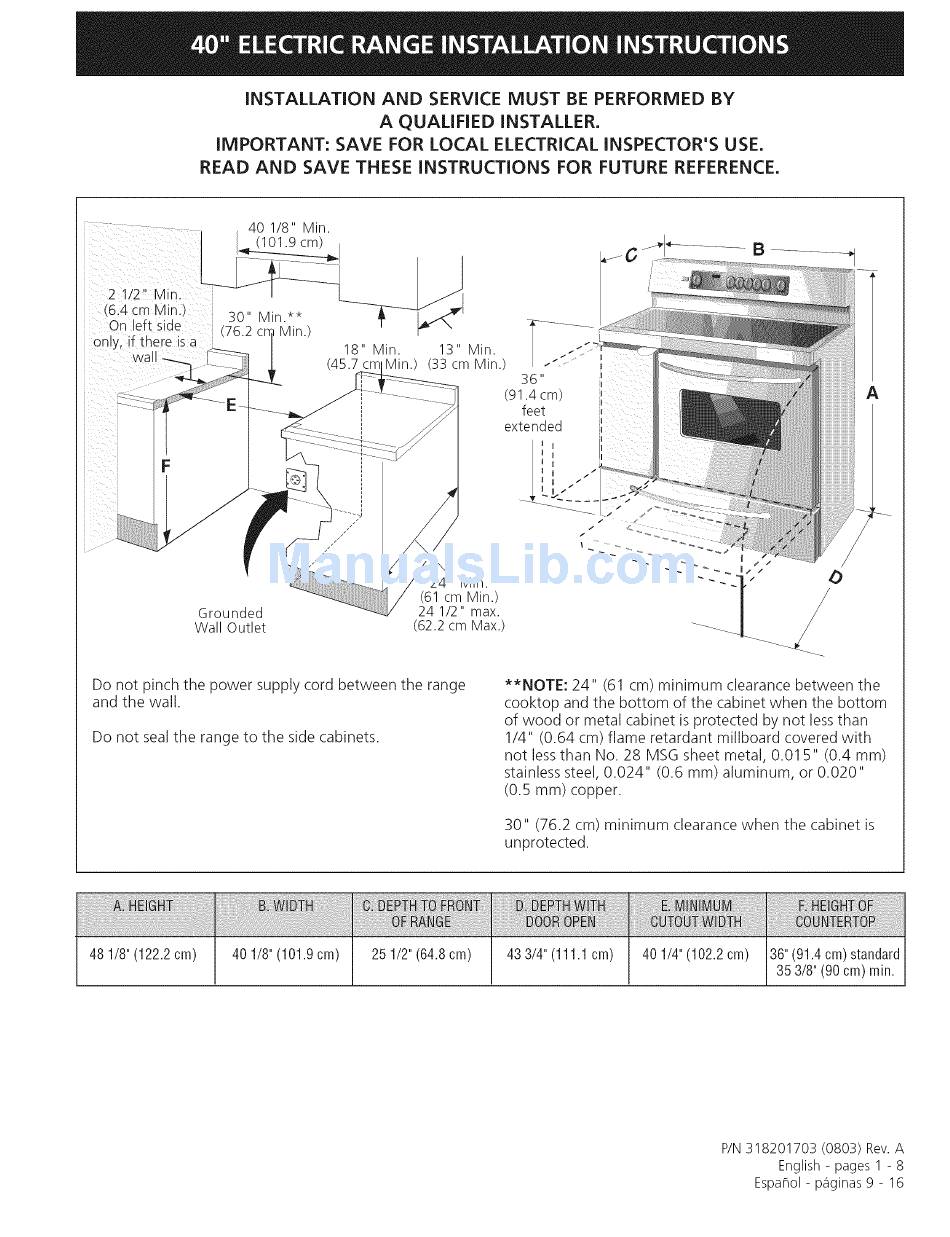

iNSTALLATiON
AND SERVICE MUST BE PERFORMED BY
A QUALiFiED
iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
40 1/8" Min.
(101.9 cm)
18" Min.
13" Min.
(45.7
Min.) (33 cm Min.)
-"
36"
(91.4 cm)
feet
extended
24" Min.
(61 cm Min.)
Grounded
24 1/2" max.
Wall Outlet
(62.2 cm Max.)
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
**NOTE: 24" (61 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not less than
1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet metal, 0.01 5" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"
(0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected.
iiiiiiiiiiiiiiiiiiiiiii!!i!i!i!i!i!i!i!i!i!i!ii_i_i_i_i_!_i!i_il
i!!iiii_'i_i_ili
_i!_!_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_i_i_i_i_i_!_i_i_i_!i_i
48 1/8"(122.2cm)
40 1/8" (101.9 cm)
25 1/2" (64.8 cm)
433/4"(111.1
cm)
40 1/4" (102.2 cm)
36" (91.4 cm) standard
35 3/8" (90 cm) min.
P/N 318201703 (0803) Rev. A
English - pages 1 - 8
Espa_ol - p_iginas 9 - 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLEF489GCA and is the answer not in the manual?

Questions and answers

Summary of Contents for Frigidaire PLEF489GCA

  • Page 1 iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER. iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE. READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE. 40 1/8" Min. (101.9 cm) 18" Min. 13" Min. (45.7 Min.) (33 cm Min.) -" 36"...
  • Page 2 Before installing the range in an area covered Important Notes to the Installer Read all instructions contained in these installation with linoleum or any other synthetic floor covering, make sure the floor covering instructions before installing range. withstand heat at least 90°F/32°C above room Remove all packing material from the oven temperature without...
  • Page 3 Model Serial Number Location Range Connection Opening Size Chart The serial plate is located on the oven front frame Refer to chart below for proper range connection opening size behind the large oven door. and power supply cord kit ampere rating information. See serial plate on range for kilowatt rating data.
  • Page 4 Three Conductor Wire Connection Range Four Conductor Wire Connection Range (The 3-conductor cord or cable must be replaced with a (mobile homes) 4-conductor cord or cable where grounding through the 1. Remove the 3 screws at the lower end of the rear wire neutral conductor is prohibited in new installations, cover, then raise the lower end of the rear wire cover mobile homes, recreational vehicles or in other areas...
  • Page 5 Direct Electrical Connection to the Circuit Where local codes DO NOT permit connecting appliance grounding conductor to the neutral Breaker, Fuse Box or Junction (white) wire or if connecting to 4-wire electrical If the appliance is connected directly to the circuit breaker, system (see Figure 6).
  • Page 6 Junction Location the floor where the back edge of the range will be. Now install anti-tip brackets (see "Anti-Tip Brackets Locate junction box as shown in Figure 7. Installation", page 8). If a service cord is used, the wall receptacle should be located in accordance with the dimensions below.
  • Page 7 5. Install 4 shipping boltsasleveling legs. 2. Operation of Oven Elements 6. Laya largepiece of cardboard i n frontof therange. The oven is equipped with an electronic oven control. Each Carefully s tand therange uprightoncardboard. of the functions has been factory checked before shipping. 7.
  • Page 8 Unfold paper template and place it flat on the floor Important Safety Warning with the back and side edges positioned exactly To reduce the risk of tipping of the range, the range where the back and sides of range will be located must be secured to the floor by properly installed anti-tip when installed.
  • Page 9 LA INSTALACION Y EL SERVICIO DEBEN SER EFECTUADOS POR UN INSTALADOR CAUFICADO. IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL iNSPECTOR LOCAL DE ELECTRICIDAD. LEA Y GUARDE ESTAS INSTRUCCIONES PARA REFERENCIA FUTURA. Toma corriente de pared puesto a tierra No pellizque el cordon electrico entre la estufa y la pared.
  • Page 10: Nota Importante

    + Asegurese de que el material que recubre Notas importantes para el Instalador paredes airededor de la estufa, pueda resistir Lea todas las instrucciones contenidas en este manual caior generado ia estufa. antes de instalar la estufa. + Antes de instaiar la estufa en un _rea cuyo piso...
  • Page 11 Ubicaci6n deJ Numero de Modelo y de Serie Tabla de tama_o de abertura de conexi6n de codna La placa con el n0mero de serie est,1 ubicada en el Referirse a la tabla de arriba para el tamaho de abertura marco delantero del homo detr_is de la puerta del homo connexion de cocina adecuada, y la informaci6n...
  • Page 12 ConexiOn de tres alarnbres de conduction ConexiOn de 4 alarnbres de conduction a ia ]a estufa estufa (casas moviles) (Un cordon flexible o cable de 3 conductores debe de set 1. Quite los tres tornillos en la parte m_is baja del panel trasero, luego levante...
  • Page 13 Conexi6n ei6ctrica directa ai cortacircuito, Donde los c6digos locales NO permitan conectar conductor de puesta a tierra del electrodomestico ia caja de fusibles o ia caja de empaimes neutral (blanco), o si est_ conectado con un sistema Si el aparato est,1 conectado directamente al cortacircuito, 4 alambres...
  • Page 14 Si la estufa se va a instalar con un armario a s61o un SituatiOn de caja de union lado, mueva la estufa a su posicion final• Marque el piso Localice la caja de empalmes como se ve en la pot el lado de la estufa que no estate1 contra el armario. Figura Si la parte trasera...
  • Page 15: Antes De Llamar

    Funcionamiento de los Elementos del Homo 2. Tome las 4 esquinas de carton de la caja de empaque. Coloquelas una encima de otra. Repita esta operacion El homo est,1 equipado con un control electronico. Cada con las otras 2 esquinas. Coloque las esquinas funcion ha sido probada...
  • Page 16 Importante Advertencia de Seguridad Desdoble la plantilla de papel y coloquela plana en el piso con los bordes laterales y el trasero colocados Para reducir el riesgo de que la estufa se vuelque, exactamente donde la parte trasera y los lados de la necesario asegurarla al piso instalando los soportes...
