INSTALLATION
AND
SERVICE
MUST
BE PERFORMED
BY A QUALIFIED
INSTALLER.
IMPORTANT:
SAVE
FOR LOCAL
ELECTRICAL
INSPECTOR'S
USE.
READ AND
SAVE THESE
INSTRUCTIONS
FOR FUTURE
REFERENCE.

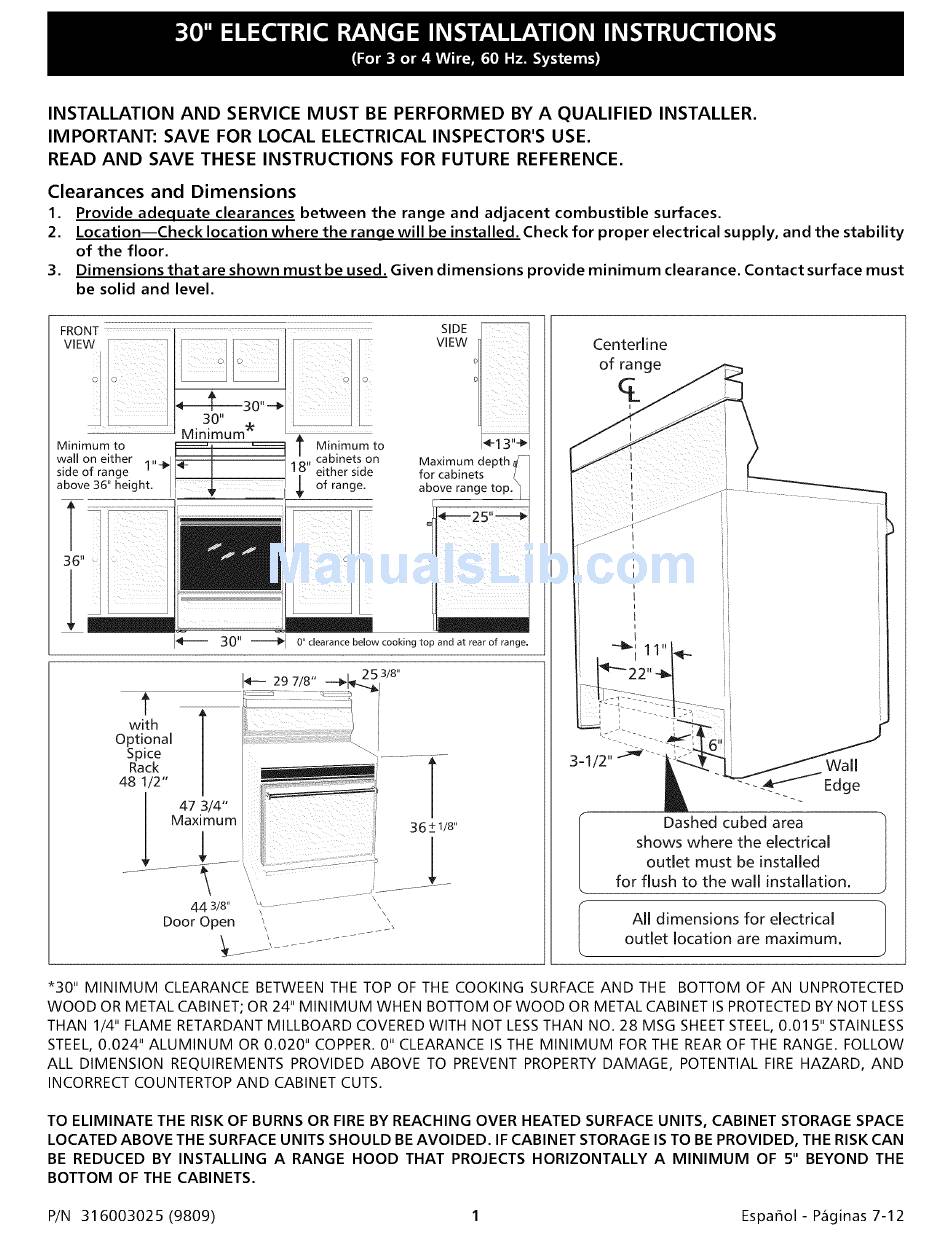

Clearances
and
Dimensions
1.
Provide
adequate
clearances
between
the range
and
adjacent
combustible
surfaces.
2.
Location--Check
location
where
the ranqe
will be installed.
Check for proper
electrical
supply,
and the stability
of the floor.
3.
Dimensions
that
are shown
must
be used.
Given dimensions
provide
minimum
clearance.
Contact
surface
must
be solid
and
level.
....................
..............
Minimum
to
T
Minimum
to
wall on either
i"
cabinets
on
side of range
1
either
side
above
36" height,
of range.
SIDE
VIEW
I_! 3"-_1
Maximum depth,
for cabinets
above
range
r
0" clearance
below
cooking
top and at rear of range.
with
Optional
Spice
Rack
48 1/2"
47 3/4"
Maximum
44 3/8"
Door Open
\
\
\
Centerline
of range
q_
i
Dashed cubed area
shows where the electrical
outlet must be installed
for flush to the wall installation.
All dimensions
for electrical
outlet location are maximum.
*30"
MINIMUM
CLEARANCE
BETWEEN THE TOP OF THE COOKING
SURFACE AND THE
BOTTOM OF AN UNPROTECTED
WOOD OR METAL CABINET; OR 24" MINIMUM
WHEN BOTTOM OF WOOD OR METAL CABINET IS PROTECTED BY NOT LESS
THAN 1/4" FLAME RETARDANT MILLBOARD
COVERED WITH NOT LESS THAN NO. 28 MSG SHEET STEEL, 0.01 5" STAINLESS
STEEL, 0.024"
ALUMINUM
OR 0.020"
COPPER. 0" CLEARANCE IS THE MINIMUM
FOR THE REAR OF THE RANGE. FOLLOW
ALL DIMENSION
REQUIREMENTS
PROVIDED ABOVE
TO PREVENT PROPERTY DAMAGE,
POTENTIAL
FIRE HAZARD,
AND
INCORRECT COUNTERTOP AND CABINET CUTS.
TO ELIMINATE THE RISK OF BURNS OR FIRE BY REACHING OVER HEATED SURFACE UNITS, CABINET STORAGE SPACE
LOCATED ABOVE THE SURFACE UNITS SHOULD BE AVOIDED. IF CABINET STORAGE IS TO BE PROVIDED, THE RISK CAN
BE REDUCED BY INSTALLING A RANGE HOOD THAT PROJECTS HORIZONTALLY A MINIMUM
OF 5" BEYOND THE
BOTTOM OF THE CABINETS.
P/N 31 6003025
(9809)
1
Espafiol-
Paginas 7-12
