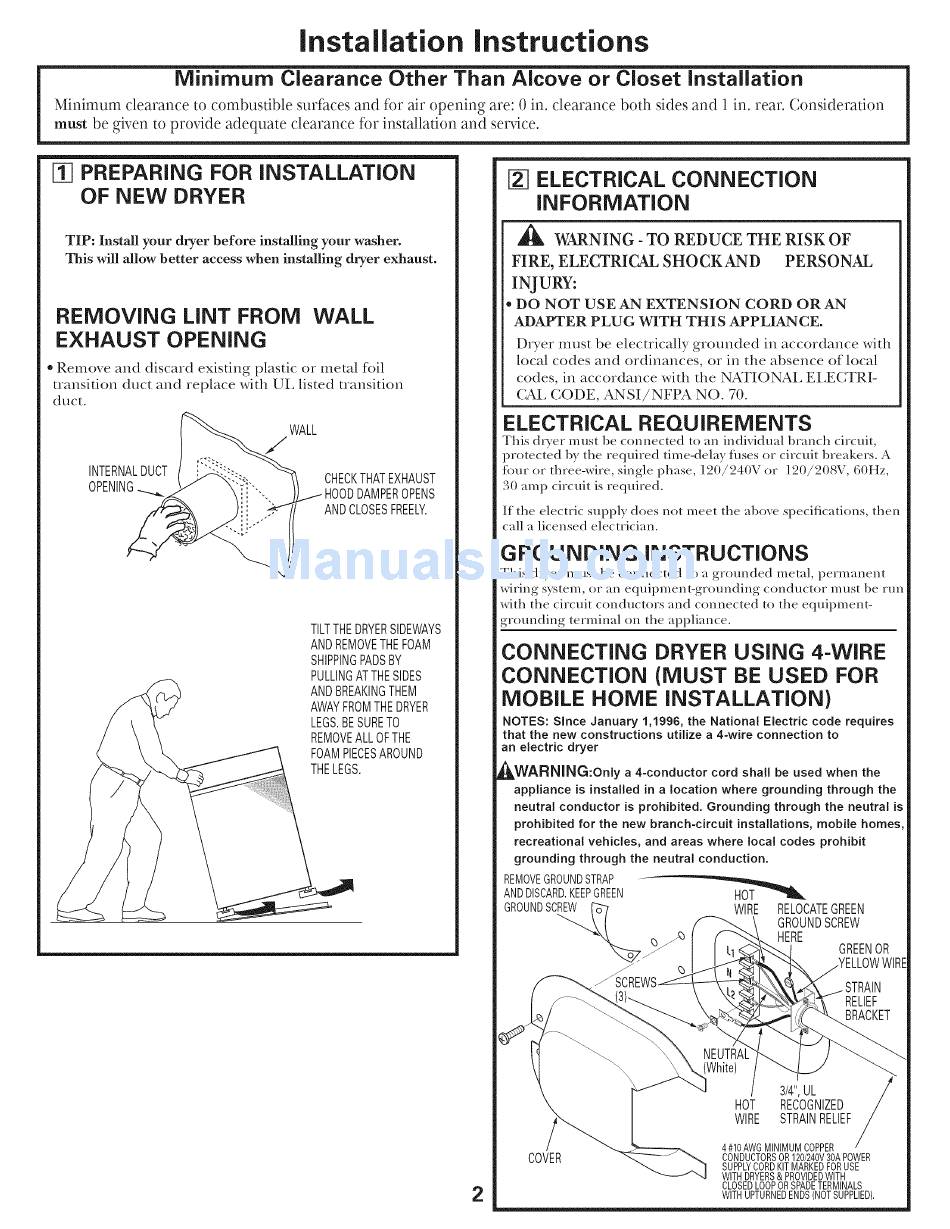

Installation instructions
Minimum
Clearance Other Than Alcove or Closet Installation
Minimum
clearance
m combustible
surfhces and for air opening
are: 0 in. clearance
bod_ sides and 1 in. rear. Consideration
must be given m provide adequate
clearance
ff)r installation
and service.
I-f] PREPARING FOR iNSTALLATiON
OF NEW DRYER
TIP: Install your dryer before
installing
your washer,
This will allow better access when installing
dryer exhaust.
REMOVING
LiNT FROM
WALL
EXHAUST
OPENING
* Remove
and
discard
existing
plastic
or metal
foil
transition
duct and replace
with UL listed transition
duct°
WALL
/
INTERNAL DUCT
CHECK T HAT EXHAUST
OPENING
DAMPER O PENS
ANDCLOSES F REELY.
TILT THE DRYER S IDEWAYS
ANDREMOVE THEFOAM
SHIPPING P ADS BY
PULLING ATTHE SIDES
ANDBREAKING THEM
AWAY FROM THE DRYER
LEGS. BESURE TO
REMOVE ALLOFTHE
FOAM PIECES AROUND
THE LEGS.
2
[_ ELECTRICAL CONNECTION
iNFORMATiON
A
WARNING-
TO REDUCE
THE RISK OF
FIRE, ELECTRICAL
SHOCKAND
PERSONAL
INJURY:
e DO
NOT
USE
AN EXTENSION
CORD
OR
AN
ADAt_ER
PLUG
WITH
THIS
APPLIANCE.
Dwer
must
be electrically
grounded
in accordance
with
local codes
and ordinances,
or in the absence
of local
codes,
in accordance
with the NATIONAL
ELECTRI-
CAL CODE,
ANSI/NFPA
NO.
70.
ELECTRICAL
REQUIREMENTS
This
dryer
must
be connected
to an individual
branch
circuit,
protected
by the required
time-delay
fllses or circuit
breakers.
A
Ibm
or three-wire,
single
phase,
120/240V
or
120/208V,
60Hz,
30 amp
circuit
is required.
If the electric
supply
does not meet
the aboxe
specifications,
then
call a licensed
electrician.
GROUNDING
INSTRUCTIONS
This dryer
must
be connected
to a grounded
metal,
permanent
wiring
system,
or an equipmen/-grounding
conductor
must
be run
with the circuit
conductors
and connected
to the equipment-
grounding
terminal
on the appliance.
CONNECTING
DRYER USING 4-WIRE
CONNECTION
(MUST
BE USED FOR
MOBILE HOME INSTALLATION)
NOTES: Since January
1,1996, the National
Electric
code requires
that the new constructions
utilize a 4-wire connection
to
an electric
dryer
t_WARNING:only
a 4-conductor
cord shah be used when the
appliance
is installed
in a location
where grounding
through
the
neutral
conductor
is prohibited.
Grounding
through
the neutral
is
prohibited
for the new branch-circuit
installations,
mobile
homes,
recreational
vehicles,
and areas where local codes prohibit
grounding
through
the neutral
conduction.
REMOVE G ROUND STRAP
-
ANDDISCARD, KEEP GREEN
HOT - "'_
GROUND SCREW
WIRE
RELOCATE GREEN
GROUNDSCREW
HERE
GREEN OR
