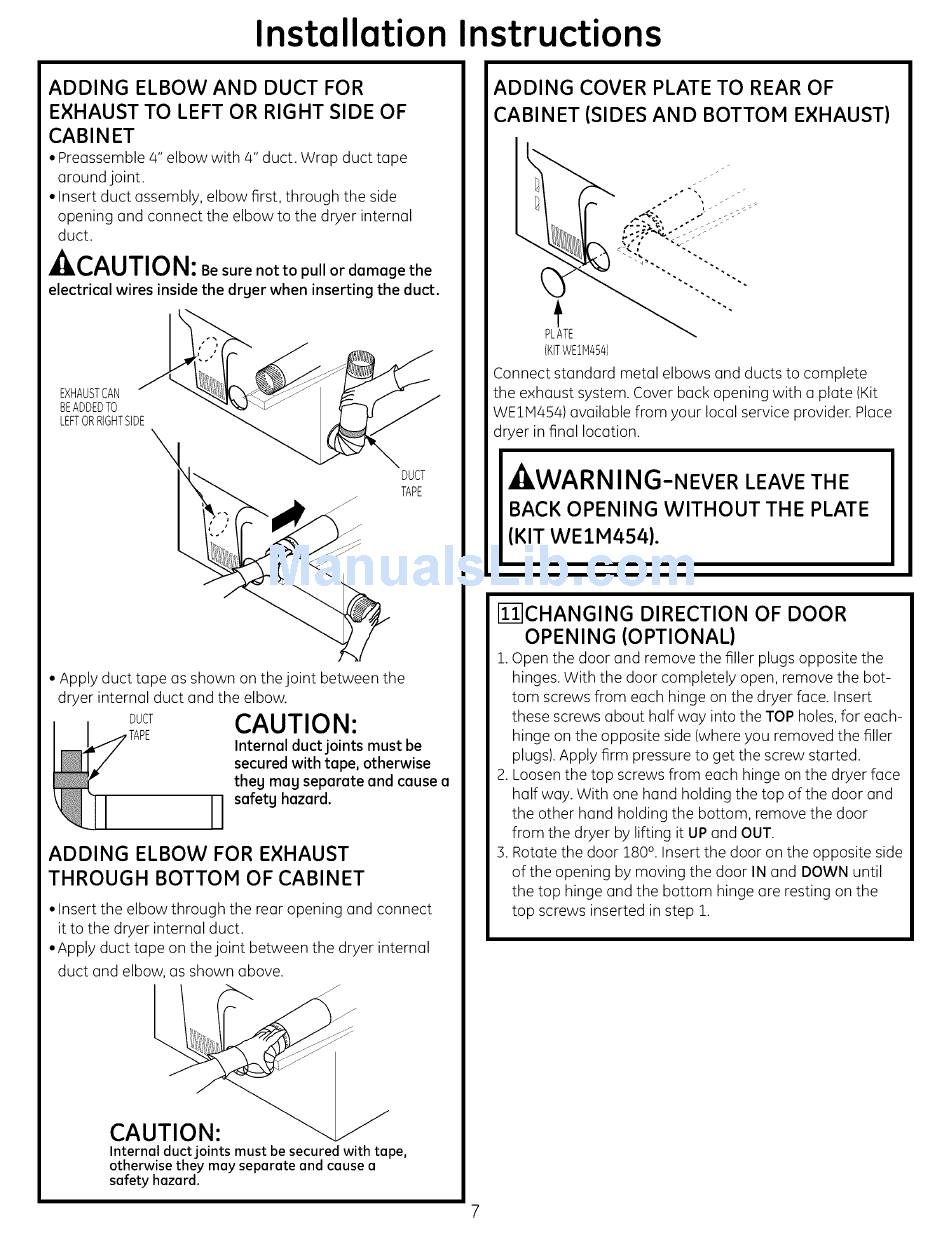

Installation Instructions
ADDING ELBOW AND DUCT FOR
EXHAUST TO LEFT OR RIGHT SIDE OF
CABINET
• Preossemble 4" elbow with 4" duct. Wrop duct tope
Ground joint.
• Insert duct ossembly, elbow first, through the side
opening ond connect the elbow to the dryer internol
duct.
-&CAUTION:
Be sure not to pull o r damage the
electrical wires inside the drger when inserting the duct.
EXHAUST CAN
BEADDEDTO
LEFT O R RIGHT S IDE
• Apply duct tope os shown on the joint between the
dryer internol duct ond the elbow.
DUCT CAUTION:
Internal duct joints must be
secured with tape, otherwise
theg mag separate and cause a
safetg hazard.
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
• Insert the elbow through the reor opening ond connect
it to the dryer internol duct.
• Apply duct tope on the joint between the dryer internol
duct ond elbow, os shown obove.
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR OF
CABINET (SIDES AND BOTTOM EXHAUST)
PLATE
{KIT WE1M454)
Connect stondord metol elbows ond ducts to complete
the exhuust system. Cover bock opening with o plote (Kit
WE1M454) ovoiloble from your Iocol service provider. Ploce
dryer in finol Iocotion.
-_WARNING-NEVER
LEAVE THE
BACK OPENING WITHOUT THE PLATE
(KIT WEIM454).
I_CHANGING DIRECTION OF DOOR
OPENING (OPTIONAL)
1. Open the door ond remove the filler plugs opposite the
hinges. With the door completely open, remove the bot-
tom screws from eoch hinge on the dryer foce. Insert
these screws obout holf woy into the TOP holes, for eoch-
hinge on the opposite side (where you removed the filler
plugs). Apply firm pressure to get the screw storted.
2. Loosen the top screws from eoch hinge on the dryer foce
holf woy. With one hond holding the top of the door ond
the other hond holding the bottom, remove the door
from the dryer by lifting it UP ond OUT.
:3. Rotote the door 180°. Insert the door on the opposite side
of the opening by moving the door IN ond DOWN until
the top hinge ond the bottom hinge ore resting on the
top screws inserted in step 1.
