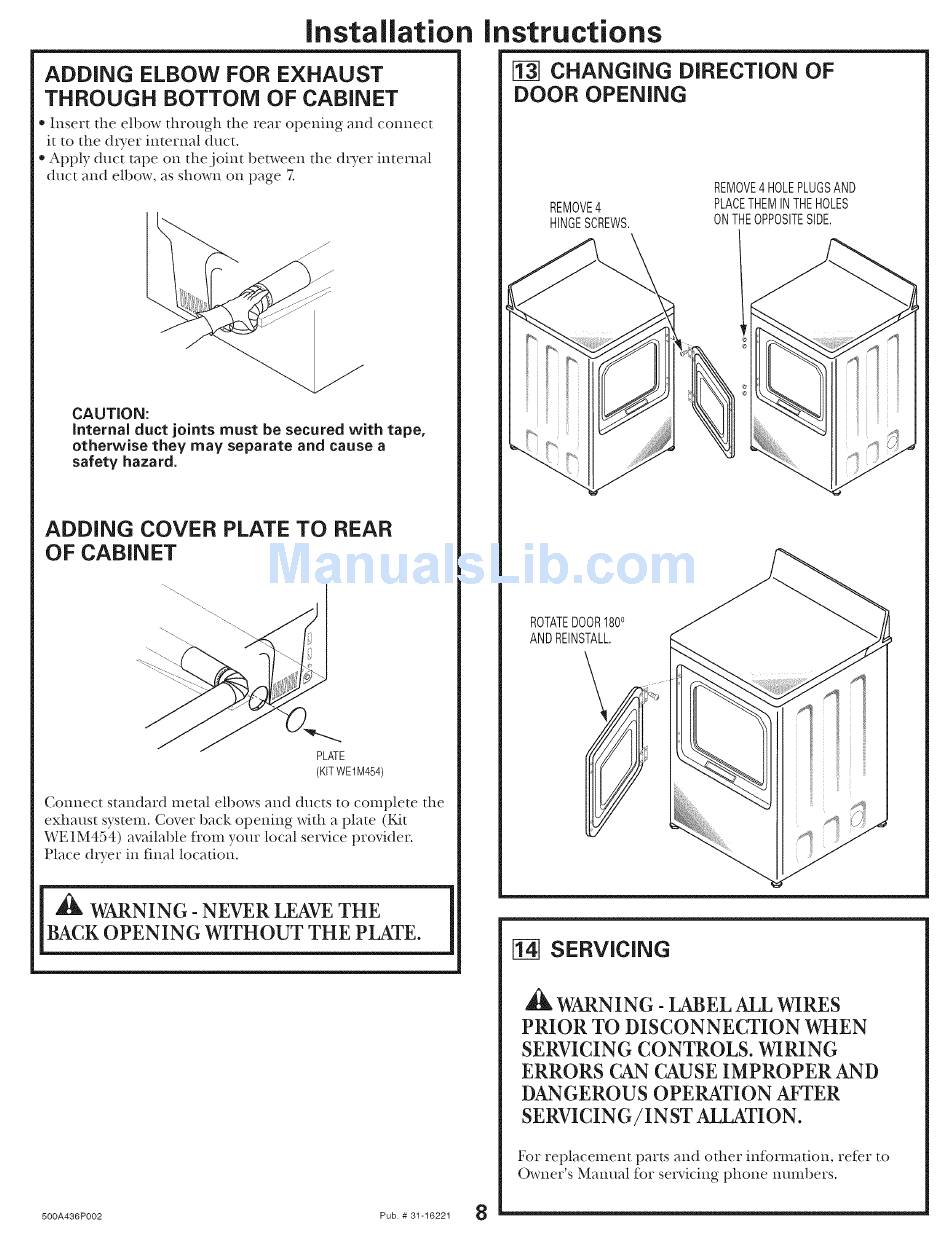

GE DMCD330GH1WC Installation Instructions Manual page 8

Installation
ADDING ELBOW FOR EXHAUST
THROUGH BOTTOM OF CABINET
. Insert die elbow dn'ough the rear opening and connect
it to tile dlyer internal duct.
. Apply duct tape oil the joint between tile dryer internal
duct and elbow, as shown on page 7.
CAUTION:
Internal duct joints must be secured with tape,
otherwise they may separate and cause a
safety hazard.
ADDING COVER PLATE TO REAR
OF CABINET
PLATE
(KIT WE1M454)
Comlect standard metal elbows and ducts to complete rile
exhaust system. Cover back opening with a plate (14dr
WE1M454) available Kom your local service provider.
Place dryer in final iocauon.
,_ WARNING- NEVER LEAVE THE
BACK OPENING WITHOUT THE PLATE.
500A436P002
Pub. # 31-16221 8
instructions
[_ CHANGING DIRECTION OF
DOOR OPENING
REMOVE 4
HINGE SCREWS.
REMOVE 4 HOLE PLUGS A ND
PLACE T HEM INTHE HOLES
ONTHE OPPOSITE SIDE.
ROTATE DOOR 1800
ANDREINSTALL.
[_ SERVICING
WARNING- LABEL ALL WIRES
PRIOR TO DISCONNECTION WHEN
SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION AFTER
SERVICING/INST ALLATIONo
For replacement parts and other infornmtion, refer to
Owner's Mammi for servicing phone mmfl)ers.
