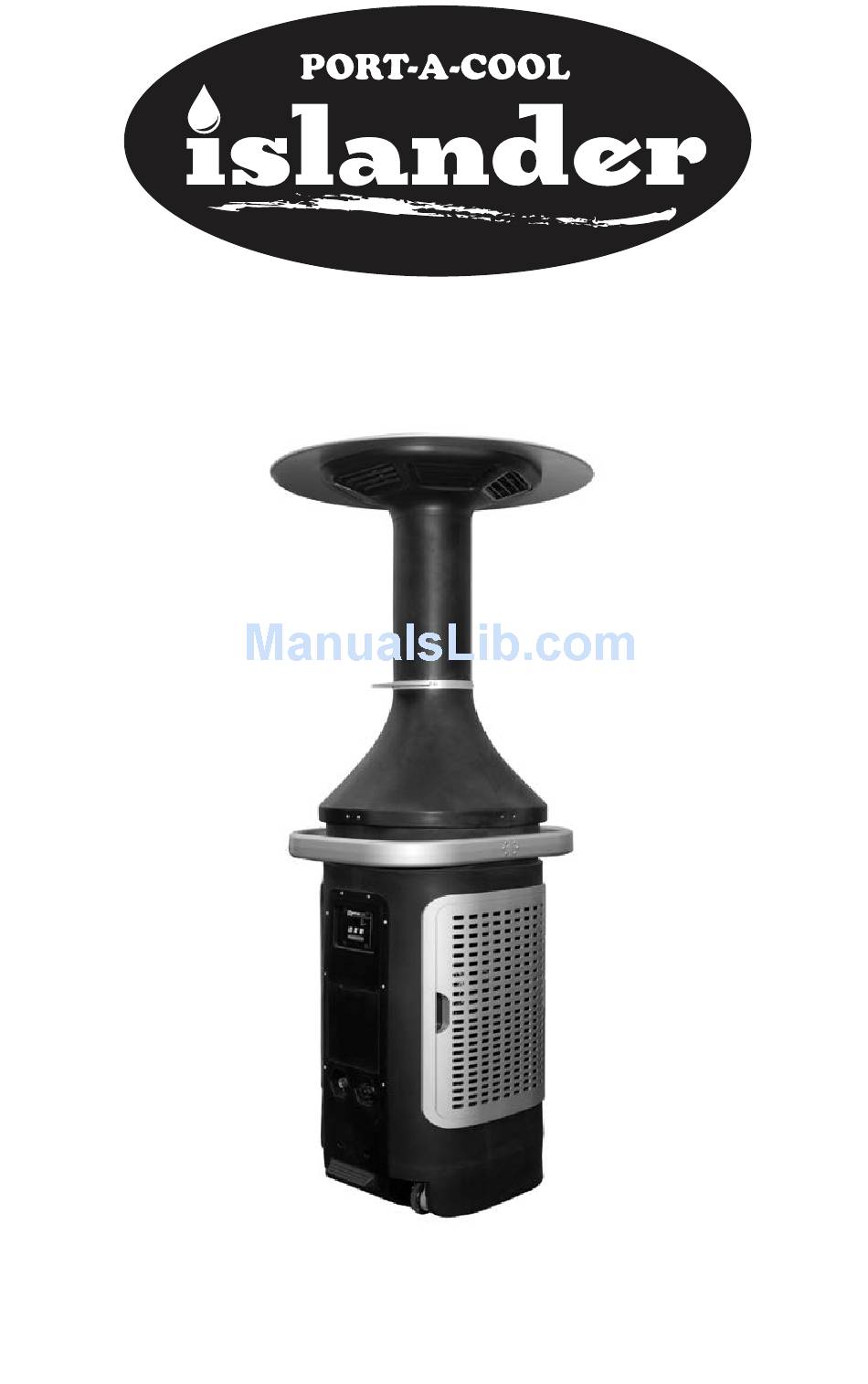

Port A Cool Islander Owner's Manual

Patio cooler

Advertisement

TM

OWNERS MANUAL

Patent Pending
PLEASE READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Islander and is the answer not in the manual?

Questions and answers

Summary of Contents for Port A Cool Islander

  • Page 1: Owners Manual

    OWNERS MANUAL Patent Pending PLEASE READ AND SAVE THESE INSTRUCTIONS...
  • Page 2 Patent Pending...
  • Page 3: Unit Overview

    Turn water on to fill the sump tank. The PORT-A-COOL Islander™ model also includes a manual fill option. To fill the tank manually, slide out the drawer located next to the hose adapter mentioned above and fill with water. Close the drawer and the unit is ready for operation.
  • Page 4: Specifications

    The total weight could be in excess of 500 lbs. (227 kg.). When the PORT-A-COOL Islander™ unit is placed near a wall or other obstruction, it is recommended that a distance of at least 3 feet (1 meter) from the wall or obstruction to the face of the cooling pads be main- tained.
  • Page 5: Starting The Unit

    When the PORT-A-COOL Islander™ unit is first operated, the new pads will require an initial ‘breaking-in’ period. This period is required for the pads to begin readily absorbing water. It may require up to a week to achieve maximum efficiency.
  • Page 6: Technical Support

    WARRANTY AND REPLACEMENT PARTS Port-A-Cool® Unit Limited Warranty For one year from date of installation, PORT-A-COOL, LLC warrants any original component part or parts of the PORT-A-COOL® evaporative unit found, upon examination by factory-authorized personnel, to be defective in material or workmanship, excepting, however, that the high-performance, fan motor utilized as a component of the Port-A-Cool®...
  • Page 7: Frequently Asked Questions

    Q. WHERE CAN I DOWNLOAD A DIGITAL VERSION OF THIS MANUAL? A. This manual is available for download on the Port-A-Cool website. Go to: http://www.port-a-cool.com/support.html to download.
  • Page 8 PORT-A-COOL Islander™ UNIT OVERVIEW Adjustable Louvers Tilt and Roll Handle Air Stack Control Panel Cord Wrap Cooling Media Quick Access Cover Water Adjustment Valve Patent Pending PORT-A-COOL Islander™ USER INTERFACE The user interface includes touch sensitive buttons for operation of the Hurricane 3600.
  • Page 9 3) Not intended for use by persons with lack of experience and knowledge, unless they have been given instruction and are supervised during operation 4) Children should be supervised to ensure that they do not play with the appliance PORT-A-COOL Islander™ WIRING DIAGRAM...
  • Page 10 PORT-A-COOL Islander™ EXPLODED VIEW Patent Pending...
  • Page 11 PORT-A-COOL Islander™ PARTS LIST ITEM# PART # DESCRIPTION ITEM# PART # DESCRIPTION ACCDOOR-PAT-208 WATER FILL DOOR - BACK ACCESS PANEL MTNG HOSE-FTG-04 T BARB ADAPTER AIRDUCT-PAT-202 AIR DUCT OUTLET LOUVER MOUNTING SECTION INNFRA-PAT-5120 INNER FRAME WELD AIRFOIL-PAT-613 AIRFOIL FOR PATIO UNIT...
  • Page 12 ® Port-A-Cool, LLC a member of the Walter Meier Group P.O. Box 2167 • 709 Southview Circle • Center, TX 75935 Phone 936-598-5651 • 800-695-2942 www.port-a-cool.com PAC-ACC-09...
