- Page 1 SpotClear Advance User Manual Tested and approved by: Model LLAC1...
-
Page 2: Table Of Contents
Contents Introduction Parts General Warnings and Safety Using the SpotClear Advance 5 - 6 Battery information Specification Troubleshooting Frequently Asked Questions 10 - 12 Maintenance and Cautions Warranty... -
Page 3: Introduction
Introduction Thank you for purchasing the Lloydspharmacy SpotClear Advance. The Lloydspharmacy SpotClear Advance is highly effective at reducing the symptoms of acne and spots. It uses Red Light Therapy which is recognised as a safe and effective treatment by many healthcare professionals. -
Page 4: Parts

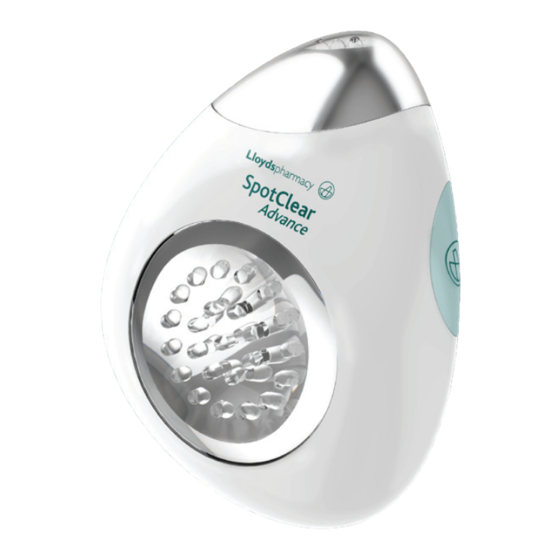

Parts Small Illumination Area Small Illumination Area ON/OFF (Phototherapy LEDs) (Phototherapy LEDs) Button Model: LLAC1 Please read the user manual carefully before use Power Supply: 4 x AA 1.5V batteries Made in P.R.C. Harvard Medical Devices Ltd. HK Kinetik Medical Devices Ltd. WD6 3BS. UK Battery cover Large Illumination Area (Phototherapy LEDs) -
Page 5: General Warnings And Safety
General Warnings and Safety Notice: • This is not a toy, do not look directly into the LEDs, even when using optical protection (for example sunglasses) • Do not use if your eyes are sensitive Warnings: • Children under 12 years of age must be supervised by an adult when using this product •... -
Page 6: Using The Spotclear Advance
Using your SpotClear Advance 1. Ensure that the area to be treated is cleaned before use. 2. Press and hold the ON/OFF button for 2 seconds to turn the unit on. The unit will emit a beep while in use, signifying that the device is working properly. Press the ON/OFF button again to switch between the small and large illumination areas. - Page 7 1 treatment cycle, in the same area, in any 1 hour. Continue daily treatment as needed. NOTE: If you feel any discomfort or pain at any time during treatment, turn the unit off and stop using immediately. Consult your Lloydspharmacy pharmacist for advice. 1 min later...
-
Page 8: Battery Information
Battery Information Inserting the batteries into the unit 1. Open the battery cover at the back of the unit. 2. Insert 4 x AA size batteries (not included) observing the correct polarity as shown on the inside of the battery compartment. 3. -
Page 9: Specification
Specifications Model Number: LLAC1 Product Name: Lloydspharmacy SpotClear Advance Technology of Treatment: Single wavelength phototherapy Red Wavelength: 660 nm ±20nm Operating Time: 1 minute ±10s Operating Temperature / Humidity: 10°C ~ 40°C (50°F ~ 104°F) / 20% ~ 85% RH Storage and Transport Temperature/ Humidity: -5°C ~ 50°C (-23°F ~ 122°F) / less than 85%... -
Page 10: Troubleshooting
Troubleshooting Problems Cause Solution Can not turn on • Batteries are not installed or • Install/change the batteries the device low on power as necessary • Batteries are not installed • Check batteries are inserted correctly correctly • Re-insert batteries observing the correct polarity •... -
Page 11: Frequently Asked Questions
Frequently Asked Questions How does SpotClear Advance work? It uses Red Light Therapy which is applied to the affected skin area to be treated to promote cell regeneration and reduce inflammation. This helps to speed the healing of spots and acne. What is Red Light Therapy? Red light therapy is a type of Low Level Light Therapy (LLLT) which is the application of light of narrow spectral width in the red or near infrared (NIR) spectrum to promote... - Page 12 Frequently Asked Questions What kind of improvement can I expect? A reduction in inflammation and a reduction in healing time. How long will it take to heal my spots and acne? It will be different for each person, but on average, the time to heal a spot or acne is reduced by around half compared to leaving to heal without treatment.
- Page 13 Frequently Asked Questions How often should I use the SpotClear Advance? One minute, 3 times a day, until spots and acne have healed. Are there any risks from over-use? No – there is no evidence of any side effects from over-use. However, you must not exceed 1 treatment cycle in the same area in any 1 hour period as this can reduce healing time.
-
Page 14: Maintenance And Cautions
Maintenance and Cautions 1) Batteries should be removed when the device is not used for long periods of time. 2) This product is not waterproof. Do not clean with any liquid cleaner. To clean the unit, use a soft dry cloth or alcohol wipe to clean the surface. Do not allow any liquid to enter the main unit. -
Page 15: Warranty
This product is guaranteed for a period of one year from the date of purchase against mechanical and electrical manufacturing defects. There are no user serviceable parts inside the Lloydspharmacy SpotClear Advance. Any attempted repairs by unauthorised persons invalidates the warranty. This does not affect your statutory rights. - Page 16 Harvard Medical Devices Ltd. Unit 1301-2, 13th Floor, Railway Plaza, 39 Chatham Road South, Tsimshatsui, Kowloon, Hong Kong. www.lloydspharmacy.com Kinetik Medical Devices Ltd. Harvard House, The Waterfront, Elstree Road, Elstree, Herts WD6 3BS, UK Made in P.R.C.
- Page 17 Other Red Light Therapy products available at Lloydspharmacy ColdSoreClear Advance MouthUlcerClear Advance Allergy Reliever Last revised: 30/07/2010...
