Summary of Contents for Starbridge Networks Lynx L-320

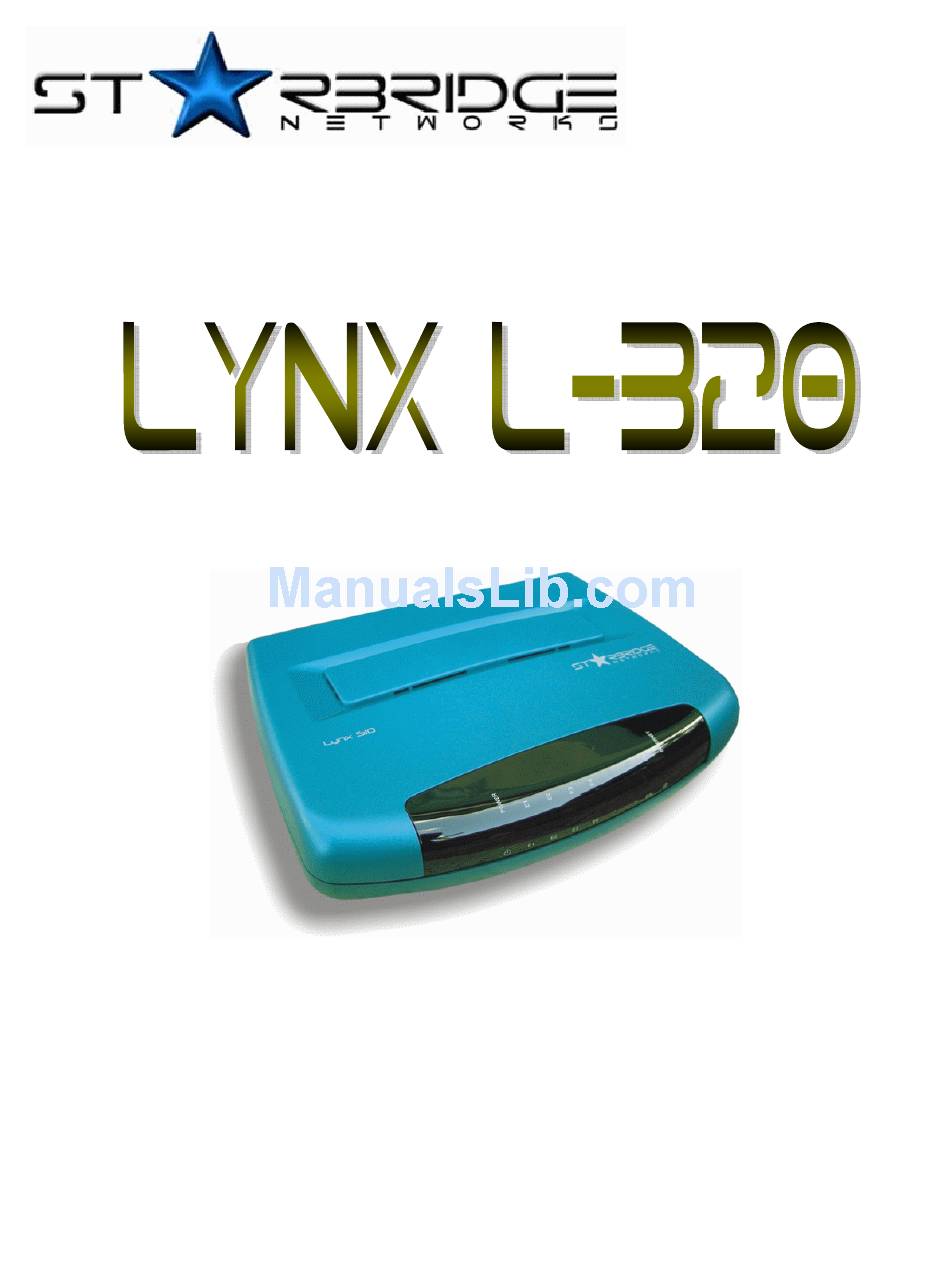

- Page 1 Web Interface User’s Guide ADSL 2/2+ 4 Port Ethernet Router Version 1.1...
-
Page 2: Table Of Contents
Ports and Buttons ............9 Lynx L-320 Overview............10 Chapter 4 Installing The Lynx L- 320 ......... 12 Chapter 5 Setting Up the Lynx L-320 ......... 13 Logging into your Lynx L-320 .......... 13 Basic ................14 LAN / DHCP Configuration ..........15 Diagnostic Test .............. - Page 3 Appendix A: Troubleshooting ............45 The Lynx L-320 is not functional..........45 I can’t connect to the Lynx L-320 ..........45 The DSL Link LED continues to blink but does not go solid ... 46 The DSL Link LED is always off..........46 APPENDIX B: Lynx L-320 terms ..........
- Page 4 Safety Summary Messages WARNING HIGH VOLTAGE If used in the equipment. Make sure equipment is properly grounded BEFORE opening. Failure to observe safety precautions may result in Electrick Shock to user. CAUTION Check voltages before connecting equipment to power supplies. Wrong voltages applied may result in damage to equipment.
-
Page 5: Chapter 1 About This Manual
Targeted Audience This manual is designed and developed for the operators and users who are required to operate and perform first-level maintenance of the Lynx L-320. It assumes the user of this manual has basic knowledge and experience in operating similar modem configuration and computer systems equipment. -
Page 6: Chapter 2 Adsl Ethernet Router Description
Just click on the game you are playing on line and the rest is done for you The Lynx L-320 is fully compatible with all PCs; as long as the PC supports an Ethernet interface and is running a TCP/IP protocol stack, your PC can have high-speed WAN access. -
Page 7: Encapsulation Support
Spectral compatibility with POTS • F5 OAM Loopback/Send and Receive • Encapsulation Support RFC2684 Bridge and Routed LLC and VC Mux support • RFC2364 PPPoA Client support • RFC2516 PPPoE Client support • RFC2225/RFC1577 Classical IP Support • Transparent Bridge Support •... -
Page 8: Lynx L-320 Overview
1 x DC Jack for Power Input • 1 x Factory Default Reset Button • Lynx L-320 Overview Fig 1-1 shows the system configuration diagram of a typical Lynx L-320 connection. Computers or Laptops with Ethernet Network Cards To Computers or... -
Page 9: Chapter 3 Your Gateway At A Glance
Your Gateway At A Glance Chapter 3 The Lynx L-320 has different ports and LEDs. Let’s take a look at the different options. Ports and Buttons Reset and Restore to Factory Defaults: The restore to factory defaults feature will set the Lynx L-320 to its factory default configuration by resetting the Lynx L-320. -
Page 10: Lynx L-320 Overview
Flickers when the ADSL is transmitting/receiving data. 3 DSL Lights up when the ADSL connection is established. Flickers when the Lynx L-320 is trying to establish a connection with the ADSL Service Provider 4 Internet Lights up when the PPP connection to the ISP is established. - Page 11 10/100 Base-T Ethernet jack (RJ-45) to connect to your Ethernet Network card or Ethernet Hub / Switch. 4 RESET To reset your Lynx L-320 to factory default settings. 5 ADSL Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL...
-
Page 12: Chapter 4 Installing The Lynx L- 320
Installing The Lynx L- 320 Chapter 4 Locate a suitable location for the Lynx L-320. For connections to the Ethernet and DSL interfaces, please refer to the Quick Guide. Connect the AC Power Adapter. Depending upon the type of network, you may want to put the power supply on an uninterruptible supply (UPS). -
Page 13: Chapter 5 Setting Up The Lynx L-320
L-320 is shipped with a standard PPP configuration. Logging into your Lynx L-320 To configure your Lynx L-320, open your web browser. You may get an error message at this point; this is normal. Type the default IP address (192.168.1.1) or login.router on on the web address bar. -
Page 14: Basic
Upon entering the default IP address or the short-cut name (login.router), if the user is first time login, the user will be brought to the “Basic” page. See Fig 1.3. The Basic page is meant for basic users whom only require easy connectivity to the Internet without worrying about any other advance configuration setting. -
Page 15: Lan / Dhcp Configuration
LAN / DHCP Configuration On one side of your Lynx L-320, you have your own Local Area network (LAN) connections. This is where you plug in your local computers to the Lynx L-320. The Lynx L-320 is normally configured to automatically provide all the PC's on your network with Internet addresses. - Page 16 IP address, Subnet Mask and DNS settings of every computer on your network. Do not assign the same IP address to more than one computer and your Lynx L-320 must be on the same subnet as all the other computers.
-
Page 17: Diagnostic Test
Diagnostic Test Diagnostic Test is used for investigating whether the Lynx L-310 is properly connected to the WAN Network. See Fig 1-7. This test may take a few seconds to complete. To perform the test, select your connection from the list and press the Test button. -
Page 18: Ping Test
WAN and the LAN sides are complete and you have the proper protocols configured, you should be able to surf the Internet. By default when you select ping test, the Lynx L-320 will ping itself 3 times. The Lynx L-320 passed the Ping test; this basically means that the TCP/IP protocol is up and running. -
Page 19: Advanced
Figure 1-10: Modem Test Advanced This mode is catered for advance users, a brief explanation of the links are listed as shown below. Figure 1-11: Advanced Screen... -
Page 20: Wan Connection
WAN Connection 5.5.1 On the other side of the Lynx L-320 is where your Wide Area Network (WAN) connection; also referred to as a broadband connection. This WAN connection is different for every WAN supplier. Most of the configuration you will perform will be in this area. -
Page 21: Quickstart
Figure 1-13: ADSL Modulation (Modem Setup) Quickstart 5.5.4 PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPP or Point-to-Point protocol is a method of establishing a network connection/session between network hosts. It usually provides a mechanism of authenticating users. - Page 22 Idle Timeout: Specifies that PPPoE connection should disconnect if the link has no activity detected for n seconds. This field is used in conjunction with the On-Demand feature. To ensure that the link is always active, enter a 0 in this field. Keep Alive: When on-demand option is not enable, this value specifies the time to wait without being connected to your provider before terminating the connection.
-
Page 23: Lan Configuration (Vlan)
LAN Configuration (VLAN) 5.5.5 The Virtual LANs (VLANs) is a group of devices on different physical LAN segments, which can communicate with each other as if there are all in the same physical LAN segment. VLANs provide a number of benefits over the network. - Page 24 Figure 1-16 : Create New bridge PVC Figure 1-17 : Three bridge PVCs are created Upon creation, the bridge PVCs are attached to LAN Group 1. They can be moved to other LAN Groups by selecting the name, clicking Remove beside the LAN Group, select again from the Interfaces box and clicking Add beside the new LAN Group.
- Page 25 Ports 1 and 3 will get traffic from Data and vice-versa. Ports 2 and 4 will not see traffic from Ports 1, 3 and Data nor the other way round. You can change the ADSL Router’s IP address by clicking on the Configure. Your ADSL Router’s...
-
Page 26: Lan Clients
Figure 1-19: LAN Clients Application (UPnP) 5.5.7 UPnP, NAT and Firewall Traversal allow traffic to pass-thru the Lynx L-320 for applications using the UPnP protocol. This feature requires one active DSL connection. In presence of multiple DSL connections, select the one over, which the incoming traffic will be present, for example the default Internet connection. -
Page 27: Sntp
Figure 1-20: UPnP SNTP 5.5.8 SNTP (Simple Network Timing Protocol) is a protocol used to synchronize the system time to the public SNTP servers. It uses the UDP protocol on port 123 to communicate between clients and servers. When the SNTP feature is enabled, your DSL600EU will start querying for the time clock information from the primary SNTP server. -
Page 28: Snmp
Polling Interval - Time between a successful connection with a SNTP server and a new attempt to connect to an SNTP server. Retry Count - The number of times the DSL600EU will try to connect to an SNTP server before it try to connect to the next server in line. Time Zone - The time zone of the DSL600EU. -
Page 29: Ip Qos
Figure 1-22: SNMP Management 5.5.10 IP QoS When QoS is enabled in the AR7, the designated machine, application or person would have precedence over peers when competing for bandwidth. The IP QoS Setup page allows you to configure QoS for a connection, view previously configured QoS rules, add a new rule, or delete an existing rule. -
Page 30: Igmp Multicast
Figure 1-23: IP QoS 5.5.11 IGMP Multicast If the Lynx L-320 is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network. You can use static routing to allow different IP domain users to access the Internet through the Lynx L-320. -
Page 31: Port Forwarding
Using the Port Forwarding page, you can provide local services (for example web hosting) for people on the Internet or play Internet games. When users send this type of request to your network via the Internet, the Lynx L-320 will forward those requests to the appropriate PC. Port forwarding can be used with DHCP assigned addresses but remember that a DHCP address is dynamic (not static). -
Page 32: Mac Filtering (Bridge Filters)
assuming that your WAN connection is correct, you can run Netmeeting from your server and call users that are on the Internet. If you know your WAN IP address, users can call you. See Fig 1-25. Figure 1-25: Port Forwarding 5.5.13 MAC Filtering (Bridge Filters) The bridge filtering mechanism provides a way for the users to define rules to allow/deny frames through the bridge based on source MAC address,... -
Page 33: Access Control
Figure 1-26: MAC Filtering (Bridge Filters) 5.5.14 Access Control Access control allows you to open the access from the Internet LAN to the following management ports of the DSL600EU: • Telnet • Web • FTP • TFTP • Secure Shell (SSH) •... -
Page 34: Routing (Static Routing)
Figure 1-27: Access Control 5.5.15 Routing (Static Routing) If the Lynx L-320 is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network. You can use static routing to allow different IP domain users to access the Internet through the Lynx L-320. -
Page 35: Dynamic Routing
RIP routes will be updated. Selecting In means that the Lynx L-320 will only incorporate received RIP information. Selecting Out means that the Lynx L-320 will only send out RIP information. Selecting both means that the Lynx L-320 will incorporate received RIP information and send out updated RIP information. -
Page 36: System Password
You can also change the idle timeout; you will need to log back onto the Lynx L-320 once the timeout expires. If you forget your password, you can press and hold the reset to factory defaults button for 10 seconds (or more). -
Page 37: Firmware Upgrade
Figure 1-31: Firmware Upgrade 5.5.19 Restore to Default The restore to factory defaults feature will set the Lynx L-320 to its factory default configuration by resetting the Lynx L-320. You may need to place the Lynx L-320 into its factory defaults if the configuration is changed, you loose the ability to interface to the Lynx L-320 via the web interface, or following a software upgrade,. -
Page 38: Security
Figure 1-32: Restore to Default prompt Security The security feature section allows users to configure the following: IP Filters LAN Isolation URL Filters Figure 1-33: Security IP Filters 5.6.1 IP filter is identical to what Port blocking to Access Control. Fig 1-34 demonstrates that the router will block workstations with the IP in the defined range of 192.168.1.5 to 192.168.1.20 and port range from 2000 to 3000. -
Page 39: Lan Isolation
Figure 1-34: IP Filters LAN Isolation 5.6.2 Figure 1-35: LAN Isolation LAN isolation allows you to disable the flow of packets between up to three- user-defined LAN groups (WLAN, USB and Ethernet). This allows you to... -
Page 40: Status
secure information in private portions of the LAN from other, publicly accessible LAN segments. Status This status section allows users to view the following connections and interfaces: Connection Status System Log Remote Log Network Statistics DHCP Clients Modem Status Product Information Figure 1-36: Status Connection Status 5.7.1... -
Page 41: System Log
System Log 5.7.2 You can display the Lynx L-320’s log by going under the Status title, click on System log. From here you can view all logged information. Depending upon the severity level, this logged info will generate log reports to a remote host (if remote logging is enabled). -
Page 42: Remote Log Settings
Remote Log Settings 5.7.3 This feature is for users to enable remote logging. Settings mentioned below are essential for this feature to work: Log Level Adding / Deleting IP address Logging destination Figure 1-39: Remote Log Settings Network Statistics 5.7.4 Information regarding the Status and Statistics of your Ethernet, and DSL line will be displayed. -
Page 43: Dhcp Clients
DHCP Clients 5.7.5 Shows the users connected. It also shows the MAC address, IP address, host name and lease time. Figure 1-41: DHCP Clients Modem Status 5.7.6 This screen will display the Modem status and DSL statistics. Figure 1-42: Modem Status... -
Page 44: Product Information
Product Information 5.7.7 This screen will show a summary of all the product information and software version that comes bundled with the Lynx L-320. Figure 1-43: Product Information Help The Help screen takes you to the different Help Sections for Firewall, Bridge Filters, LAN Clients, LAN Group Configurations, PPP Connection, UPnP, IP QoS and RIP Help. -
Page 45: Appendix A: Troubleshooting
1. Check to see that the power LED is green and that the network cables are installed correctly; see the Quick Guide for more details. 2. Make sure that your PC and the Lynx L-320 is on the same network segment. The Lynx L-320’s default IP address is 192.168.1.1. If you are running a Windows based PC, you can open a DOS window and type IPCONFIG;... -
Page 46: The Dsl Link Led Continues To Blink But Does Not Go Solid
2. Verify that the phone line is connected directly to the wall and to the line input on the Lynx L-320. If the phone line is connected to the phone side of the Lynx L-320 or you have a splitter installed on the phone line, the DSL light will not come on. -
Page 47: Appendix B: Lynx L-320 Terms
(gas pedal connection, etc), but if something happens to your engine, you are protected. The firewall in the Lynx L-320 is very similar. Only the desired connections that you allow are passed through the firewall. These connections are normally originating from the local network;... -
Page 48: What Is A Gateway
Your machine isn't really directly connected to the Internet, and it really has an internal local network address. When you provide the servers network address to others, you must provide the address of the Lynx L-320. The Lynx L-320 "fakes" the connection to your machine. - Page 49 © 2005 Starbridge Networks LLC. All rights reserved. www.starbridgenetworks.com Lynx: constellation introduced by J. Hevelius in 1687. The Lynx is a nocturnal wildcat with superb eyesight. The observers of this constellation would have to be “lynx-eyed” to see it.
