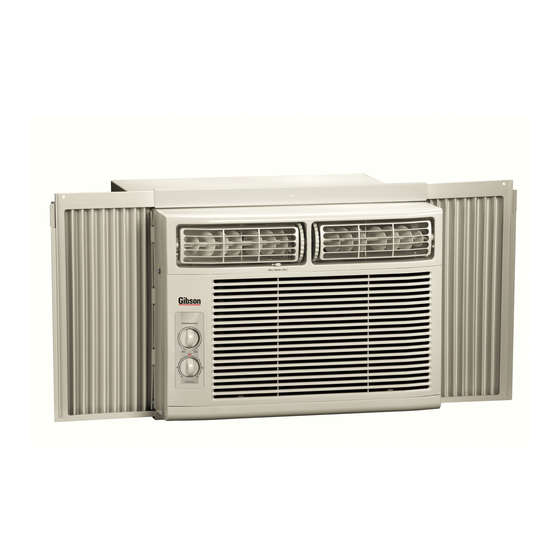

Gibson GAC105P1A1 Installation Instructions

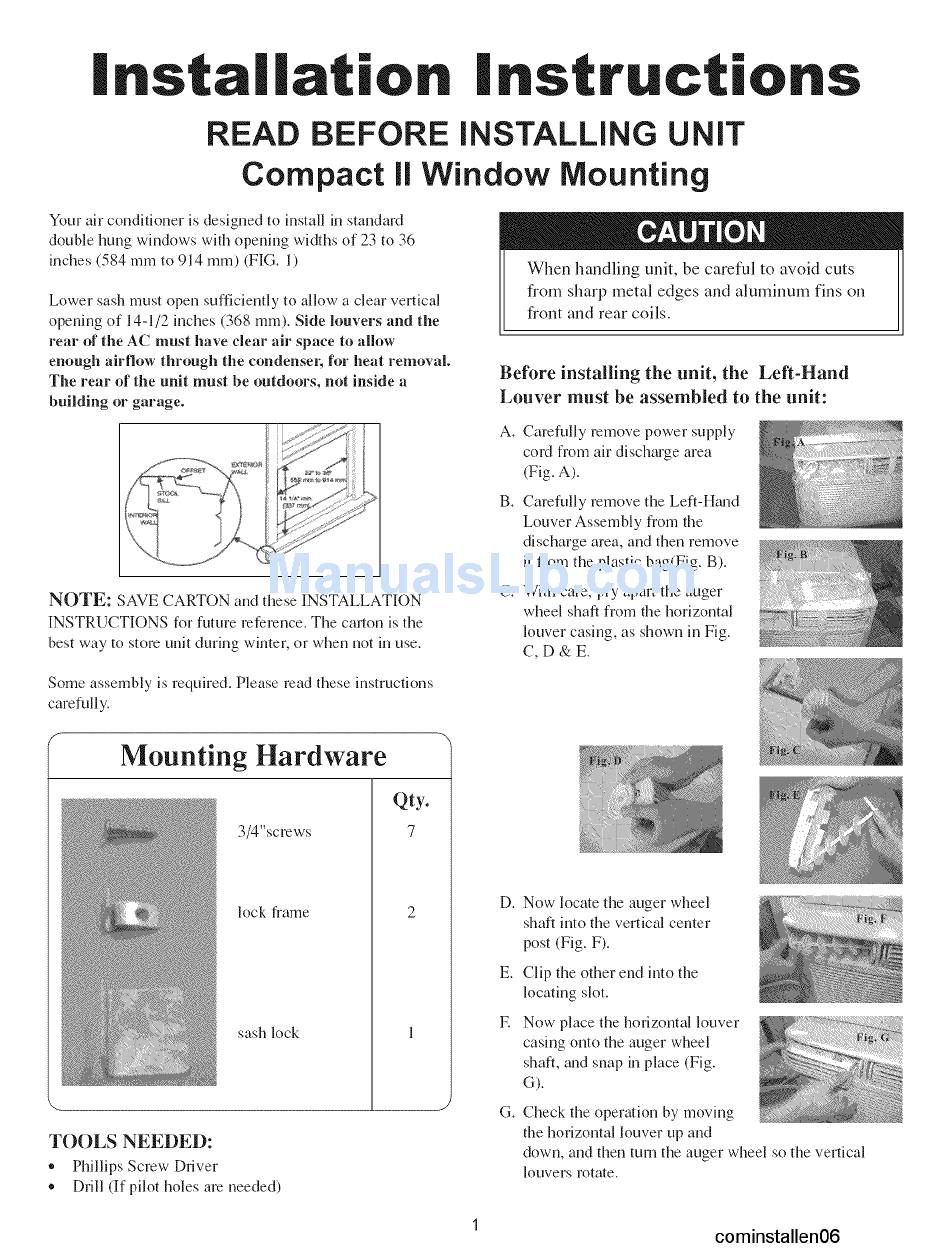

|nstailation instruct"
READ BEFORE iNSTALLiNG UNiT
Compact ii Window Mounting
Your air conditioner is designed to install in standard
double hung windows with opening widths of 23 to 36
inches (584 mm to 914 mm) (FIG. 1)
Lower sash must open sufficiently to allow- a clear vertical
opening of 14-1/2 inches (368 ram). Side louvers and the
rear of the AC must have clear air space to allow
enough airflow through the condensel; for heat removal.
The rear of the unit must be outdoors, not inside a
building or garage.
/ x'
/
NOTE: SAVE CARTON and these ][NSTALLATI()N
INSTRUCTIONS for furore reference. The carton is the
best way to store unit during winter, or when not in use.
Some assembly is required. Please read these instructions
carefully.
When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum fins on
front and rear coils.
Before installing the unit, the Left-Hand
Louver must be assembled to the unit:
A. Carefully remove power supply
coM from air discharge area
(Fig. A).
B. Carefully remove the Left-Hired
Louver Assembly from the
discharge area, and then remove
it from the plastic bag(Fig. B).
C. With care, pry apart the auger
wheel shaft from the horizontal
louver casing, as shown in Fig.
C,D&E.
Mounting Hardware
3/4"screws
lock flame
sash lock
\
TOOLS NEEDED:
, Phillips Screw Driver
* Drill (If pilot holes am needed)
Qty.
7
D. Now locate the auger wheel
shaft into the vertical center
post (Fig. F).
E. Clip the other end into the
locating slot.
E Now place the horizontal louver
casing onto the auger wheel
shaft, and snap in place (Fig.
G).
Check the operation by moving
the horizontal louver up and
down, and then turn the auger wheel so the vertical
louvers rotate.
