VP-35 Document Camera USER MANUAL Please read this manual carefully before operating the document camera and keep it for reference...
Page 2
PRECAUTIONS NOTICES: PLEASE READ CAREFULLY BEFORE USE u Use the document camera under the rated electric conditions. u Do not place the document camera on any unstable surface. It may fall and cause injures or damages. u Do not place this device directly under sunlight or near heaters. u Do not place this device near water.
CONTENTS: 1. PARTS IDENTIFICATION ..............5 2. CONTROL PANEL ................6 3. INPUTS AND OUTPUTS..............7 4. REMOTE CONTROL...............8 5. CONNECTIONS................9 5.1. COMPUTER CONNECTION...................9 5.2. USB CONNECTION.......................10 5.3. RGB INPUT AND OUTPUT ..................10 5.4 DVI OUTPUT........................11 5.5. C-VIDEO & S-VIDEO INPUT ..................11 5.6.
Page 4
SPLIT SCREEN ........................29 TITLE FUNCTION ........................29 PICTURE IN PICTURE FUNCTION..................29 IMAGE SAVE ........................29 IMAGE RECALL........................30 RGB INPUT SWITCH ......................30 OUTPUT SWITCH ........................30 USB IMAGE CAPTURE AND VIDEO RECORDING............30 USB 2.0 PORT........................30 RS232 CONTROL........................30 9. SPECIFICATION ................31 10. TROUBLE-SHOOTING: ..............32 11. PACKING LIST ................32...

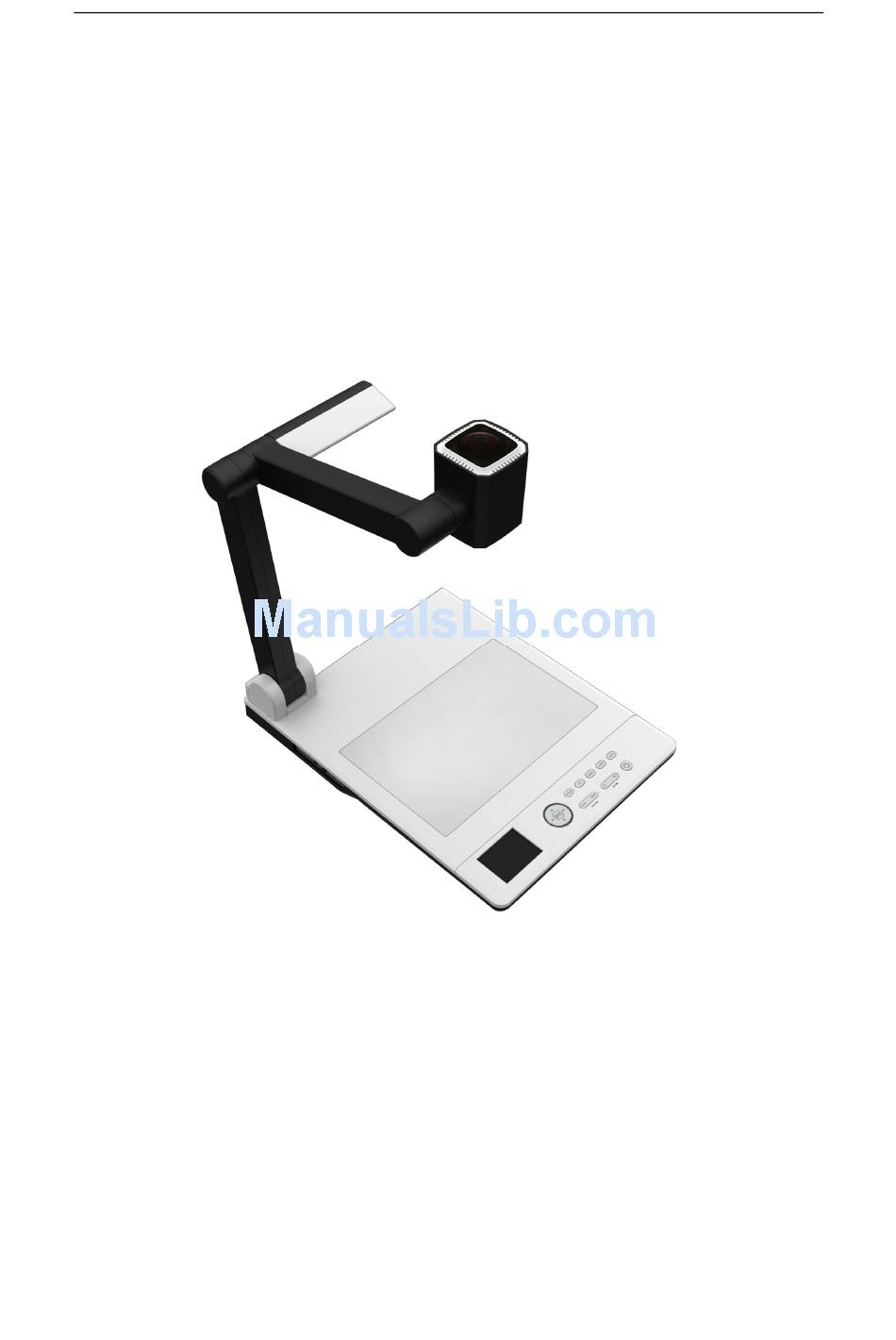

1. PARTS IDENTIFICATION 1. LED light box 2. Remote control IR receiver 3. Camera 4. Rear panel 5. Side panel-1 6. Side panel-2 7. Base light 8. Control panel 9. LCD screen...
2. CONTROL PANEL : Turn on/off the power. 2. MENU ENTER: Enter the control Menu. 3. HOME: Output the images that from the camera. 4. PC: Output the signal that from VGA input. 5. VIDEO: Output the signal that from the Video/S-Video input. 6.
3. INPUTS AND OUTPUTS 1. DC 12V: Power input. 2. RS 232: Serial port, to control the document camera by computer via this port. 3. COMPUTER & AUDIO IN: Computer signal(and audio signal) input. 4. COMPUTER OUT: Output the signal that from the COMPUTER IN connector. 5.
4. REMOTE CONTROL 1. Save: Capture the image in display. 2. Recall: a. Image recall mode enabled, display the saved images. b. When a memory stick was connected, press Recall to show the content that in the memory stick c. Back to upper lever in image recall mode. 3.
12. SXGA/XGA: Switch the output signal between SXGA and XGA. 13. Blue+/-: Image chroma control (blue). 14. PC 1/2: Switch the input between PC1 and PC2. 15. Video 1/2: Switch the input between Video1 and Video2. 16. Menu Enter: a. Active the on screen menu. b.
5.4 DVI OUTPUT 5.5. C-VIDEO & S-VIDEO INPUT To Audio Output(L) Player 1 Audio cable To Audio Output(R) To Video Output Video cable Side panel-2 To S-Video output S-Video cable Player 2 To audio output(L) Audio cable To audio output(R)
5.6. C-VIDEO & S-VIDEO OUTPUT 6. RS232 SOFTWARE 6.1 COMPUTER REQUIREMENTS The PC's hardware and software configurations shall not be less than the following requirements: Operating system: Windows XP CPU: PIV1.8G Physical memory: 512M Video memory: 64M 6.2. SOFTWARE INSTALLATION Double click the RS232 software that in provided CD to run the install shield wizard.
Page 13
Read terms, select "I accept the terms in the license agreement" Click Next: Click Change to change the installation directory if needed, then click Next:...
Page 14
Click Install to install the software to the computer: Click Finish, the software installation is complete:...
6.3 SOFTWARE START AND SETTING Connect the computer and the VP-35 with a RS232 cable, turn on the power of VP-35, then double click or click start->All Programs->Visualizer_RS232-> Visualizer_RS232.exe to run the RS232 software, you will see the Icon on the task bar and the control interface on the top right...
Page 16
Set the software properly: : Select corresponding model number. : Select the right COM port. Note: * If the selected model does not have certain functions, the corresponding buttons in the software interface are displayed in light gray and are not clickable. * All models require 15 seconds start-up time to start the software.
6.4. BUTTON INSTRUCTION Button Function Power the unit on Power On Stand by Power Off Visualizer output mode Home Video 1 input Video1 In Video 2 input Video2 In PC1 input PC1 In PC2 input PC2 In Image freeze Freeze Toggle between arm light, backlight and light off modes Light Increase the brightness...
Page 18
Increase the blue hue Blue+ Decrease the blue hue Blue- Increase the sharpness Sharpness+ Decrease the sharpness Sharpness- Auto focus, brightness and color Auto Save image Save Recall saved images Recall Switch between negative and positive modes Switch between black/white and color modes Split screen Split Mirror image...
2. Memory stick * Connect the memory stick with VP-35, then press Recall button to access the memory stick. * Use the left and right arrow to exit/enter a folder.
Page 20
To install and uninstall, please login in as system administrator, otherwise, the install/uninstallwill fail. Please connect the unit to the PC before starting installation. Please select the right software to install: Visualizer_USB(x32): Windows XP, 32bit. Visualizer_USB(Windows7 x64): Windows 7, 64bit. Visualizer_USB(Vista x64): Windows Vista, 64bit.
Page 21
The default installation directory is Program Files, C: \ Program Files \, you can select a different installation directory, as shown: Click "Change" to change the directory, as shown:...
Page 22
Click "OK", the following figure appears. Click "Next". Click "Install" to complete installation, as shown:...
Page 23
Click "Finish” to complete the installation, as shown: Then you will see the following interface, which is an installation package for 2005 environment. If your PC already has this installed, click "No" to exit, otherwise, click "Yes" to install it.
7.2.3 SOFTWARE START Note: To use the software, the document camera’s USB mode has to be set to USB Video mode. Please follow the instruction below: A. Make sure the USB cable is disconnected from the unit. B. Press the USB button on the remote, a dialog box appears on the screen, under which you will see USB disk or USB video, use the arrow keys on the remote or front panel to select the USB video mode.
Then you will see the image from the camera. 7.2.4 IMAGE CONTROL Zoom In Ctrl+I : Left-click the Zoom In command button to enlarge the image. Keep ( ) holding the button until it reaches the maximum zooming point. Zoom Out Ctrl+O : Left-click the Zoom Out command button to shrink the image.
Sharp Less: Left click the Sharp Less button to reduce the sharpness. Auto Ctrl+U : Left click the Auto button to auto adjust the focus. ( ) Mirror Ctrl+M : Left click the Mirror button to adjust image to normal mirror, horizontal (...
Left click to start recording. The button changes to the green color and the detailed information is displayed on the software status bar in the bottom of the window. The video is automatically saved in the default folder or pre-set folder. 7.2.6 SETTING The captured images and recorded videos will be saved into the folders of Images and Videos respectively, which are created by the system automatically.
Press "ZOOM+"or "ZOOM-" POSITIVE/NEGATIVE CONVERSION The VP-35 is automatically set to display normal materials on the screen when the power is on. To display negatives, simply laying any film negative on the platform and press the Neg button on remote control, the negative image is converted to a positive picture instantly.
Press “TITLE” to enable the title function. PICTURE IN PICTURE FUNCTION Press “PIP” on remote control to active the picture in picture function. IMAGE SAVE The VP-35 offers the opportunity of storing 400 images on board. You can recall them by just...
Use “Video 1/2” to switch between Composite video & S-Video signals. USB IMAGE CAPTURE AND VIDEO RECORDING The USB port can be used to capture still images from the VP-35 into a computer. In this way, the VP-35 can be used as a 3-D scanner for your computer.
9. SPECIFICATION Model i2331 Sensor 1/3" CMOS Pixels 3 Megapixel Zoom 9x optical, 12x digital Frame rate Shooting area Max: 13.5" x 10.6" /34.3 cm x 26.9 cm Min: 0.1" x 0.1"/0.3 cm x 0.3 cm Focus Auto/manual Output resolution XGA,SXGA, WXGA Resolution(Horizontal) ≥750 TV lines...
10. TROUBLE-SHOOTING: Symptoms Possible causes/counter-measures No image 1. Power cord is not properly connected. 2. Cables are not properly connected. 3. Power switch is not turned on. 4. The built-in fuse is broken: Change fuse. 5. Change the output resolution. Image bending Camera not in right position, adjust the camera.
