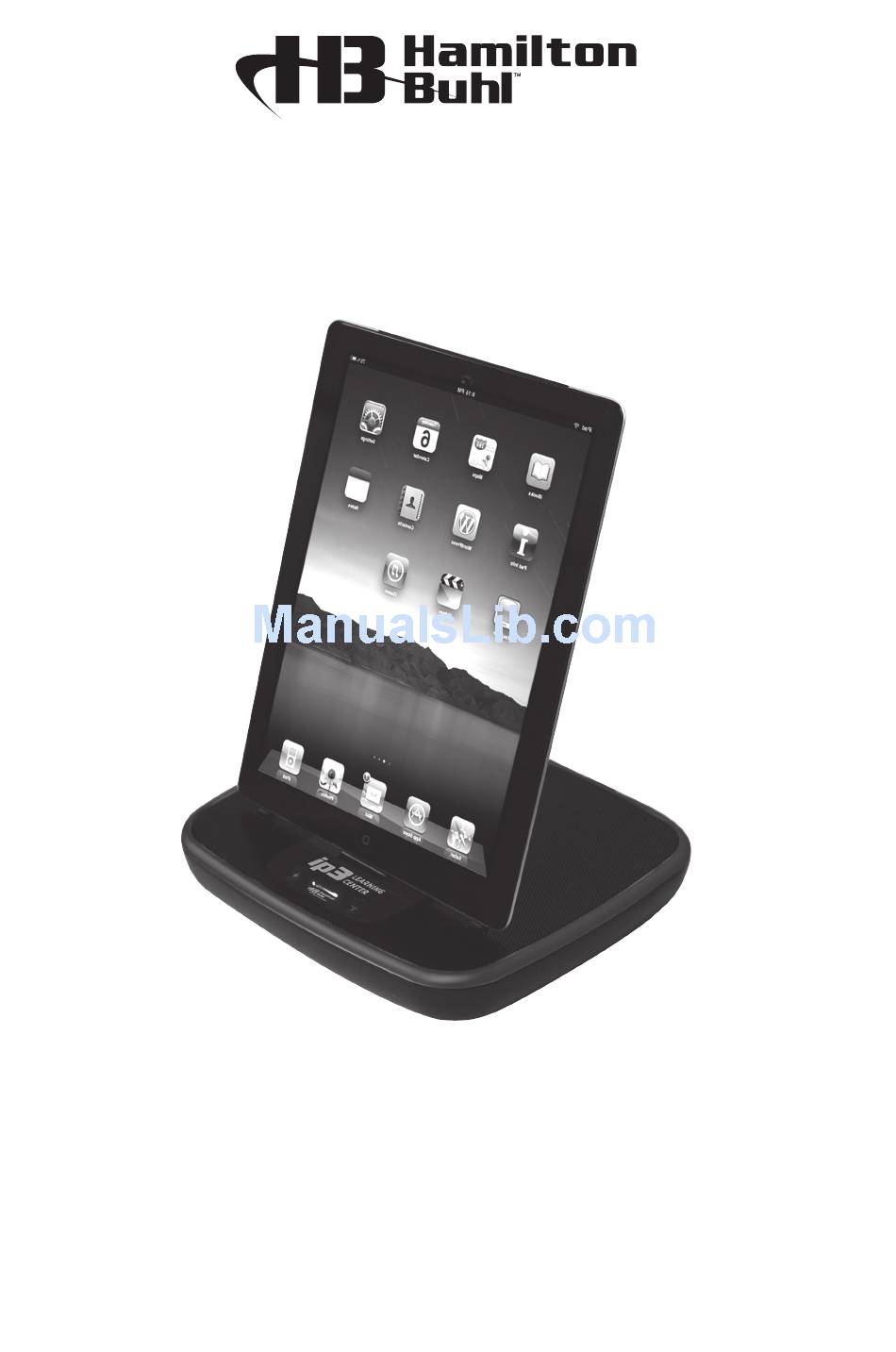

  • Page 1 Learning Center USER’S MANUAL...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This Caution Marking and Rating Label are located at the bottom enclosure of the unit. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the...

  • Page 4: Surge Protectors

    SAFETY PRECAUTIONS INFORMATION: This equipment complies with Class B digital device regulations. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

  • Page 5: Location Of Controls

    LOCATION OF CONTROLS Top View Rear View 1. Left Speaker 2. iPod/iPhone/iPad Dock with 30-pin Connector 3. Right Speaker 4. Volume Down Button 5. Power indicator 6. Volume Up Button 7. PHONES Jack (6PCS) 8. AUX IN Jack 9. DC IN Jack 10.Power ON/OFF Switch...

  • Page 6: Power Source

    POWER SOURCE AC CONNECTION Insert the small end of the AC adaptor into the DC IN Jack (located on the rear of the unit). Connect the other end to a wall outlet providing 100-240V AC, 50/60 Hz. NOTES: • Disconnect both the DC IN plug and the AC plug when not in use.

  • Page 7: Optional Connection

    OPTIONAL CONNECTION AUX IN JACK (REAR OF UNIT) Insert one end of the audio cable (not included) into the AUX OUT jack on the external audio unit and the other end into the AUX IN jack on the rear of this unit. To listen to the external audio unit, turn this unit on using the Power ON/OFF Switch, then turn on the external audio unit and begin playback.
  • Page 8 INSERTING AN iPod/iPhone/iPad Slide the iPod/iPhone/iPad (A) The iPod/iPhone/iPad will charge onto the Dock (B) as shown. as long as this unit is plugged in Gently push down so the to the AC adapter. connector on the iPod/iPhone/iPad slides onto then connector of this unit.

  • Page 9: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If you experience a problem with this unit, please consult the chart below before calling for service. No sound from Volume is set to minimum Increase the volume speaker Incorrectly connected Ensure proper connection AUX IN cable connected Unplug AUX IN cable iPod/iPhone/iPad not AC adapter not plugged in...

  • Page 10: Specifications

    SPECIFICATIONS Power Adapter 100-240V AC, 50-60Hz In; 3.5A, 5V DC Out 2 x 4 ohms 2 x 2W (THD 10% ) 8.5” (H) x 7.4” (W) x 2.2” (D) iPod/iPhone/iPad...
