RowingSolutions Ltd

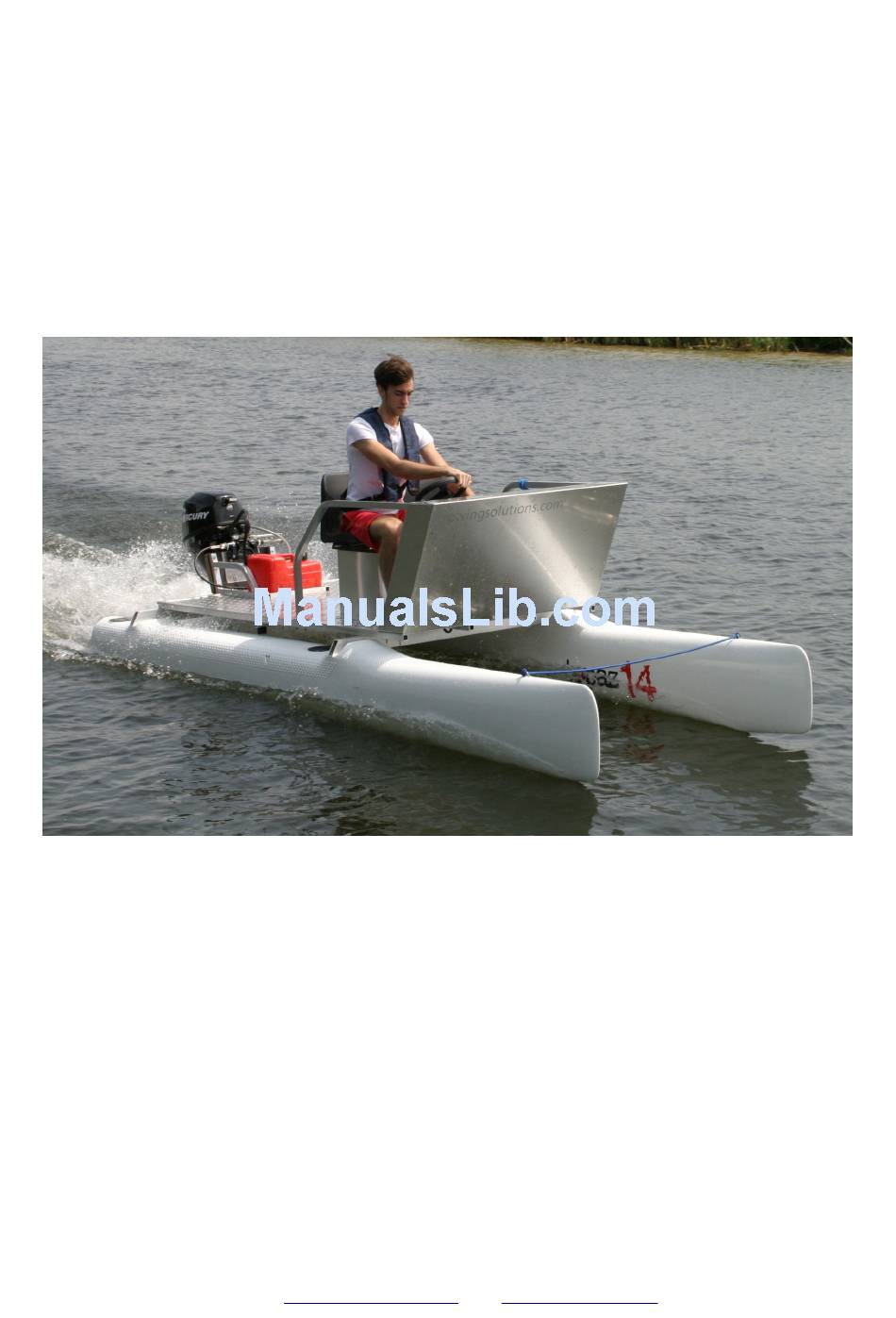

Owner's Manual CAT2014
Page 1
Owner's Manual
CAT2014
Please keep this manual in a secure place and hand it over to the new owner
when you sell the craft.
If this is your first craft, or you are changing to a type of craft you are not
familiar with, for your own comfort and safety, ensure that you obtain
handling and operating experience before assuming command of the craft.
Any boat dealer or national sailing federation or yacht club will be pleased to
advise you of local sea schools, or competent instructors.
66 Highfield Park, Wargrave, Reading. RG10 8LE. UK Tel: +44(0)1189 401 041 Mobile: +44(0)7860 224 007
E-mail:
simon@rowingsolutions.com
Web:
www.rowingsolutions.com
Advertisement
Table of Contents
Related Manuals for RowingSolutions CAT2014
Summary of Contents for RowingSolutions CAT2014
- Page 1 RowingSolutions Ltd Owner’s Manual CAT2014 Page 1 Owner's Manual CAT2014 Please keep this manual in a secure place and hand it over to the new owner when you sell the craft. If this is your first craft, or you are changing to a type of craft you are not familiar with, for your own comfort and safety, ensure that you obtain handling and operating experience before assuming command of the craft.
-
Page 2: Table Of Contents
RowingSolutions Ltd Owner’s Manual CAT2014 Page 2 CONTENTS Section WELCOME Boating Experience Responsibility ABOUT THIS MANUAL Original Equipment Manufacturer (OEM) Manuals Safety Labels Explanation of Hazard Warnings GENERAL ARRANGEMENT Boat Identification & CE Marking Classification RCD Design Category Explanation 3.1.1... -
Page 3: Welcome
Household Waste Noise Wash / Waves 1 WELCOME Congratulations on becoming the new owner of a: CAT2014 Make sure you receive a full explanation of all systems from the person transferring ownership to you. 1.1 Boating Experience If this is your first craft, or you are changing to a type of craft you are not familiar with, for your own comfort and safety, ensure that you obtain handling and operating experience before assuming command of the craft. -
Page 4: About This Manual
RowingSolutions Ltd Owner’s Manual CAT2014 Page 4 conditions; 5 Never sail when the operator is under the influence of drugs or alcohol; 6 Be aware of the crew/passenger's safety at all times; 7 Ensure all crew receive suitable training, particularly with regards to location and operation of safety equipment;... -
Page 5: Explanation Of Hazard Warnings
RowingSolutions Ltd Owner’s Manual CAT2014 Page 5 The craft and this manual show symbols which advise the owner/operator and crew of imperative safety precautions to follow when operating and/or servicing equipment. The following symbols may be found on your craft. They should be respected at all times. -
Page 6: General Arrangement
3.1 Boat Identification & CE Marking Classification Type of Boat:................CAT2014 Manufacturer's Craft Identification Number........GB-SJIxxxxxMMYY Name of Boat Manufacturer............RowingSolutions Ltd RCD Design Category..............D, INSHORE Maximum recommended number of people.........2 (adults) 1 RCD = EU Recreational Craft Directive See table in section 3.2.1 3 For maximum weight limit see: 3.2.3... -
Page 7: Principal Dimensions
RowingSolutions Ltd Owner’s Manual CAT2014 Page 7 3.2 Principal Dimensions 3.2.1 Hull Size (Dimensions in millimeters) Length of Hull 4250 Length - max. overall LMAX 4250 Beam of hull 1650 Beam - maximum BMAX 1650 Freeboard fwd Freeboard amidships Freeboard aft... -
Page 8: Systems Descriptions
RowingSolutions Ltd Owner’s Manual CAT2014 Page 8 3.2.3 Weights All weights in kilograms (Kg) Unladen Weight of craft (lightweight) without engine Maximum Number of Persons Heaviest allowable outboard motor Portable fuel tanks Baggage, outboard, & other carry-on weights Max Load as on Builder's Plate Essential safety equipment &... -
Page 9: Dc System
RowingSolutions Ltd Owner’s Manual CAT2014 Page 9 • Leave the craft unattended with the electrical system energised, except automatic bilge- pump, fire protection and alarm circuits. • Petrol vapour can explode. Only fit ignition protected, marine parts to replace such items as starters, distributors, alternators, generators, etc. -
Page 10: Fuel System
RowingSolutions Ltd Owner’s Manual CAT2014 Page 10 When charging and (dis)connecting a battery ensure that no water or metal objects can contact the terminals. Caution Battery Disconnection Battery selector switch location: N/A - only one battery Disconnect switch location(s): See table of batteries. -
Page 11: Steering System
RowingSolutions Ltd Owner’s Manual CAT2014 Page 11 Engine On centerline on aft deck crossbeam Refer to manufacturer's instructions for details of the above equipment. Do not smoke or use open flame when filling with fuel, when working on the fuel system and when in the engine room. -
Page 12: Pre-Launch Observations
RowingSolutions Ltd Owner’s Manual CAT2014 Page 12 Failure of the steering system will cause loss of control of your boat. Any change in steering such as looseness, tightness, binding, etc., must be checked immediately by a qualified person. Warning 5 PRE-LAUNCH OBSERVATIONS 5.1 Recommended Safety Equipment... -
Page 13: Strainers
RowingSolutions Ltd Owner’s Manual CAT2014 Page 13 The following openings are marked "WATERTIGHT OPENING - KEEP SHUT WHEN UNDER WAY" and care should be taken to observe this warning: Caution 1. Port fwd inspection port 2. Port aft inspection port 3. -
Page 14: Navigation & Operation
RowingSolutions Ltd Owner’s Manual CAT2014 Page 14 NEVER • obstruct portable extinguishers in lockers Information • obstruct safety controls (shut off valves, switches) • modify craft's systems, especially fuel. • fill any fuel tank whilst machinery is running • smoke while handling fuel •... -
Page 15: Handling Characteristics
RowingSolutions Ltd Owner’s Manual CAT2014 Page 15 Danger If a fuel leak or fumes are detected, do not start the engine.Ensure all crew leave the boat and have a qualified person repair the fault as soon as possible. Warning Controls installed with the motor must have a start-in-gear v device. It is the owner's responsibility to ensure this is so, should the engine or its controls be repaired/replaced. -
Page 16: Navigation Lights
RowingSolutions Ltd Owner’s Manual CAT2014 Page 16 • Propulsion engine trim angles • Loading and load distribution • Speed • Rapid acceleration • Sea conditions • Rain and spray • Darkness and fog • Persons or movable gear in operator's field of vision... -
Page 17: Filling With Fuel
RowingSolutions Ltd Owner’s Manual CAT2014 Page 17 A tow line shall always be made fast in a way that it can be released when under load. Caution When at anchor, it is damaging to leave the full load of the boat resting on the windlass. It is recommended that the chain be tied onto a local strong point. -
Page 18: Maintaining The Electrical System
RowingSolutions Ltd Owner’s Manual CAT2014 Page 18 KEY: X - Activity required Y - Activity required by qualified individual 7.1 Maintaining the Electrical System Work on electrical wiring can create shock hazards or sparks. Warning To prevent arcking or damage to the alternator, always disconnect battery cables before doing any work on the engine's electrical system. -
Page 19: Winter Storage
RowingSolutions Ltd Owner’s Manual CAT2014 Page 19 • Check all wiring for proper support. • Check all wiring insulation for signs of fraying or chafing. • Check all terminals for corrosion - corroded terminals and connectors should be replaced or thoroughly cleaned. -
Page 20: Leakage Of Petrochemicals
RowingSolutions Ltd Owner’s Manual CAT2014 Page 20 8.1 Leakage of Petrochemicals ALWAYS:.... Investigate the source of any oil leaks as soon as possible. Dispose of recovered spilt oil correctly. Have oil-absorbing cloths or rolls on board. NEVER:....Dispose overboard of any oil, paint or other chemical that is potentially harmful to the environment.
