SmartGuard

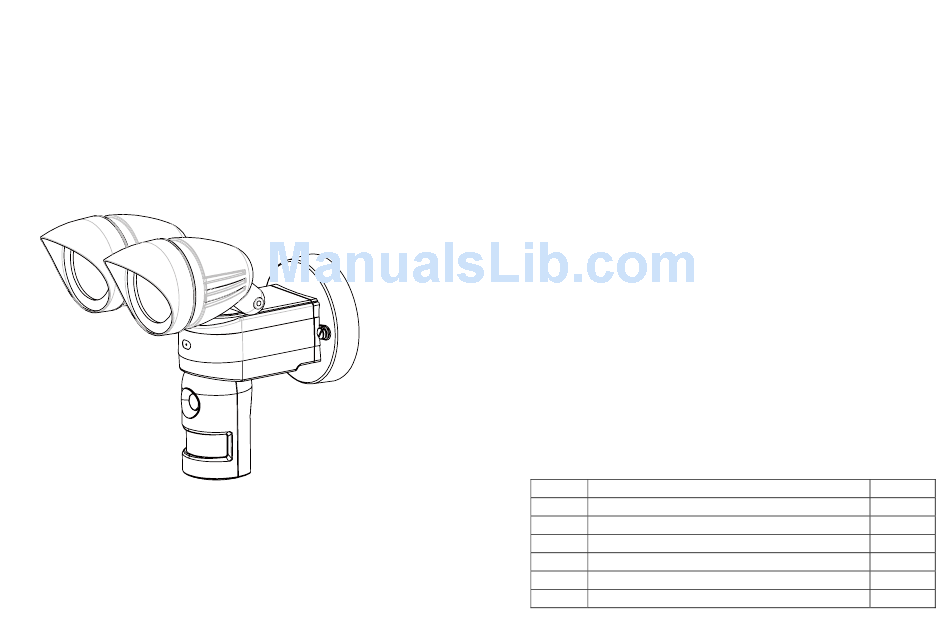

E120CA-1
User's Manual
Table of Contents:
SmartGuard Overview .......................................................... 2
Definition of View Parts......................................................... 3
Installation............................................................................. 4
Step 1 Insert/remove SD card......................................... 4
Step 2 Bulb Installation ................................................... 4
Step 3 Install Back Up Batteries ..................................... 5
Step 4 Local Time Setting ............................................... 5
Step 5 Function Setting................................................... 6
Step 6 Adjusting the Control Knobs ................................ 9
Step 7 Mounting SmartGuard ......................................... 9
How to View the Video ........................................................ 12
Contents of Package:
No.
1
Base Unit (E120CA-1)
2
AA Size 1.5V Alkaline Battery
3
2GB SD Card
4
Screw Pack
5
Halogen Bulb
6
Operating Instruction Manual
Item
Qty
1
1
4
1
1
2
1
Advertisement
Table of Contents
Summary of Contents for Felli Housewares SmartGuard E120CA-1
-
Page 1: Table Of Contents
Table of Contents: SmartGuard SmartGuard Overview ............2 Definition of View Parts............3 Installation................4 E120CA-1 Step 1 Insert/remove SD card......... 4 Step 2 Bulb Installation ........... 4 Step 3 Install Back Up Batteries ........5 Step 4 Local Time Setting ..........5 Step 5 Function Setting........... -
Page 2: Smartguard Overview
SmartGuard Overview Side View Features Crystal Clear Color Video Camera (640*480) Battery Cover Motion Activated Security Light Capture 20sec/1min/5mins video when motion detected SD card memory slot, 2GB SD card included 4 Alert Sounds for selection (2 are recordable) 4 Scenes satisfy various using scenario Weather proof, easy to install SD Slot Front View... -
Page 3: Installation
Installation CAUTION: (1) Always handle quartz halogen bulb with a soft cloth. Do not touch the bulb Step 1 Insert/remove SD card with your bare hand as it will shorten the bulb life. (2) Do not touch the light while it is in use or still hot. Cool off (about 5 minutes) before touching it. -
Page 4: Step 5 Function Setting
Scene 1: Ideal for away from home (all day detection) Year No matter it’s day or night, camera, speaker and light are all in operation. Scene 2: Ideal for day to day use Under standby mode, press Set for 3 Light isn’t operating in daytime while speaker isn’t operating at night. -
Page 5: Step 6 Adjusting The Control Knobs
To record your own alert sound/voice: Step 6 Adjusting the Control Knobs Select audio warning 3 or 4. Press Set for 3 seconds, the light flashes once implies the SmartGuard is ready for Time Control recording. Wait for 5 seconds, LCD occurs with The TIME adjustment controls the video recording time and REC, the recording starts. - Page 6 Wire SmartGuard IMPORTANT Mounting Straps Some local building codes may require installation of this product by a qualified Switch off the power source or wall switch. electrician. Align the mounting straps to the junction box with the holes. Secure with mounting screws. Check your local codes as they apply to your situation.
-
Page 7: How To View The Video
