Page 1: Acs Series

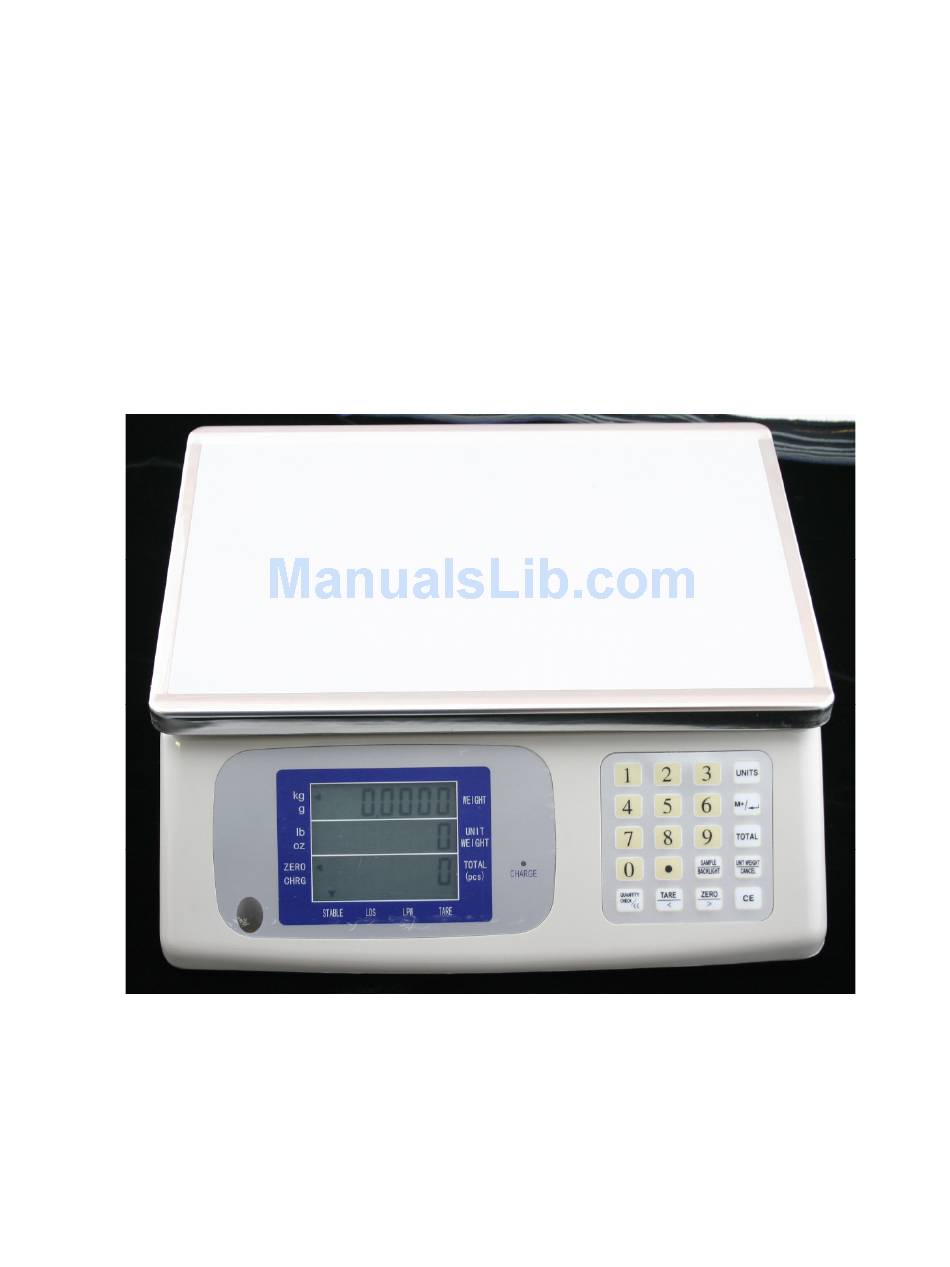

ACS Series Digital Counting Scales USER MANUAL SCALES usa © 2005 Page 1 of 16... - Page 2 SCALES usa © 2005 Page 2 of 16...
-
Page 3: Introduction
LCD’ s are supplied with a backlight. Features include automatic zero tracking, audible alarm for pre-set weights, automatic tare, pre-set tare and an accumulation facility that allows the count to be stored and recalled as an accumulated total. SCALES usa © 2005 Page 3 of 16... -
Page 4: Table Of Contents
ENTERING A KNOWN UNIT WEIGHT............12 PRESET COUNTING ALARM ................12 ACCUMULATED TOTAL COUNT..............13 BATTERY OPERATION ................13 OPTION SETTINGS ..................14 SETUP TABLE 1 .................... 14 SCALES USA Warranty Information ............16 SCALES usa © 2005 Page 4 of 16... -
Page 5: Specifications
4.1kg / 9.1lb Applications General Purpose Parts Counting Scale Functions Kilogram/g/lb/oz weighing - parts counting - accumulating memory - preset count with alarm Internal Rechargeable 6V / 4Ah Sealed Lead Acid Battery Battery SCALES usa © 2005 Page 5 of 16... -
Page 6: Setup
Do not store the scale with batteries installed if it will not be used for over 30 days to precent damage from battery corrosion. The battery charge light will illuminate whenever the scale is attached to power. SCALES usa © 2005 Page 6 of 16... -
Page 7: Keyboard Functions
UNIT WEIGHT: The center display line indicates the average or set unit piece weight. TOTAL: The bottom display line indicates the accumulated total number of pieces on the platform. SCALES usa © 2005 Page 7 of 16... -
Page 8: Keyboard
TARE/<: Used to subtract the weight of a container. Indicates that the current reading is the net weight. In setup mode, this key can be used as a shift key SCALES usa © 2005 Page 8 of 16... -
Page 9: Scale Operation
(Figure 3). Figure 3 Figure 4 Select the desired position of the Battery Selection to Battery or Dry Cell power as follows. SCALES usa © 2005 Page 9 of 16... -
Page 10: Zeroing The Display
Press the TARE key to tare the scale. The weight that was displayed is stored as the tare value and that value is subtracted from the display, leaving zero on the display. SCALES usa © 2005 Page 10 of 16... -
Page 11: Pretare
To determine the average weight of the items to be counted it will be necessary to place a known quantity of the items on the scale and then key in the number of items being weighed. The scale will then divide SCALES usa © 2005 Page 11 of 16... -
Page 12: Entering A Known Unit Weight
5. H XXX will now show in the center window. Key in the high limit value and press the M+ key again. 6. The scale will now return to the weighing mode and the Quantity Alarm will be on. SCALES usa © 2005 Page 12 of 16... -
Page 13: Accumulated Total Count
The battery should be charged for 12 hours for full capacity. When the battery life becomes unacceptable then obtain a sealed lead acid replacement battery of the same type and capacity. SCALES usa © 2005 Page 13 of 16... -
Page 14: Option Settings
ZERO/>. The original grade is 1. The higher the grade is, the larger the zero tracing is. . Press M+ to save it. The display will show next menu. Or press the UNIT WEIGHT/CANCEL key to exit. SCALES usa © 2005 Page 14 of 16... - Page 15 “ ACAL?” menu to enter it, choose ON (or OFF) by ZERO/> key. Press M+ to save it. The display will show next menu. Or press the UNIT WEIGHT/CANCEL key to exit. SCALES usa © 2005 Page 15 of 16...
-
Page 16: Scales Usa Warranty Information
During the one year warranty period, if your scale fails to work properly when used under normal conditions, Scales USA will repair, or at our option, replace it without charge. The Scales USA user has to pay the shipping charge to send the defective scale with the receipt of purchasing back to us and we will pay the cost of shipping to return the repaired or replaced scale to user.
