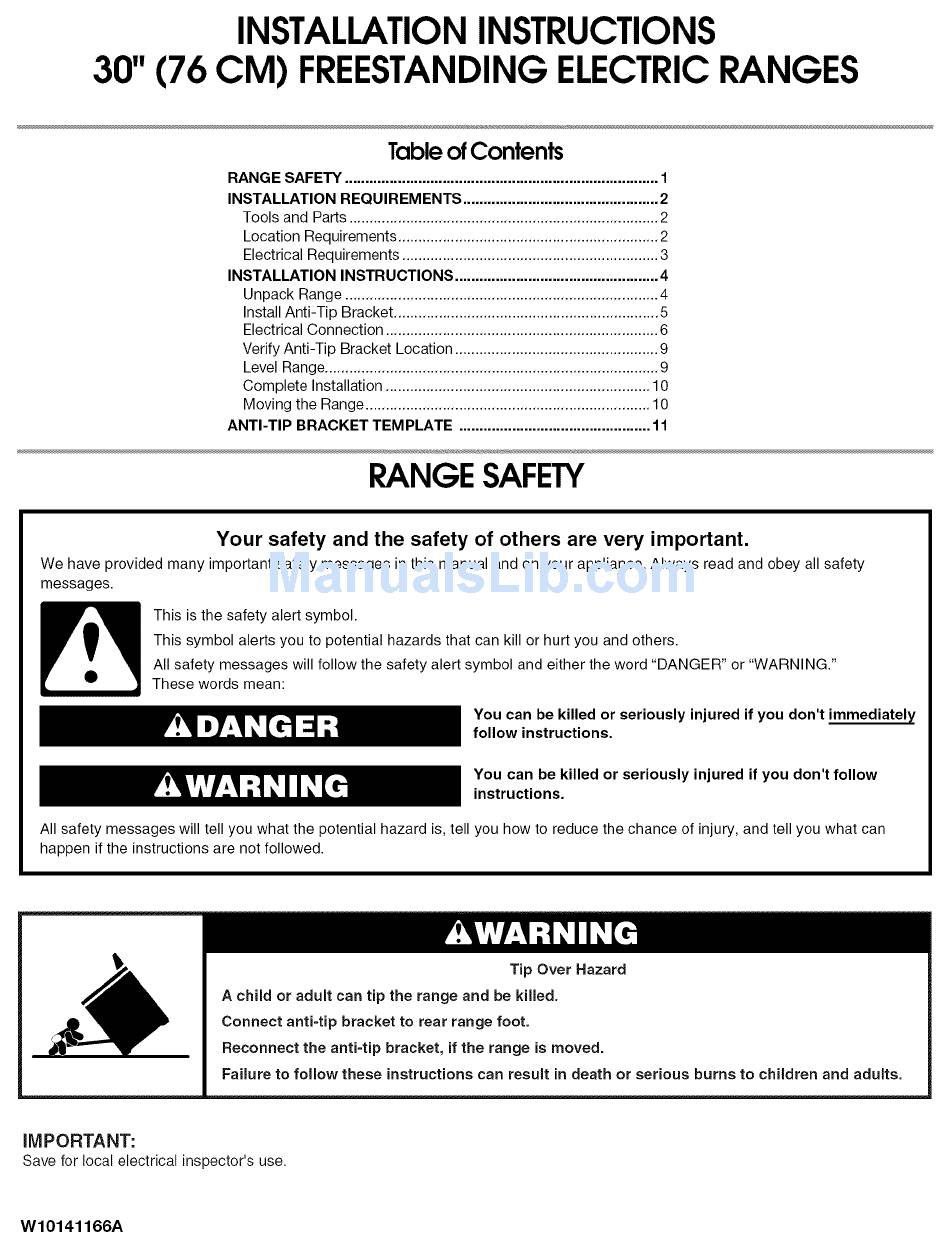

INSTALLATIONINSTRUCTIONS
30" (76 CM) FREESTANDING ELECTRICRANGES
Table ofContents
RANGE SAFETY .............................................................................
1
INSTALLATION REQUIREMENTS
................................................
2
Tools and Parts ............................................................................
2
Location Requirements ................................................................
2
Electrical Requirements ...............................................................
3
INSTALLATION
INSTRUCTIONS ..................................................
4
Unpack Range .............................................................................
4
Install Anti-Tip Bracket .................................................................
5
Electrical Connection ...................................................................
6
Verify Anti-Tip Bracket Location ..................................................
9
Level Range ..................................................................................
9
Complete Installation .................................................................
10
Moving the Range ......................................................................
10
ANTI-TIP BRACKET TEMPLATE
...............................................
11
RANGE SAFETY
Your safety and the safety of others
are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
I
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip
bracket to rear range foot,
Reconnect
the anti-tip
bracket,
if the range is moved.
Failure to follow
these instructions can result in death or serious burns to children
and adults.
iMPORTANT:
Save for local electrical inspector's use.
W10141166A
Advertisement
Related Manuals for Amana AER5821VAS0
Summary of Contents for Amana AER5821VAS0
- Page 1 INSTALLATIONINSTRUCTIONS 30" (76 CM) FREESTANDING ELECTRICRANGES Table ofContents RANGE SAFETY ................INSTALLATION REQUIREMENTS ..........Tools and Parts ................Location Requirements ..............Electrical Requirements ............... INSTALLATION INSTRUCTIONS ..........Unpack Range ................Install Anti-Tip Bracket ..............Electrical Connection ..............Verify Anti-Tip Bracket Location ..........Level Range ..................
-
Page 2: Installation Requirements
INSTALLATION REQUIREMENTS equ ss m®n s Gather the required tools and parts before starting installation. IMPORTANT: Observe all governing cedes and ordinances. Read and follow the instructions provided with any tools listed • It is the instalbr's responsibility to comply with installation here. - Page 3 Product Dimensions A. 13" (33.0 cm) max. upper cabinet depth B. 30" (76.2 cm) min. opening width C. For minimum clearance to top of cooktop, see NOTE*. D. 30" (76.2 cm) min. opening width E. Outlet - 8" (20.3 cm) to 22" (55.9 cm) from either cabinet, A.
-
Page 4: Installation Instructions
Electrical Connection If connecting to a 4-wire system: To properly install your range, you must determine the type of This range is manufactured with the ground connected to the electrical connection you will be using and follow the instructions cabinet. The ground must be revised so the green ground wire of provided for it here. - Page 5 On Ranges Equipped with Storage Drawers: Place template on the floor in cabinet opening so that the left edge is against cabinet and top edge is against rear wall, Remove the storage drawer. Use a %" drive ratchet to lower molding or cabinet.
- Page 6 10.Move range i ntoitsfinal l ocation m aking s ure rear l eveling l eg 11.If installing therange i na mobile h ome, youmust s ecure t he slides intoanti-tip bracket. range t othefloor. Any method o fsecuring therange i s adequate aslong asitconforms tothestandards inthe "Location R equirements"...
- Page 7 Style 2: Direct wire strain relief 4-wire connection: Power supply cord • Remove the knockout as needed for the flexible conduit connection• Use this method for: • Assemble a UL listed conduit connector in the opening. • New branch-circuit installations (1996 NEC) •...
- Page 8 In an area where local codes prohibit grounding through the neutral 3-wire connection: Power supply cord Remove the ground-link screw from the range frame. Save Use this method only if local codes permit connecting cabinet- the ground-link screw and cup washer. Bend the ground-link ground conductor to neutral wire of power supply cord.
- Page 9 3-wire connection: Direct wire Pull drawer open to first stop position. Lift front of drawer to Use this method only if local codes permit connecting ground clear white wheels in drawer guides. Remove drawer and set conductor to neutral supply wire. it aside on a protected surface.
- Page 10 For power supply cord-connected ranges: 1. Unplug the power supply cord. 1. Check t hatallparts arenow installed. Ifthere isanextra part, 2. Slide range forward to complete cleaning or maintenance. goback through t hesteps toseewhich step wasskipped. 3. Check that anti-tip bracket is installed: 2.
-
Page 11: Anti-Tipbracket Template
ANTI-TIPBRACKET TEMPLATE Cut on dotted lines and place the left edge against the left side cabinet and the top edge against the rear wall. Top edge Use this template te anchor the left rear leg ef range. - Page 12 W10141166A © 2007. 7/07 Printed in U.S.A. All rights reserved.
