Quantaray
By Sunpak

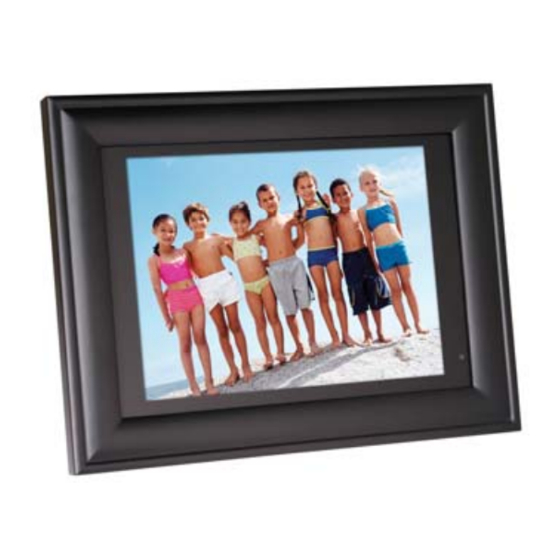

10.4" Digital Photo Frame Operation Manual
Stock no. 81-166-0307
Digital Photo Frame
Operation Manual
Warranty Card
Remote Controller
Thank you for purchasing this Sunpak product. For
optimum performance and safety, please read this
operation
manual
operating and adjusting this product. Please keep this
manual in a safe place for any future reference.
AC Adapter
USB Cable
carefully
before
connecting,
Advertisement
Table of Contents
Related Manuals for Sunpak Quantaray
Summary of Contents for Sunpak Quantaray
- Page 1 Stock no. 81-166-0307 Digital Photo Frame Operation Manual Warranty Card AC Adapter USB Cable Remote Controller Thank you for purchasing this Sunpak product. For optimum performance and safety, please read this operation manual carefully before connecting, operating and adjusting this product. Please keep this...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Main Features Product Structure Operational Instructions Power on/off Main Menu Subtitle Menu Play/Pause Select File Adjust Volume Menu Setup Instructions Setup menu Keys Photo Browsing photo Play single photo Album setup Delete Music Play single music Control when playing Music setup Delete... - Page 3 Files Browse files Control when browsing Delete System Management How to enter Menu instruction How to setup Memory Cards HOST Function USB Function Earphone Use Screen Adjustments Troubleshooting Specifications Remote Control...
-
Page 4: Important Safety Instructions
Important Safety Instructions To reduce the risk of electric shock or product damage, do not remove screws. Do not use this apparatus near water. Do not expose this unit to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed near or on the apparatus. - Page 5 The unit can become hot and cause burns. Please avoid using earphone for long time or with over volume, otherwise it will be bad for your ears. Please do not adjust volume too loud when use built-in speaker, otherwise it will bring no good voice. You may feel uncomfortable after viewing for a long time with repeating action.
- Page 6 thumbnail function; rotate/zoom/move position/show file information, adjust volume, etc. (6) Host function: Read information from mp3, USB mass storage device directly when insert them to the Host jack. ◆Simple to use: insert memory card from digital camera into digital photo frame to browse photos directly ◆High quality matrix TFT LCD ◆Can easily realize copying files between memory storages in the machine...
- Page 7 Features and Operations...
- Page 8 Tr ue col or TFT LC D di spl ay, r esol ut i on: 1 TFT 800*600/ 640*480m m 2 Li ght P ow er on/ of f di spl ay U p: P r evi ous, R ot at e, V i ew back D ow n: N ext , V i ew next E nt er : P l ay/ P ause/ zoom i n pi ct ur es, 3 P l ay K eys...
-
Page 9: Subtitle Menu
Operations ON/OFF On: Insert the DC plug of the adapter to DC jack on machine, and then connect with the AC adapter. Press POWER, after 5 seconds, the machine is on showing an initialized picture. Off: Exit to the initialized page, then POWER off, cut the electricity. Enter main menu Adjust left/right key to select memory card after come into main page, then press “ENTER”... -
Page 10: Setup Menu
after make sure in . During playing, press right key for seconds to play speedup, and press left key for seconds to rewind speedup, “ENTER” to play/pause video/music. Setup Menu instruction On the status of Main Menu, press EXIT 2 seconds to enter Setup menu is to manage Photo/Music/Movie/System, and exit. -
Page 11: Photo
Buttons Definition: UP (▲): Rotate, View next DOWN (▼): Rotate, View back ENTER: Play, Enter, Pause, Zoom in LEFT ( ): Next, Fast rewind, Volume down, Select files, Move RIGHT ( ): Previous, Fast forward, Volume up, Select files, Move EXIT: Exit Photo Browse pictures automatically... -
Page 12: Music
desired file. When a picture is showing, press ENTER to zoom in it, press RIGHT ( ) or LEFT ( ) and DOWN (▼) or UP (▲) to move it. Adjust photo display mood via Function Setup Menu. Photo Setup File information display/off Setup the time of pictures transition Remark: Maybe different interval time for different size... -
Page 13: Music Setup
Control during playing music When playing, choose files through DOWN (▼) or UP (▲), press ENTER once to pause, again to replay. Adjust volume by RIGHT ( ) or LEFT ( ). Press RIGHT ( ) or LEFT ( ) for seconds to Fast rewind/ Fast forward. -
Page 14: Video Setup
Control during playing video file When playing, choose files through DOWN (▼) or UP (▲), press ENTER once to pause, again to replay. Adjust volume by DOWN (▼) or UP (▲). Video setup The operation is same as Music Setup; the only difference is the file is video. -
Page 15: System Setup
System Setup How to enter Under the main menu, press EXIT to enter function setup menu, and it will shows Photo Setup, Music Setup, Video Setup, System Setup and EXIT. Setup Menu Instruction Information Show, Lengthen Play Time, Effect and Music Background Slide Show “Information show”... -
Page 16: Memory Card
be a media memory when it’s linked with a computer. System Language is available in different languages which includes: English, German, French, Italian, Spanish, Dutch, Simple Chinese and Traditional Chinese. How to Setup Select desired setup item through DOWN (▼) or UP (▲), then press ENTER to confirm. -
Page 17: Audio Out
line, and the memory cards/USB mass storage in this machine may transfer and save files/photos from the computer/digital camera, vice versa. Earphone Use Please use 3.5mm stereo earphone, plug it to the earphone jack. Audio Out Link your digital photo frame with other Audio apparatus from Audio Out;... -
Page 18: Troubleshooting
Troubleshooting Phenomenon Reason Solution U nable to insert Input the card w ith opposite side Change the card with right w ay memory card Pow er is on but System could not work normally Reset the machine system fail to w ork The real capacity is smaller then Formatted memorycapacity w ill be About... -
Page 19: Specifications
Specifications Screen TFT true color LCD Resolution: 800x600/640x480 USB 2.0 Port Transition speed: 480Mbps CF, MS, SD, MMC, XD etc. popular Memory memory cards with host/drive function Adapter AC adapter, Output:12VDC/1.5A Audio Format Video M-JPG, AVI (less than 352x288) Format Picture JPG/JPEG Format... - Page 20 Remote Controller...
